Pathlights

Beachside Lighting pathlights have set the standard for durability in low-voltage walkway and area lighting. Many of our pathlights are also certified as “Wildlife Friendly” by the Florida Fish & Wildlife Conservation Commission.

  • Solid Brass Low-Profile Marker Light
    • Remote transformer required
    Voltage 12 Volts AC/DC with integral driver (9-15V input, dimmable below 9V)
    Lamps Integrated LED, MR11 LED
    Lumens max 15
    CCT 1000K
    1500K (DarkSky approved)
    2700K
    3000K
    Dimensions Dome diameter: 2.19" [5.6 cm]
    Depth: 3.14" [8.0 cm]

    E3-M Four-Sector Illumination (standard)
    E3-M-1 Single-Sector Illumination
    E3-M-2 Two-Sector, Adjacent Illumination
    E3-M-OP Two-Sector, Opposite Illumination
  • Solid Brass, Low-profile Marker Light
    • Remote transformer required
    • In-ground or concrete installation
    Voltage 12 Volts AC / DC
    Lamps Integrated LED, MR16 LED
    CCT 1000K
    1500K  (DarkSky approved)
    2700K
    3000K
    Dimensions 3.5″ diameter x 5.3” depth [8.9 x 13.5 cm]
    3.8″ [9.6 cm] trim ring outer diameter

    E17 Four-Sector Illumination (standard)
    E17-1 Single-Sector Illumination
    E17-2 Two-Sector, Adjacent Illumination
    E17-OP Two-Sector, Opposite Illumination

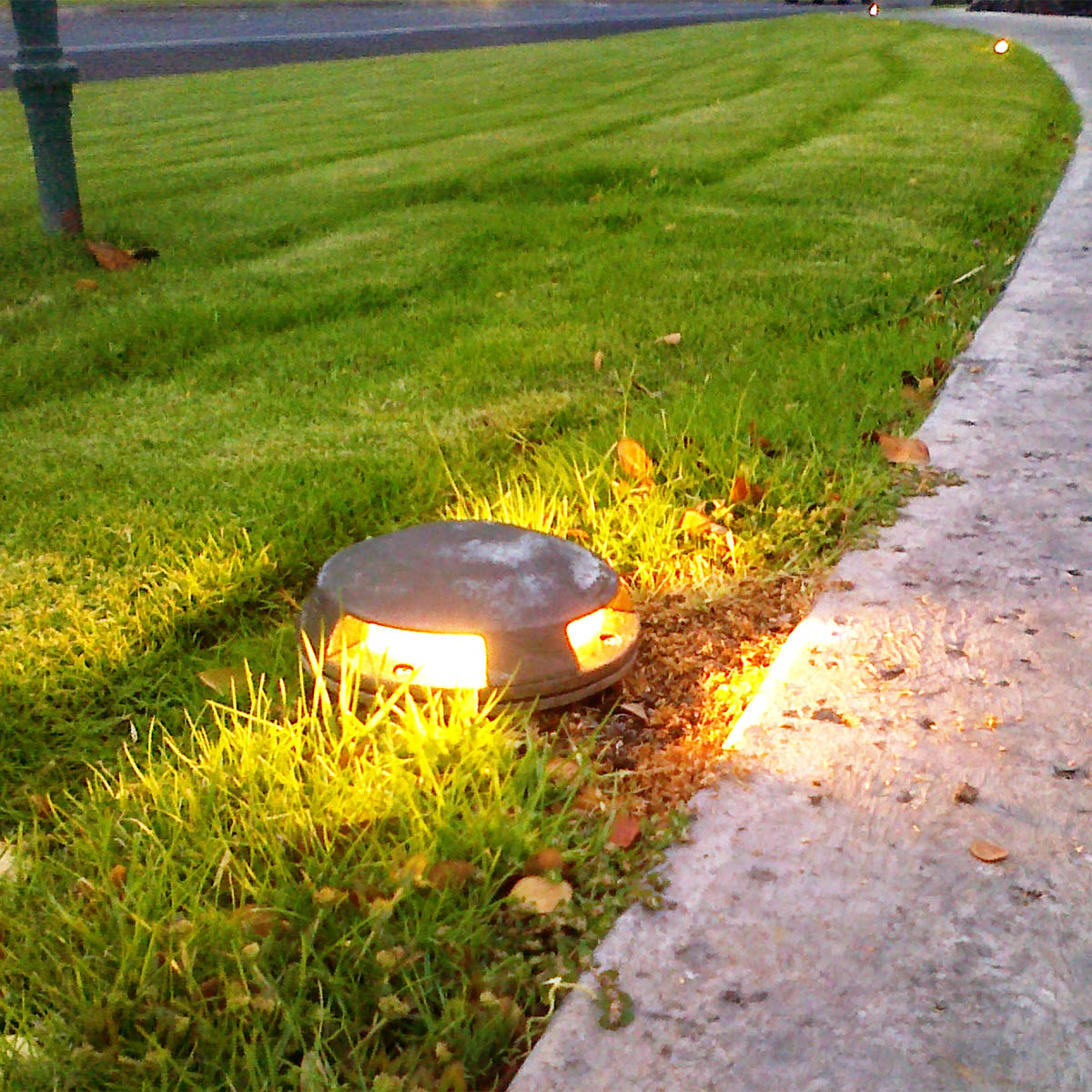

  • Brass & Composite In-Ground Pathlight for High Traffic & Drive-Over Applications The L-017 series in-ground drive-over fixtures are brass & composite pathlights for high-traffic areas. This low-profile fixture is ideal for paths with low ground cover and along pathways used by golf carts, service trucks, or automobiles at country clubs & resorts.
    • CR” versions add a Concrete Ring for fully recessed concrete installation.  Ring diameter is 6.7″ (17cm) and exposed height reduces to 1.7″ (4.2 cm).   [L-017-CR, L-017-C-CR]
    • Remote transformer required for 12V
    Voltage 12V, 120v, 230V
    Lamps MR16 LED
    CCT 1500K (DarkSky approved)
    3000K
    Dimensions 6.5″ dia. x 1.9″ exposed height (16.5 x 4.9 cm)
  • Solid Brass, Low-Voltage, Stem-Mounted Path Light
    • Ideal for walkways and tall groundcover
    • Remote transformer required
    • Custom stem lengths available
    Voltage 12 Volts AC with integral driver (9 – 15V input, dimmable below 9V)
    Lamps Integrated LED
    Lumens max 98
    CCT 1000K
    1500K
    2700K
    3000K
    Dimensions Lamp Housing: 1.6” diameter x 3.1"  [4.2 x 7.8 cm]
  • Brass Bell-Type Pathlight The L-004 is a bell-type path light made from brass and copper.  Ideal for walkway and area lighting in any landscape theme and location.
    • Remote transformer required
    • Durable construction: all brass components with copper bell shade
    • CSA Listed to US and Canadian safety standards, file #190030
    Voltage 12V AC
    Lamps LED
    CCT 2700
    3000
    Dimensions 23 inch (58.4cm) overall height
  • Beachside Lighting’s M-Series Pathlights are the ultimate in heavy-duty landscape lighting.  Made of cast brass, these fixtures are larger than other Beachside pathlights.  The omnidirectional LED lamp is protected by a threaded glass lens.  Louvers are angled at 45° to eliminate glare.  Risers are schedule 80 brass pipe.  A single-louver design also is available for use with an integrated light engine or drop-in MR16 LED. M-series pathlights with amber and red-orange LED lamps are certified as “Wildlife Friendly” by the Florida Fish & Wildlife Conservation Commission.  To view these fixtures click HERE.
    • Durable construction: all brass components
    • Stems available in three sizes: 16″, 20″ (standard), & 24
    • CSA Listed to US and Canadian safety standards, file #190030
    Voltage 12V, 120V
    Lamps LED
    CCT 1500
    2700
    3000
  • Beachside Lighting’s M-Series LED Pathlights are the ultimate in heavy-duty landscape lighting.  Made of cast brass, these fixtures are larger than other Beachside pathlights.  The lamp is protected by a threaded glass lens.  Louvers are angled at 45° to eliminate glare.  Risers are schedule 80 brass pipe.  M-series fixtures with a single-louver design use directional LED sources with a reflector.  A traditional multi-louver design also is available with omnidirectional LED light sources. M-series pathlights with amber and red-orange LED lamps are certified as “Wildlife Friendly” by the Florida Fish & Wildlife Conservation Commission.  To view these fixtures click HERE.
    • Durable construction: all brass components
    • Stems available in three sizes: 16″, 20″ (standard), & 24
    • CSA Listed to US and Canadian safety standards, file #190030
    Voltage 12V, 120V, 230V
    Lamps Integrated LED, MR16 LED
    CCT 1000
    1500
    2700
    3000

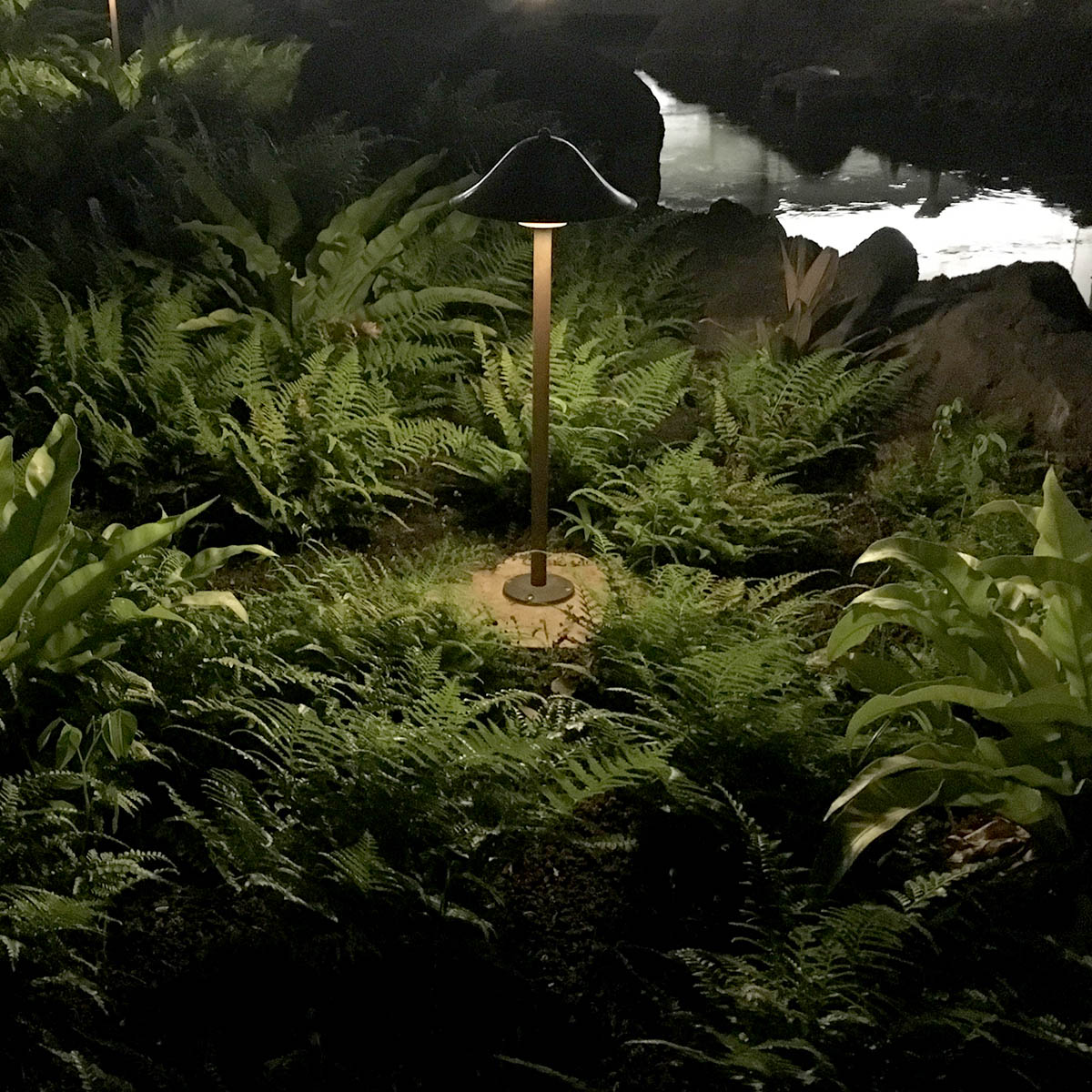

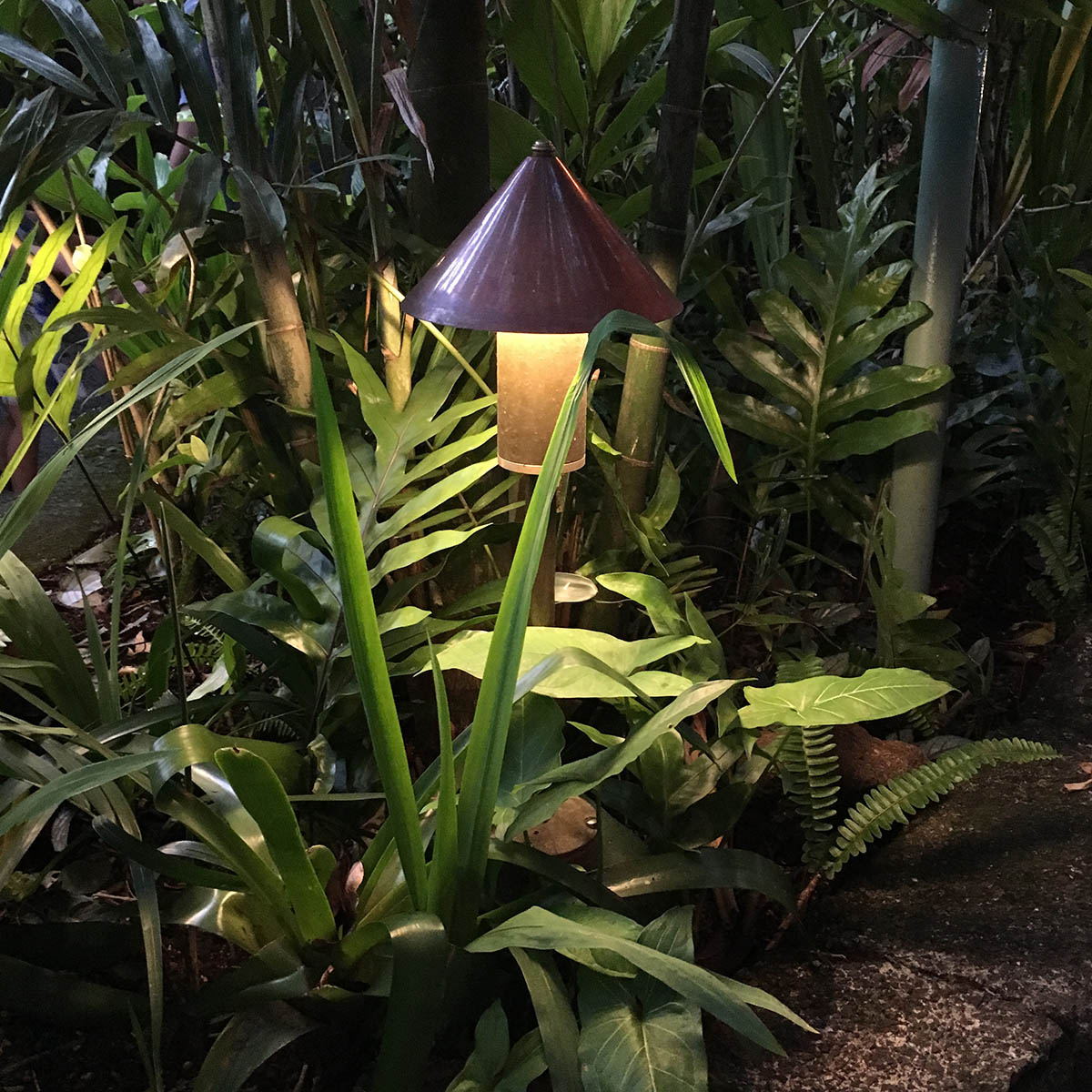

  • Beachside Lighting’s R-Series Pathlights have set the standard for durability in low-voltage walkway and area lighting.  The completely sealed fixture allows easy access to the brass lamp compartment for tool-free relamping.  Features include an 18-gauge copper shade, a 5 mm-thick frosted glass lens, and a riser made from schedule 40 brass pipe.  The lamping is G4 bi-pin LED.  The omnidirectional lamping allows for a lower profile, with most shade heights positioned so their lower edge is at the bottom of the glass, resulting in low-to-no glare. All fixtures are CSA Listed to US and Canadian safety standards, file #190030.
    • 12 Volts AC
    • Remote transformer required
    • Durable construction: all brass components and copper shades
    Voltage 12V AC
    Lamps Omnidirectional LED
    CCT 1500K
    2700K
    3000K
  • Beachside Lighting’s R-Series LED Pathlights have set the standard for durability in low-voltage walkway and area lighting.  The completely sealed fixture allows easy access to the brass lamp compartment for tool-free relamping.  Features include an 18-gauge copper shade, a 5 mm-thick frosted glass lens, and a riser made from schedule 40 brass pipe.  The lamping is MR16 LED, allowing both 12V and 120V/230V options.  The upward-directed lamp hits a reflector in the shade assembly.  Most shade heights are positioned so their lower edge is at the bottom of the glass, resulting in low-to-no glare. All fixtures are CSA Listed to US and Canadian safety standards, file #190030.
    • Durable construction: all brass components and copper shades
    Voltage 12V, 120V, 230V
    Lamps LED
    CCT 1000K
    1500K
    2700K
    3000K

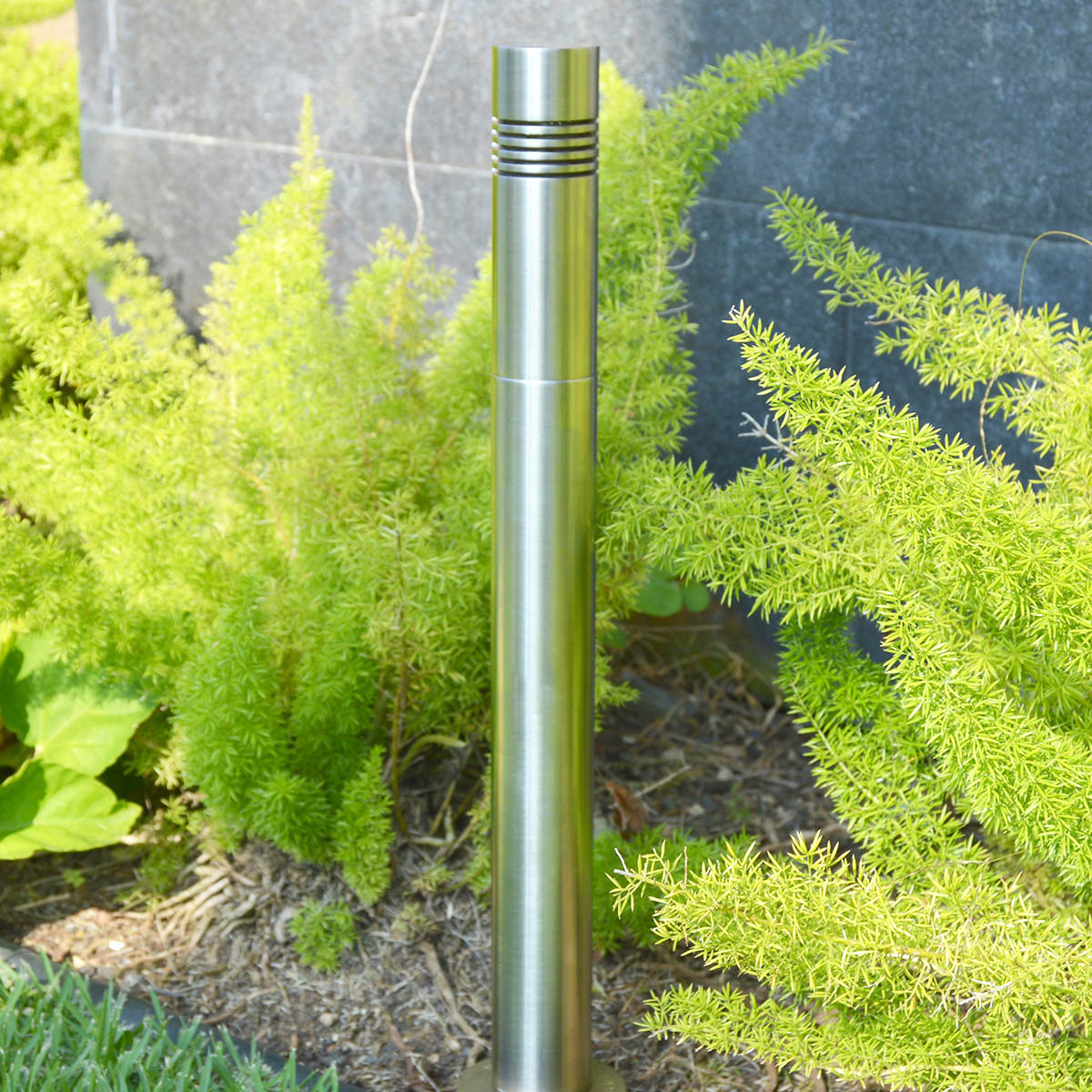

  • Classic-Style Bollard for Concrete Installation The MB1 is an unobtrusive, contemporary pathlight/bollard hybrid with 180° illumination via the field-rotatable top assembly.
    • 360° illumination option (MB1-360)
    • Durable construction – all brass components
    • Can be mounted on optional stems
    • Custom fixture heights available
    Voltage 12V, 120V, 230V, 277V
    Lamps LED, Halogen
    CCT 1000
    1500
    2700
    3000
    Dimensions 1.6″ diameter x 16.9″ height (4.1 x 42.8 cm)
  • Decorative Electric Torch The OHE-12V-3x12 is a low-voltage electric version of Beachside's decorative OHE (bamboo)-patterened Malama gas torch.
    • "SM" version for Surface Mounting to raised mounting accessory or flat canopy via 1/2" male threads.
    • Durable brass construction
    • Supplied with 1" male x slip copper adapter for use with 1" or 28mm copper tubing (by others)
    • Amber lamp closely mimics color of a traditional flame torch
    Voltage 12V
    Lamps MR11 LED
    CCT 1500
    1270
    3000
    Dimensions 3.0″ diameter x 15.3″ height (7.6 x 38.7 cm)
  • Solid Brass, Low-Voltage, Aimable Mini Bollard
    • Ideal for walkways and tall groundcover
    • Aimable in vertical plane
    • Remote transformer required
    • Custom height options available
    Voltage 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V)
    Lamps Integrated LED
    Lumens 76
    CCT 1000
    1700
    2700
    3000
    Dimensions Lamp Housing: 3.4″ x 1.6″ diameter (8.7 x 4.2 cm)
  • Solid Brass, Low-Voltage, Dual-Head, Aimable Mini Bollard
    • Ideal for walkways and tall groundcover
    • Aimable in vertical plane
    • Remote transformer required
    • Custom height options available
    Voltage 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V)
    Lamps Integrated LED
    Lumens 152
    CCT 1000
    1700
    2700
    3000
    Dimensions Lamp Housing: 3.4″ x 1.6″ diameter (8.7 x 4.2 cm)
  • Solid Brass, Low-Voltage, Aimable Pathlight
    • Ideal for walkways, steps, and docks
    • Rotatable and aimable vertically
    • Remote transformer required
    • Optional stem – custom heights available
    Voltage 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V)
    Lamps Integrated LED
    Lumens 24
    CCT 1000
    1700
    2700
    3000
    Dimensions Lamp Housing: 3.9″ x 1.7″ diameter (10.0 x 4.2 cm)

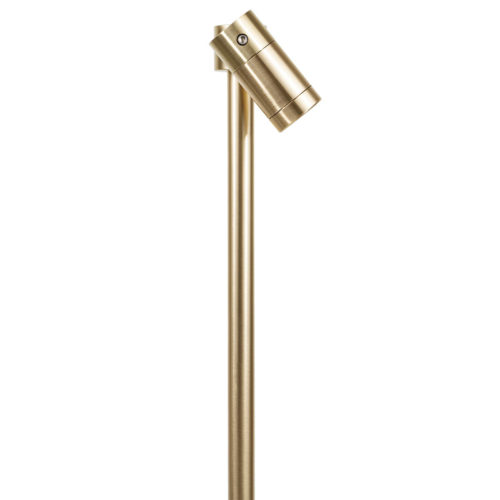

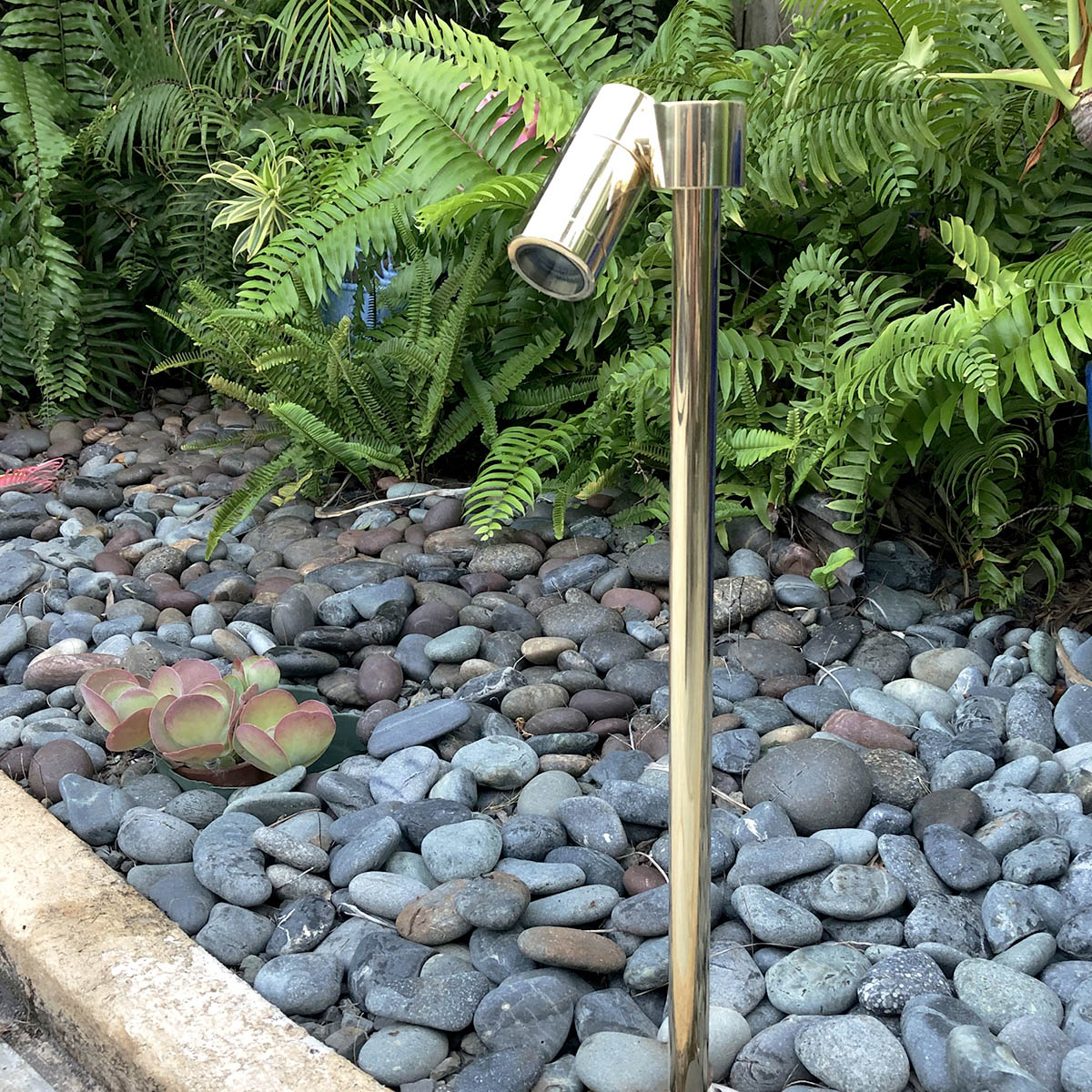

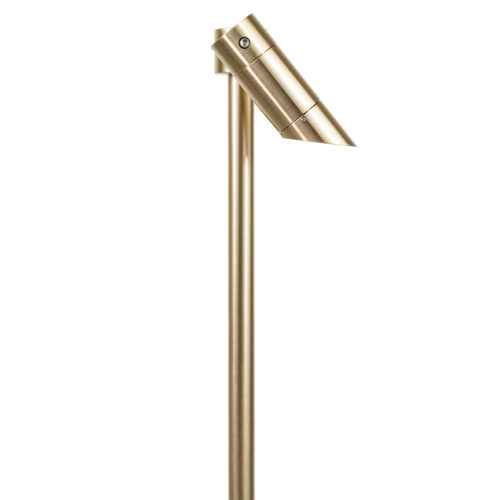

  • Solid Brass, Low-Voltage, Aimable Pathlight on Brass Stem
    • Ideal for walkways and tall groundcover
    • Aimable in vertical plane
    • Remote transformer required
    • Custom height options available
    Voltage 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V)
    Lamps Integrated LED
    Lumens 76
    CCT 1000
    1700
    2700
    3000
    Dimensions Lamp Housing: 3.4″ x 1.6″ diameter (8.7 x 4.2 cm)

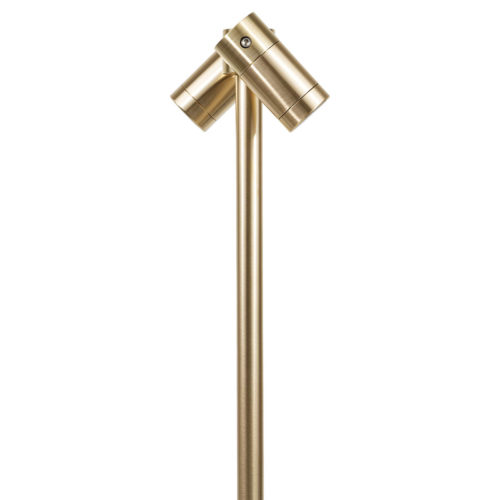

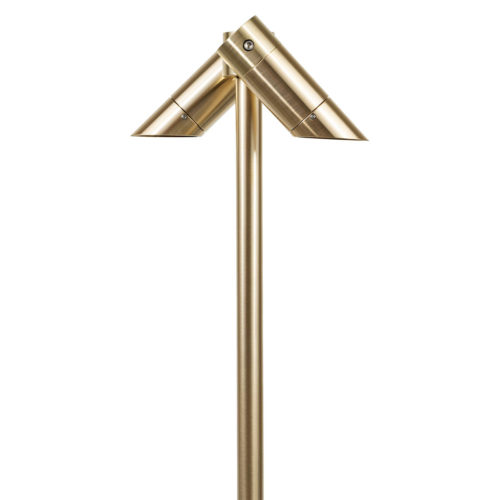

  • Solid Brass, Low-Voltage, Dual-Head, Aimable Pathlight on Brass Stem
    • Ideal for walkways and tall groundcover
    • Aimable in vertical plane
    • Remote transformer required
    • Custom height options available
    Voltage 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V)
    Lamps Integrated LED
    Lumens 152
    CCT 1000
    1700
    2700
    3000
    Dimensions Lamp Housing: 3.4″ x 1.6″ diameter (8.7 x 4.2 cm)
  • Compact Pathlight
    • Remote transformer required
    • Durable construction: all brass components with copper shade
    • CSA Listed to US and Canadian safety standards, file #190030
    Voltage 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V)
    Lamps Integrated LED
    Lumens 86
    CCT 1000
    1500
    2700
    3000

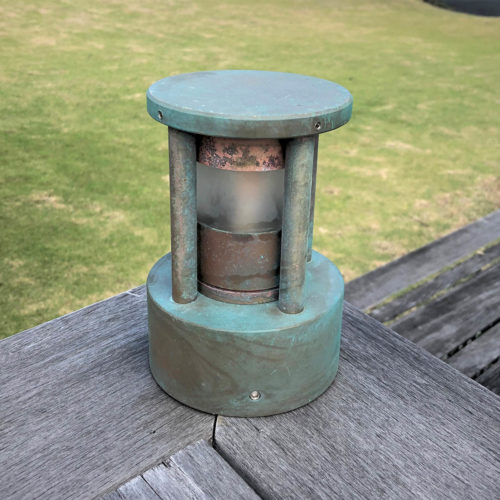

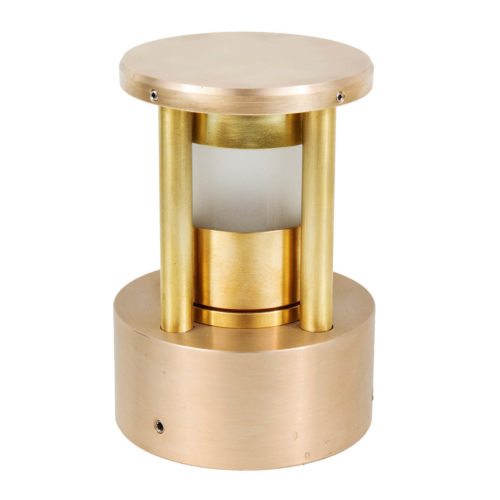

  • Low-Profile Brass Surface-Mount Caged Pathlight
    • Ideal for high-traffic locations and anywhere contact or vandalism is a concern
    Voltage 12V, 120V
    Lamps Integrated LED
    Lumens 450
    CCT 1500 (DarkSky approved)
    2700
    2800
    3000
    Dimensions Dimensions: 6.1″ x 4.2″ diameter (15.6 x 10.6 cm)
