E1
(12V Integrated LED)

Solid Brass Low-Voltage Fixed Downlight

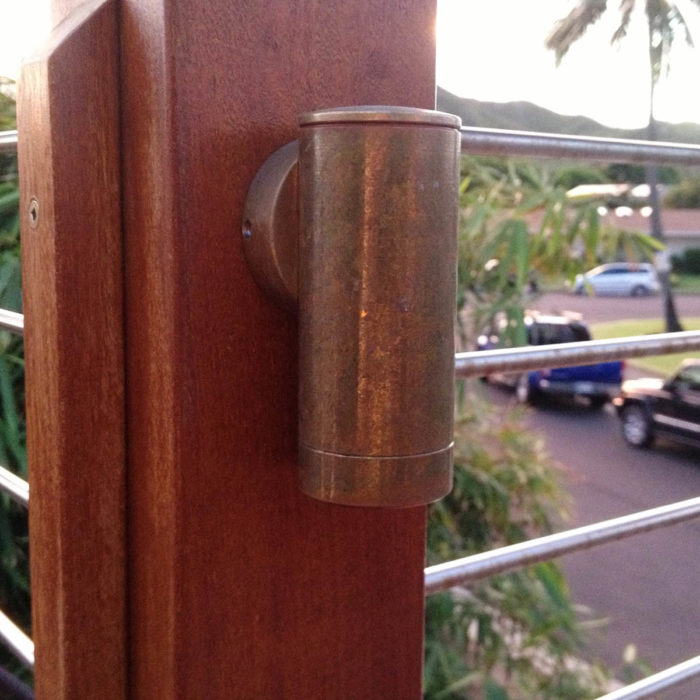

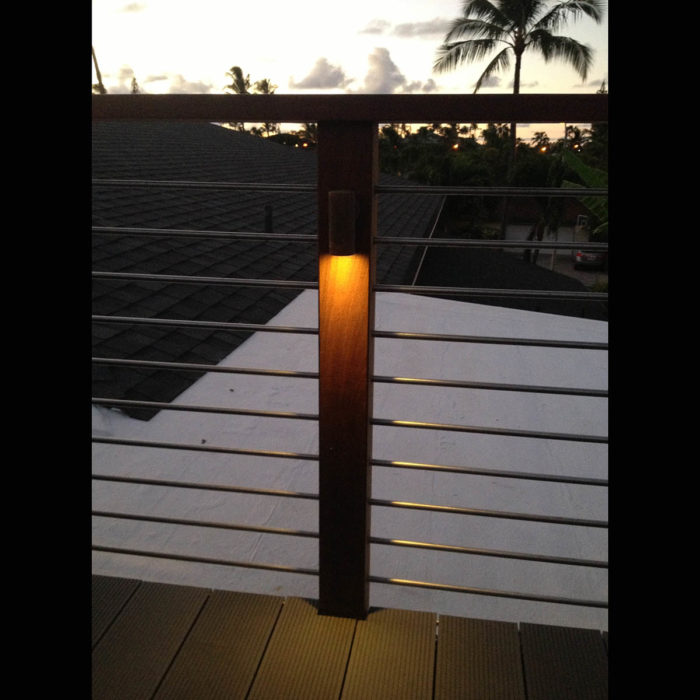

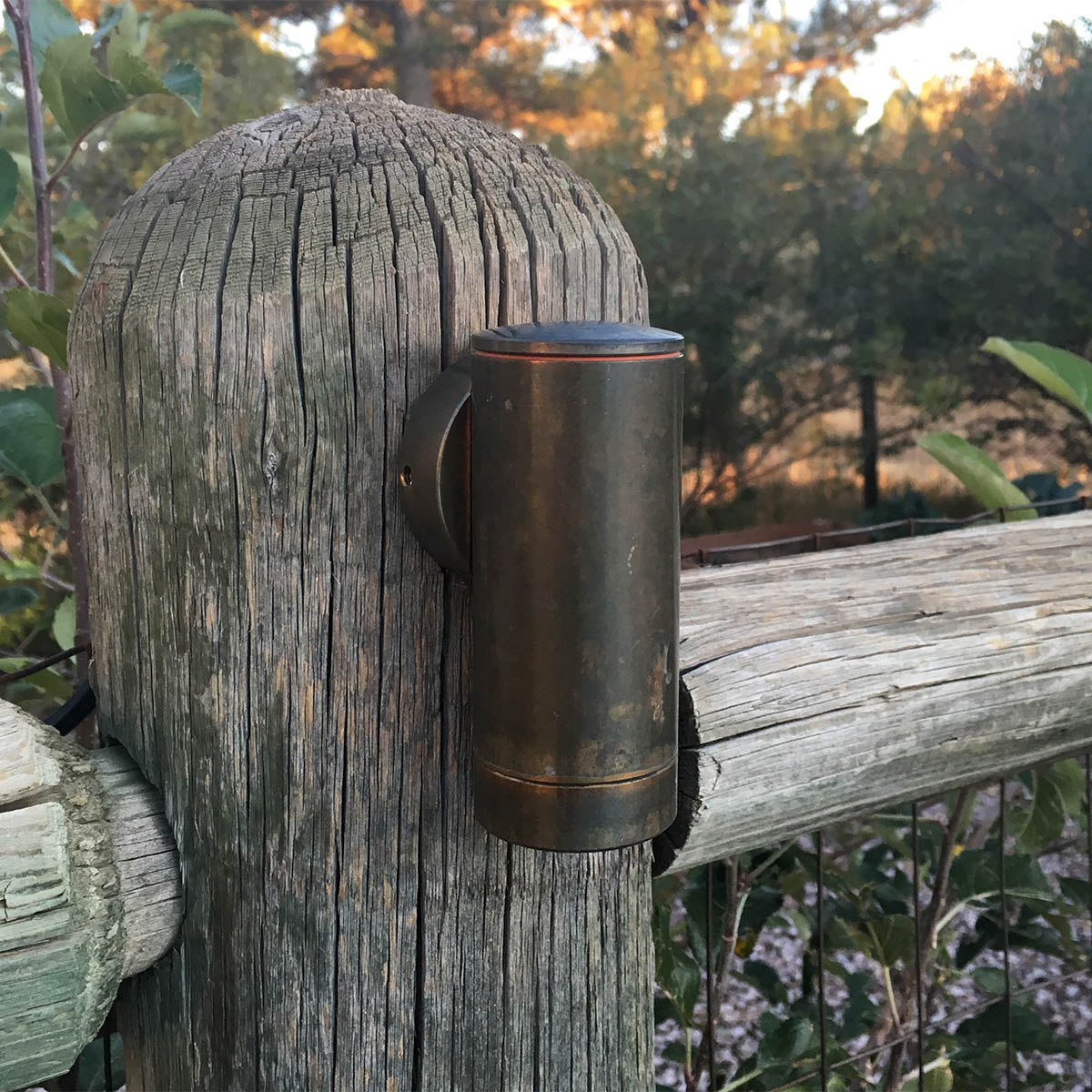

Ideal for post mounting
Remote transformer required

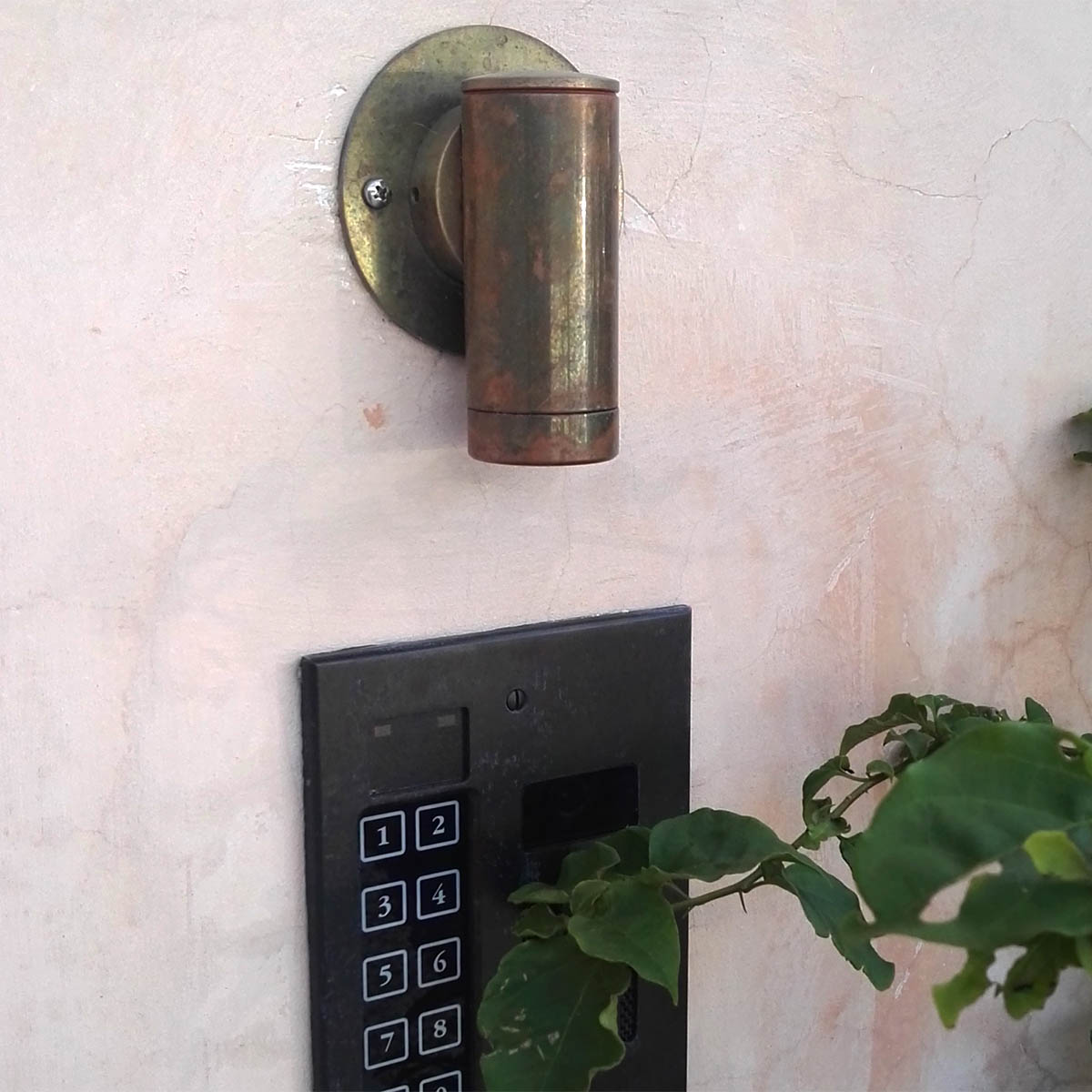

Custom canopy from 1/8″ thick brass available. Consult factory with size, shape, and thru hole orientation needed.

Voltage	12V AC with integral driver (9V-15V Input, dimmable below 9V)
Lamps	Integrated LED
Lumens	249 max
CCT	1000K
	1500K
	2700K
	3000K
Dimensions	2″ dia. x 3.8″ x 1.9” extension (5.1 x 9.7 x 4.8 cm)

Specifications
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
Instructions
Instructions for Changing E1 Optic or Optical Accessory
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates

Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

Cree XPE2: AMBER (1500K)*, RED-ORANGE (1000K)*
TURTLE FRIENDLY

Cree XPG2 LED: 3- and 4-Watt Warm White (3000K)**

* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K”
*** When 4W lamp is specified with No Optic (NO), only one optical accessory + CTO filter may be used

CTO-1/4-1.36	Color Temperature Orange filter 1/4
CTO-1/2-1.36	Color Temperature Orange filter 1/2
CTO-3/4-1.36	Color Temperature Orange filter 3/4
FR8	Frosted lens, 1/8″ (3mm) thick
HL8	Honeycomb louver, 1/8” (3mm) thick
KP	Extended snoot
PR8	Prismatic spread lens, 1/8” (3mm) thick
RT8	Rectilinear spread lens, 1/8” (3mm) thick
SL8	Solite (Soft Focus) lens, 1/8” (3mm) thick
