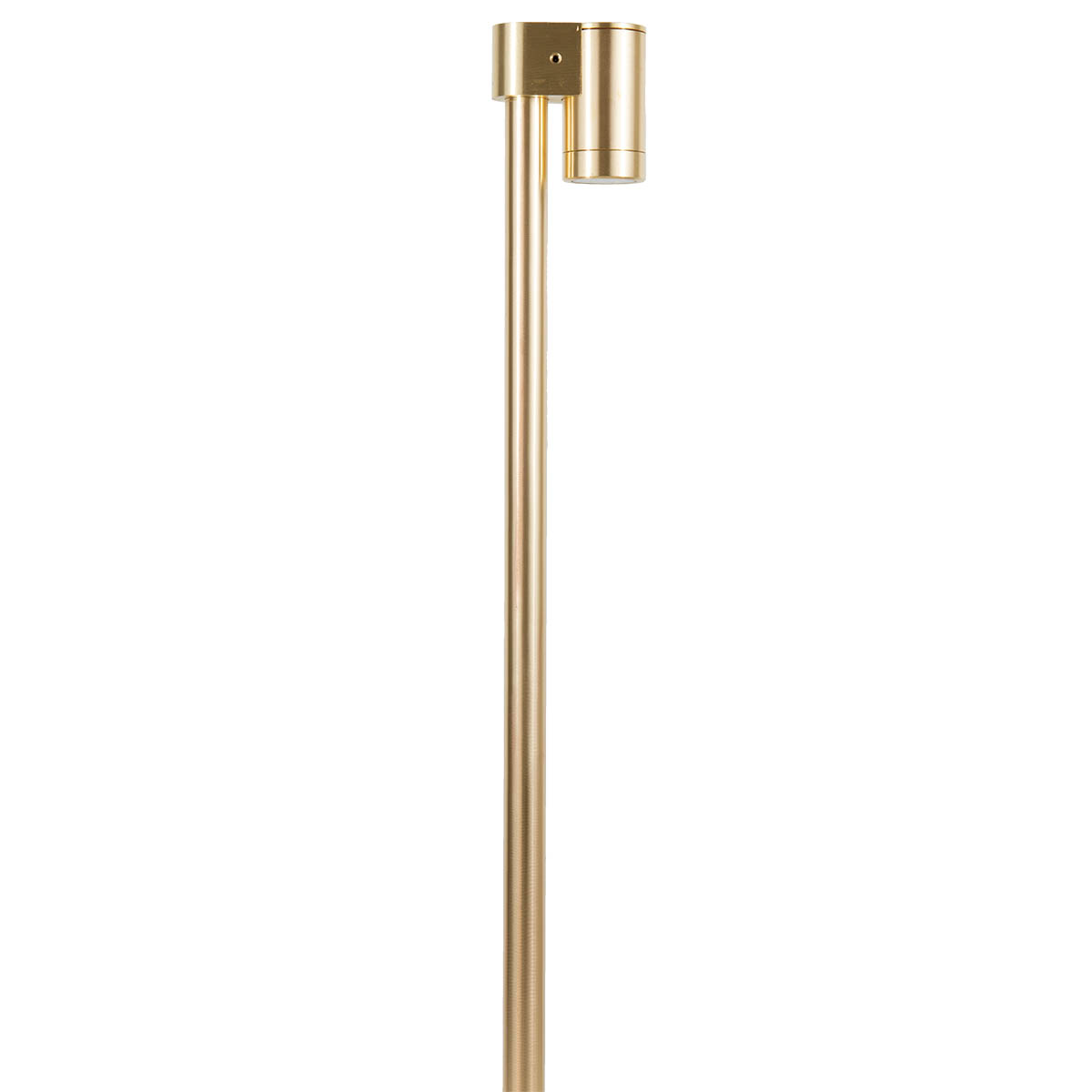

E1-S
(12V Integrated LED)
Solid Brass, Low-Voltage, Stem-Mounted Path Light
- Ideal for walkways and tall groundcover
- Remote transformer required
- Custom stem lengths available
| Voltage | 12 Volts AC with integral driver (9 – 15V input, dimmable below 9V) |
| Lamps | Integrated LED |
| Lumens | max 98 |
| CCT | 1000K |
| 1500K | |
| 2700K | |
| 3000K | |
| Dimensions | Lamp Housing: 1.6” diameter x 3.1″ [4.2 x 7.8 cm] |
Specifications
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
Instructions
Instructions for Replacing LED Module
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
| LM79 | IES |
| E1-S-24-2W-A | E1-S-24-2W-A |
| E1-S-24-3W | E1-S-24-3W |
20 or 24 in. (51 or 61cm) and Custom
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2

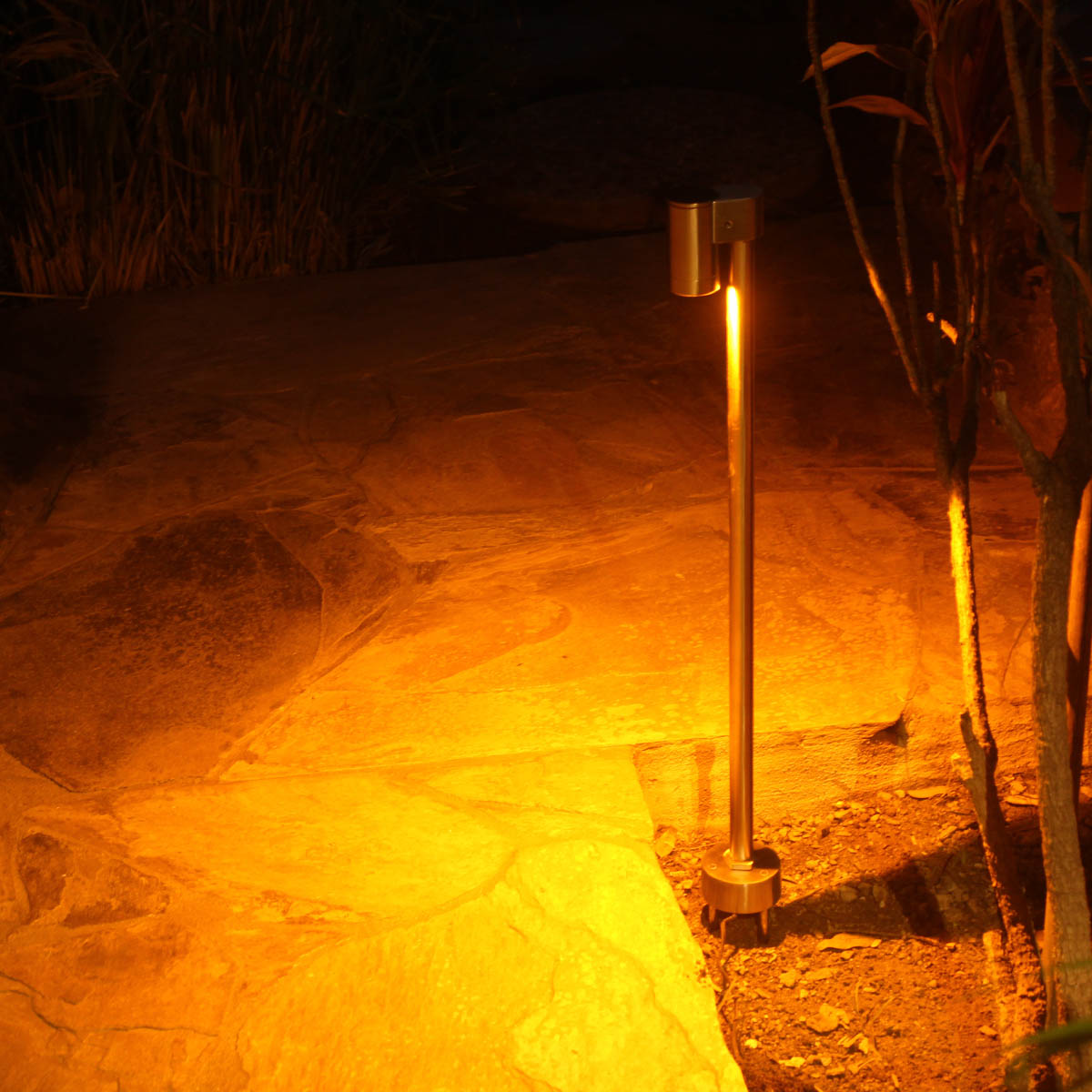

| 2W-A | 2 Watt AMBER (1500K)* TURTLE FRIENDLY |
| 2W-RO | 2 Watt RED-ORANGE (1000K)* TURTLE FRIENDLY |
Cree XPG2

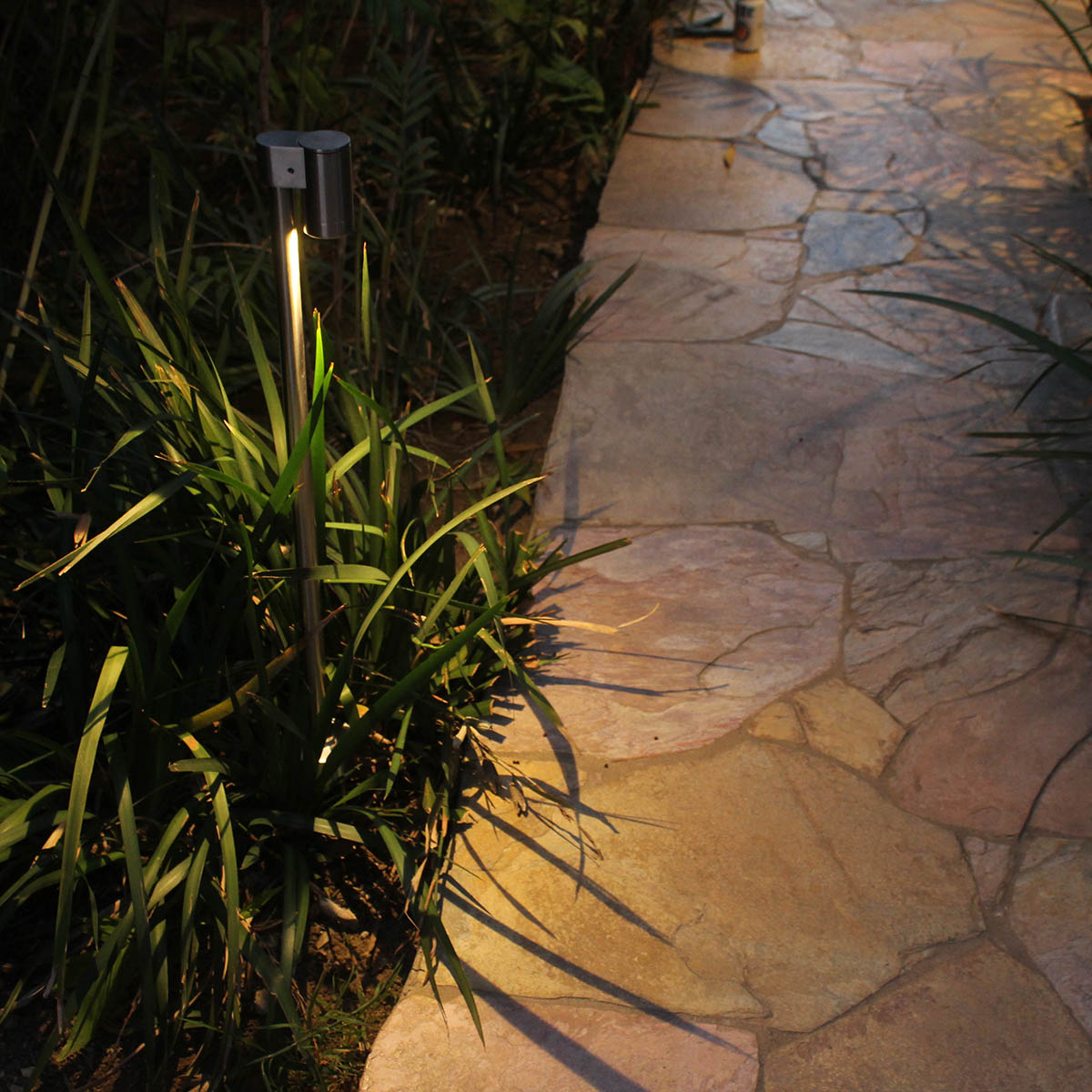

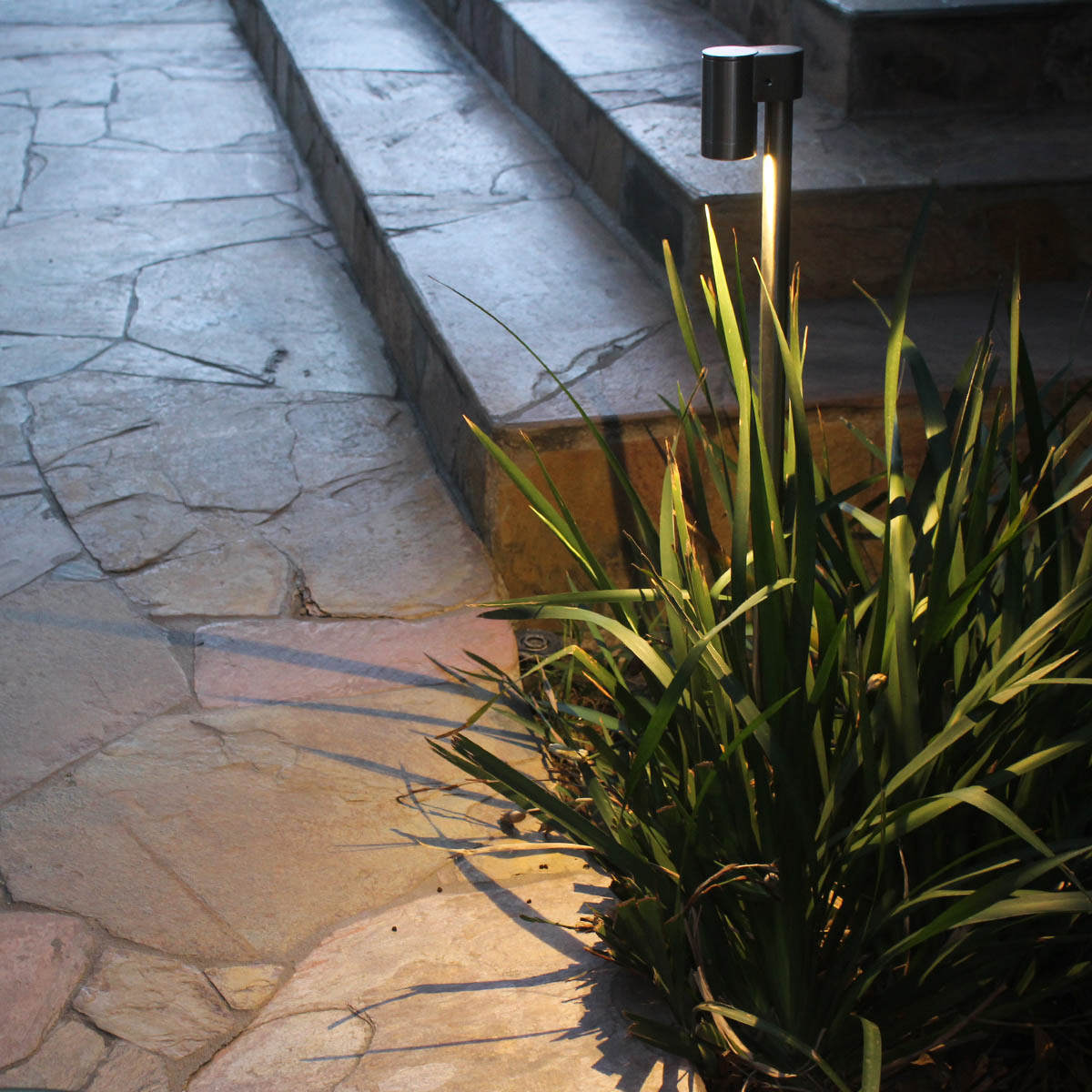

| 3W | 3 Watt Warm White (3000K)** |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-2700K“
| GS2 | Heavy-duty ground spike |
| GS2BC | Heavy-duty ground spike with cast brass cap |
| GS3R | Heavy-duty ground spike with brass cap for telescoping fixture riser |
| JB | Cast brass junction box |
