E1-S-DD
(12V Integrated LED)

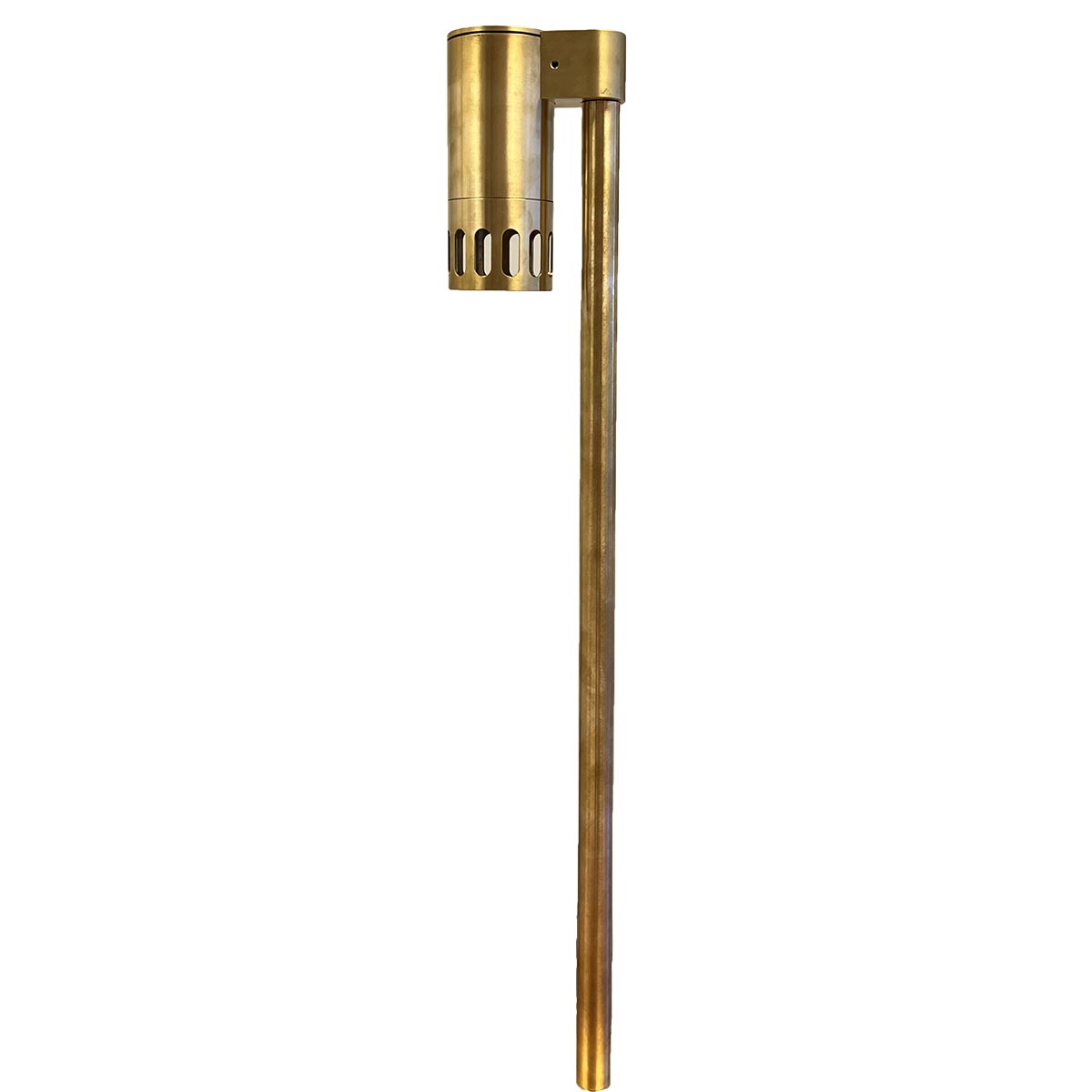

Solid Brass, Low-Voltage, Stem-Mounted, Pattern-Projecting Path Light
- Ideal for walkways and tall groundcover
- Remote transformer required
- Custom stem lengths and pattern designs available
| Voltage | 12 Volts AC with integral driver (9 – 15V input, dimmable below 9V) |
| Lamps | Integrated LED |
| Lumens | max 29 |
| CCT | 1000K |
| 1500K | |
| 2700K | |
| 3000K | |
| Dimensions | Lamp Housing: 2.4” diameter x 5.4″ [6.0 x 13.7 cm] |

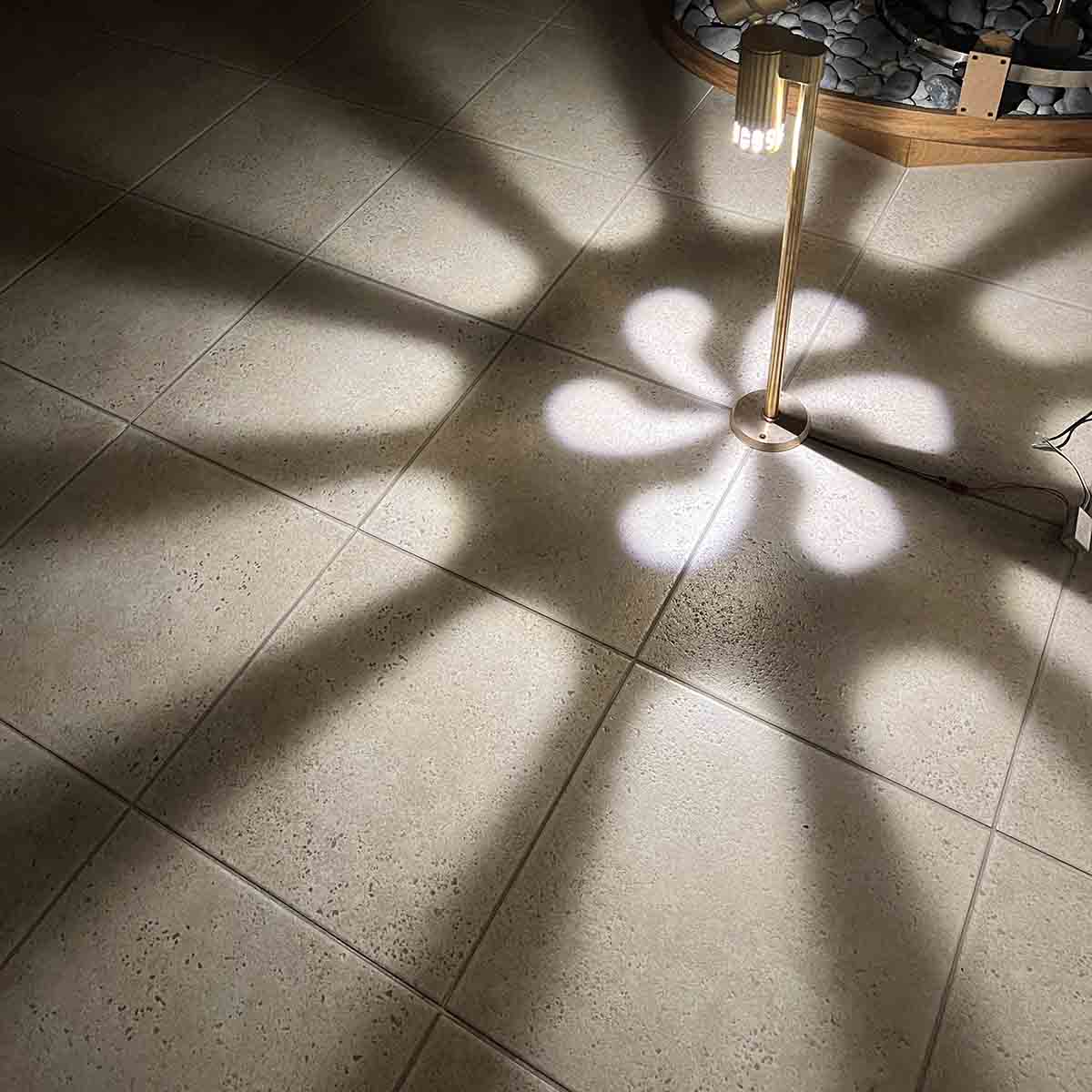

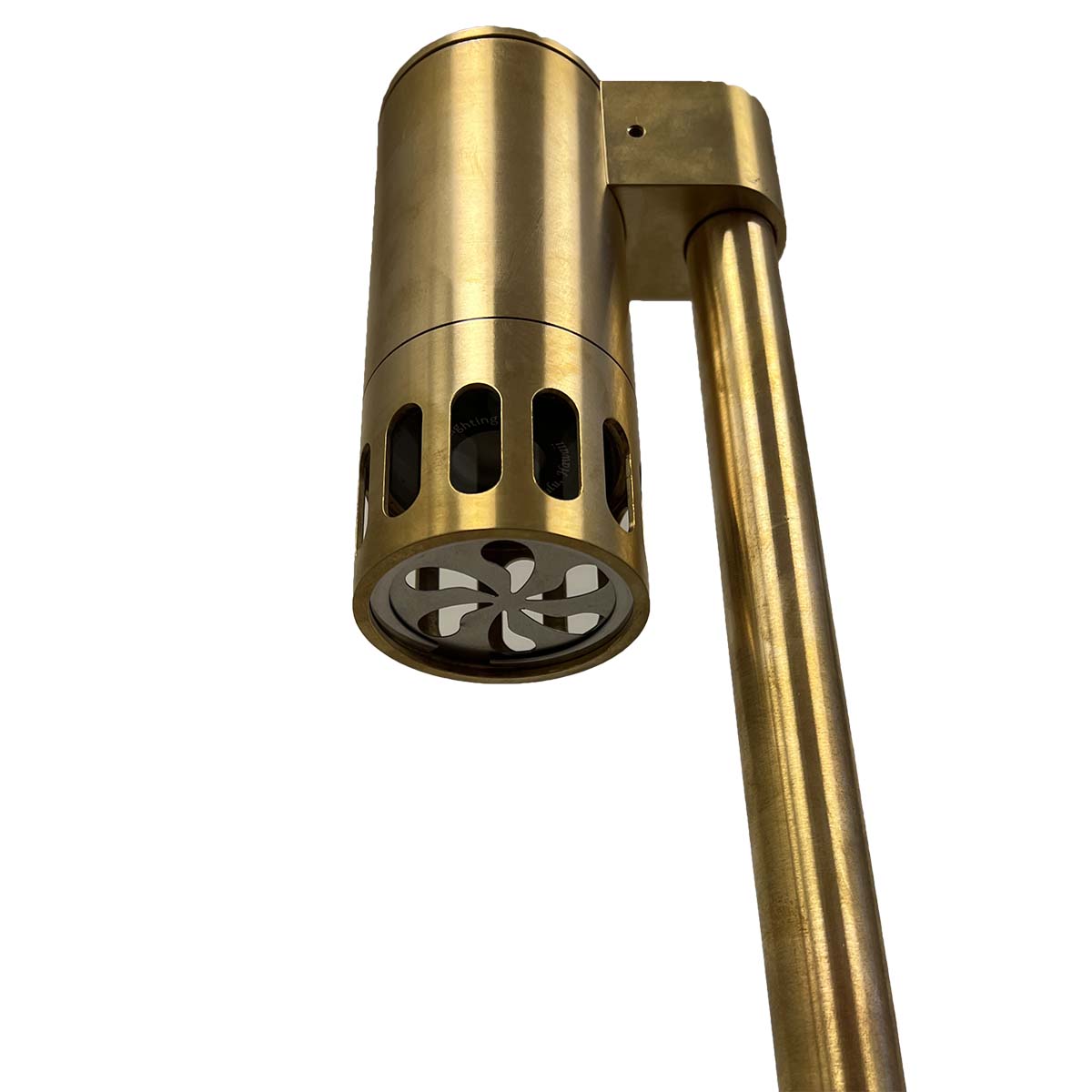

Swirl pattern gobo is standard. Many custom patterns are available. See Other Patterns Here (specify Apollo part number).
Specifications
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
Instructions
Instructions for Replacing LED Module
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
Instructions
Instructions for Replacing LED Module
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
| LM79 | IES |
| E1-S-DD-3W | E1-S-DD-3W |
20 or 24 in. (51 or 61cm) and Custom
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2
| 2W-A | 2 Watt AMBER (1500K) |
| 2W-RO | 2 Watt RED-ORANGE (1000K) |
Cree XPG2
| 3W | 3 Watt Warm White (3000K)* |
* Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-2700K“
| GS2 | Heavy-duty ground spike |
| GS2BC | Heavy-duty ground spike with cast brass cap |
| GS3R | Heavy-duty ground spike with brass cap for telescoping fixture riser |
| JB | Cast brass junction box |
