E1 Turtle Friendly
(12V Integrated LED)

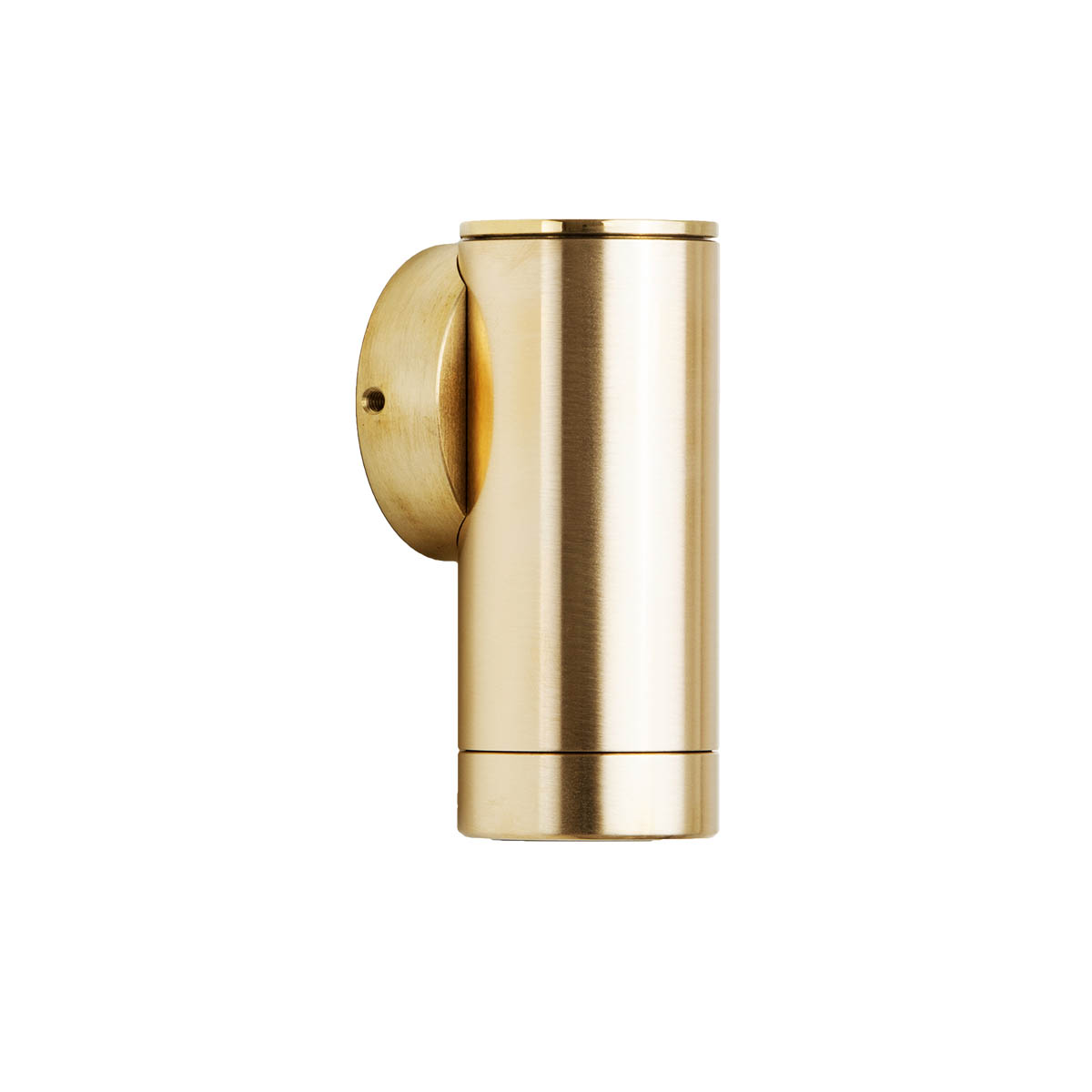

E1 Architectural

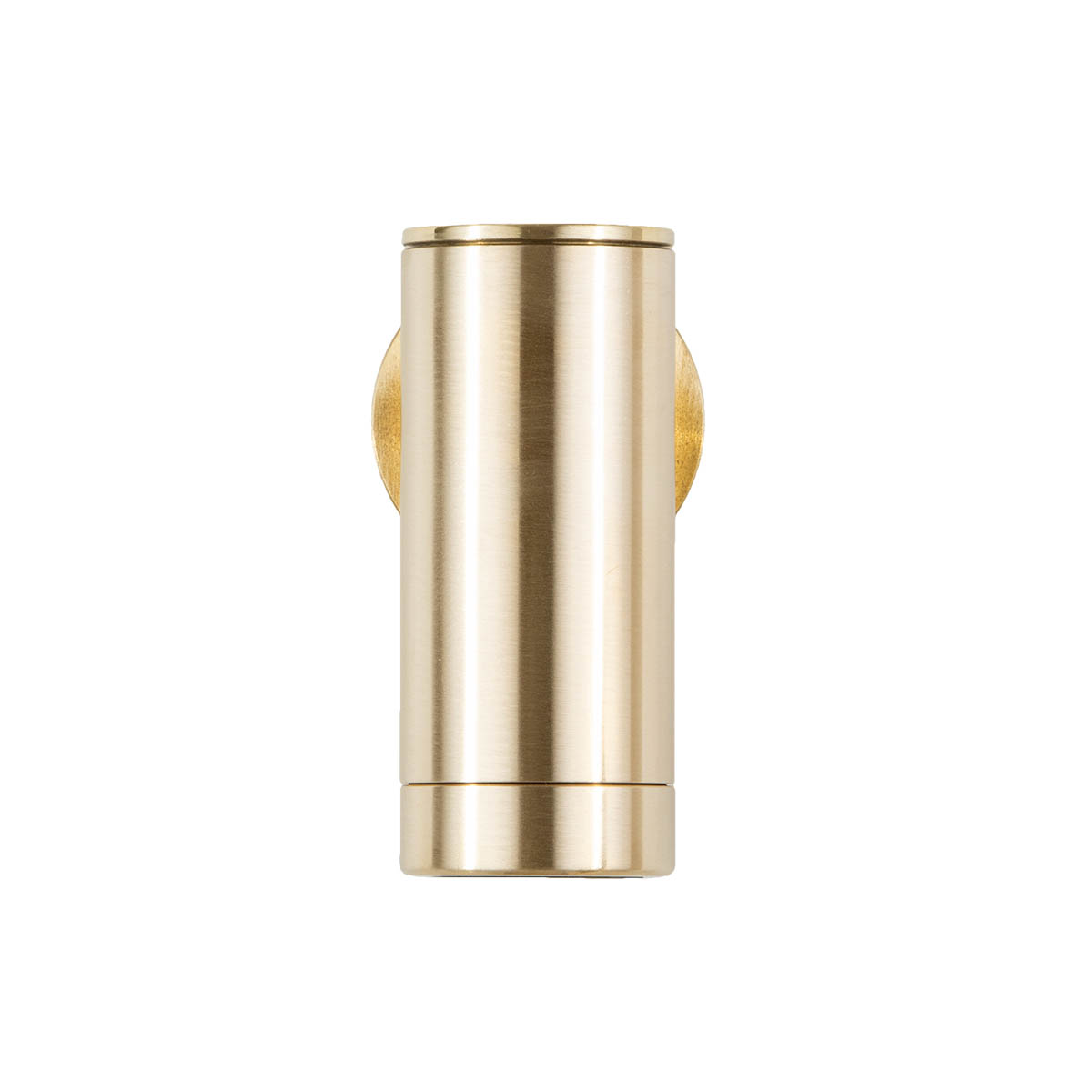

E1 Front Architectural

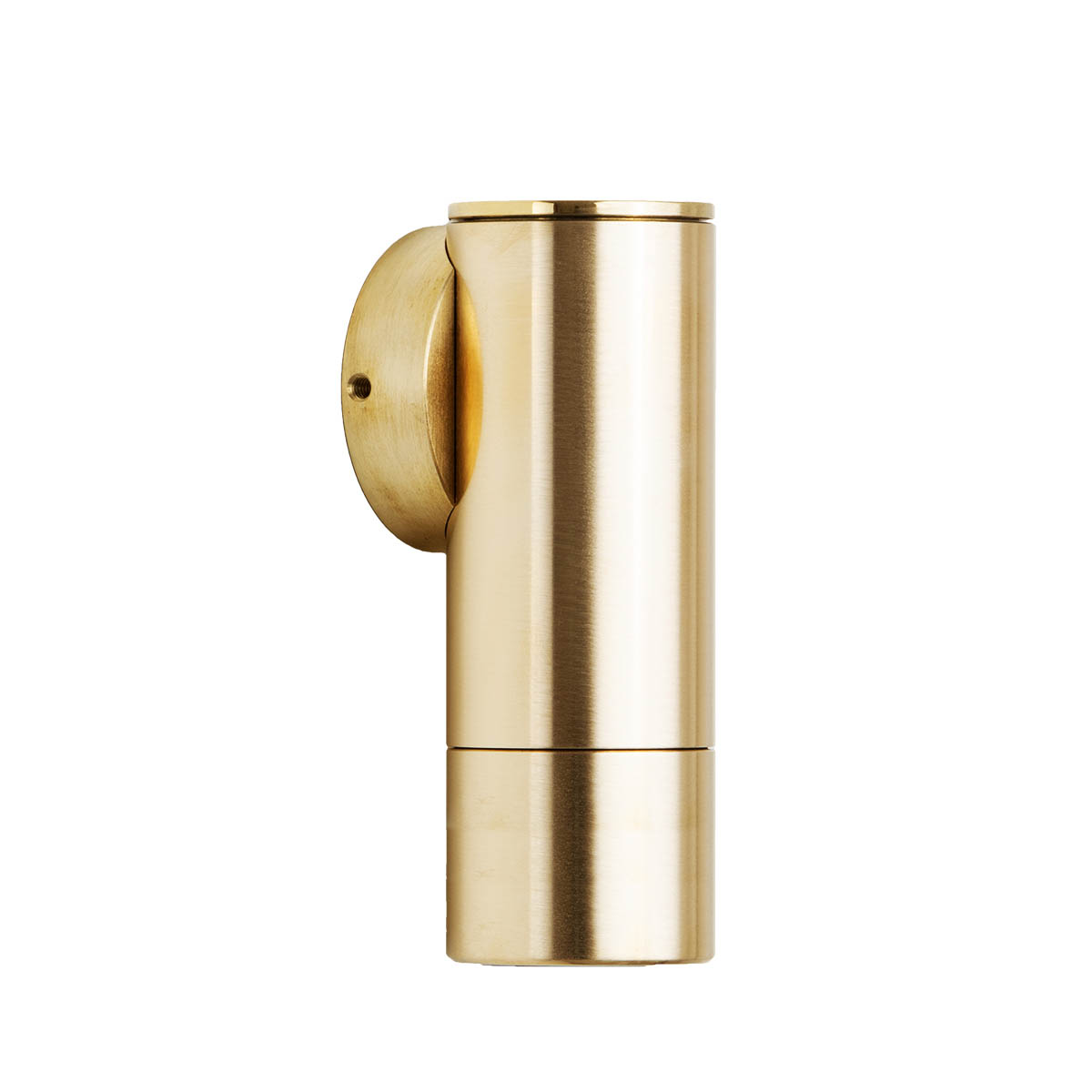

E1-kp Architectural

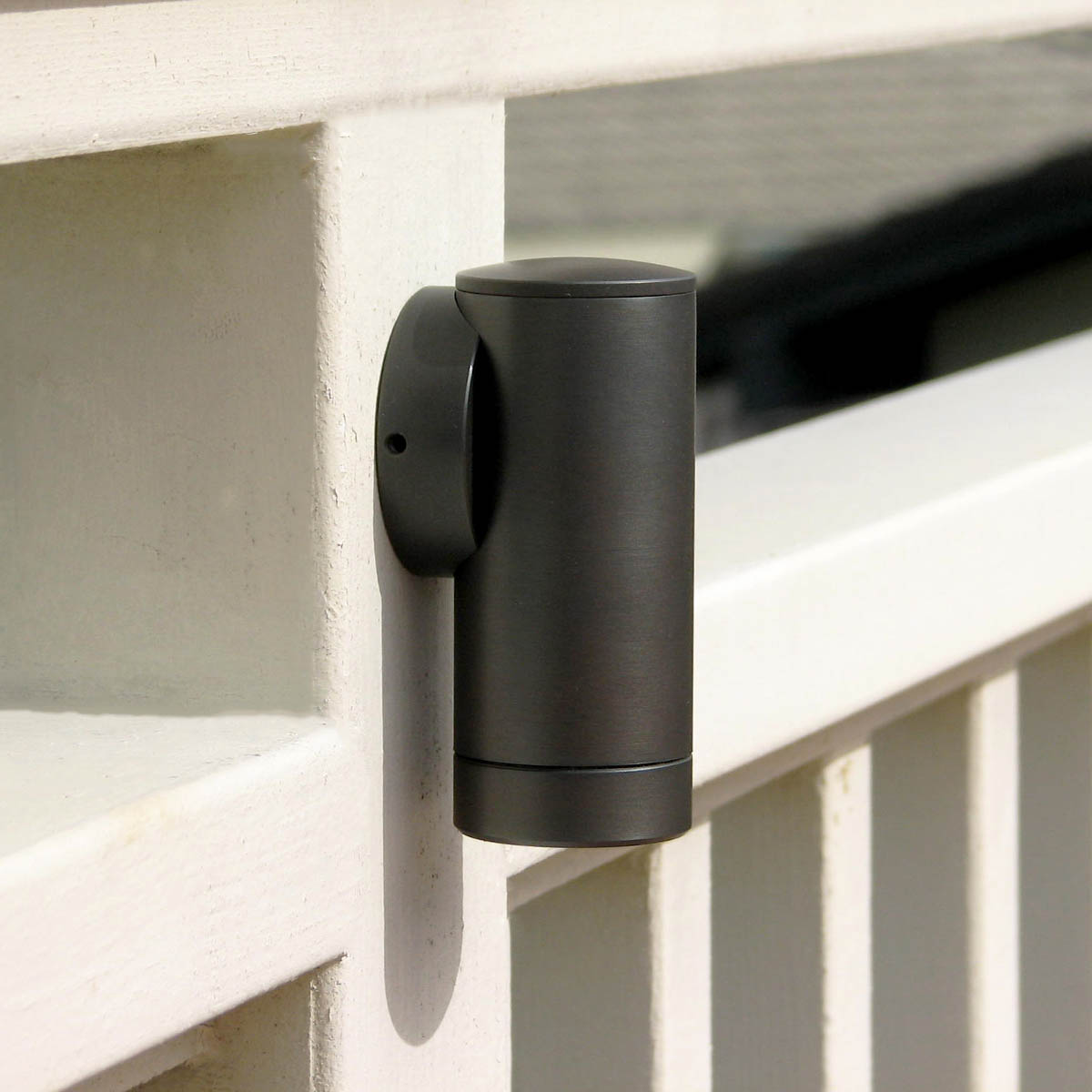

E1 Dark Bronze Architectural

E1 Turtle Friendly
(12V Integrated LED)

Darksky

Solid Brass Low-Voltage Fixed Downlight

  • Ideal for post mounting
  • Remote transformer required
  • Custom canopy from 1/8″ thick brass available.  Consult factory with size, shape, and thru hole orientation needed.
Voltage 12V AC with integral driver (9V-15V Input, dimmable below 9V)
Lamps Integrated LED
Lumens 123 max
CCT 1000K
1500K
Dimensions 2″ dia. x 3.8″ x 1.9” extension (5.1 x 9.7 x 4.8 cm)
LM79 IES SPECTRAL POWER DISTRIBUTION /
BLUE LIGHT CONTENT
E1-2W-A-FL E1-2W-A-FL E1-2W-A
E1-2W-A-NO

Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

Cree XPE2: AMBER (1500K), RED-ORANGE (1000K)

2W-A-SP 2 Watt AMBER 10° beam / 20° field angle
2W-A-NFL 2 Watt AMBER 14° / 31°
2W-A-FL 2 Watt AMBER 29° / 61°
2W-A-NO 2 Watt AMBER 46° / 114°
2W-RO-SP 2 Watt RED-ORANGE 10° / 18°
2W-RO-NFL 2 Watt RED-ORANGE 13° / 28°
2W-RO-FL 2 Watt RED-ORANGE 32° / 56°
2W-RO-NO 2 Watt RED-ORANGE 49° / 114°
FR8 Frosted lens
HL8 Honeycomb louver, 1/8″ [3mm] thick
KP Extended snoot
PR8 Prismatic spread lens
RT8 Rectilinear spread lens
SL8 Solite (Soft Focus) lens

Optical Accessories
