E10
(12V MR16 LED)

E10 In-grade3
E10 In-grade

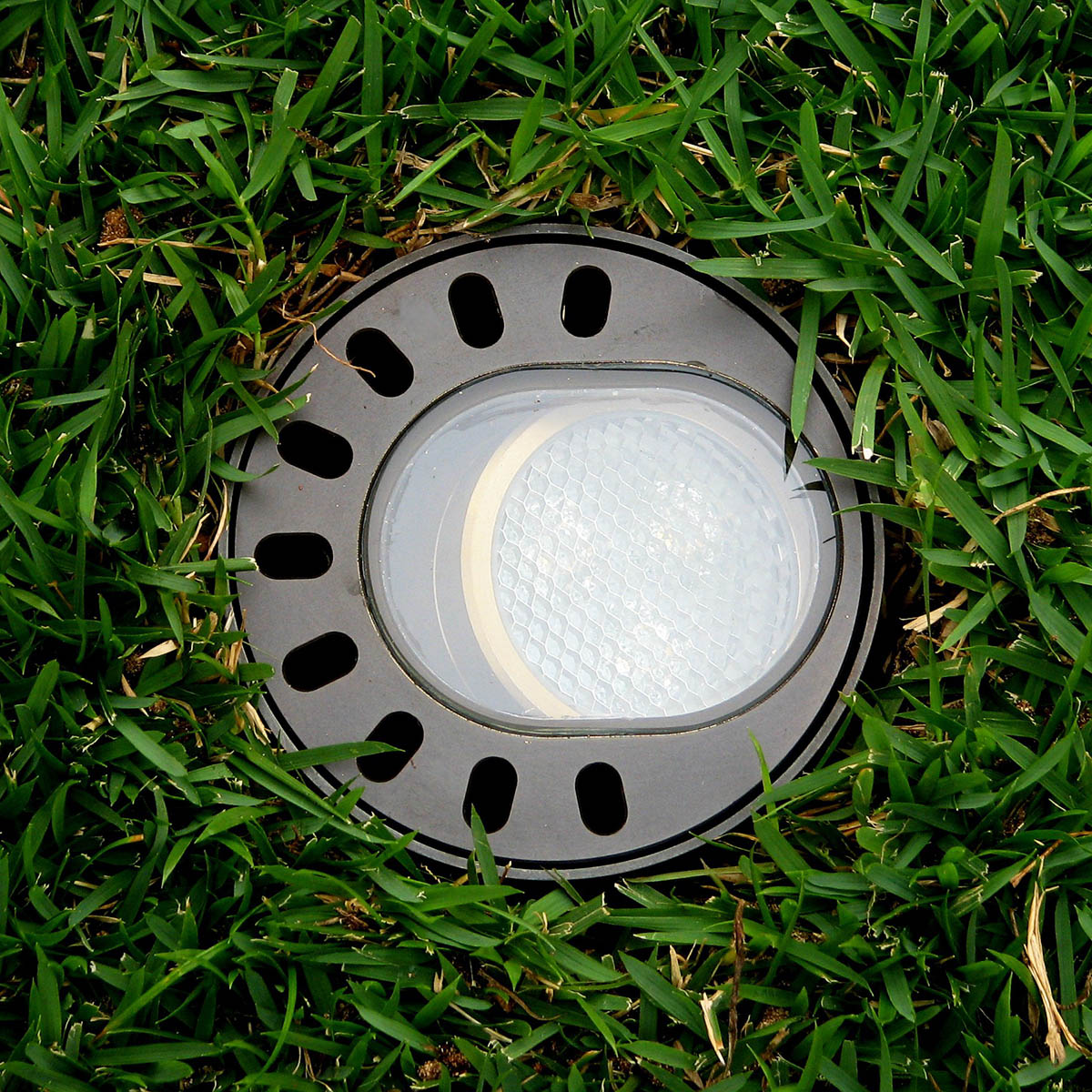

E10 Dark Bronze In-grade
E10 In-grade4
E10 In-grade5
E10 In-grade6

E10
(12V MR16 LED)

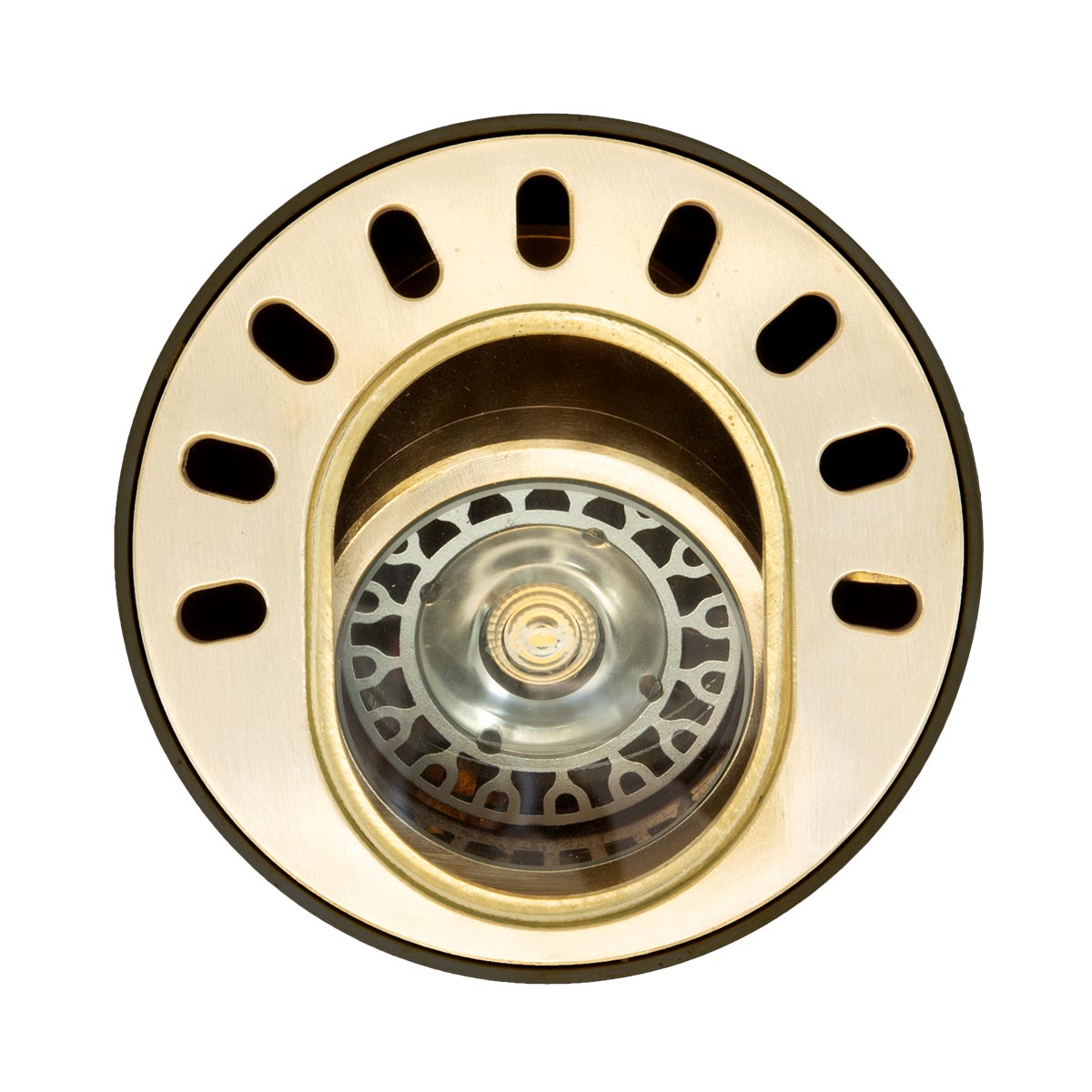

Solid Brass, All-Purpose, In-Grade Uplight

  • Adjustable angle up to 30°
  • Remote transformer required
Voltage 12V AC/DC
Lamps MR16 LED
Lumens 630 max
CCT 1500K
2700K
3000K
Dimensions 4″ dia. x 7.9” depth (10.2 x 20 cm)

GU5.3 MR16 LED
AMBER (1500K) and Warm White (2700/3000K)*

5W-A-NFL 5 Watt AMBER 25° narrow flood
5W-SP 5 Watt 15° spot
5W-NFL 5 Watt 25° narrow flood
5W-FL 5 Watt 40° flood
5W-FL/60 5 Watt 60° flood
5W-WFL 5 Watt 100° flood
7W-FL/60 7 Watt 60° flood
8W-SP 8 Watt 10° spot
8W-NFL 8 Watt 25° narrow flood
8W-FL 8 Watt 36° flood

* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“

FR Frosted lens
HL1 Honeycomb louver, 1/8” (3mm) thick
HL2 Honeycomb louver, 1/4” (6mm) thick
PR Prismatic spread lens
RT Rectilinear spread lens

* Maximum two 1/8″-thick accessories or one HL2

Optical Accessories
