E16

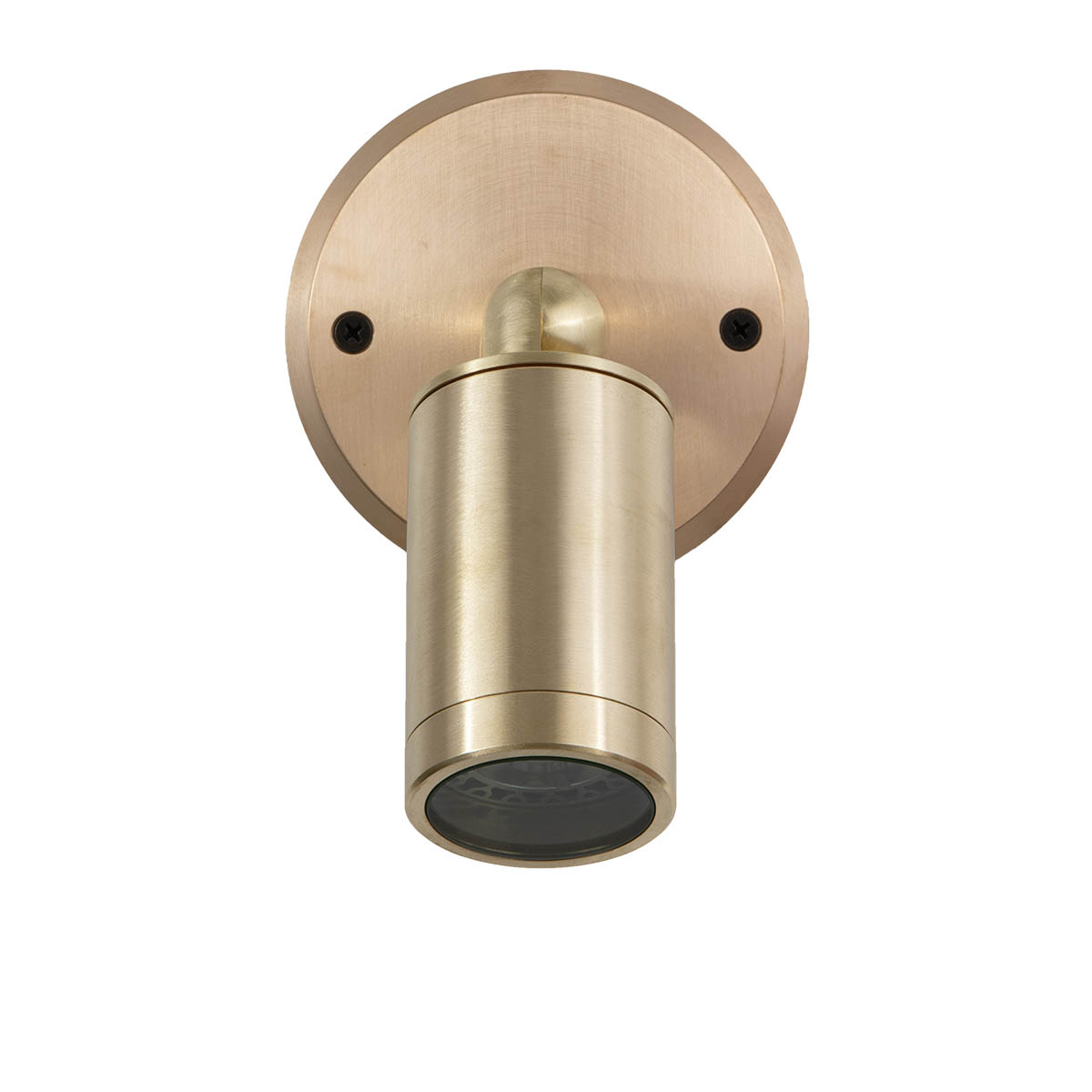

(12V Integrated LED, Shown on CM-M1 Canopy)
Solid Brass, All-Purpose, Low-Voltage LED Canopy-Mounted Directional
The E16 is a low-voltage directional luminaire with an integrated, replaceable LED light engine. The light engine features four output settings from 100% to 25%, adjustable in the field.
- Remote transformer required
| Voltage | 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V) |
| Lamps | Integrated LED |
| Lumens | 799 max |
| CCT | 1000K (Red-Orange, 630nm) |
| 1500K (Amber, 595nm) | |
| 2700K | |
| 3000k | |
| Dimensions | Diameter: 2.4″ (6 cm) |
| Overall length from knuckle pivot: 4.9″ (12.4 cm) |
Specifications
Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Triple Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
Integrated LED Light Engine
Triac dimmable: MLV >1% typ, ELV >5% typ
Cree XPE2 triple LED: 7-Watt AMBER (1479K), 8-Watt RED-ORANGE (1000K)
| 7W-A-SP | 7 Watt Amber | 12° beam / 27° field angle |
| 7W-A-NFL | 7 Watt Amber | 29° / 49° |
| 7W-A-FL | 7 Watt Amber | 49° / 76° |
| 8W-RO-SP | 8 Watt Red-Orange | 9° / 20° |
| 8W-RO-NFL | 8 Watt Red-Orange | 30° / 45° |
| 8W-RO-FL | 8 Watt Red-Orange | 55° / 82° |
Cree XPG2 triple LED: 11-Watt Warm White (3023K)*
| 11W-SP | 11 Watt | 12° / 29° |
| 11W-NFL | 11 Watt | 29° / 50° |
| 11W-FL | 11 Watt | 48° / 79° |
* Also available in 2700K. Add color suffix to lamp specification, e.g. “11W-NFL-2700K“
11-Watt light engine features adjustable output via a switch under the optic
| CM-M1 | 4.75″ (12.1cm) diameter solid brass canopy, single-hole |

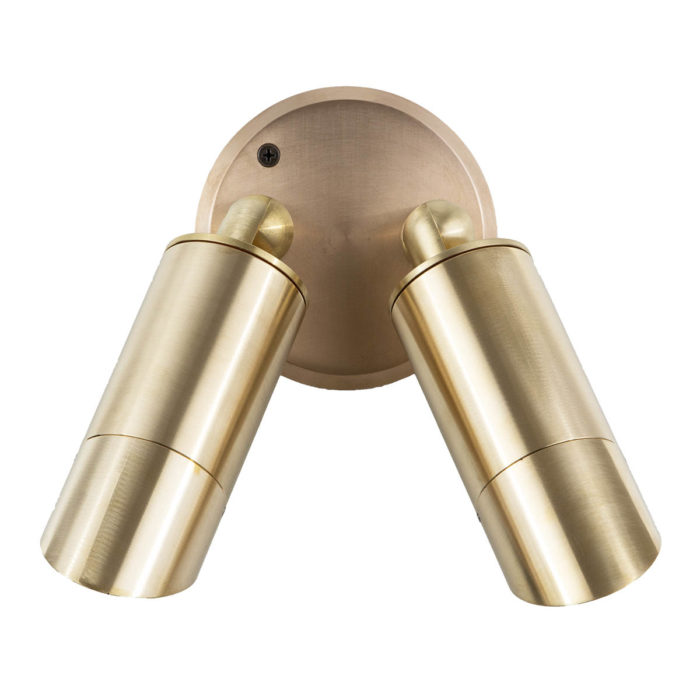

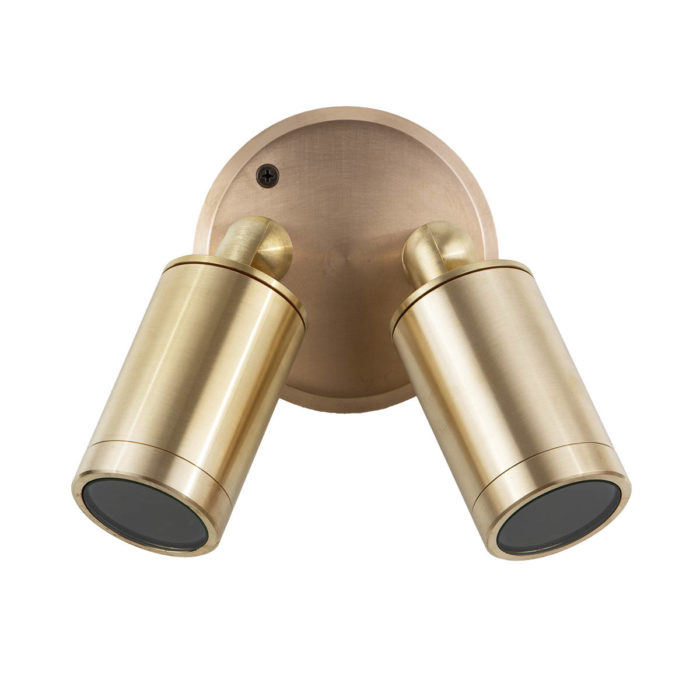

| CM-M2 | 4.75″ (12.1cm) diameter solid brass canopy, double-hole (two fixture heads per canopy) |
| SA | Sure Aim locking rotation accessory |

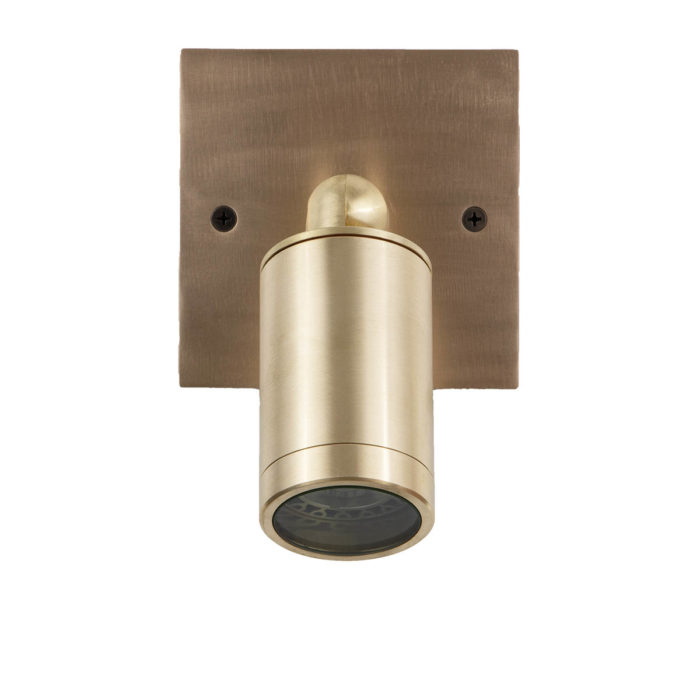

| SQ1 | 4.75″ (12.1cm) square brass canopy |

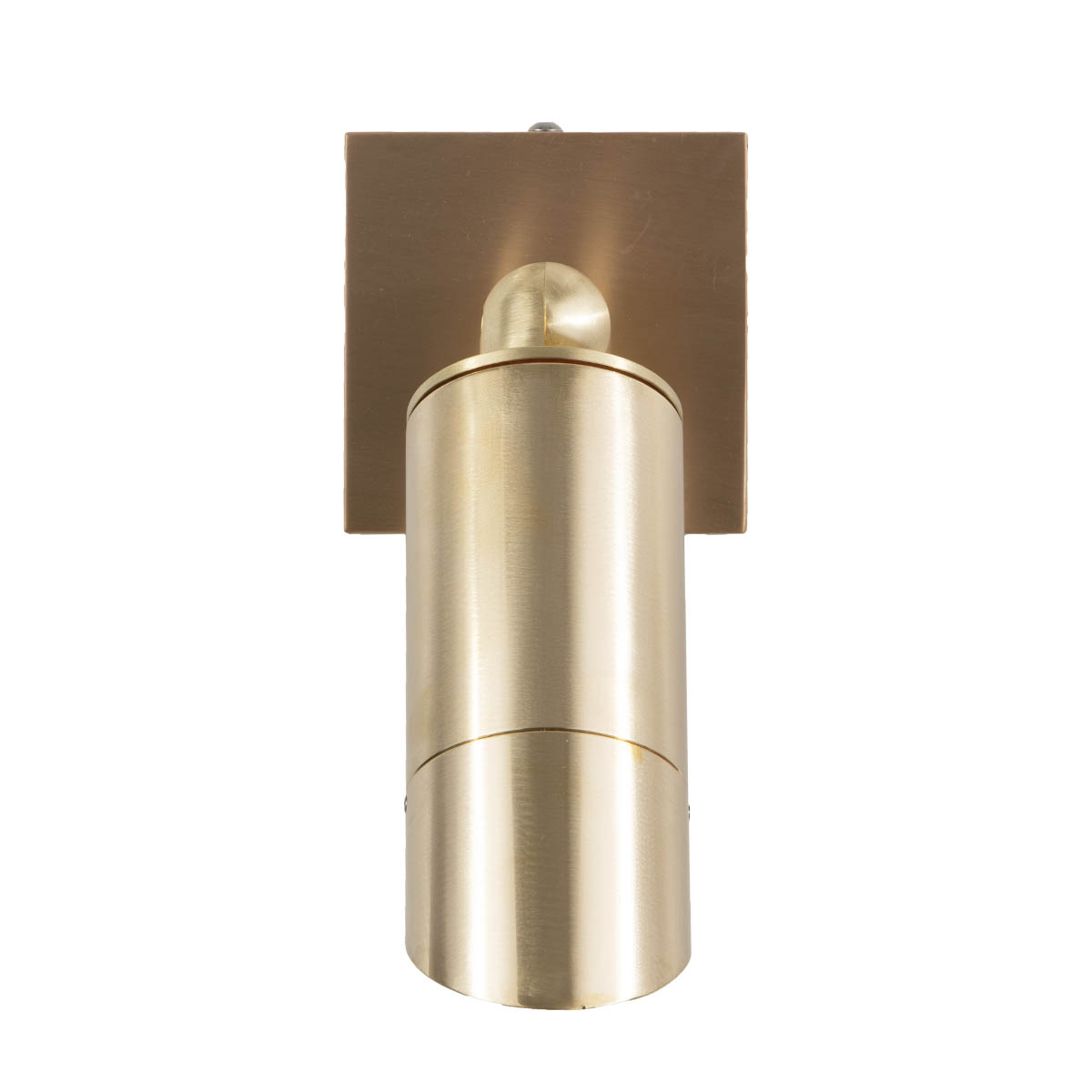

| SQ1-3.5 | 3.5″ (8.9cm) small square brass canopy |

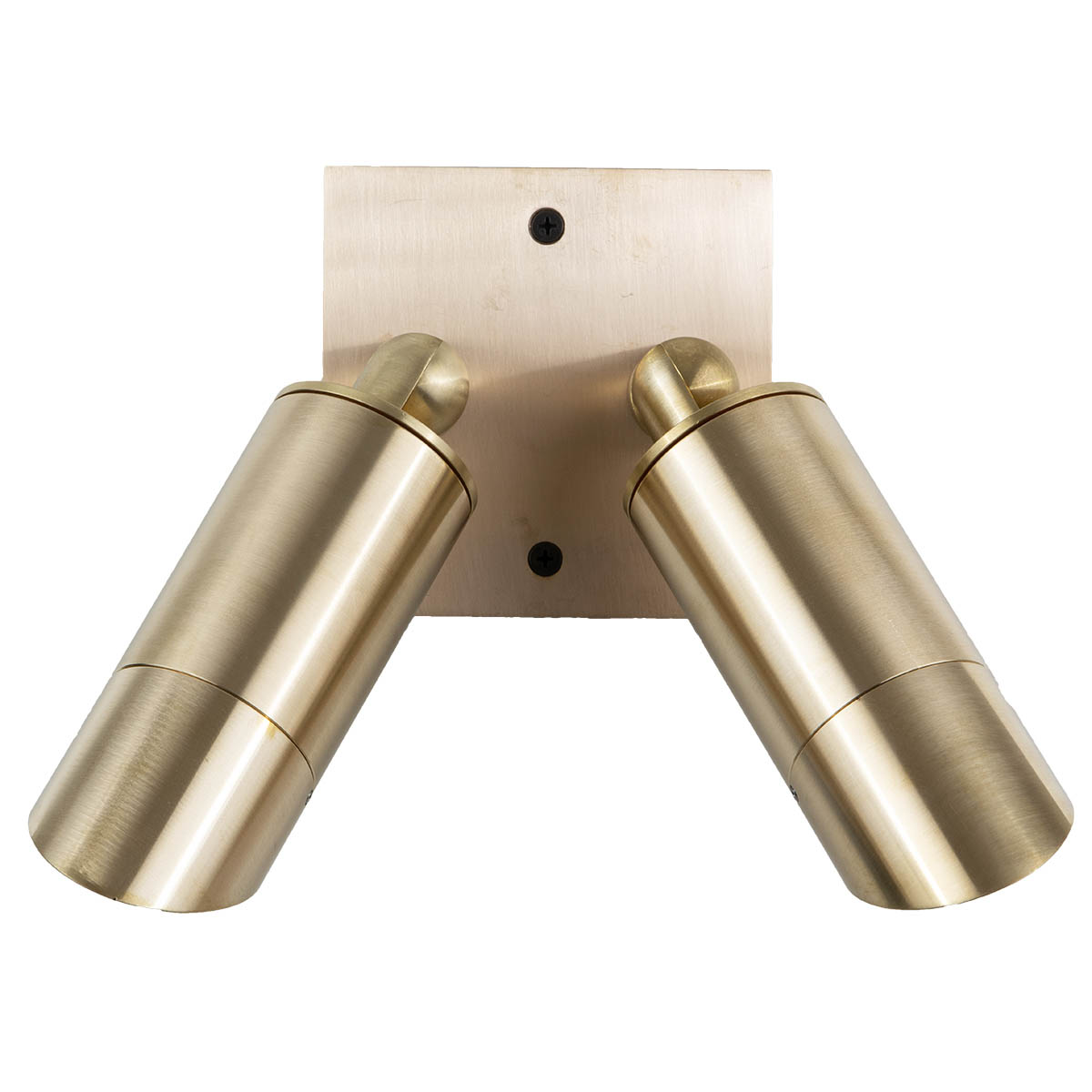

| SQ2 | 4.75″ (12.1cm) square brass canopy, double hole (two fixture heads per canopy) |

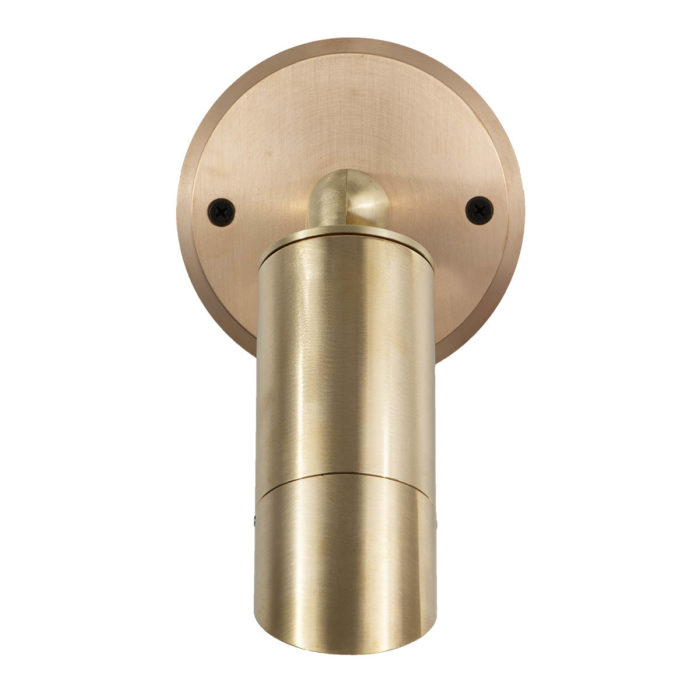

| BGS | Brass glare shield, 45° cutoff |
| BGSF | Brass glare shield, full cutoff with weep hole |
| CTO-1/4-2.04 | Color Temperature Orange filter 1/4 |
| CTO-1/2-2.04 | Color Temperature Orange filter 1/2 |
| CTO-3/4-2.04 | Color Temperature Orange filter 3/4 |
| FR | Frosted lens, 1/8” (3mm) thick |
| HL1 | Honeycomb louver, 1/8” (3mm) thick |
| HL2 | Honeycomb louver, 1/4” (6mm) thick |

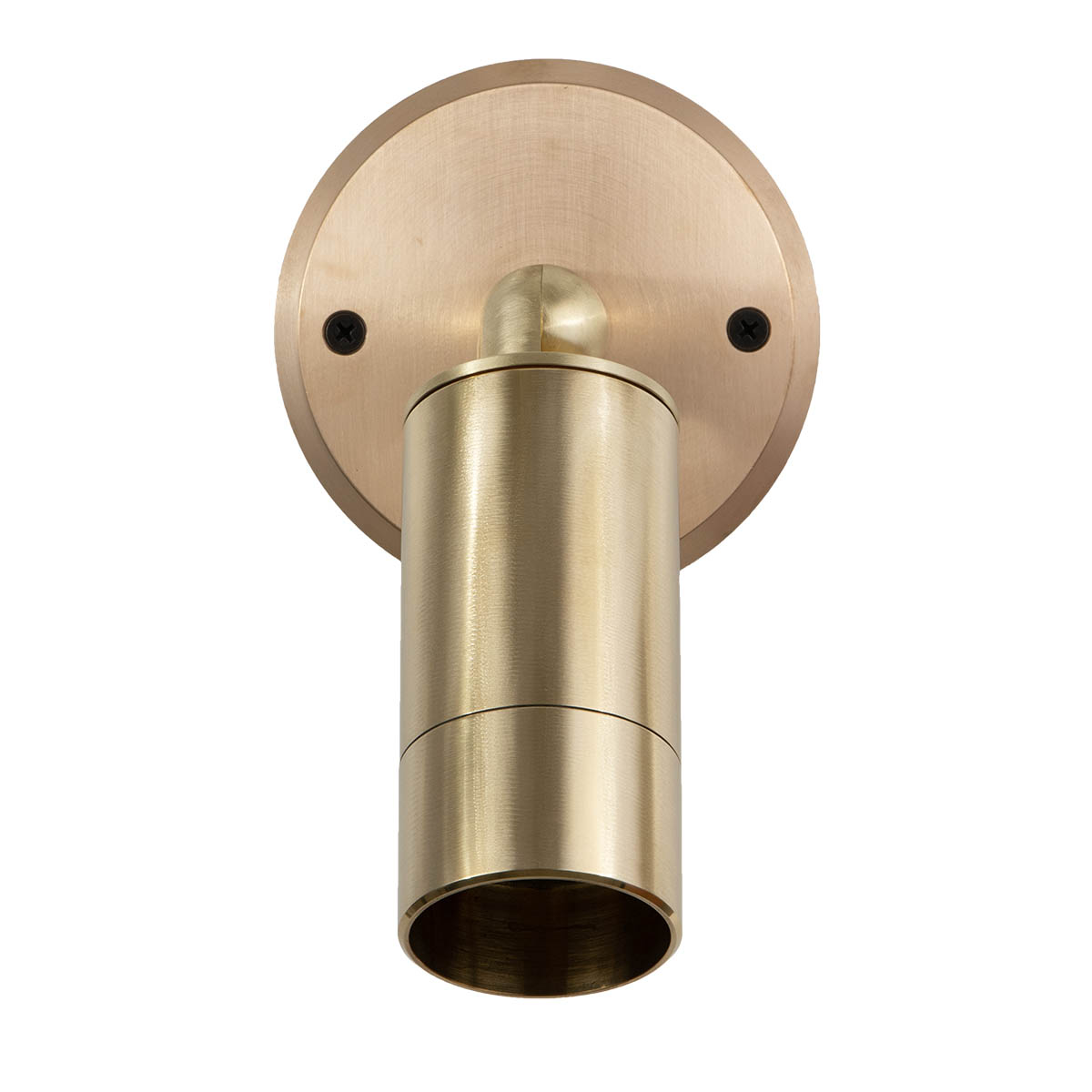

| KP | Extended snoot (no weep hole) for DOWNLIGHTING only |
| PR | Prismatic spread lens, 1/8” (3mm) thick |
| RT | Rectilinear spread lens, 1/8” (3mm) thick |
| SL | Solite (Soft Focus) lens, 1/8” (3mm) thick |
Maximum two 1/8″-thick optical accessories or one HL2 + one CTO filter
