E16-H
(12V Integrated LED)

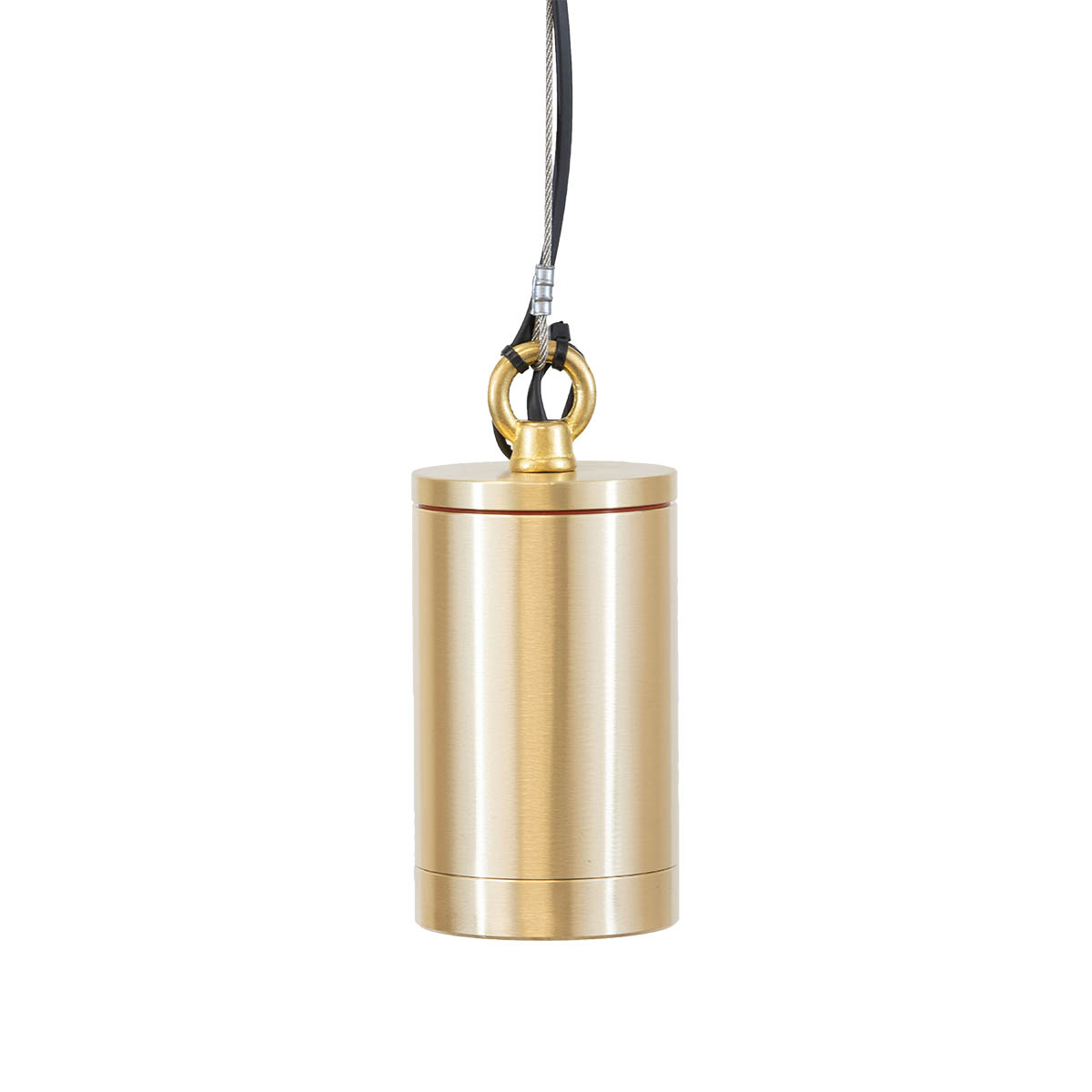

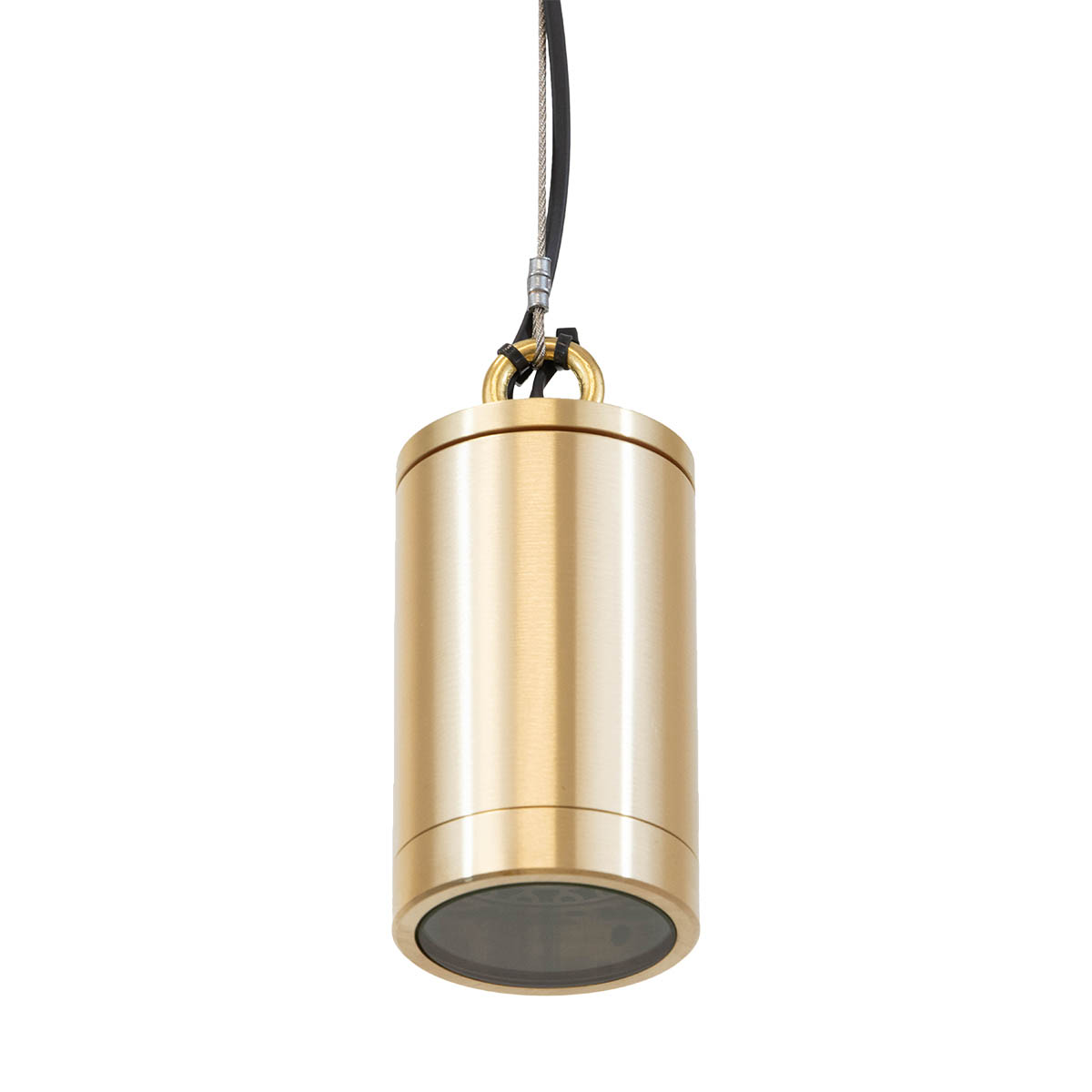

Solid Brass, Low-Voltage Hanging Downlight
- Supplied with 20″ stainless steel cable, 36″ lead wire, and 1/2″ male fitting for mounting accessory
- Can also be hung directly by loop
- Remote transformer required
| Voltage | 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V) |
| Lamps | Integrated LED |
| Lumens | 799 max |
| CCT | 1000K |
| 1500K | |
| 2700K | |
| 3000K | |
| Dimensions | 2.4″ dia. x 4.2″ (6 x 10.6 cm) |
Specifications
Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Triple Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
Integrated triple LED Light Engine
Triac dimmable: MLV >1% typ, ELV >5% typ
Cree XPE2: AMBER (1500K), RED-ORANGE (1000K)
| 7W-A-SP | 7 Watt Amber | 10° spot |
| 7W-A-NFL | 7 Watt Amber | 30° narrow flood |
| 7W-A-FL | 7 Watt Amber | 60° flood |
| 8W-RO-SP | 8 Watt Red-Orange | 10° spot |
| 8W-RO-NFL | 8 Watt Red-Orange | 30° narrow flood |
| 8W-RO-FL | 8 Watt Red-Orange | 60° flood |
Cree XPG2 LED: 11-Watt Warm White, adjustable output
2700K
| 11W-827-SP | 11 Watt | 10° spot |
| 11W-827-NFL | 11 Watt | 30° narrow flood |
| 11W-827-FL | 11 Watt | 60° flood |
3000K
| 11W-830-SP | 11 Watt | 10° spot |
| 11W-830-NFL | 11 Watt | 30° narrow flood |
| 11W-830-FL | 11 Watt | 60° flood |
Cree XPG3 LED: High CRI 11-Watt Warm White, adjustable output
2700K
| 11W-927-SP | 11 Watt | 10° spot |
| 11W-927-NFL | 11 Watt | 30° narrow flood |
| 11W-927-FL | 11 Watt | 60° flood |
3000K
| 11W-930-SP | 11 Watt | 10° spot |
| 11W-930-NFL | 11 Watt | 30° narrow flood |
| 11W-930-FL | 11 Watt | 60° flood |
| CMK | Catenary cable mounting kit (Instructions) |
| TDM1 | Brass tree/deck mount with stainless steel screws |
| TDM2 | Brass tree mount with nylon strap (48″, 72″, or 96″) |
| TDM2SS | Brass tree mount with stainless steel strap (48″, 72″, or 96″) |
| TDM3-HANG | Brass low-profile deck/wall mount (SA accessory recommended) |
| TDM4-HANG | Brass low-profile tree mount with notch for wire (SA accessory recommended) |
| TMJB | Brass tree-mounted junction box, single fixture mount, stainless steel strap (48″, 72″, or 96″) |
| TMJBX | Brass tree-mounted junction box, single fixture mount, stainless steel screws |
| CTO-1/4-2.04 | Color Temperature Orange filter 1/4 |
| CTO-1/2-2.04 | Color Temperature Orange filter 1/2 |
| CTO-3/4-2.04 | Color Temperature Orange filter 3/4 |
| FR | Frosted lens, 1/8” (3mm) thick |
| HL1 | Honeycomb louver, 1/8” (3mm) thick |

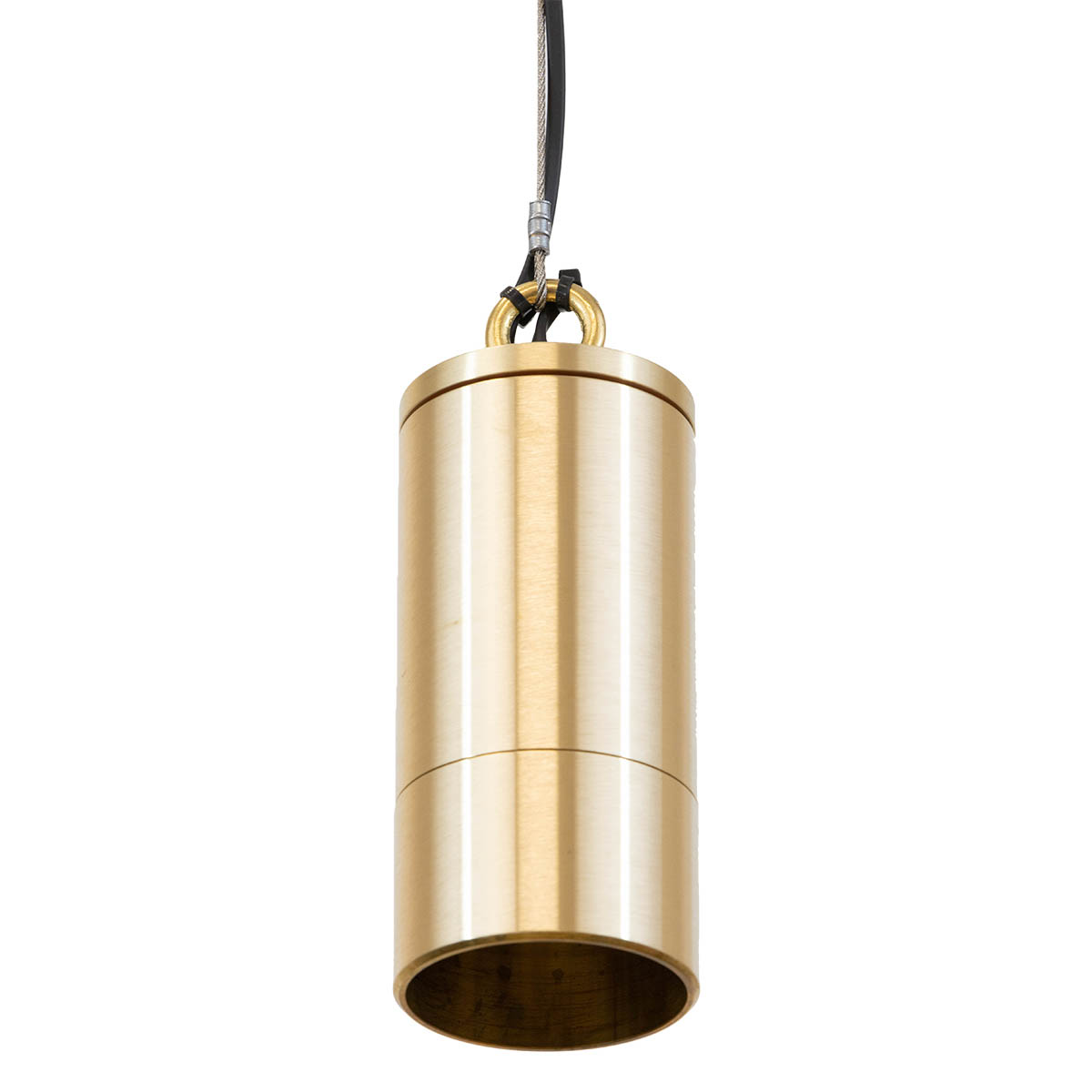

| KP | Extended snoot |
| PR | Prismatic spread lens, 1/8” (3mm) thick |
| RT | Rectilinear spread lens, 1/8” (3mm) thick |
| SL | Solite (Soft Focus) lens, 1/8” (3mm) thick |
