E17
(12V Integrated LED & MR16 LED)
Solid Brass, Low-profile Marker Light
- Remote transformer required

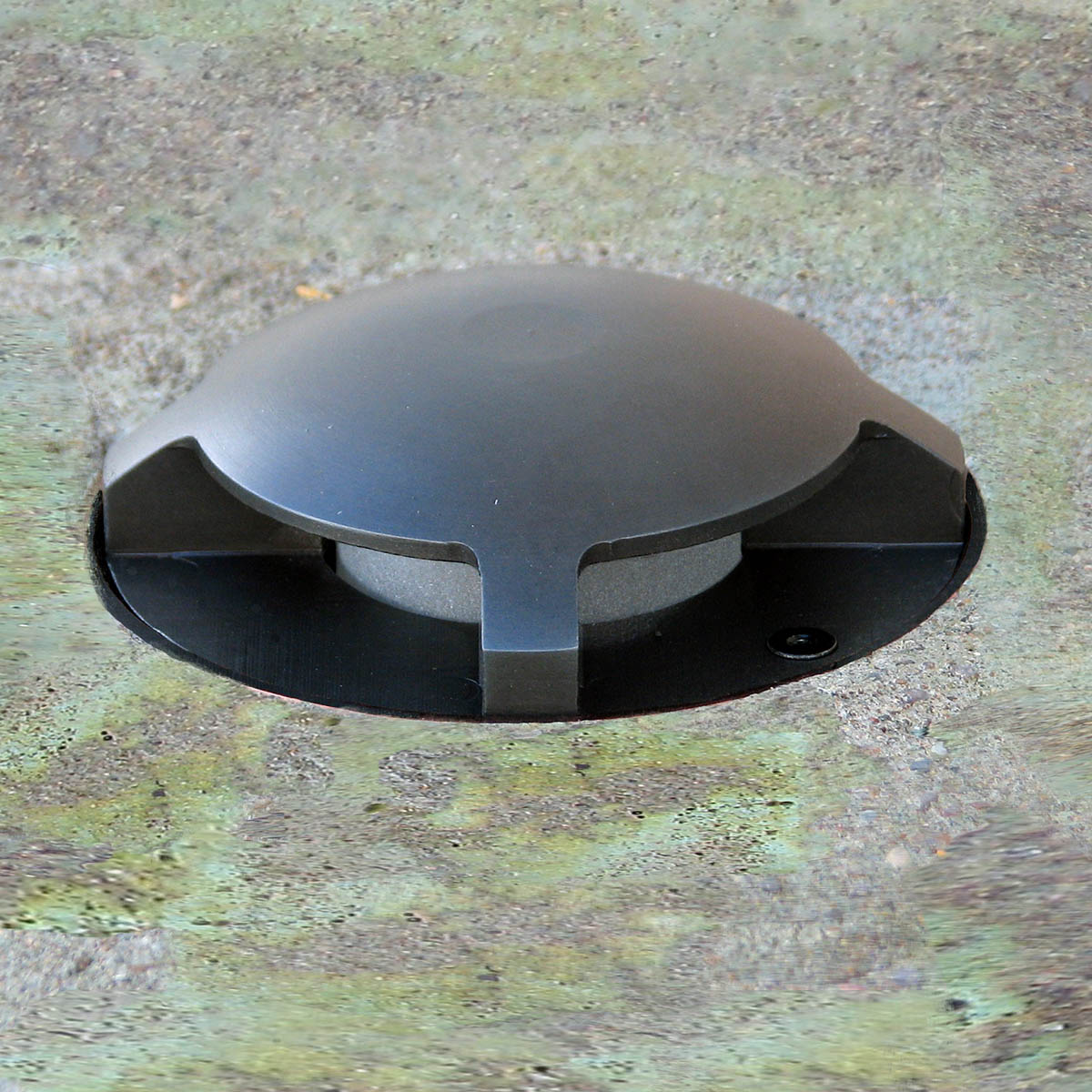

- In-ground or concrete installation
| Voltage | 12 Volts AC / DC |
| Lamps | Integrated LED, MR16 LED |
| CCT | 1000K |
| 1500K (DarkSky approved) | |
| 2700K | |
| 3000K | |

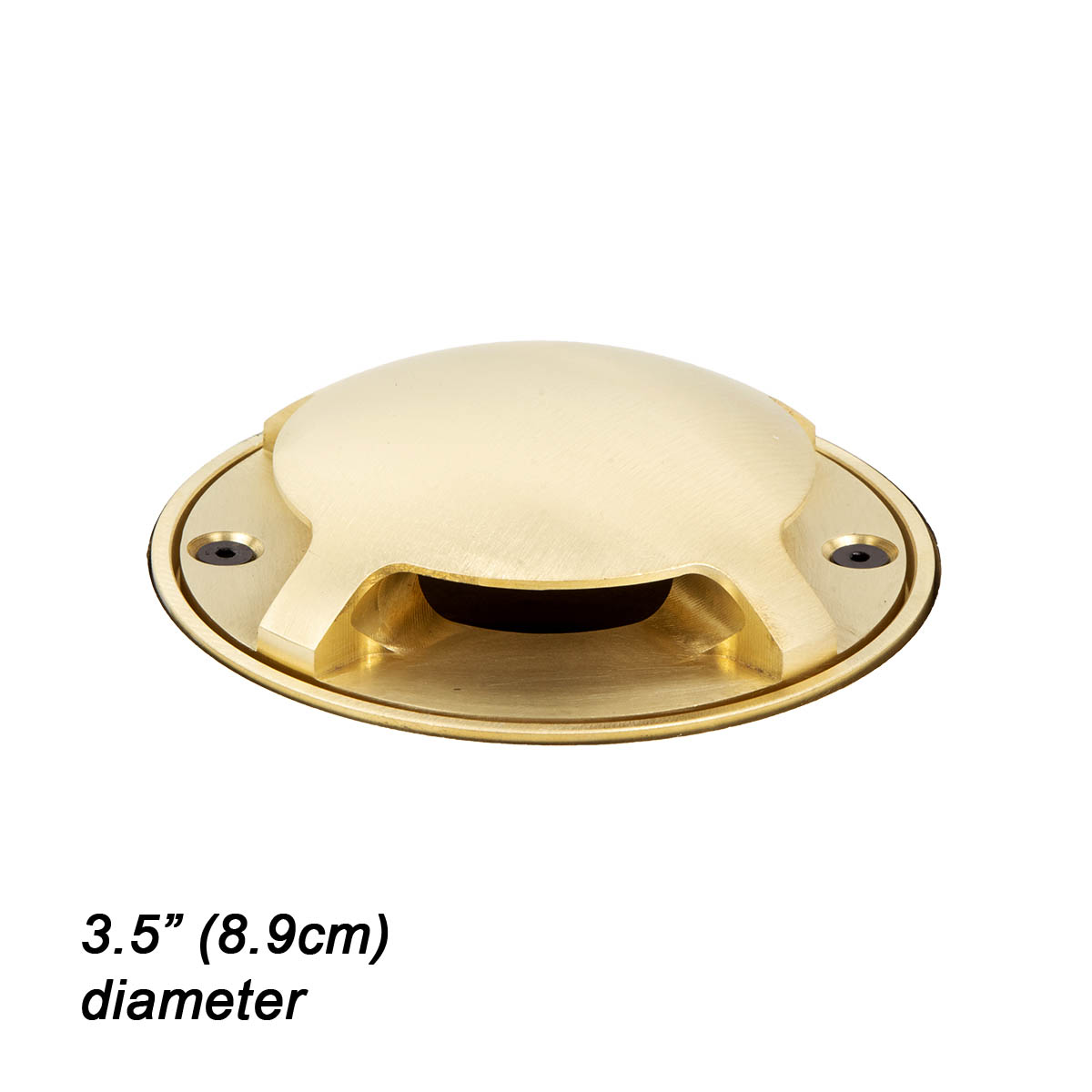

| Dimensions | 3.5″ diameter x 5.3” depth [8.9 x 13.5 cm] |
| 3.8″ [9.6 cm] trim ring outer diameter |

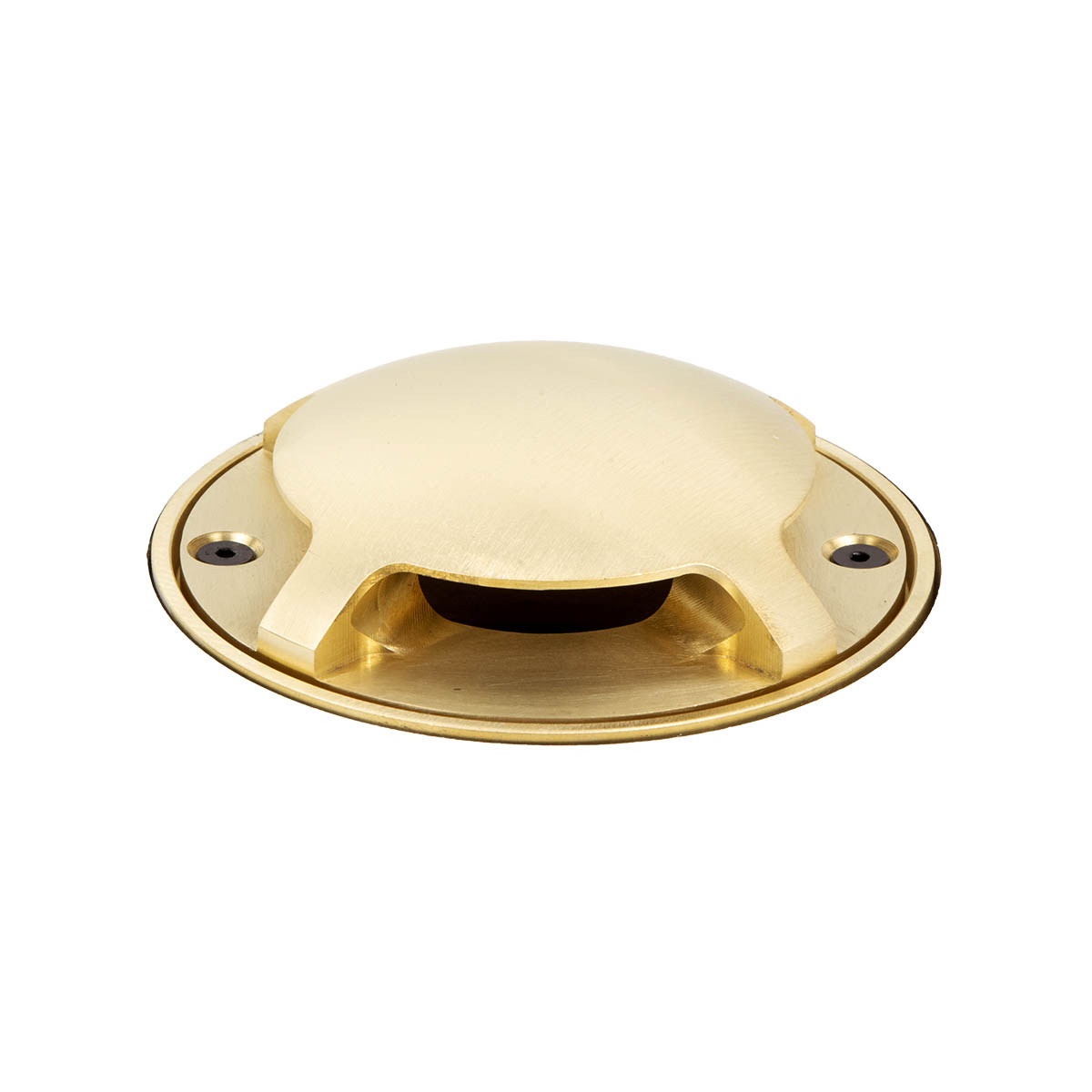

| E17 | Four-Sector Illumination (standard) |

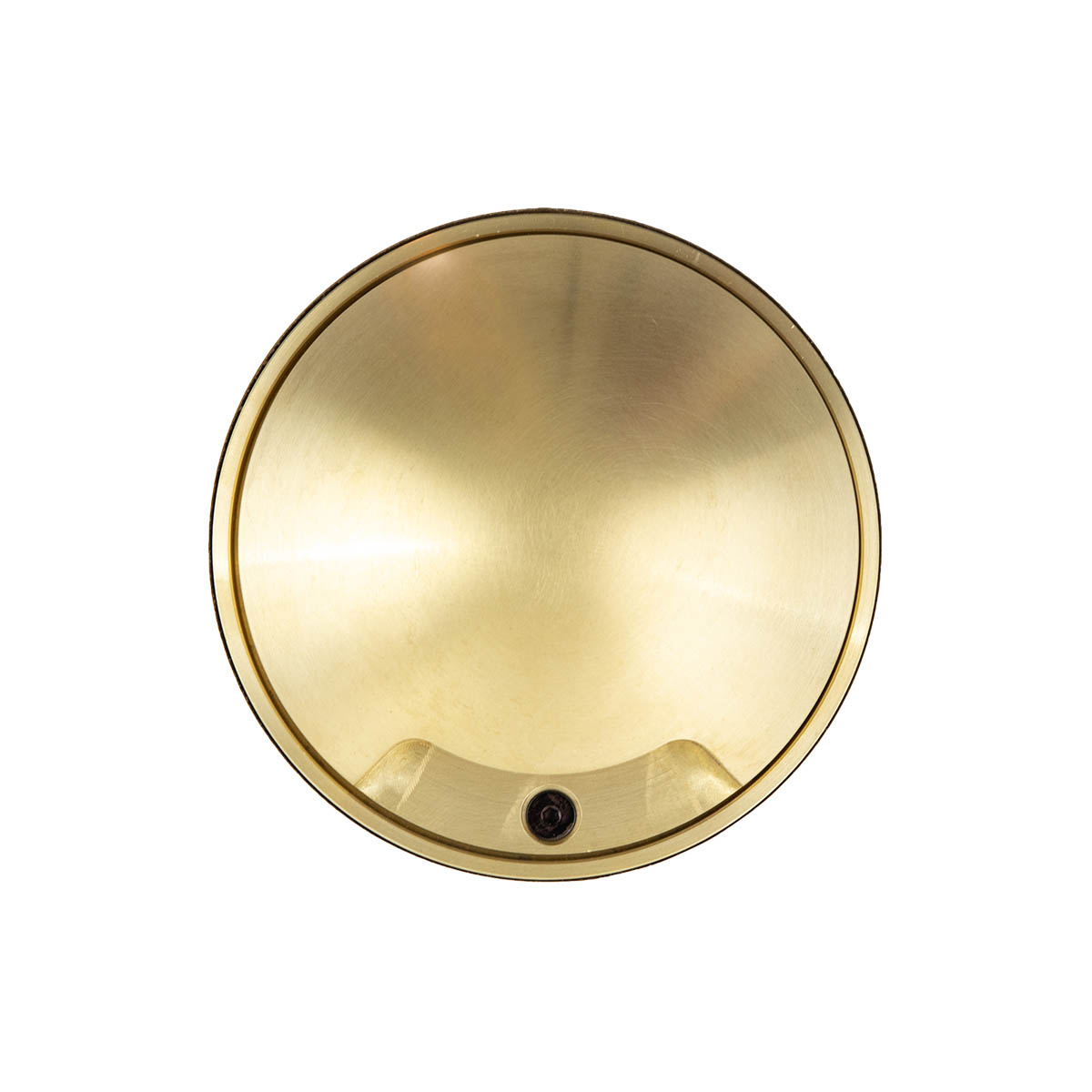

| E17-1 | Single-Sector Illumination |

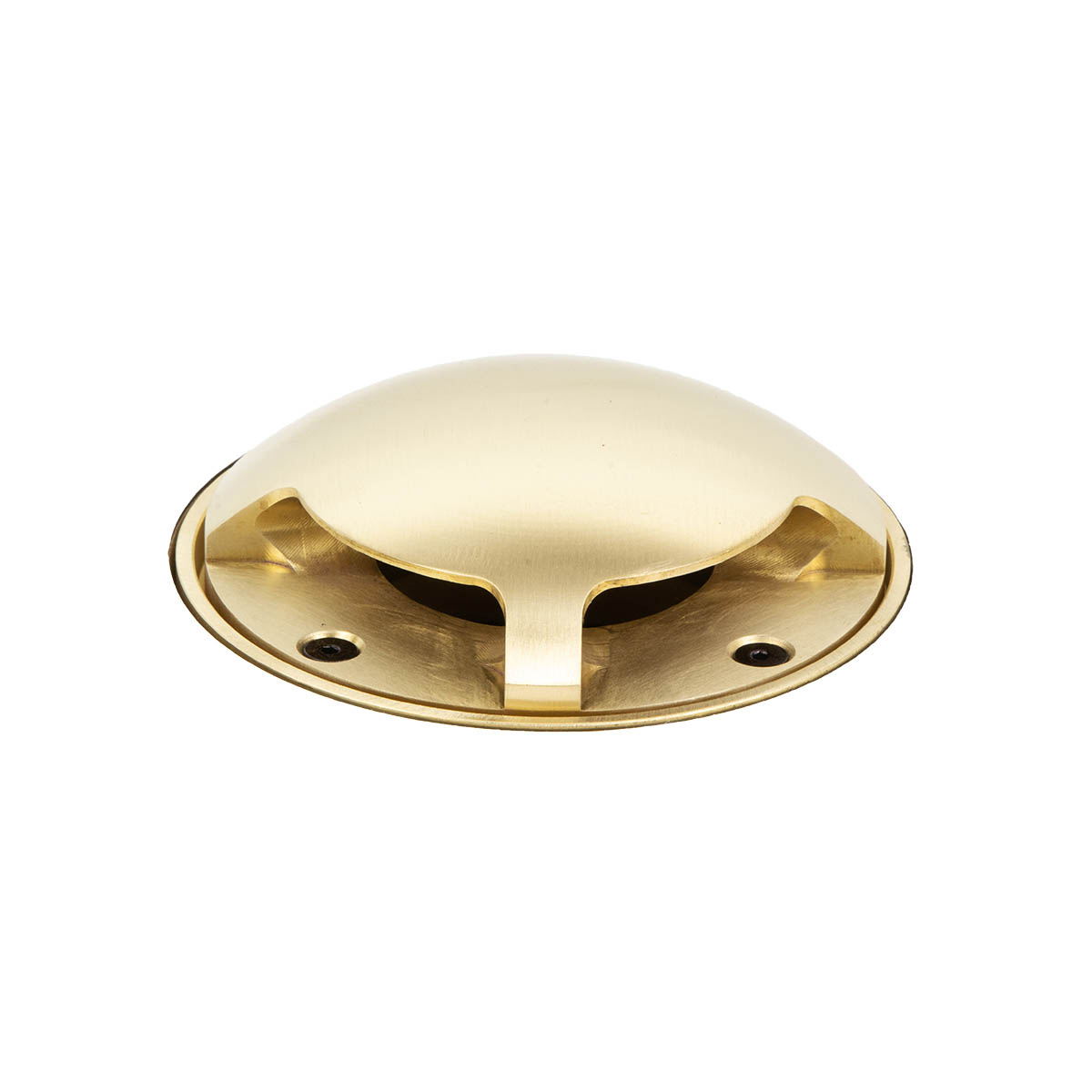

| E17-2 | Two-Sector, Adjacent Illumination |

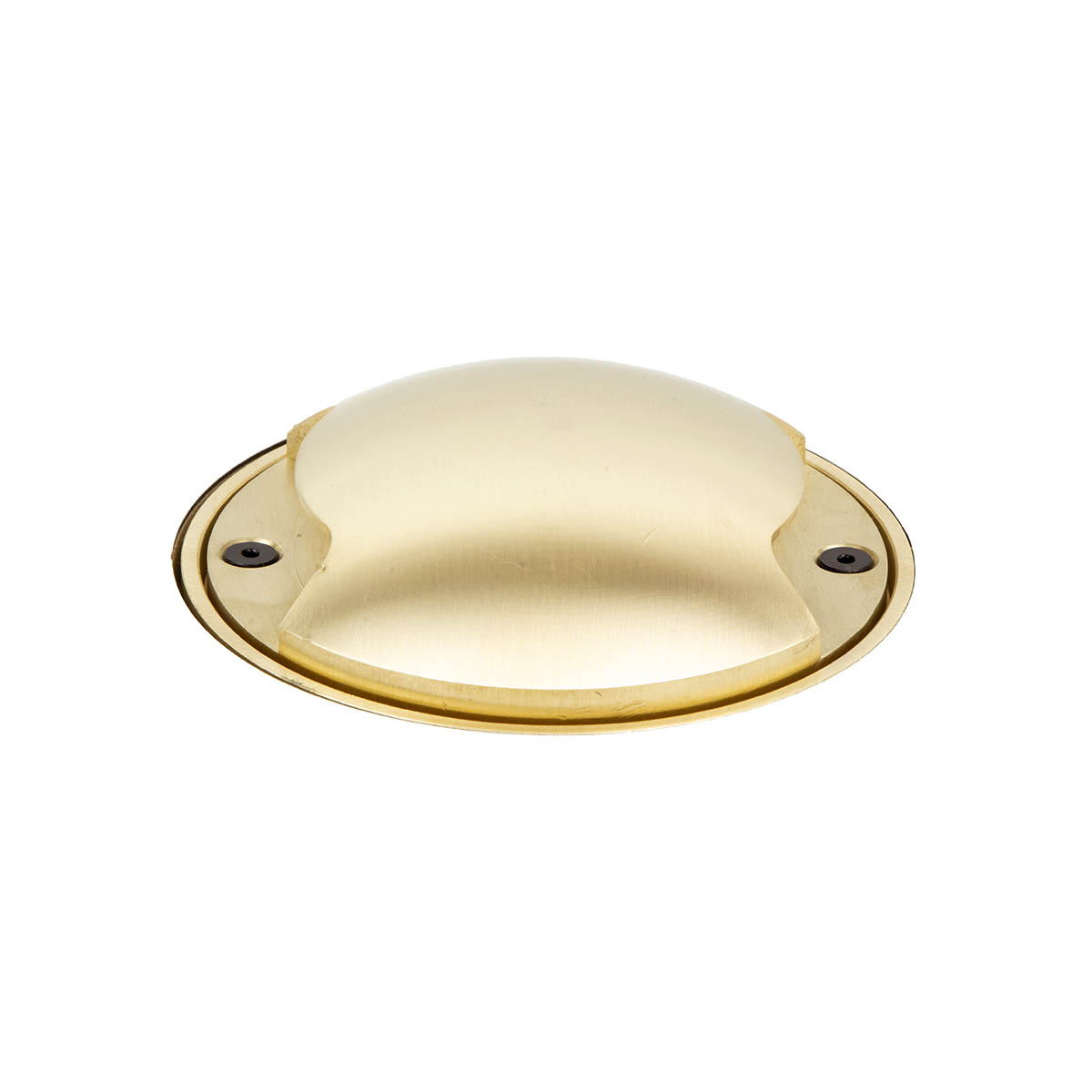

| E17-OP | Two-Sector, Opposite Illumination |
Specifications
Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

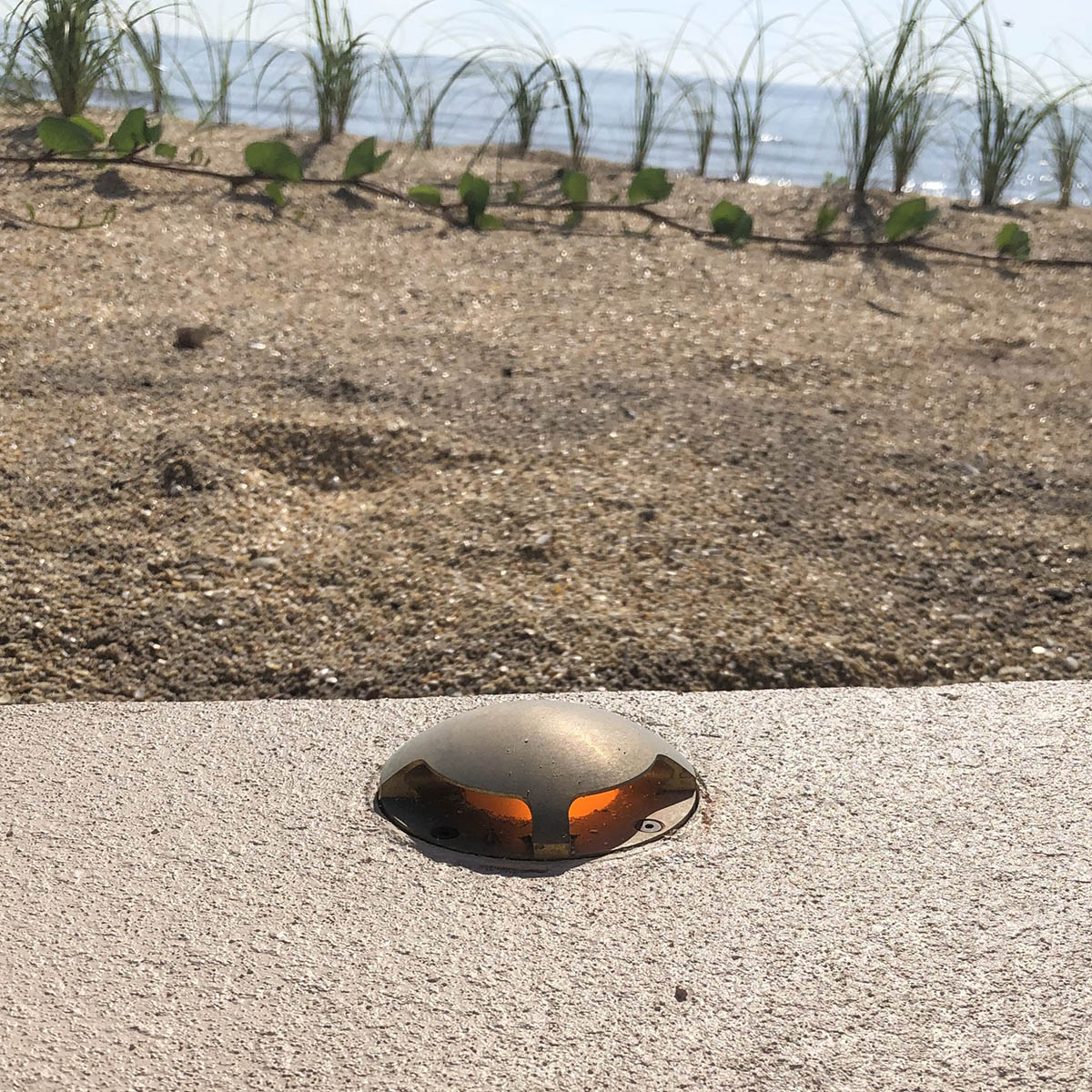

Cree XPE2 TURTLE FRIENDLY
| 2W-A-NFL | 2 Watt AMBER (1500K)* |
| 2W-RO-NFL | 2 Watt RED-ORANGE (1000K)* |
Cree XPG2
| 3W-NFL | 3 Watt Warm White (3000K) |
| 3W-NFL-2700K | 3 Watt Warm White (2700K) |
GU5.3 MR16 LED
| 5W-A-NFL | 5 Watt AMBER (1500K)* TURTLE FRIENDLY |
| 5W-NFL-27 | 5 Watt Warm White (2700K) |
| 5W-NFL-30 | 5 Watt Warm White (3000K) |
| 8W-NFL-27 | 8 Watt Warm White (2700K) |
| 8W-NFL-30 | 8 Watt Warm White (3000K) |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
