E2 Turtle Friendly
(12V Integrated LED)

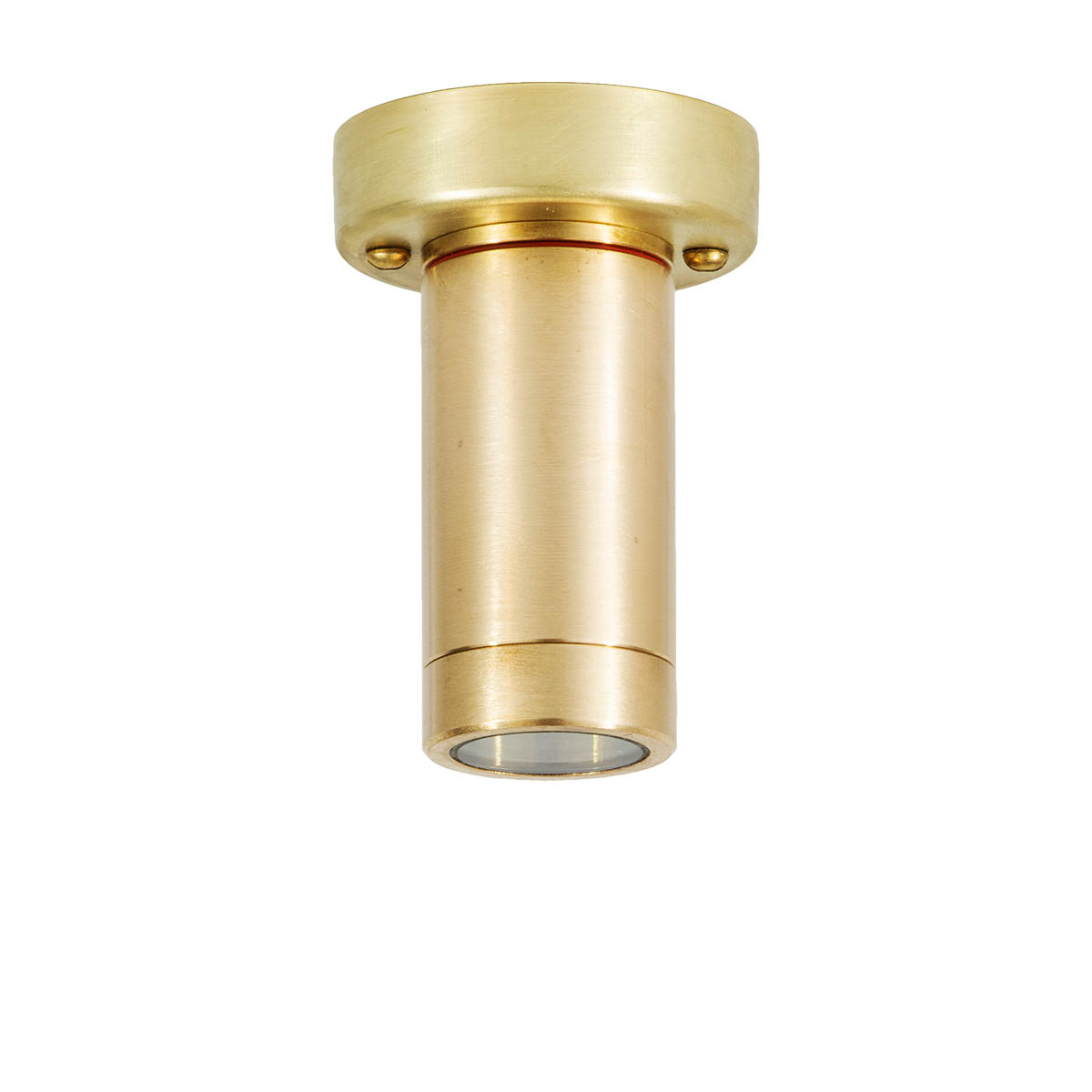

E2 Architectural

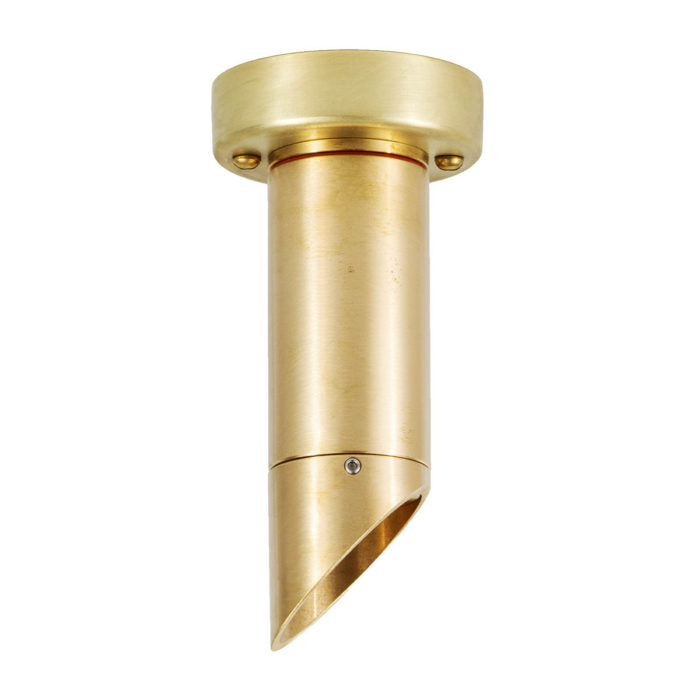

E2-bgs8 Architectural

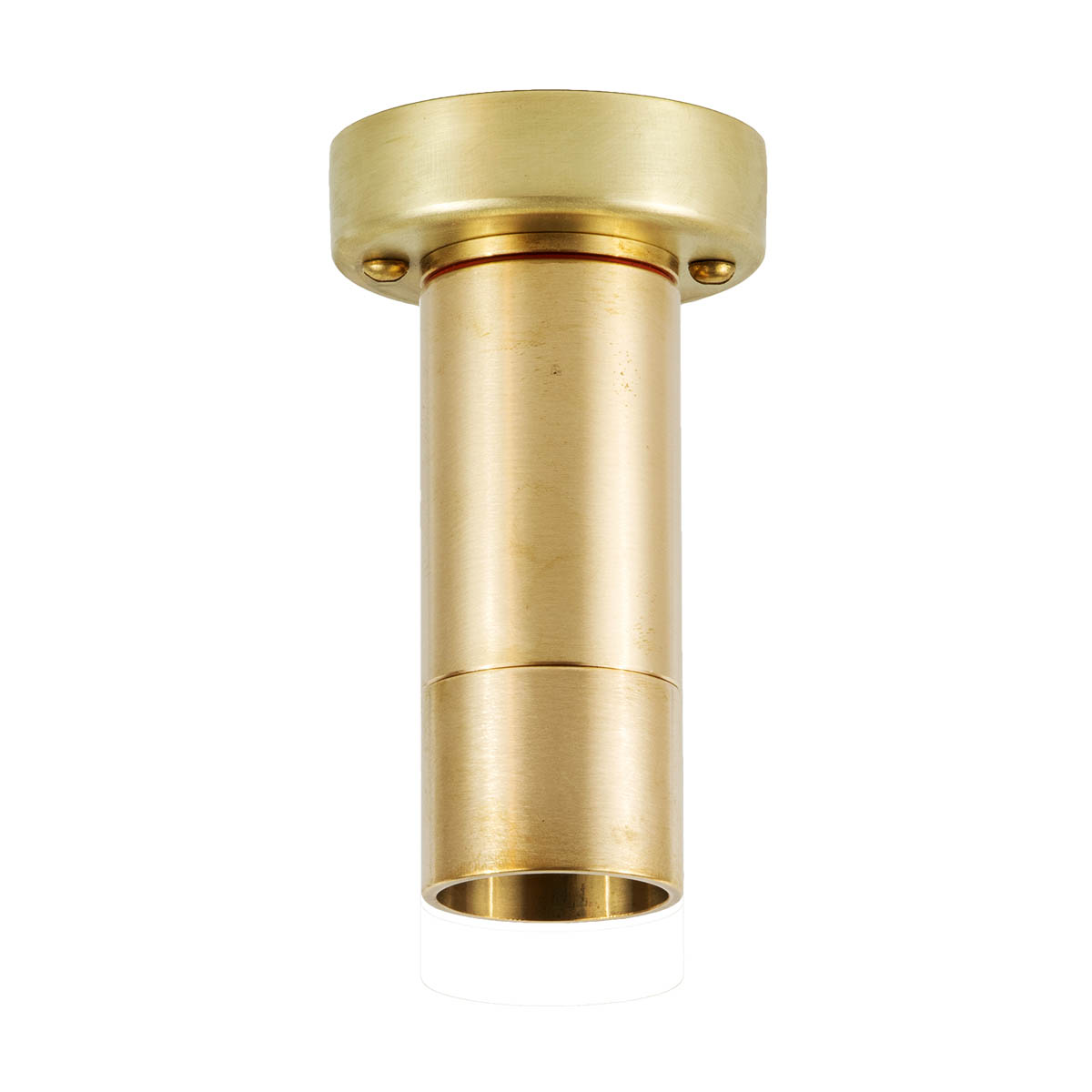

E2-kp Architectural

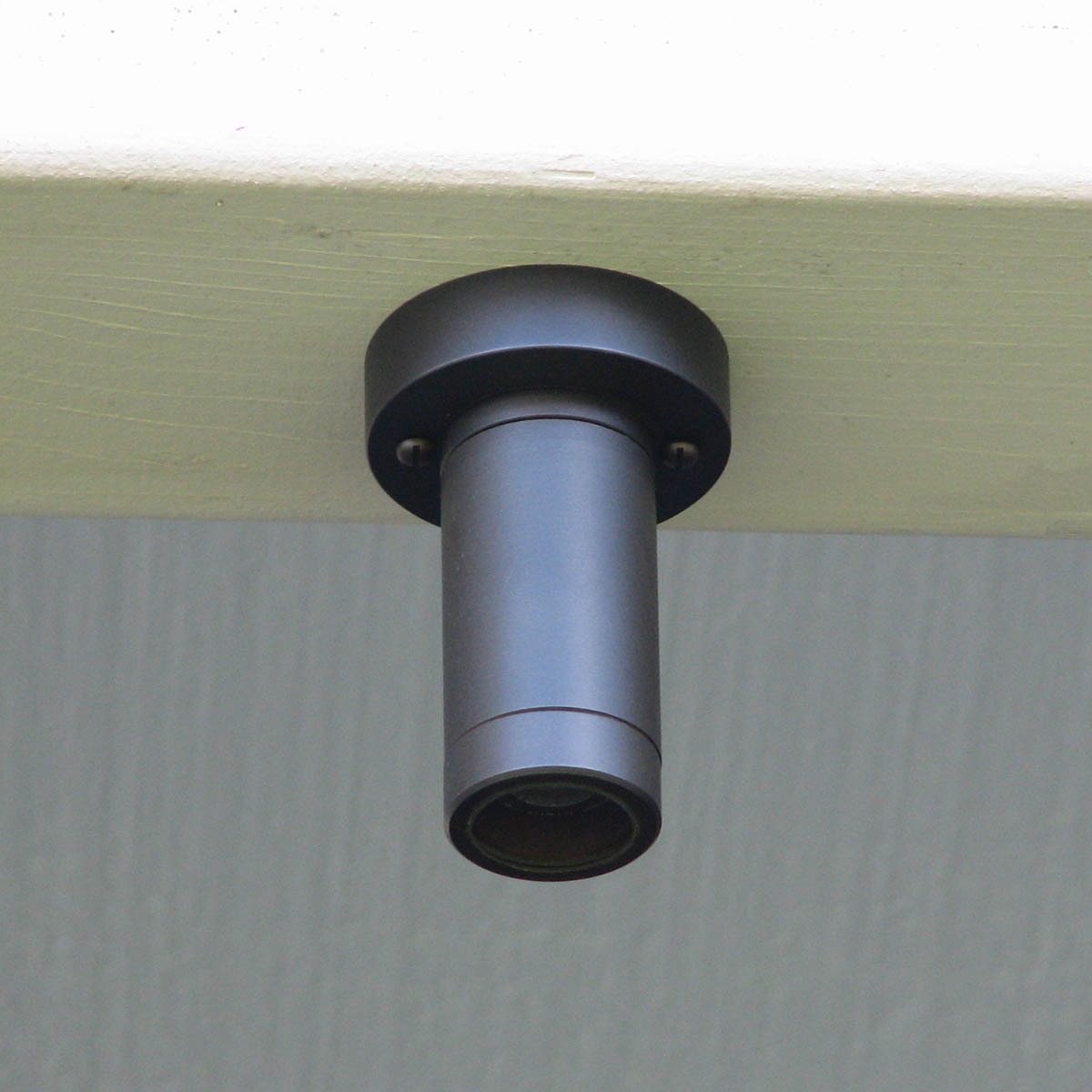

E2 Dark Bronze Architectural

E2 Turtle Friendly
(12V Integrated LED)

Darksky

Solid Brass Low-Voltage Fixed Downlight

  • Remote transformer required
Voltage 12V AC with integral driver (9V-15V Input, dimmable below 9V)
Lamps Integrated LED
Lumens 123 max
CCT 1000K
1500K
Dimensions 1.6″ dia. body x 2.8″ dia. base x 4″ (4.2 x 7 x 10.2 cm)
LM79 IES SPECTRAL POWER DISTRIBUTION /
BLUE LIGHT CONTENT
E2-2W-A-SP E2-2W-A-SP E2-2W-A

The E2 fixture shares the same light engines and body as the E8 fixtures.  Please refer to the E8 files for additional photometric information.

Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

Cree XPE2: AMBER (1500K), RED-ORANGE (1000K)

2W-A-SP 2 Watt AMBER 11° beam / 20° field angle
2W-A-NFL 2 Watt AMBER 14° / 31°
2W-A-FL 2 Watt AMBER 28° / 60°
2W-A-NO 2 Watt AMBER 46° / 114°
2W-RO-SP 2 Watt RED-ORANGE 10° / 18°
2W-RO-NFL 2 Watt RED-ORANGE 13° / 28°
2W-RO-FL 2 Watt RED-ORANGE 32° / 56°
2W-RO-NO 2 Watt RED-ORANGE 49° / 114°
BGS8 Brass glare shield, 45° cutoff
FR8 Frosted lens
HL8 Honeycomb louver, 1/8″ [3mm] thick
KP Extended snoot
PR8 Prismatic spread lens
RT8 Rectilinear spread lens
SL8 Solite (Soft Focus) lens
NC No Canopy (1/2″ NPSM brass threaded fitting only)

Optical Accessories
