E3-M Turtle Friendly
(12V Integrated LED & MR11 LED)
Solid Brass Low-Profile Marker Light
- Remote transformer required
| Voltage | 12 Volts AC/DC with integral driver (9-15V input, dimmable below 9V) |
| Lamps | Integrated LED, MR11 LED |
| Lumens | max 5.6 |
| CCT | 1000K |
| 1500K (DarkSky approved) | |

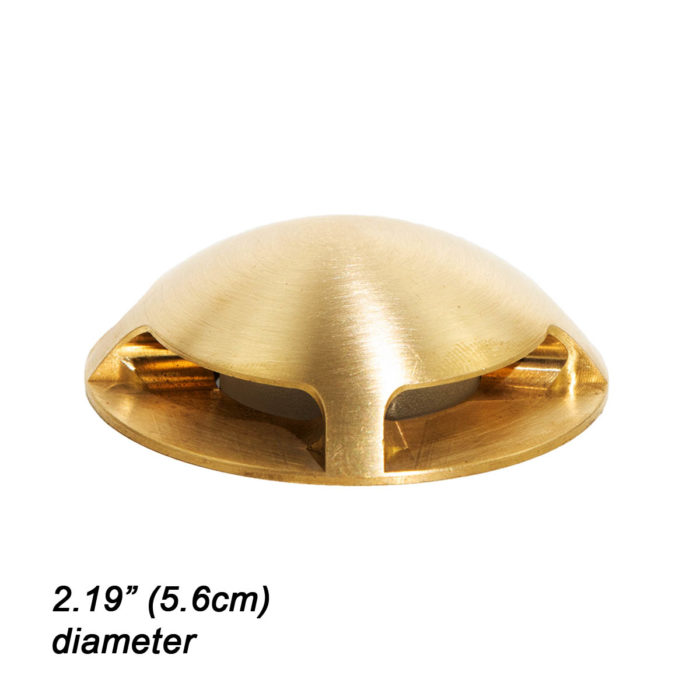

| Dimensions | Dome diameter: 2.19″ [5.6 cm] |
| Depth: 3.14″ [8.0 cm] |
| E3-M | Four-Sector Illumination (standard) |

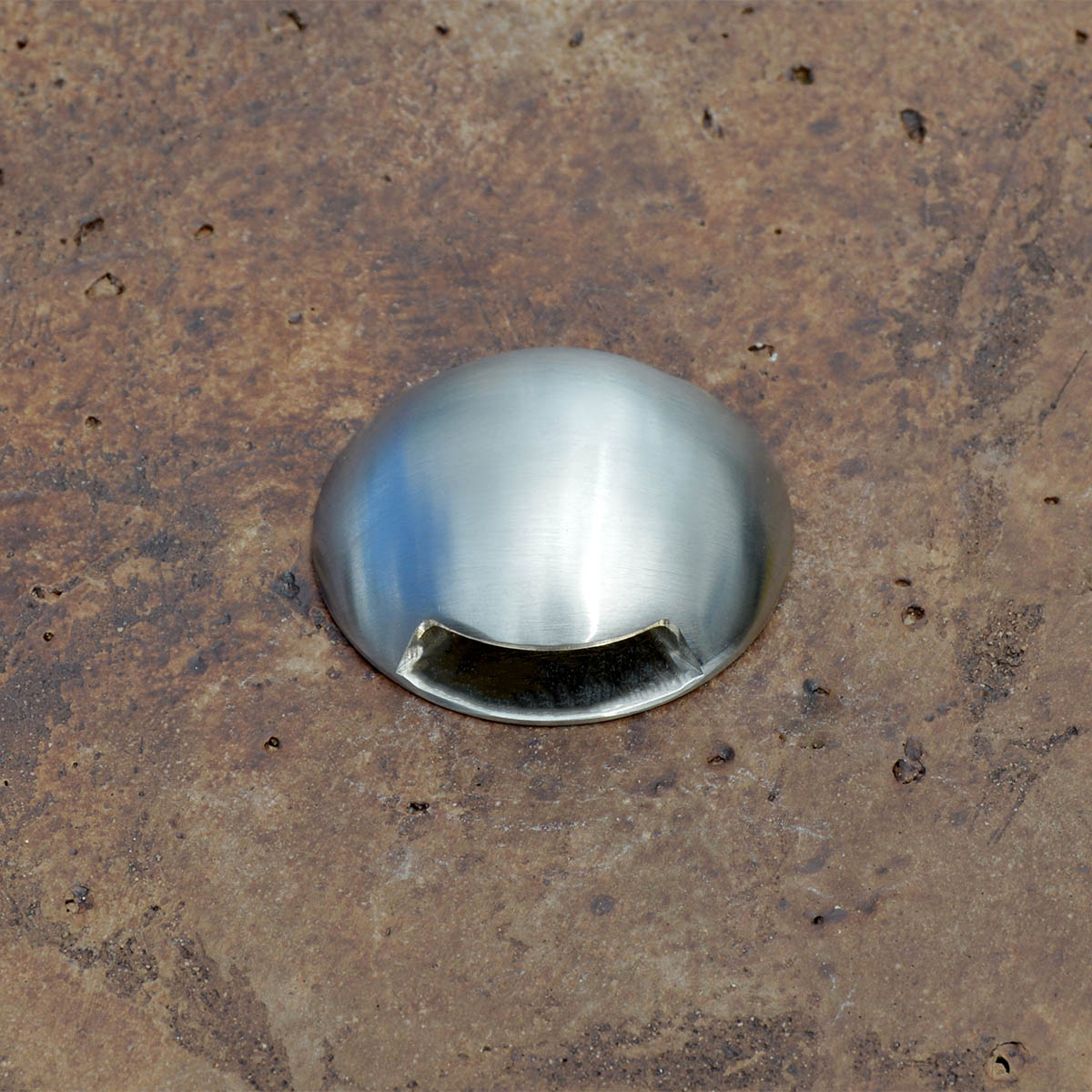

| E3-M-1 | Single-Sector Illumination |

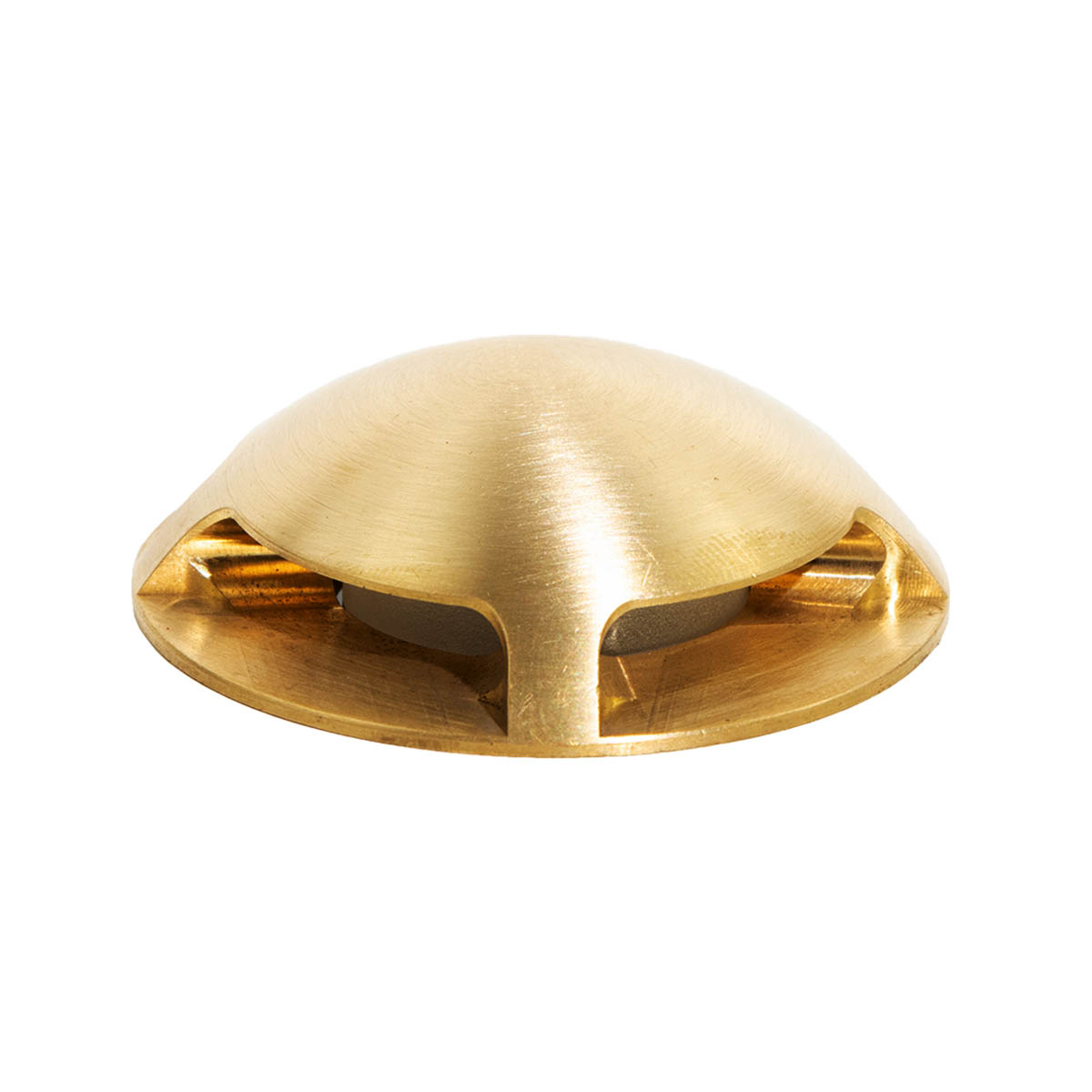

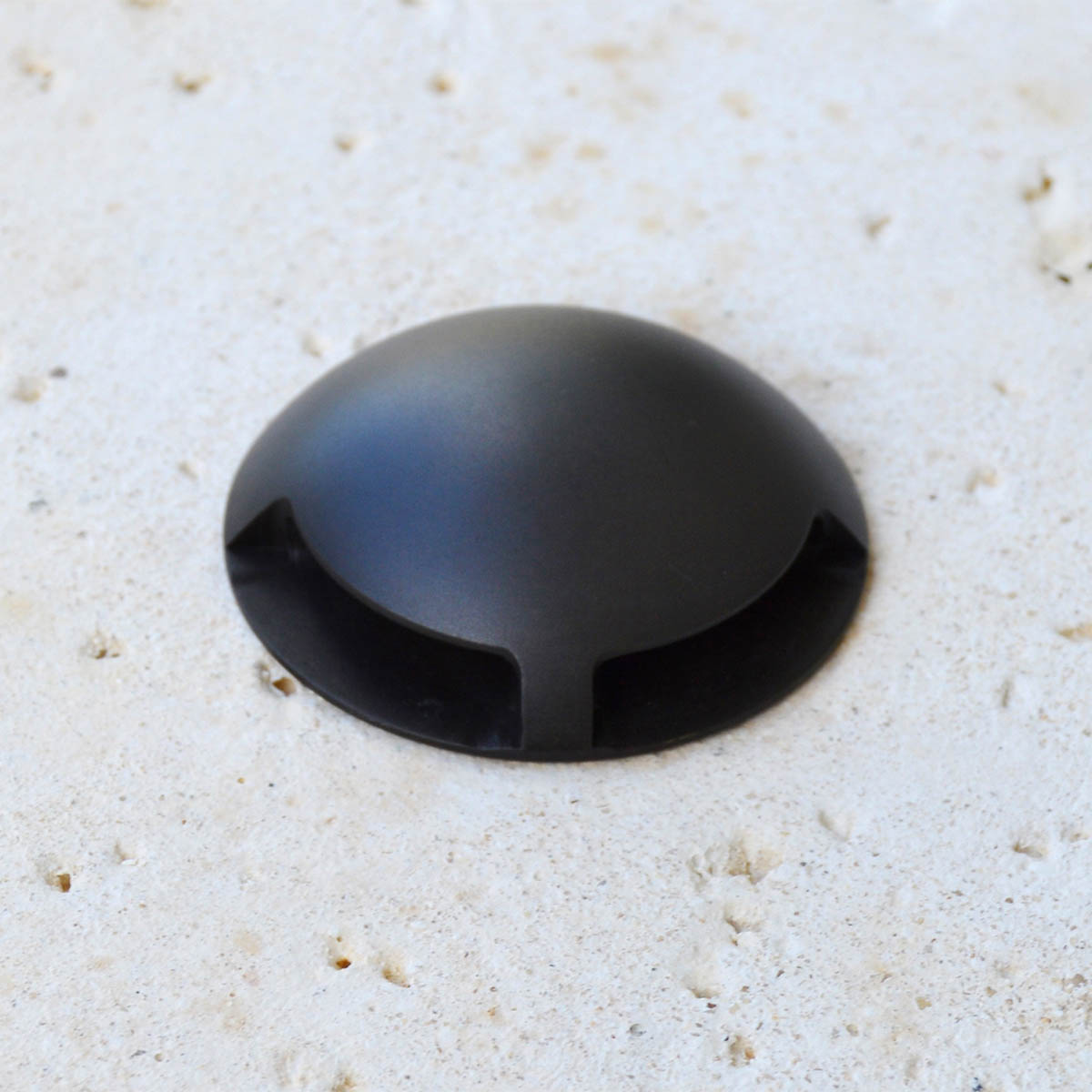

| E3-M-2 | Two-Sector, Adjacent Illumination |

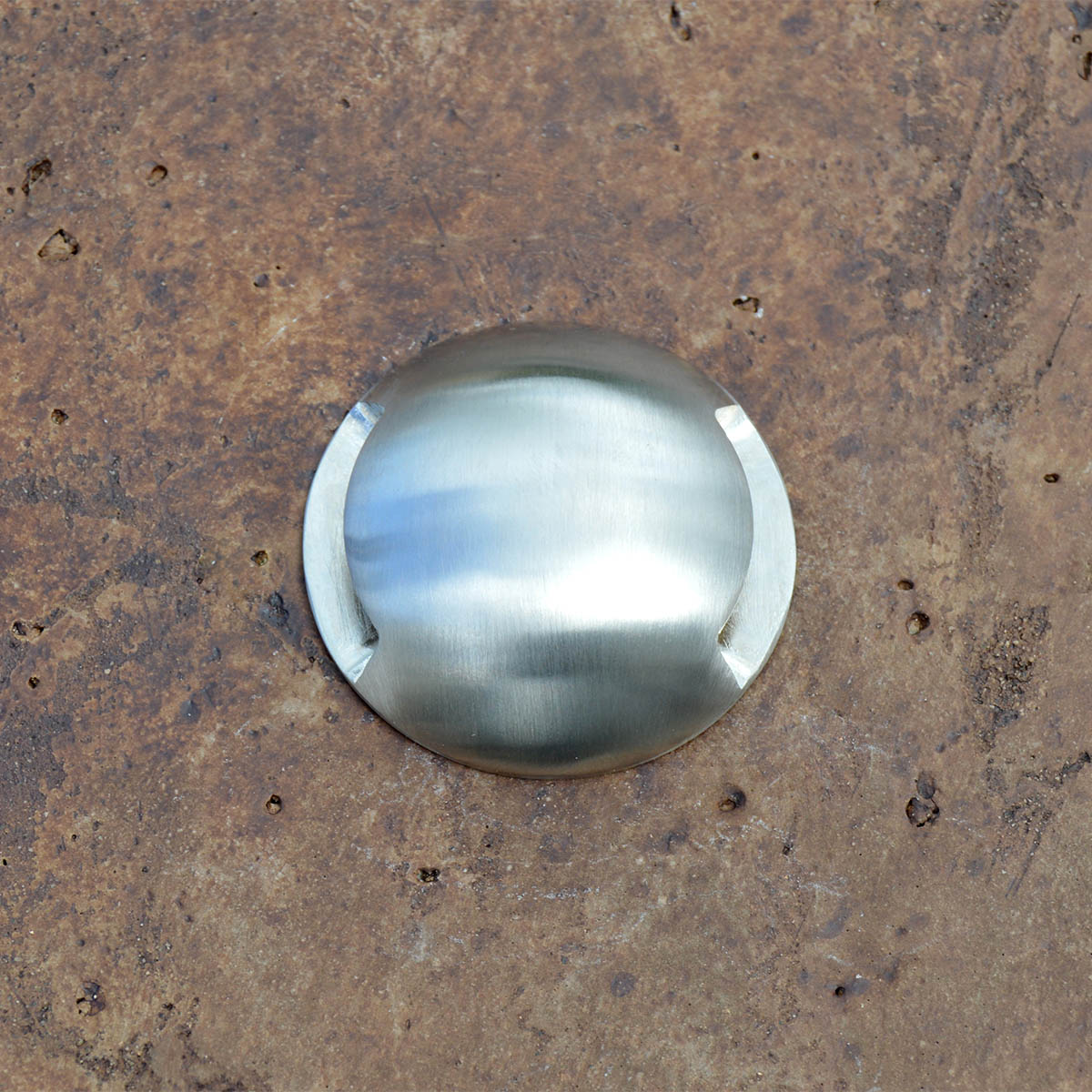

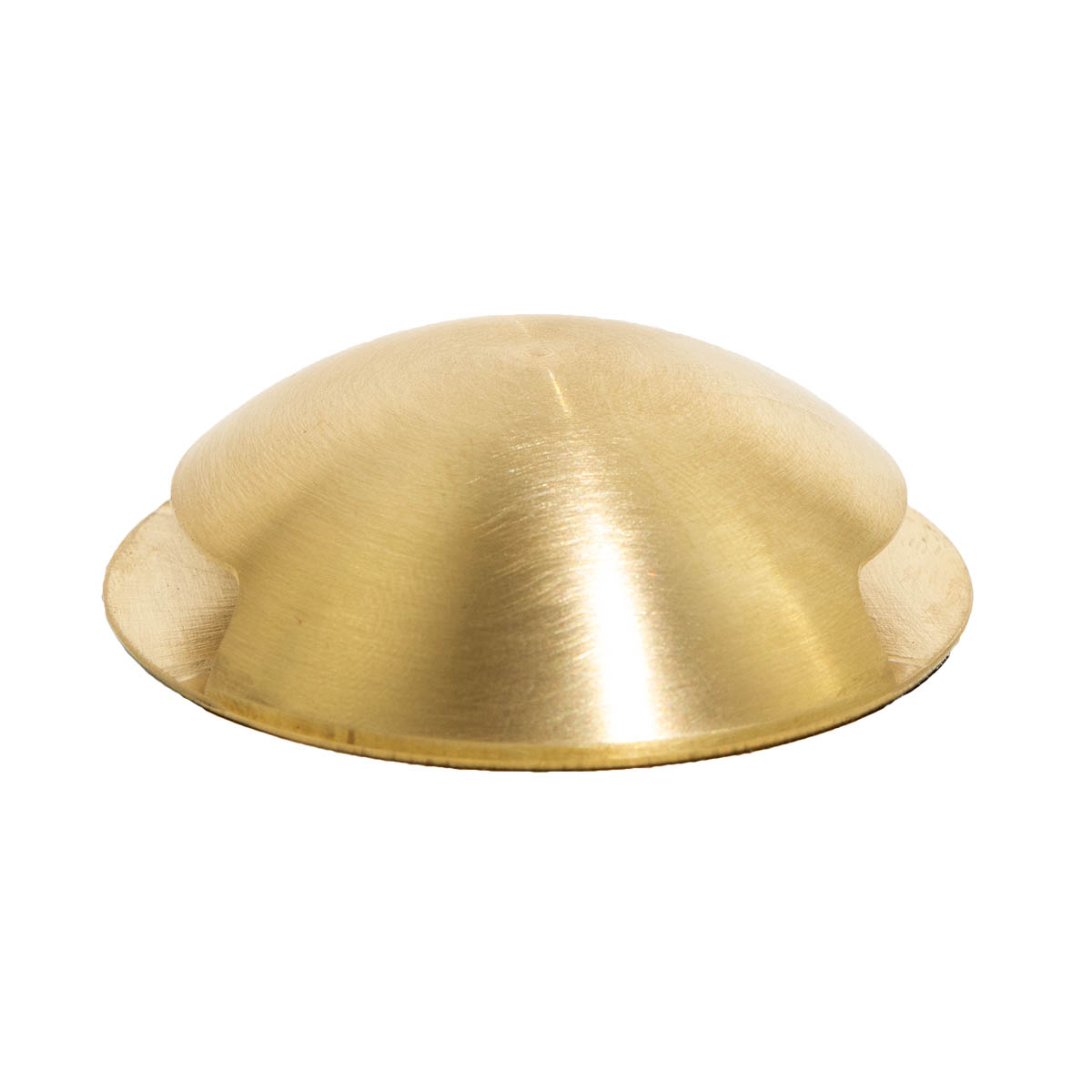

| E3-M-OP | Two-Sector, Opposite Illumination |
Specifications
Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
FFWCC Certification Letter
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2
| 2W-A-SP | 2 Watt AMBER (1500K) |
| 2W-RO-SP | 2 Watt RED-ORANGE (1000K) |
MR11 LED
Triac dimmable >25%
| 2W-A-MR11-NFL | 2 Watt AMBER (1500K) |
| CF (Limited Depth / Remote Splice) | Conduit Fitting (increases overall length to 4.5″ / 11.4cm) |
| CFK | Concrete Form Kit |
| DM | Deck Mount adapter ring for wooden decks |
