(12V Integrated LED, MR11 LED)

(12V Integrated LED, MR11 LED)

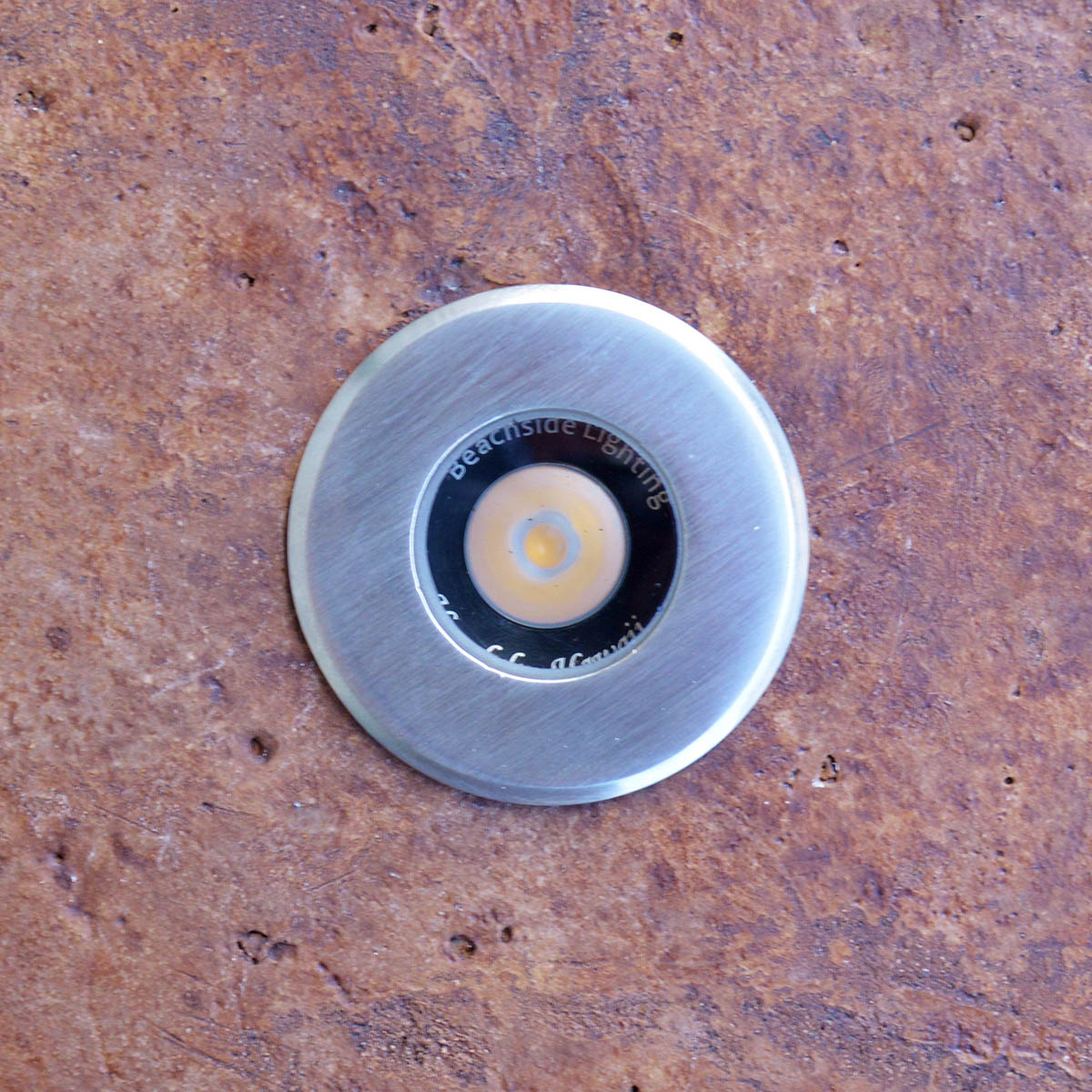

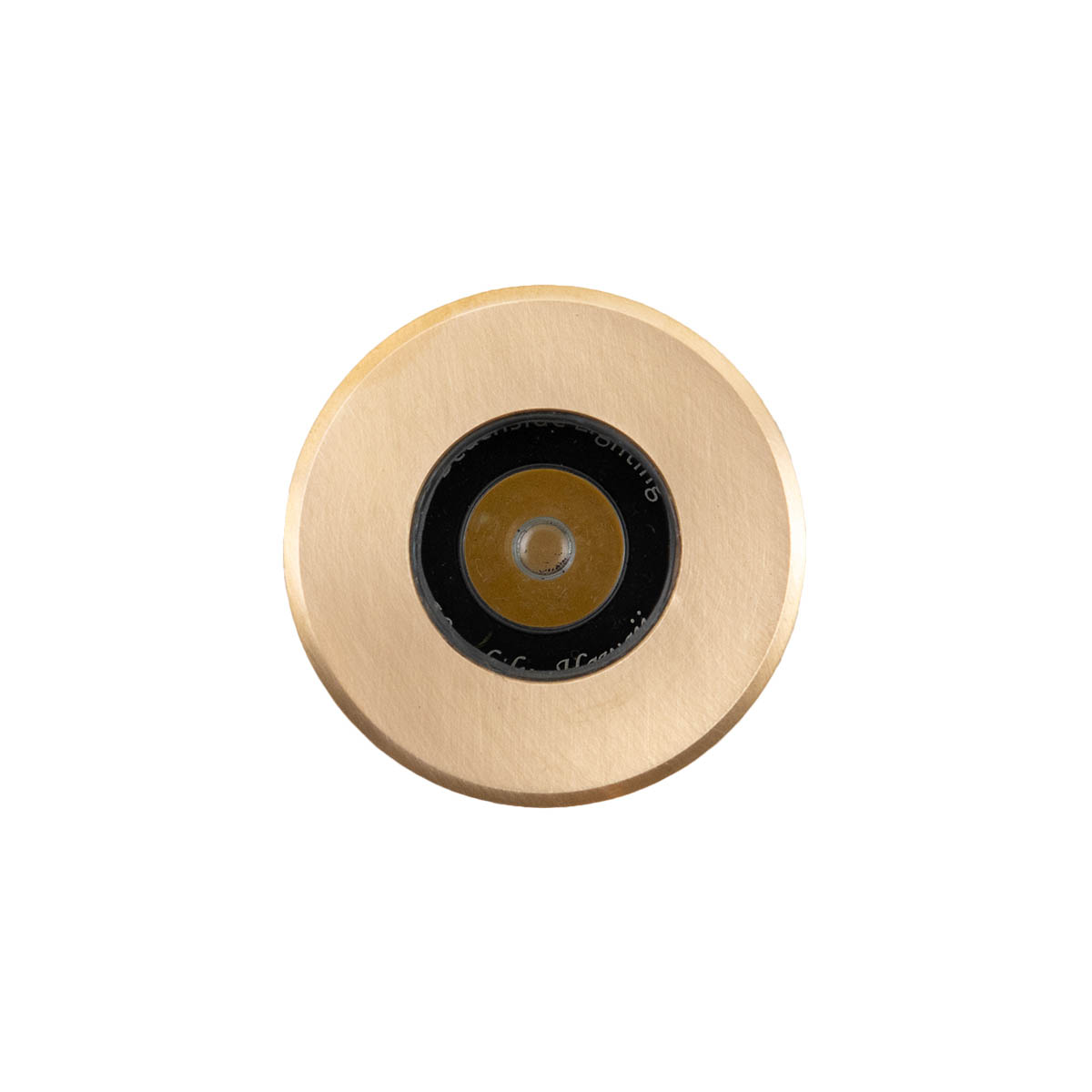

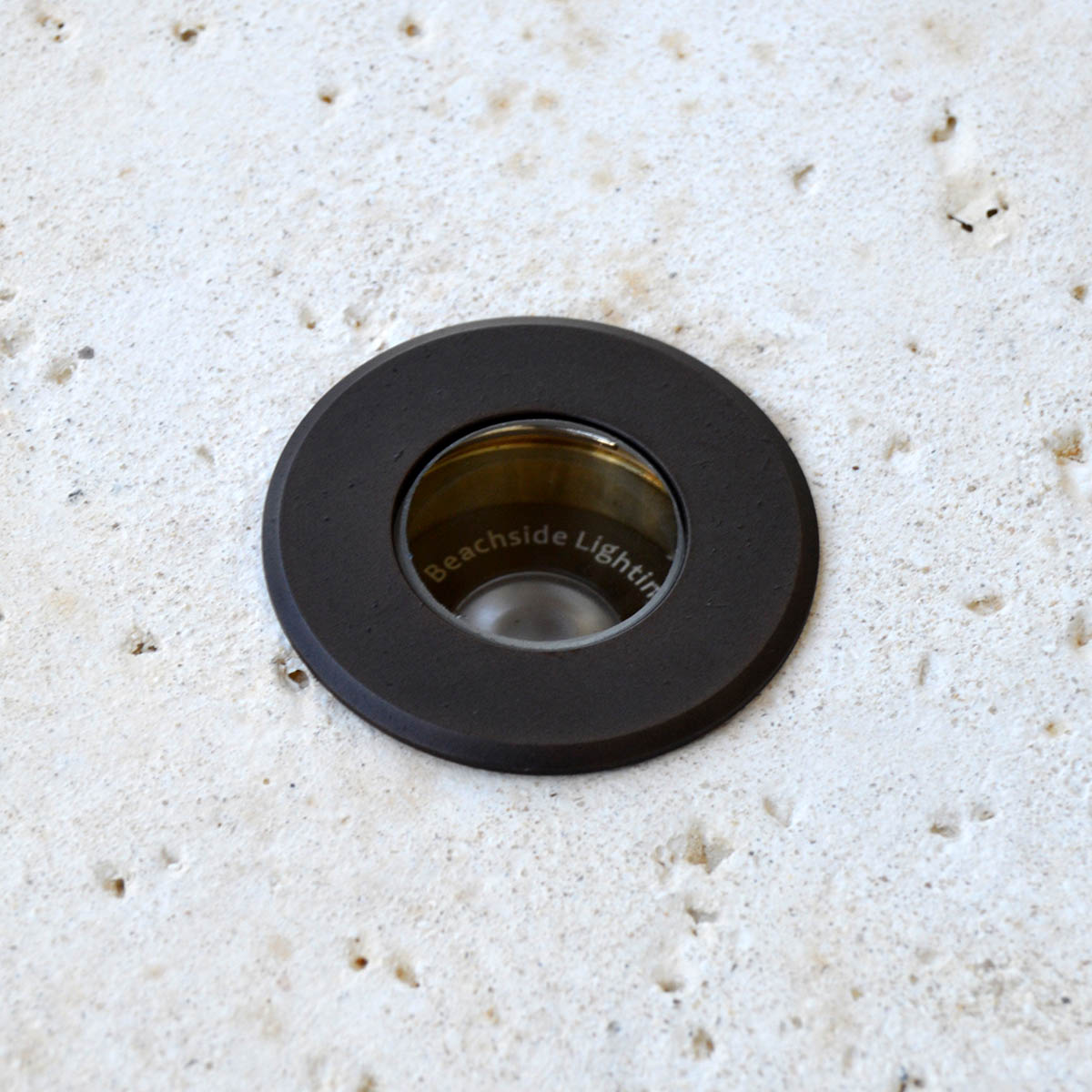

Solid Brass Round Uplight

  • Can be used as an uplight, steplight, or downlight in wood or masonry
  • Remote transformer required
Voltage 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V)
Lamps Integrated LED, MR11 LED
Lumens 206 max
CCT 1500K

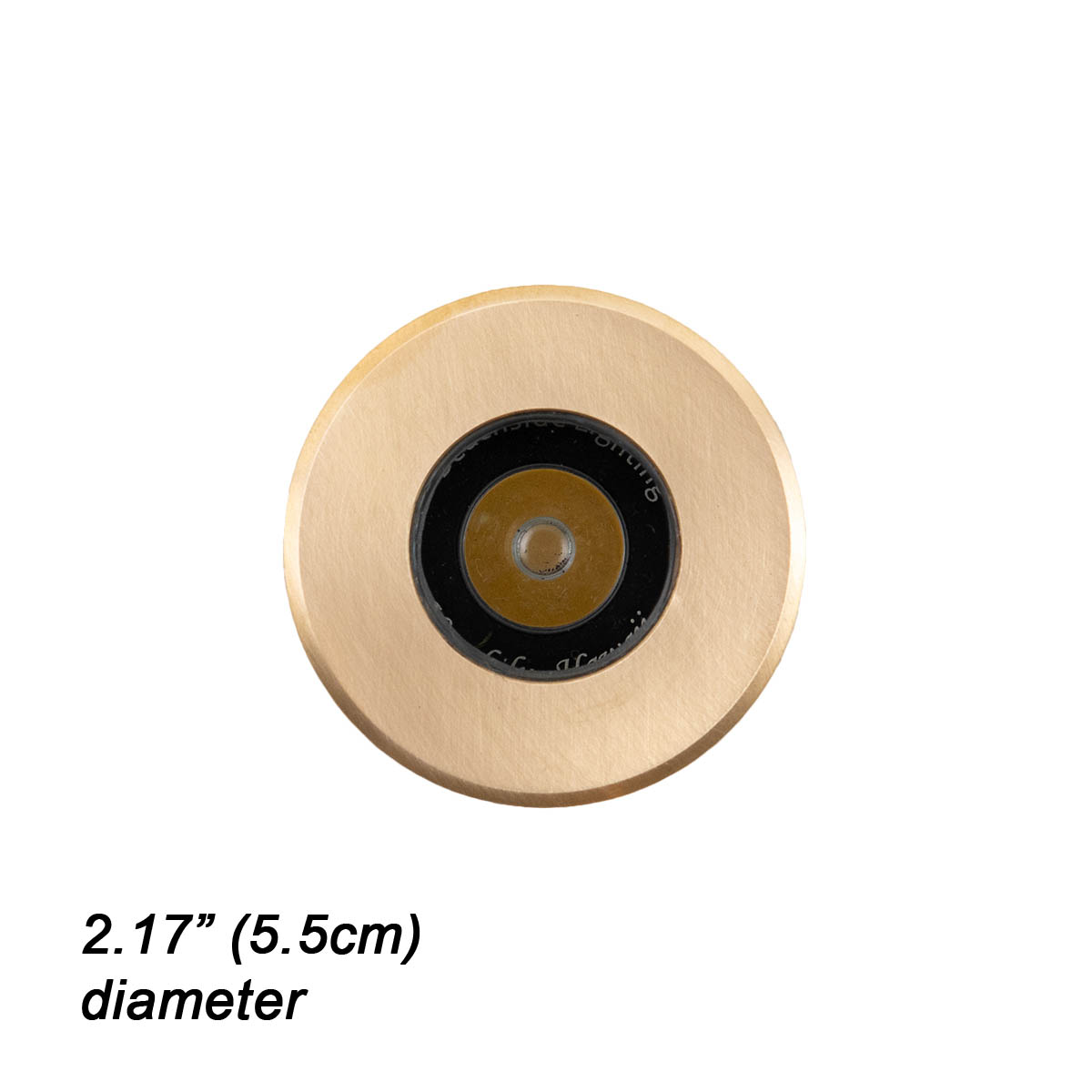

Dimensions 2.17″ dia. x 3.14″ depth (5.5 x 8 cm)
Depth: 3.14″ (8.0cm)
Find A Sales Rep

The E3-R fixture shares the same light engines and housing as the E3-SQ fixtures. Please refer to the E3-SQ files for additional photometric information.

Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

Cree XPE2 LED: 2 Watt AMBER (1500K)

2W-A-SP 2 Watt AMBER 10° beam, 19° field
2W-A-NFL 2 Watt AMBER 15° / 31°
2W-A-FL 2 Watt AMBER 29° / 60°

Cree XPG2 LED: 3 Watt Warm White (3000K)*

3W-SP 3 Watt 13° / 23°
3W-NFL 3 Watt 17° / 36°
3W-FL 3 Watt 30° / 61°

* Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K

Triac dimmable >25%
2 Watt AMBER (1500K) and Warm White (2700/3000K)**

2W-A-MR11-NFL 2 Watt AMBER 30° narrow flood
2W-MR11-SP 2 Watt 15° spot
2W-MR11-NFL 2 Watt 30° narrow flood
2W-MR11-FL 2 Watt 60° flood

** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “2W-MR11-NFL-27

DTF-E3 Direction Turning Film bends light 20°
FR8 Frosted glass lens
HL8 Honeycomb louver, 1/8” (3mm) thick
CF (Limited Depth / Remote Splice) Conduit Fitting (increases overall length to 4.5″ / 11.4cm)
CFK Concrete Form Kit
DM Deck Mount adapter ring for wooden decks

Optical Accessories
