E3-RL
(12V Integrated LED, MR11 LED)

E3-RL
(12V Integrated LED, MR11 LED)

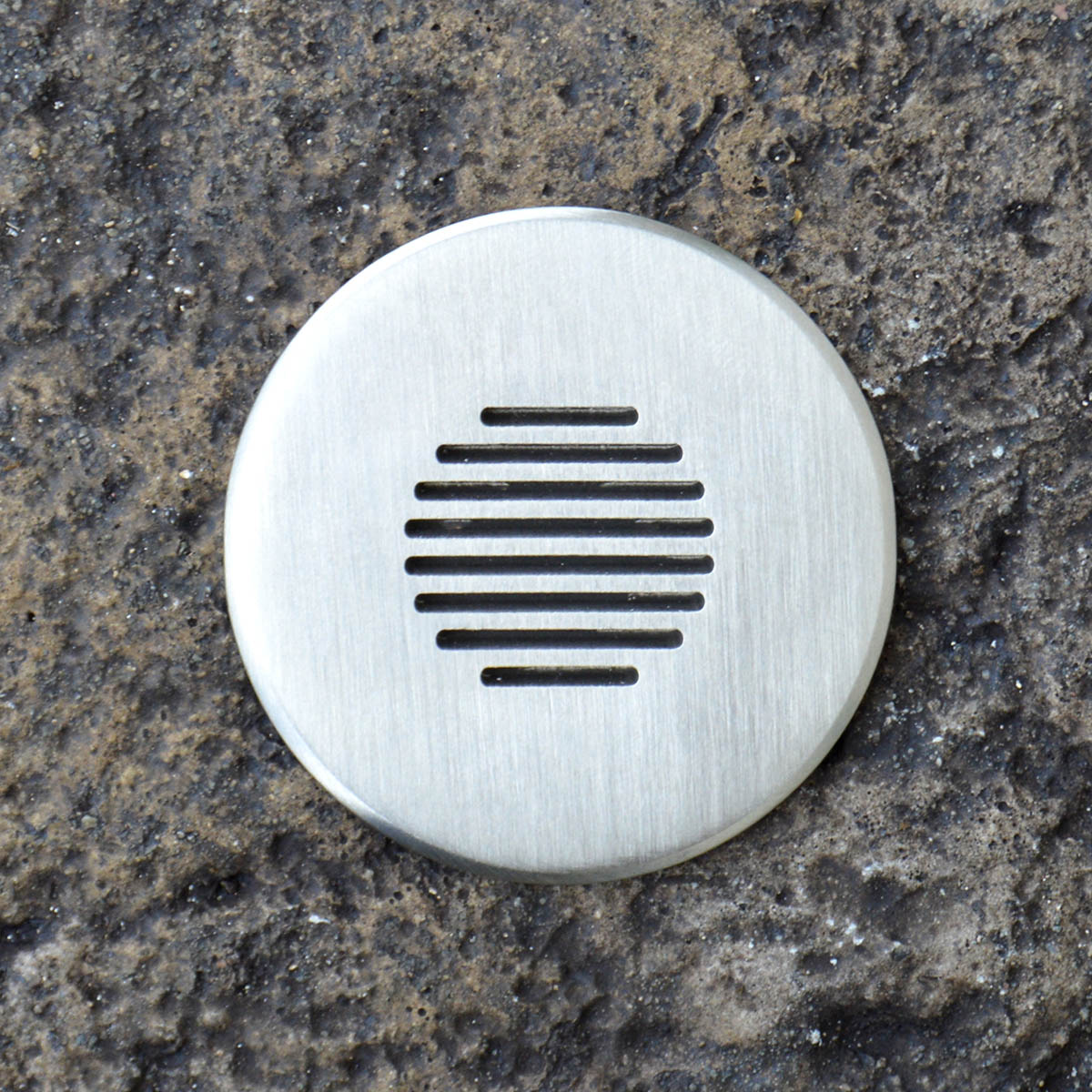

Solid Brass Round Louvered Steplight

  • Can be used as an uplight, steplight, or downlight in wood or masonry
  • Remote transformer required
Voltage 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V)
Lamps Integrated LED, MR11 LED
Lumens 10.7 max
CCT 1000K
1500K
2700K
3000K

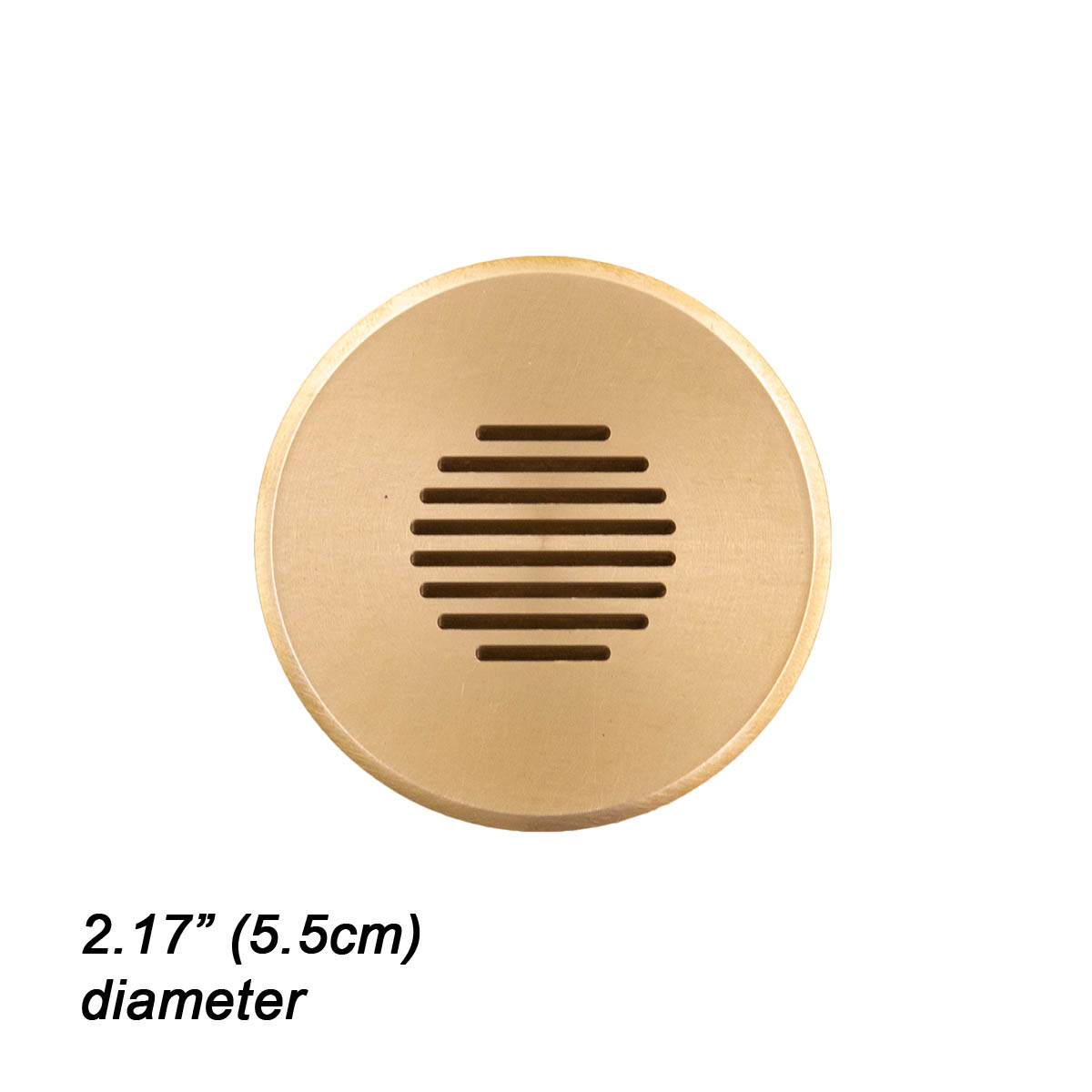

Dimensions 2.17″ dia. x 3.14″ depth (5.5 x 8 cm)



Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

Cree XPE2 LED: 2 Watt AMBER (1500K)**, RED-ORANGE (1000K)**

2W-A-SP 2 Watt AMBER 10° spot
2W-A-NFL 2 Watt AMBER 30° narrow flood
2W-A-FL 2 Watt AMBER 50° flood
2W-RO-SP 2 Watt RED-ORANGE 10° spot
2W-RO-NFL 2 Watt RED-ORANGE 30° narrow flood
2W-RO-FL 2 Watt RED-ORANGE 50° flood

Cree XPG2 LED: 3 Watt Warm White (3000K)*

3W-SP 3 Watt 10° spot
3W-NFL 3 Watt 30° narrow flood
3W-FL 3 Watt 50° flood

* Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K

MR11 LED
Triac dimmable >25%
2 Watt AMBER (1500K)** and Warm White (2700/3000K)***

2W-A-MR11-NFL 2 Watt AMBER 30° narrow flood
2W-MR11-SP 2 Watt 15° spot
2W-MR11-NFL 2 Watt 30° narrow flood
2W-MR11-FL 2 Watt 60° flood

** Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
*** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “2W-MR11-NFL-27

CF (Limited Depth / Remote Splice) Conduit Fitting (increases overall length to 4.5″ / 11.4cm)
CFK Concrete Form Kit
DM Deck Mount adapter ring for wooden decks
