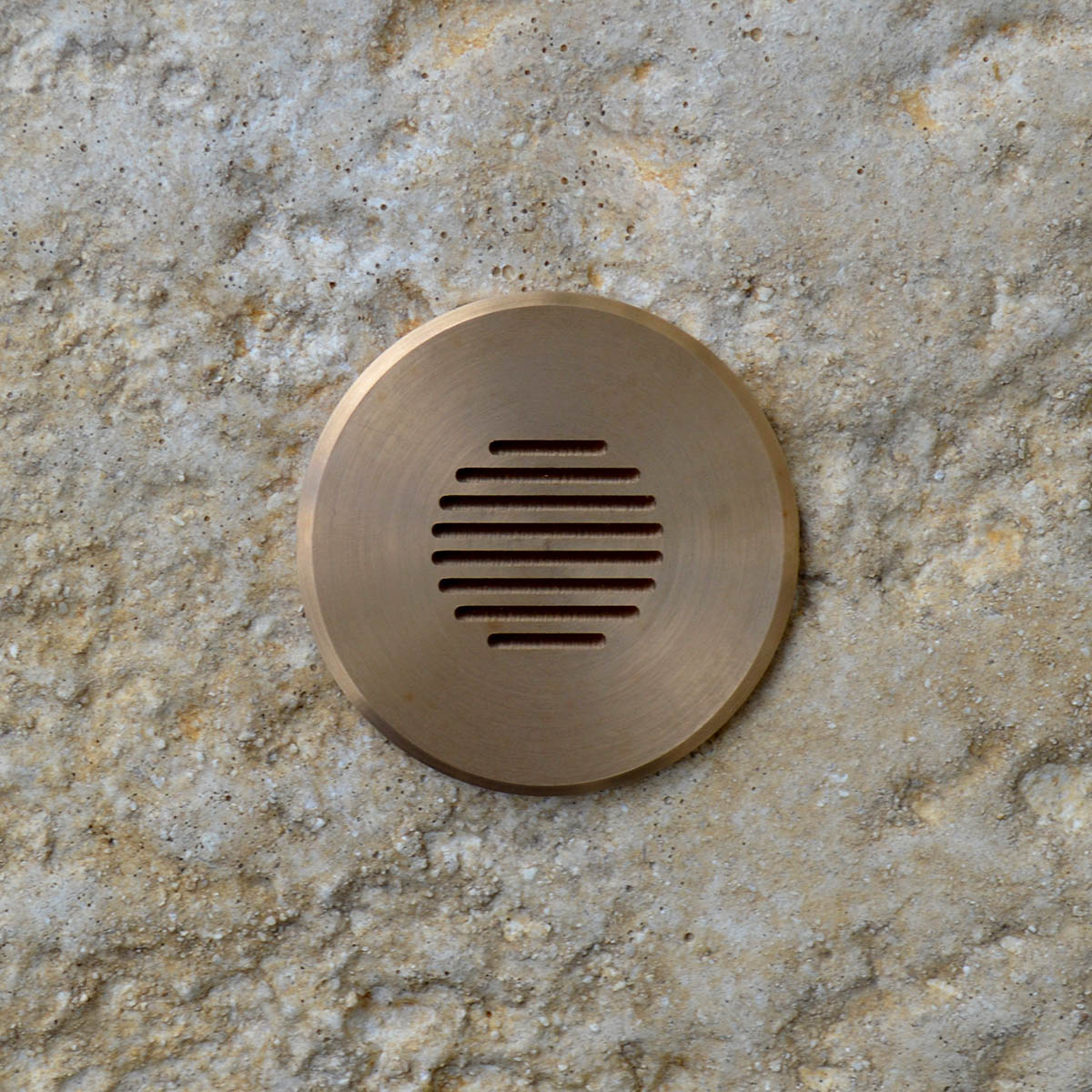

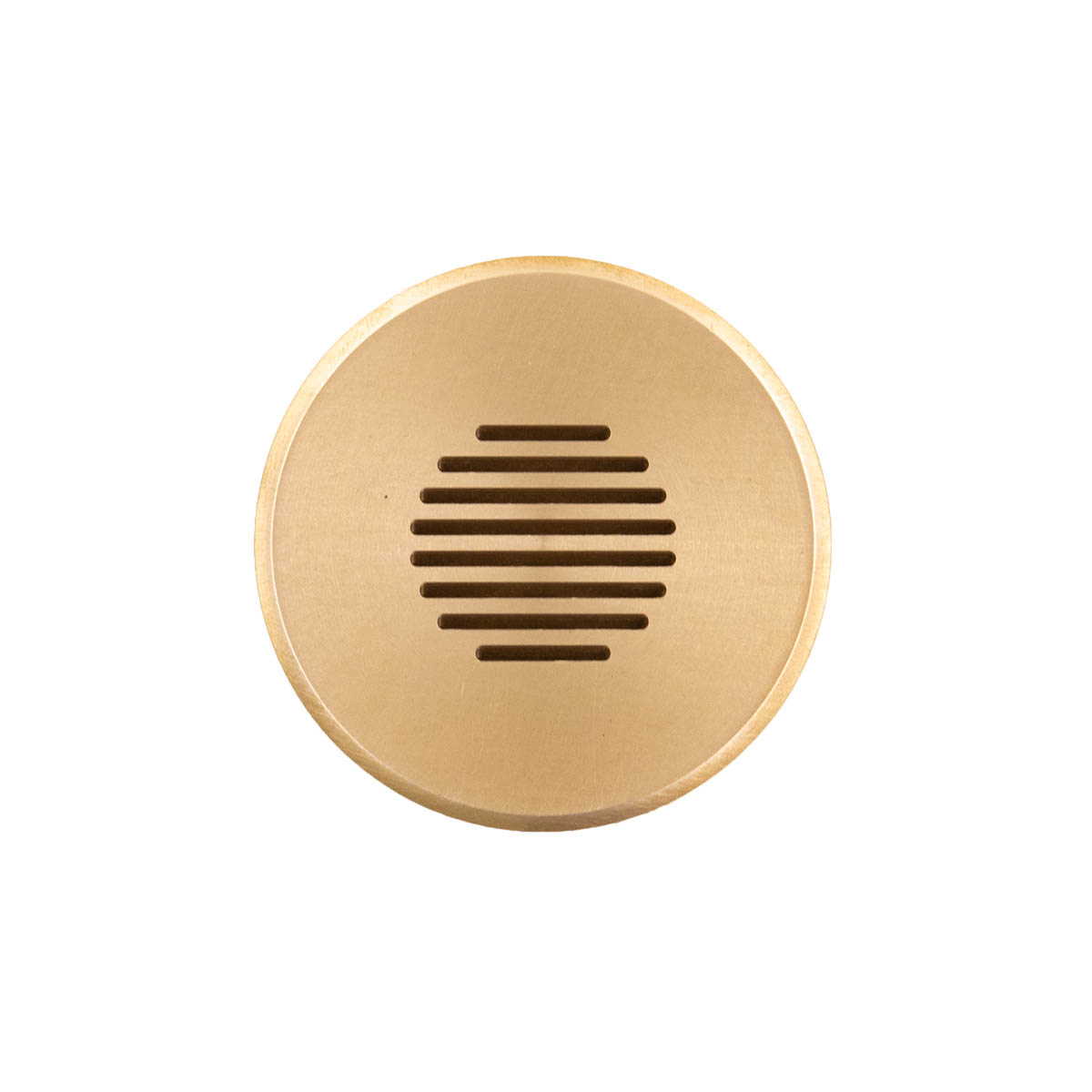

Solid Brass Round Louvered Steplight
- Can be used as an steplight or downlight in wood or masonry
- Remote transformer required
Voltage | 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V) |
Lamps | Integrated LED, MR11 LED |
CCT | 1000K |
1500K | |

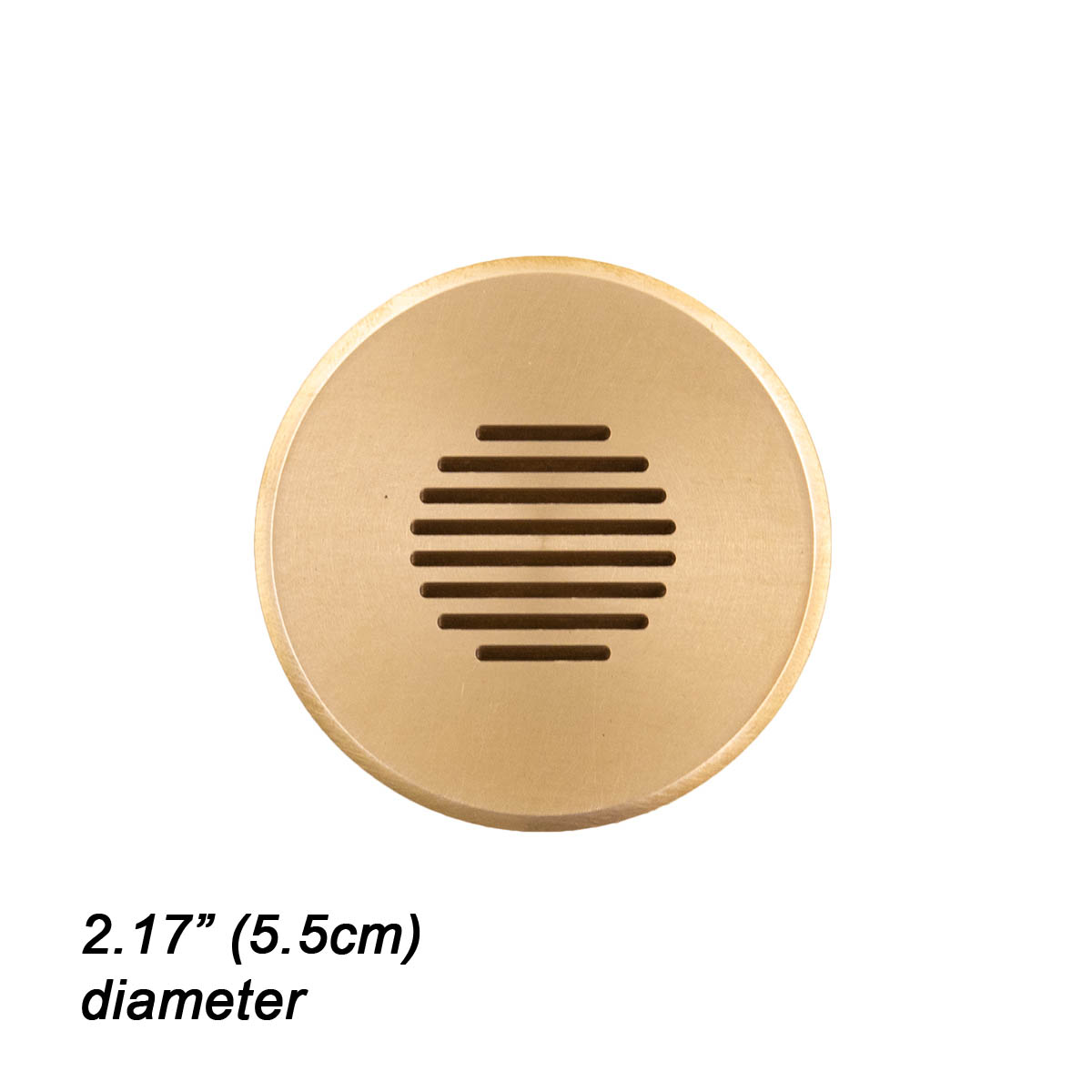

Dimensions | 2.17″ dia. x 3.14″ depth (5.5 x 8 cm) |
Specifications
Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
FFWCC Certification Letter
LM79 | IES | SPECTRAL POWER DISTRIBUTION / BLUE LIGHT CONTENT |
E3-RL-2W-A-NFL | E3-RL-2W-A-NFL | E3-RL-2W-A |
E3-RL-2W-A-FL | E3-RL-2W-A-FL |
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2 LED: 2 Watt AMBER (1500K), RED-ORANGE (1000K)
2W-A-SP | 2 Watt AMBER | 10° spot |
2W-A-NFL | 2 Watt AMBER | 30° narrow flood |
2W-A-FL | 2 Watt AMBER | 50° flood |
2W-RO-SP | 2 Watt RED-ORANGE | 10° spot |
2W-RO-NFL | 2 Watt RED-ORANGE | 30° narrow flood |
2W-RO-FL | 2 Watt RED-ORANGE | 50° flood |
MR11 LED
Triac dimmable >25%
2 Watt AMBER (1500K)
2W-A-MR11-NFL | 2 Watt AMBER | 30° narrow flood |
CF (Limited Depth / Remote Splice) | Conduit Fitting (increases overall length to 4.5″ / 11.4cm) |
CFK | Concrete Form Kit |
DM | Deck Mount adapter ring for wooden decks |
