E3-SQ
(12V Integrated LED, MR11 LED)

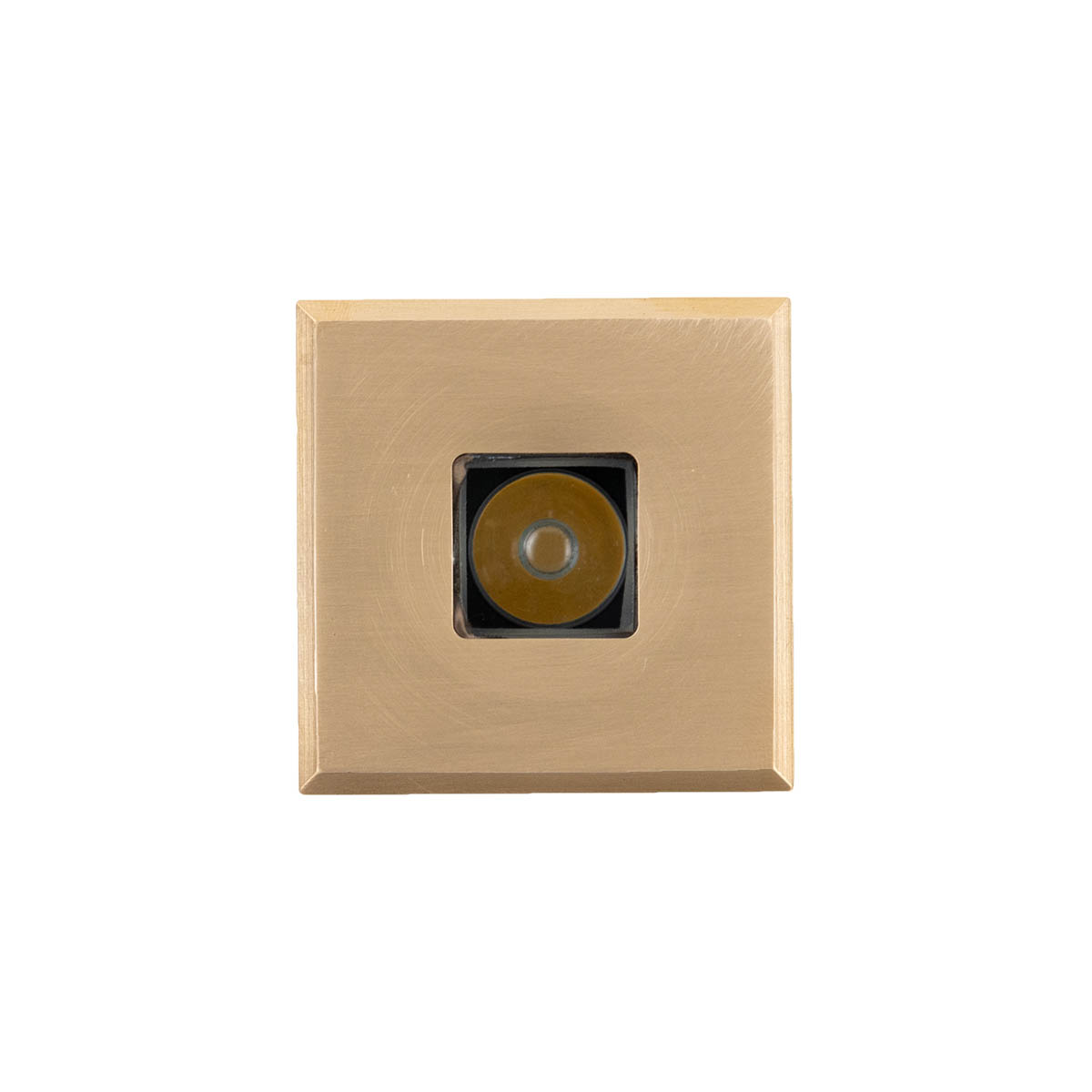

E3-sq Dims Architectural

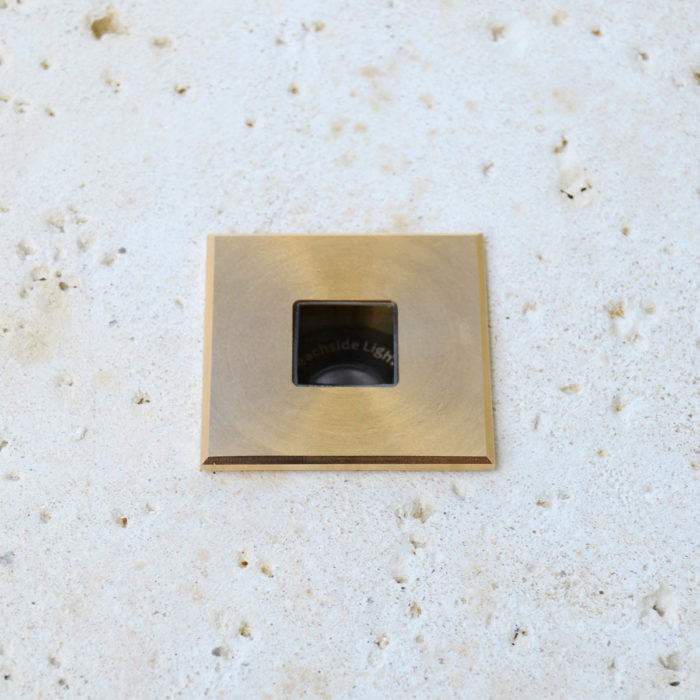

E3-sq Architectural

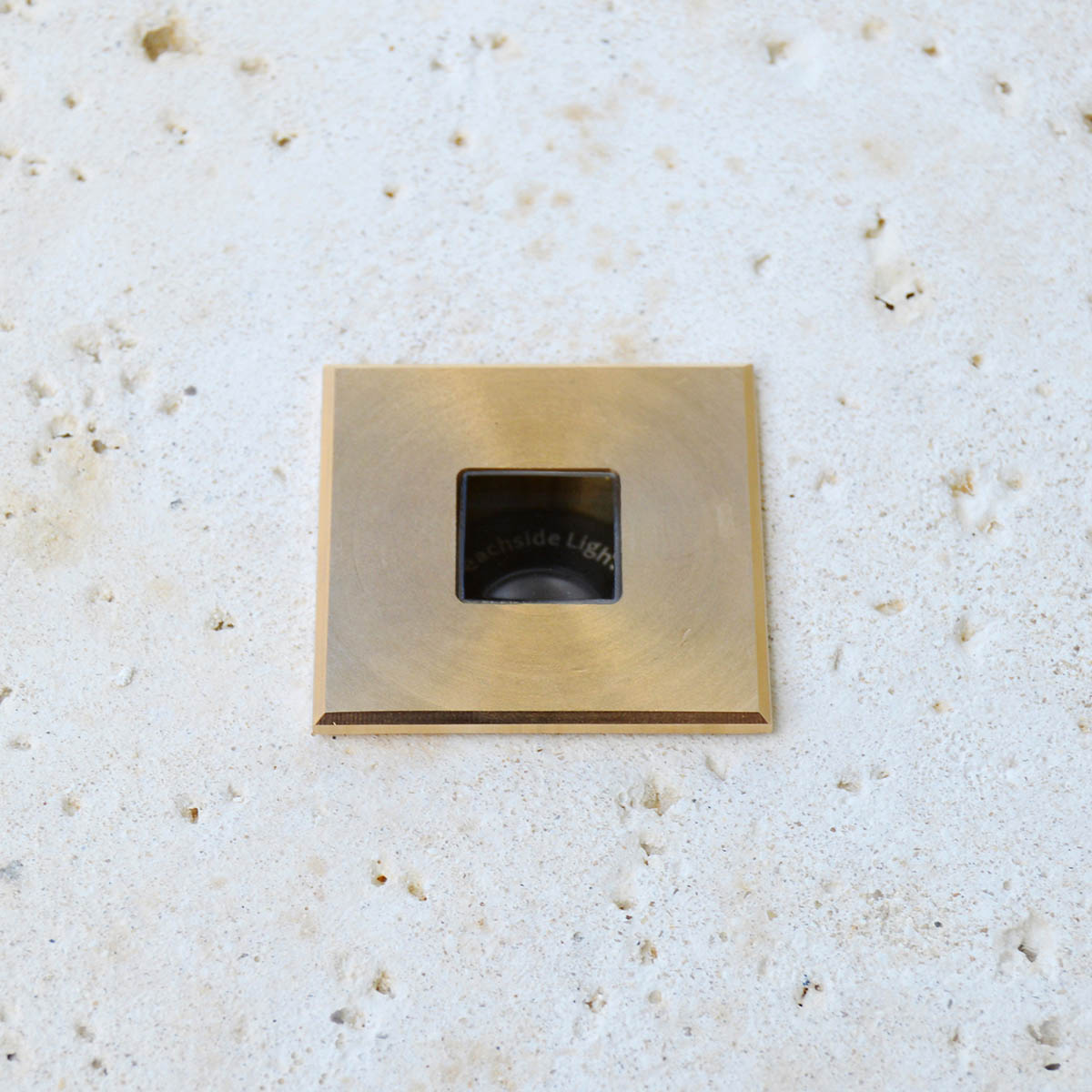

E3-sq Architectural2

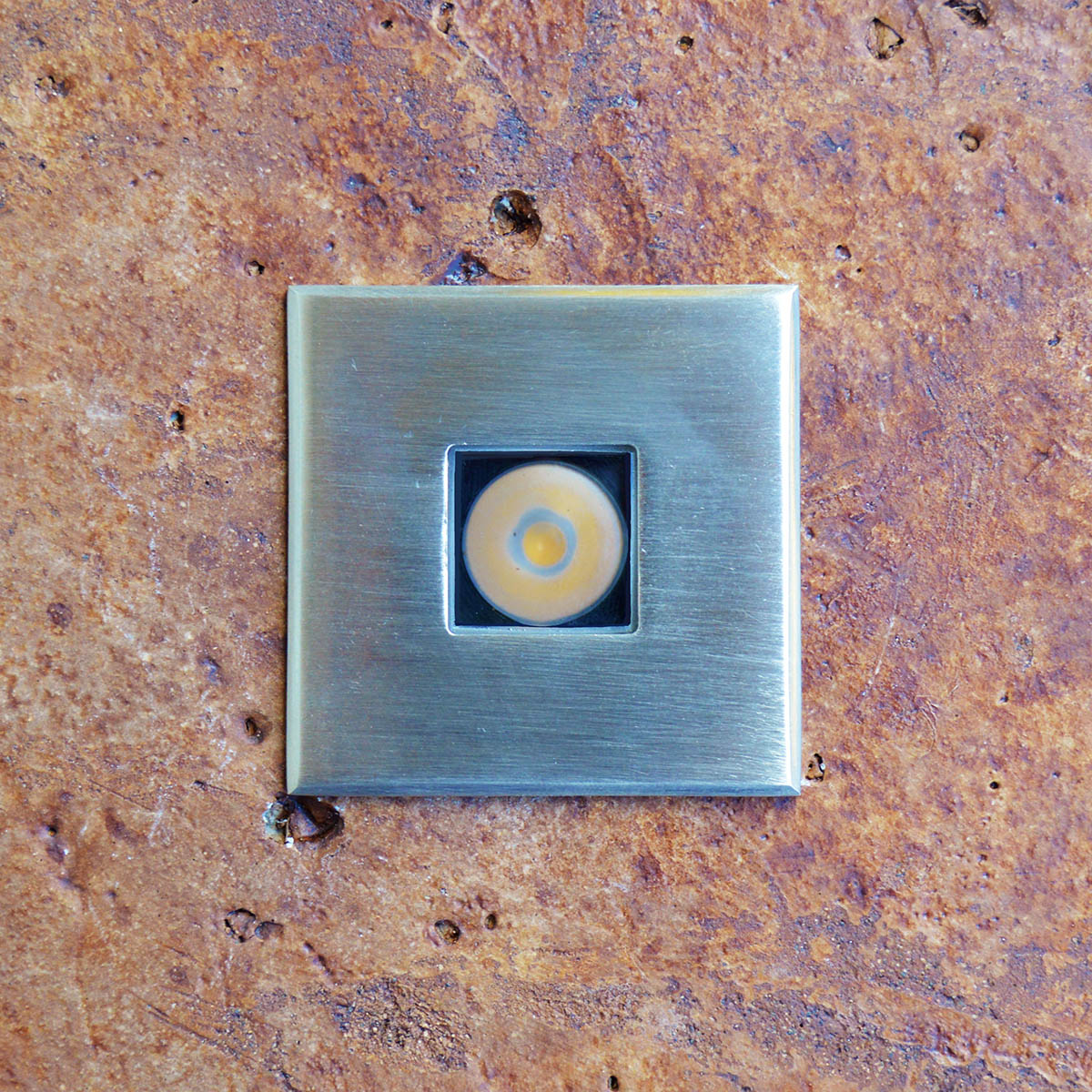

E3-sq-fin-nk Steplights

E3-SQ
(12V Integrated LED, MR11 LED)

Solid Brass Square Uplight

  • Can be used as an uplight, steplight, or downlight in wood or masonry
  • Remote transformer required
Voltage 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V)
Lamps Integrated LED, MR11 LED
Lumens 206 max
CCT 1000K
1500K
2700K
3000K
Dimensions 2.17″ square x 3.14″ depth (5.5 x 8 cm)
LM79 IES
E3-SQ-3W-NFL E3-SQ-3W-NFL

The E3-SQ fixture shares the same light engines and housing as the E3-R fixtures. Please refer to the E3-R files for additional photometric information.

Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

Cree XPE2 LED: 2 Watt AMBER (1500K), RED-ORANGE (1000K)

2W-A-SP 2 Watt AMBER 10° beam, 19° field
2W-A-NFL 2 Watt AMBER 15° / 31°
2W-A-FL 2 Watt AMBER 29° / 60°
2W-RO-SP 2 Watt RED-ORANGE 10° / 18°
2W-RO-NFL 2 Watt RED-ORANGE 13° / 28°
2W-RO-FL 2 Watt RED-ORANGE 32° / 56°

Cree XPG2 LED: 3 Watt Warm White (3000K)*

3W-SP 3 Watt 13° / 23°
3W-NFL 3 Watt 17° / 36°
3W-FL 3 Watt 30° / 61°

* Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K“

MR11 LED
Triac dimmable >25%
2 Watt AMBER (1500K) and Warm White (2700/3000K)**

2W-A-MR11-NFL 2 Watt AMBER 30° narrow flood
2W-MR11-SP 2 Watt 15° spot
2W-MR11-NFL 2 Watt 30° narrow flood
2W-MR11-FL 2 Watt 60° flood

** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “2W-MR11-NFL-27“

DTF-E3 Direction Turning Film bends light 20°
FR8 Frosted glass lens
HL8 Honeycomb louver, 1/8” (3mm) thick
CF (Limited Depth / Remote Splice) Conduit Fitting (increases overall length to 4.5″ / 11.4cm)
CFK Concrete Form Kit
DM Deck Mount adapter ring for wooden decks

Optical Accessories
