E3-SQL
(12V Integrated LED, MR11 LED)

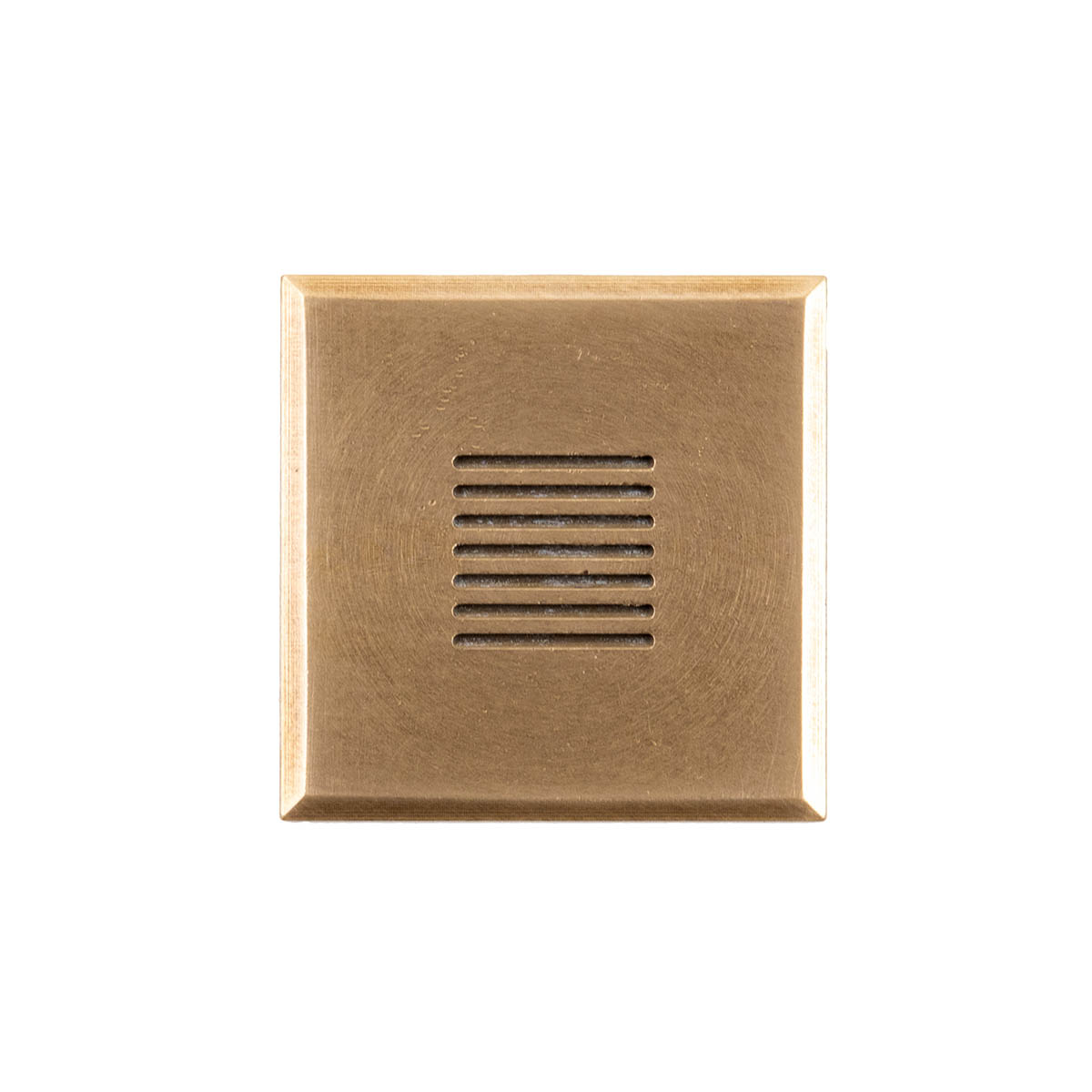

Solid Brass Square Louvered Steplight
- Can be used as an uplight, steplight, or downlight in wood or masonry
- Remote transformer required
| Voltage | 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V) |
| Lamps | Integrated LED, MR11 LED |
| Lumens | 15.4 max |
| CCT | 1000K |
| 1500K | |
| 2700K | |
| 3000K | |

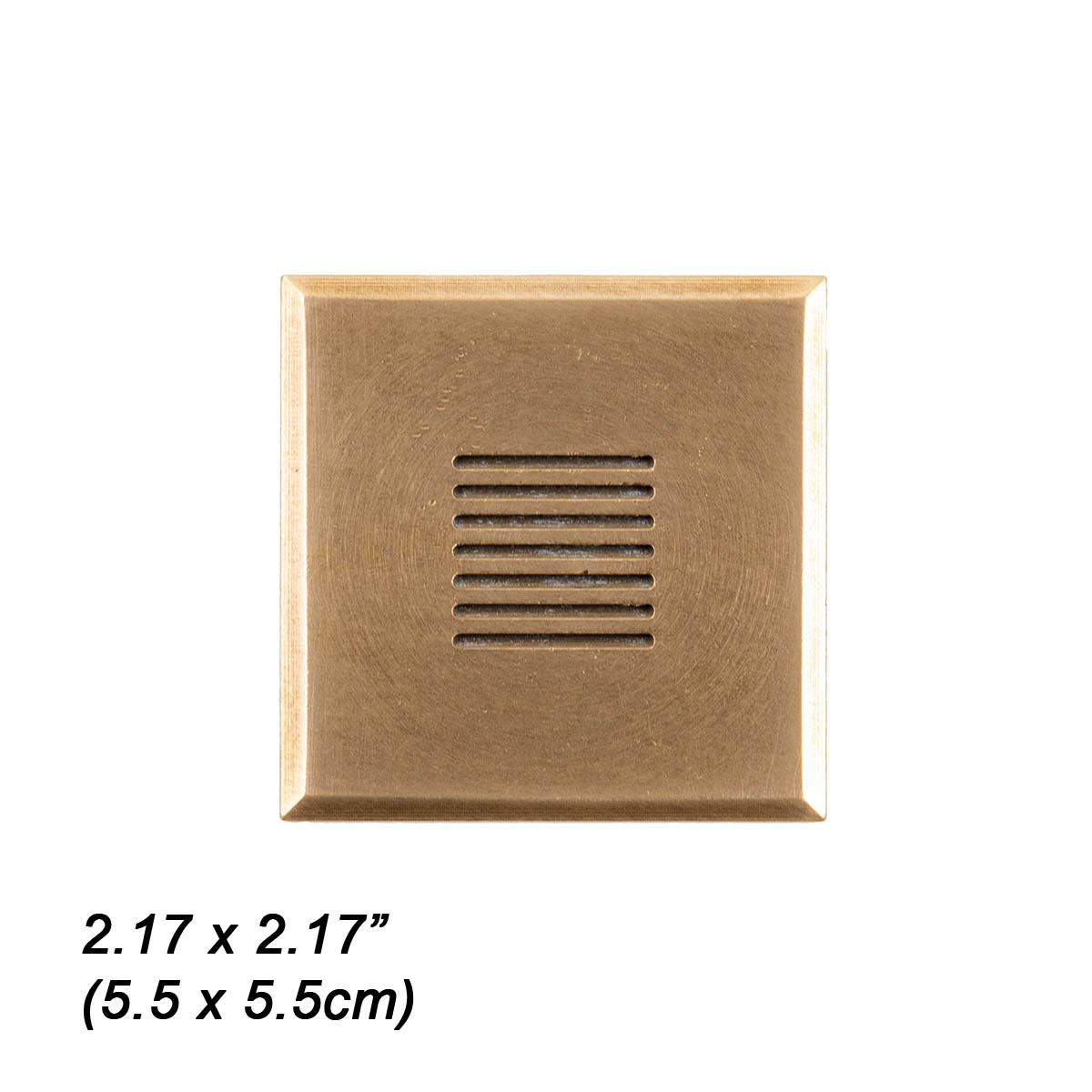

| Dimensions | 2.17″ square x 3.14″ depth (5.5 x 8 cm) |
Specifications
Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2 LED: 2 Watt AMBER (1500K)**, RED-ORANGE (1000K)**
| 2W-A-SP | 2 Watt AMBER | 10° spot |
| 2W-A-NFL | 2 Watt AMBER | 30° narrow flood |
| 2W-A-FL | 2 Watt AMBER | 50° flood |
| 2W-RO-SP | 2 Watt RED-ORANGE | 10° spot |
| 2W-RO-NFL | 2 Watt RED-ORANGE | 30° narrow flood |
| 2W-RO-FL | 2 Watt RED-ORANGE | 50° flood |
Cree XPG2 LED: 3 Watt Warm White (3000K)*
| 3W-SP | 3 Watt | 10° spot |
| 3W-NFL | 3 Watt | 30° narrow flood |
| 3W-FL | 3 Watt | 50° flood |
* Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K“
MR11 LED
Triac dimmable >25%
2 Watt AMBER (1500K)** and Warm White (2700/3000K)***
| 2W-A-MR11-NFL | 2 Watt AMBER | 30° narrow flood |
| 2W-MR11-SP | 2 Watt | 15° spot |
| 2W-MR11-NFL | 2 Watt | 30° narrow flood |
| 2W-MR11-FL | 2 Watt | 60° flood |
** Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
*** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “2W-MR11-NFL-27“
| CF (Limited Depth / Remote Splice) | Conduit Fitting (increases overall length to 4.5″ / 11.4cm) |
| CFK | Concrete Form Kit |
| DM | Deck Mount adapter ring for wooden decks |
