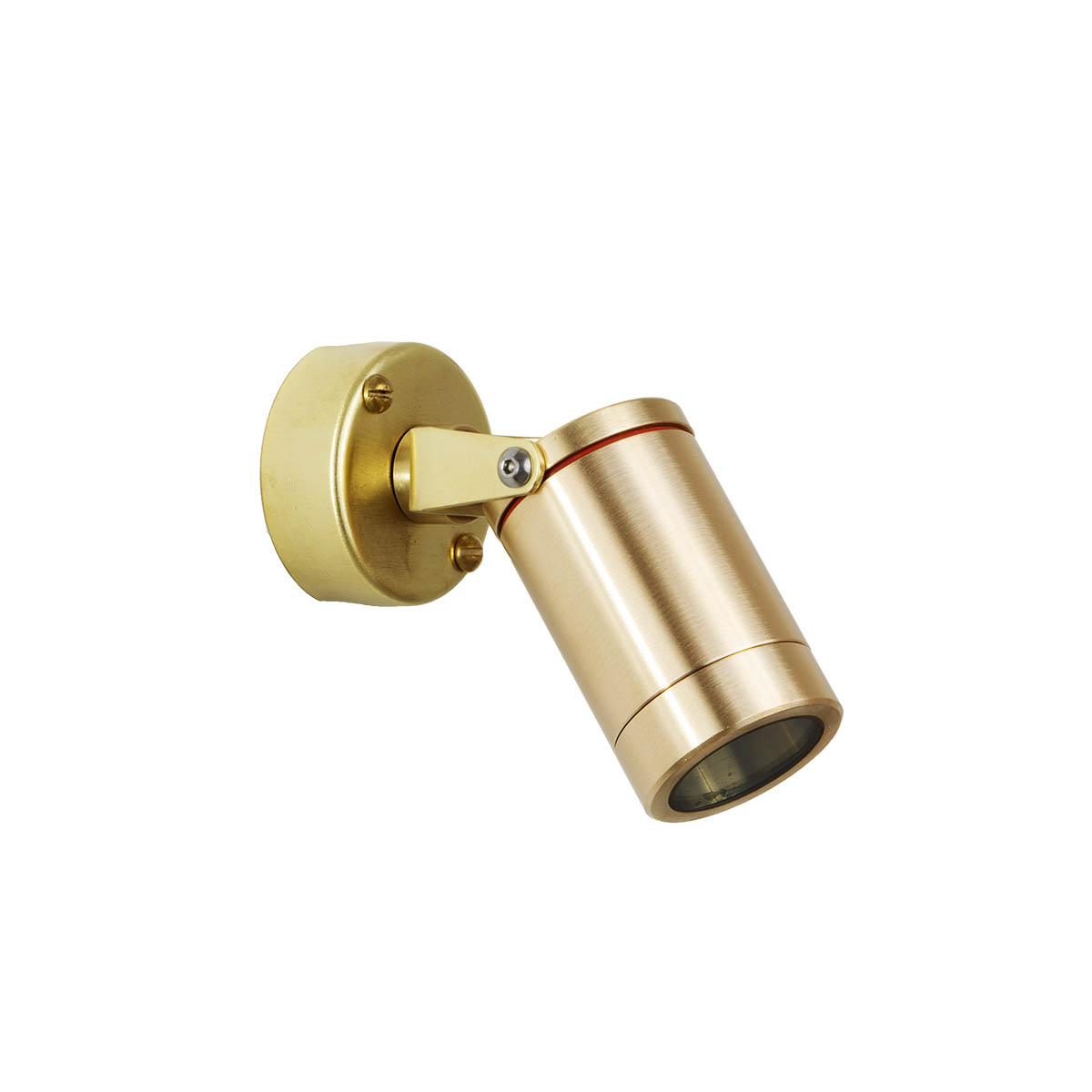

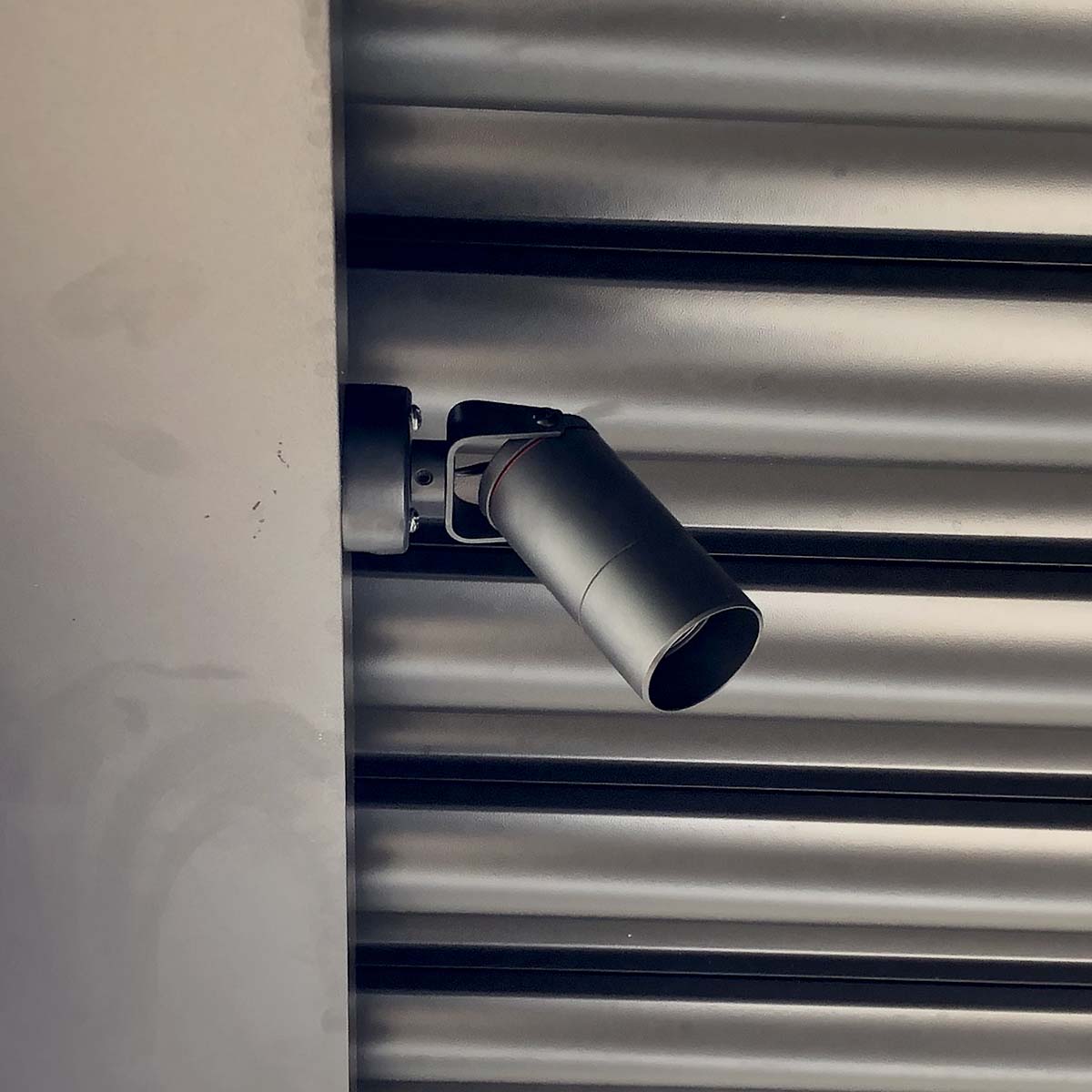

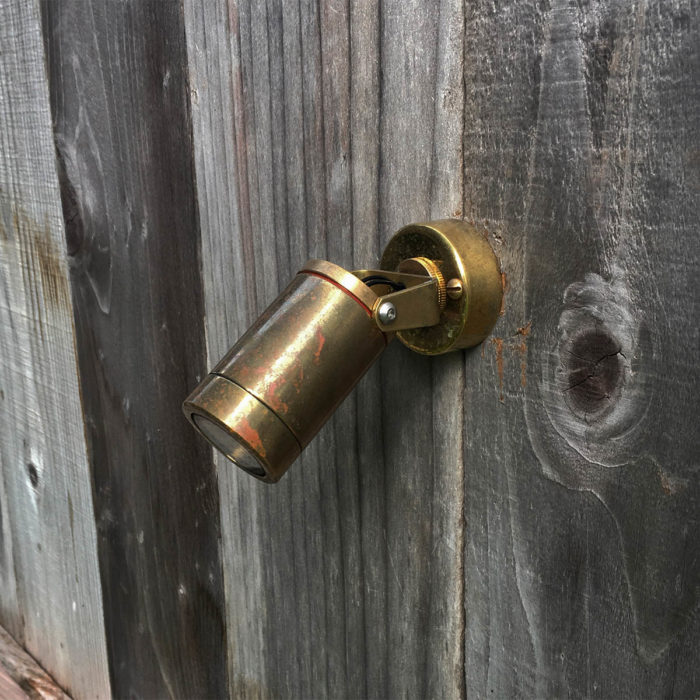

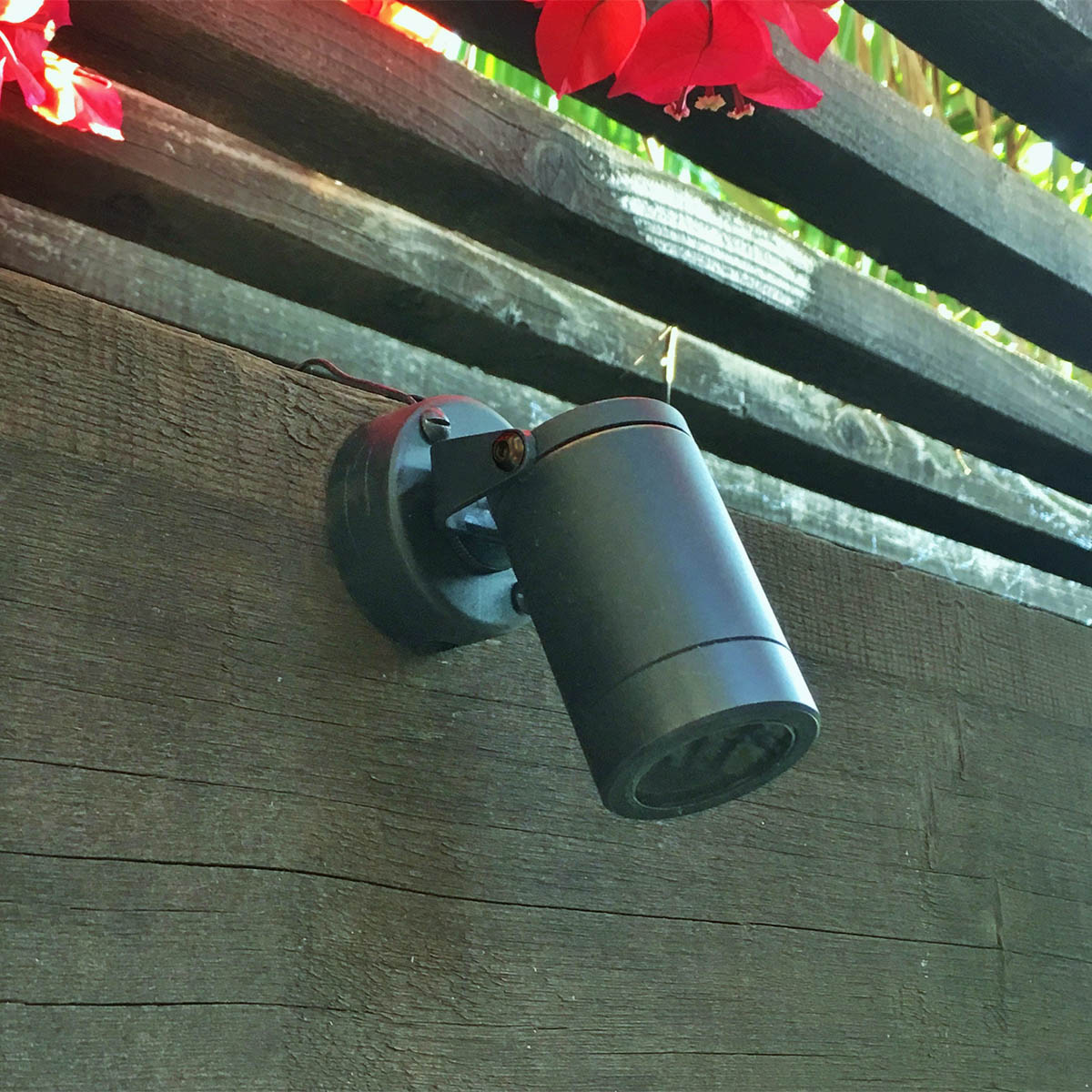

E4
(12V Integrated LED)
Solid Brass, Low-Voltage, Directional
- Ideal for post mounting and spaces that require a low-profile directional
- Remote transformer required
| Voltage | 12V AC with integral driver (9V-15V Input, dimmable below 9V) |
| Lamps | Integrated LED |
| Lumens | 202 |
| CCT | 1000 |
| 1500 | |
| 2700 | |
| 3000 | |
| Dimensions | 2.6″ main body height x 3.1” extension (aimed 90°) x 2.0” canopy diameter[6.7cm x 7.9cm x 5.1cm] |
Specifications
Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
*The E4 shares the same 2-Watt Amber and 3-Watt warm white light engines and body as the E8 fixtures. The distribution with the “NO” (the widest optic) will be slightly wider, given the shorter E4 fixture housing.
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2 LED: AMBER (1500K), RED-ORANGE (1000K)
| 2W-A-SP | 2 Watt AMBER | 10° beam / 20° field angle |
| 2W-A-NFL | 2 Watt AMBER | 14° / 31° |
| 2W-A-FL | 2 Watt AMBER | 29° / 61° |
| 2W-A-NO | 2 Watt AMBER | 46° / 114° |
| 2W-RO-SP | 2 Watt RED-ORANGE | 10° / 18° |
| 2W-RO-NFL | 2 Watt RED-ORANGE | 13° / 28° |
| 2W-RO-FL | 2 Watt RED-ORANGE | 32° / 56° |
| 2W-RO-NO | 2 Watt RED-ORANGE | 49° / 114° |
Cree XPG2 LED: Warm White (3000K)**
| 3W-SP | 3 Watt | 13° / 24° |
| 3W-NFL | 3 Watt | 17° / 37° |
| 3W-FL | 3 Watt | 30° / 62° |
| 3W-NO | 3 Watt | 47° / 86° |
** Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K“
Fixture can accommodate up to two 1/8″-thick optical accessories or one accessory + CTO filter when used in conjunction with the ‘NO’ lamp optic.
| CTO-1/4-1.36 | Color Temperature Orange filter 1/4 |
| CTO-1/2-1.36 | Color Temperature Orange filter 1/2 |
| CTO-3/4-1.36 | Color Temperature Orange filter 3/4 |
| FR8 | Frosted lens |
| HL8 | Honeycomb louver, 1/8″ [3mm] thick |

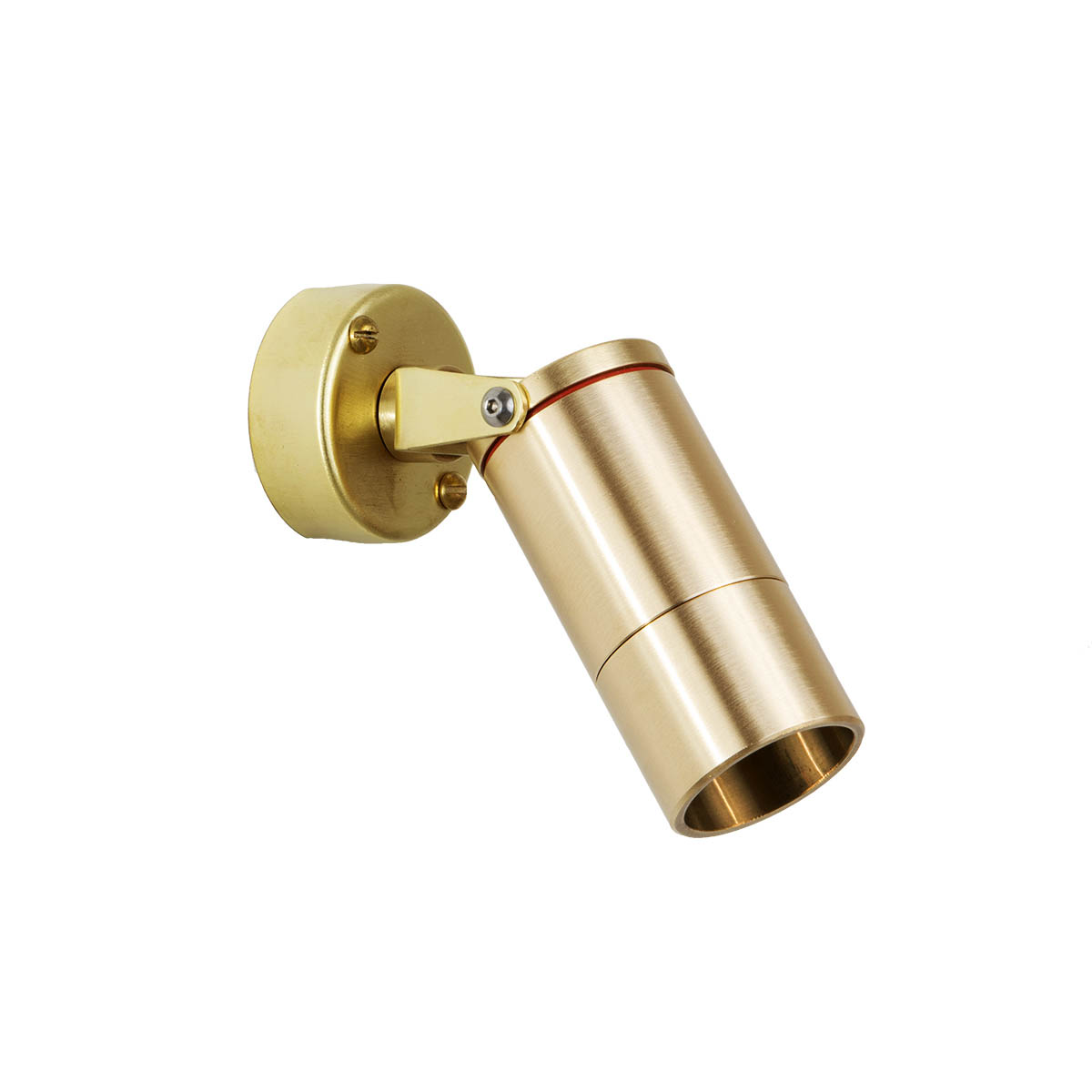

| KP | Extended snoot (no weep hole) for DOWNLIGHTING only |
| PR8 | Prismatic spread lens |
| RT8 | Rectilinear spread lens |
