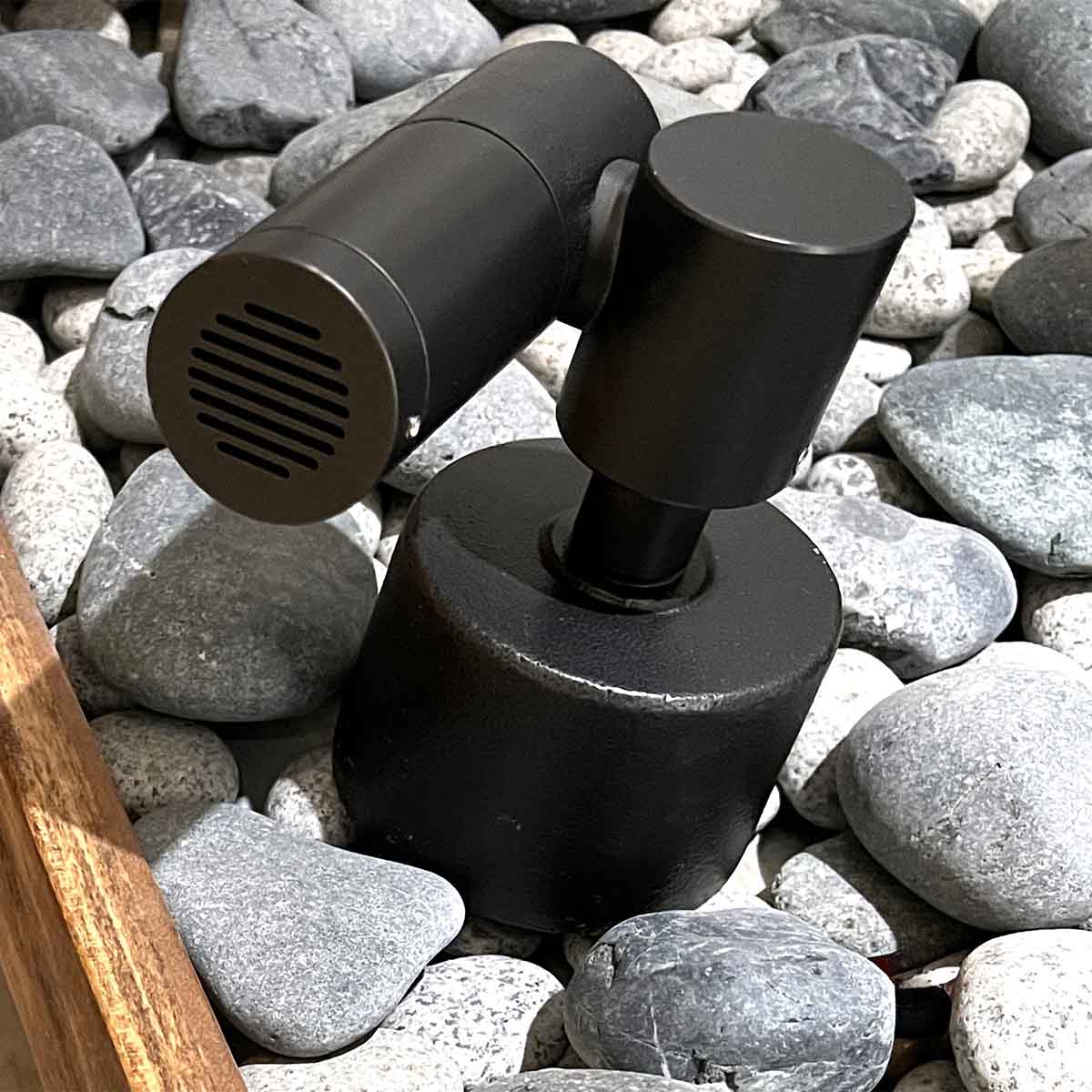

E5 Pathlight
(12V Integrated LED)
Solid Brass, Low-Voltage, Aimable Pathlight

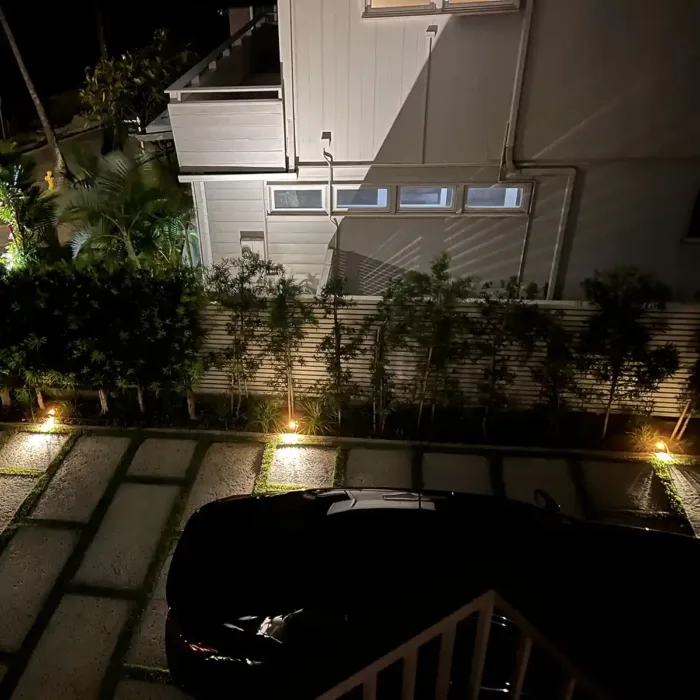

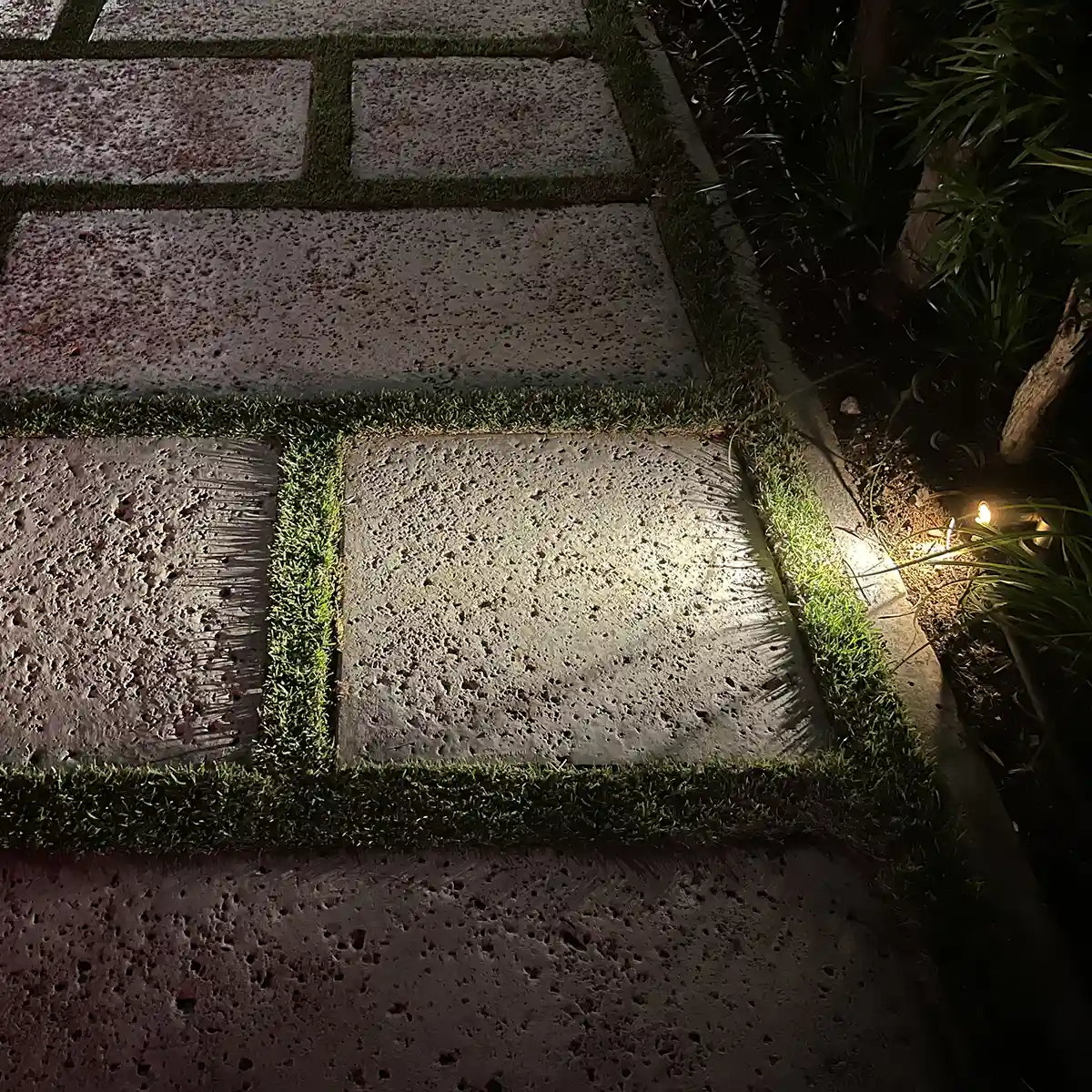

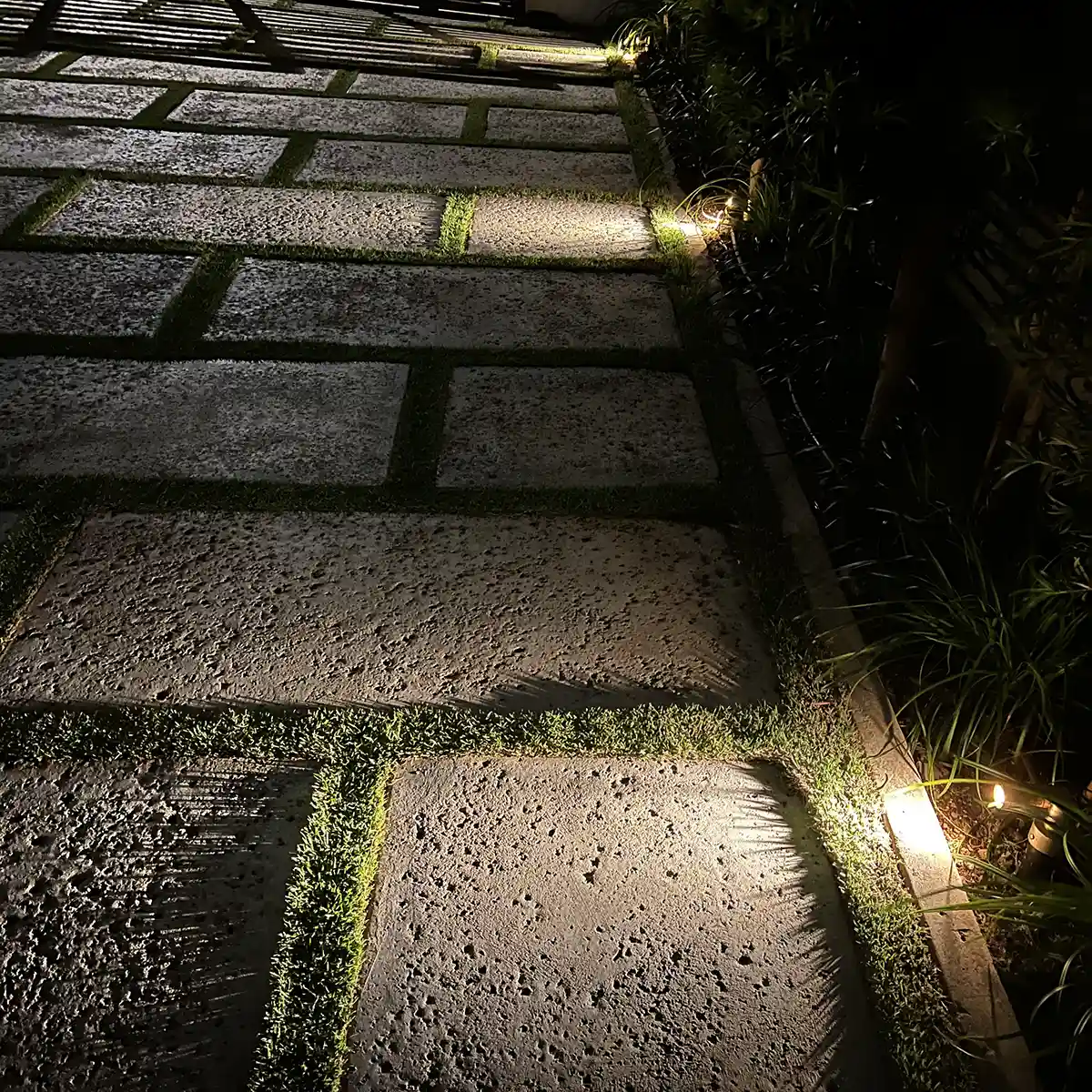

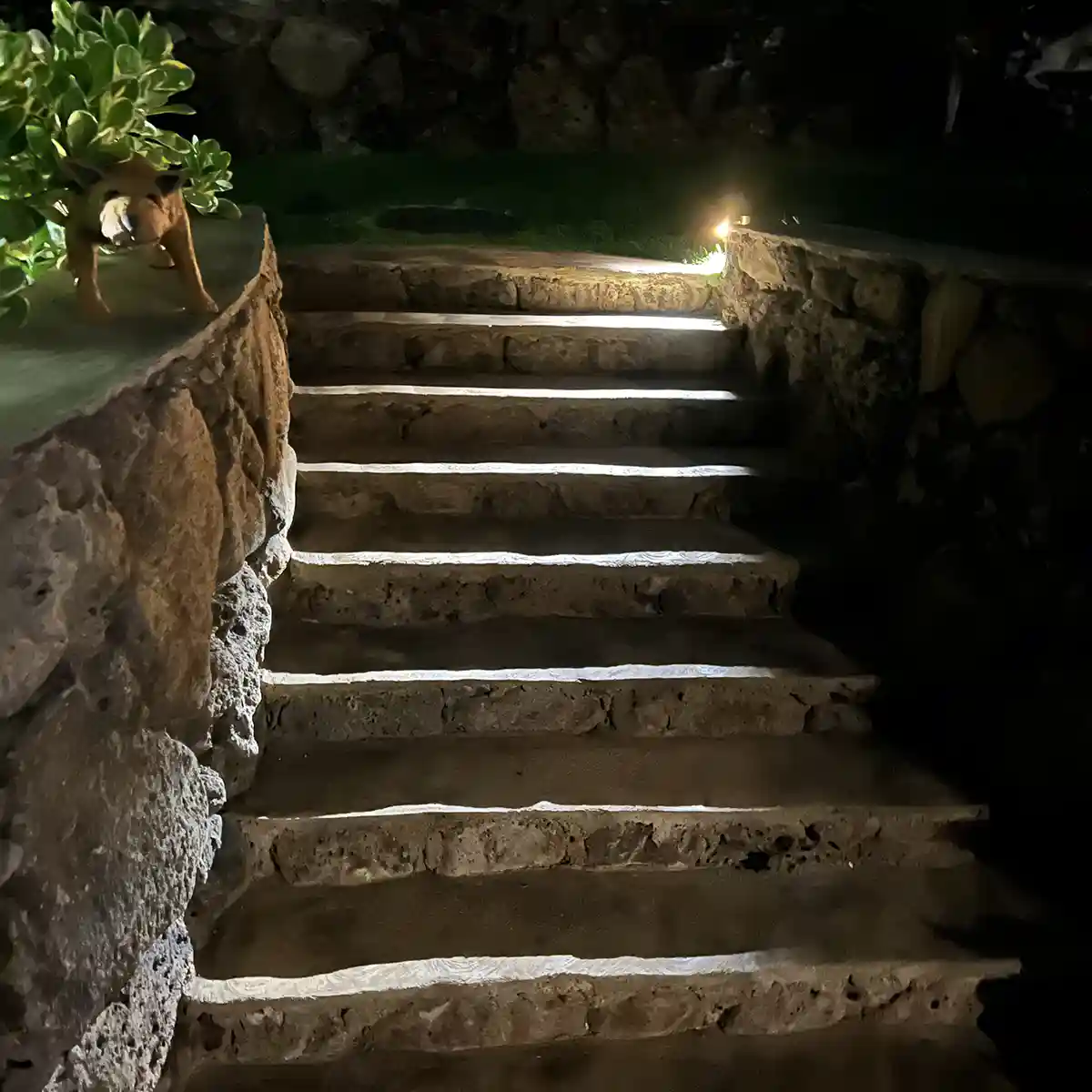

- Ideal for walkways, steps, and docks
- Rotatable and aimable vertically
- Remote transformer required
- Optional stem – custom heights available
| Voltage | 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V) |
| Lamps | Integrated LED |
| Lumens | 24 |
| CCT | 1000 |
| 1700 | |
| 2700 | |
| 3000 | |
| Dimensions | Lamp Housing: 3.9″ x 1.7″ diameter (10.0 x 4.2 cm) |
Specifications
Instructions
Dark Sky – Sea Turtle Sensitive (Using Long Wavelength Amber or Red Orange)
Instructions
Dark Sky – Sea Turtle Sensitive (Using Long Wavelength Amber or Red Orange)

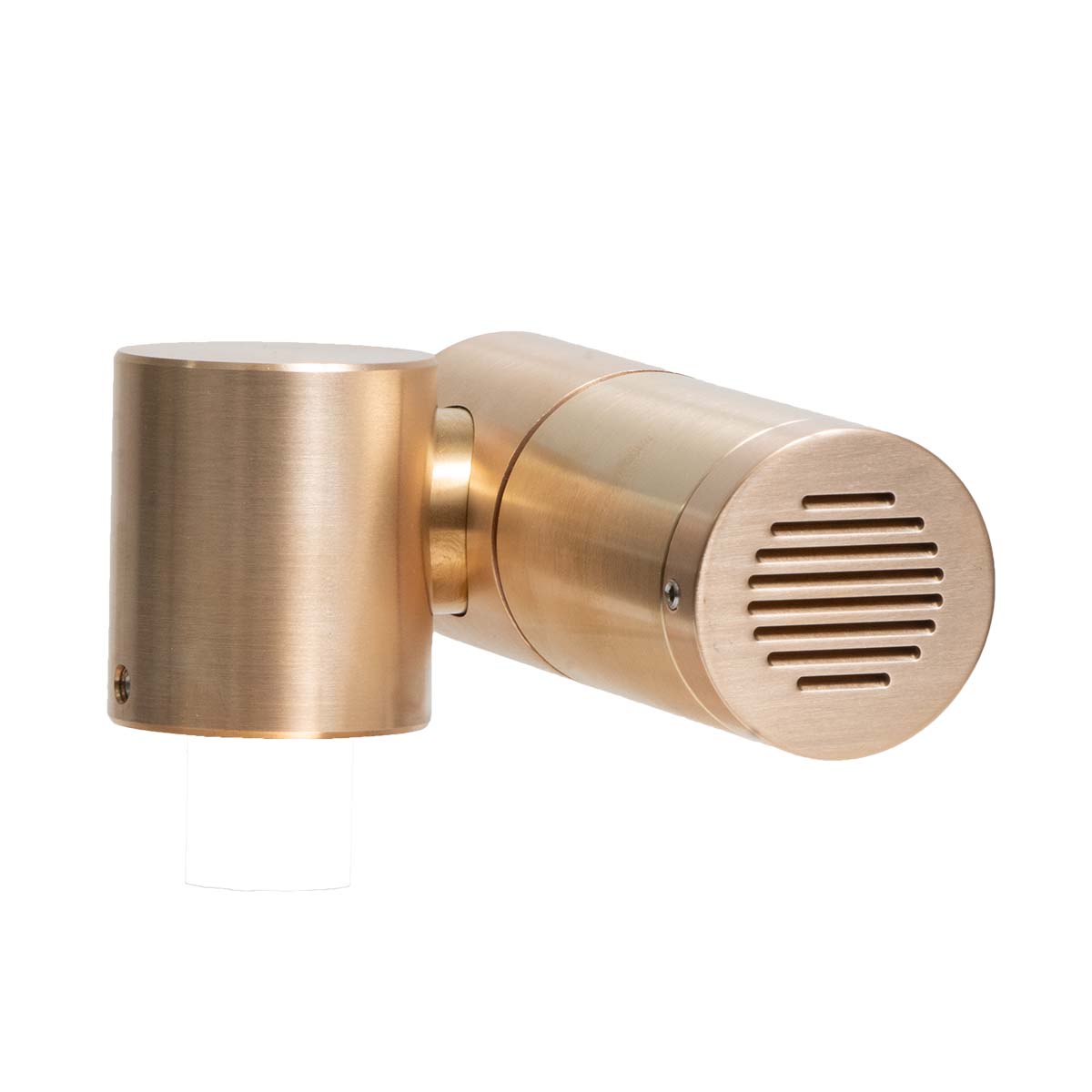

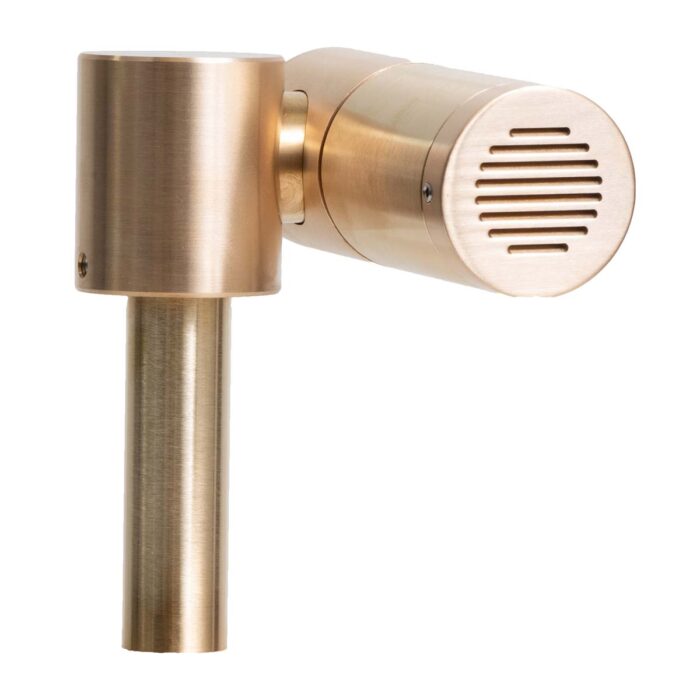

0 (male threaded fitting only, no additional height), 2, 4, 8, 12, 16, or 20 inches or Custom
Integrated LED Light Engine
Triac dimmable: MLV >6% typ
Cree XPE2 • Amber (1700K) & Red-Orange (1000K)
| 2W-A-NFL | 2 Watt AMBER narrow flood |
| 2W-RO-NFL | 2-Watt RED-ORANGE narrow flood |
Cree XPG2 • Warm White (3000K)**
| 3W-NFL | 3 Watt narrow flood |
** Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NO-2700K“

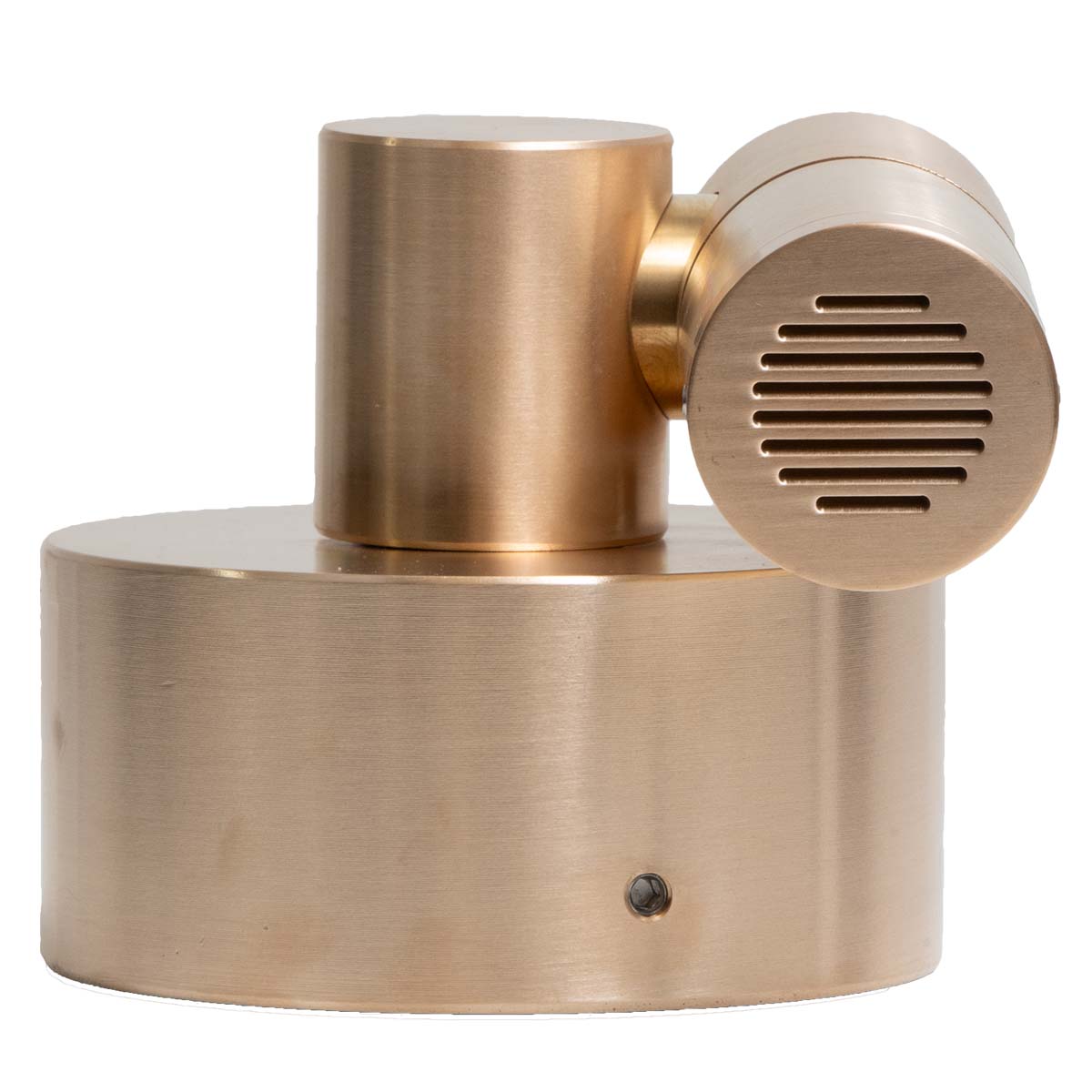

| BSB | Brass Surface Box for surface-mount applications on concrete or wood |
| GS2 | Heavy-duty ground spike |
| GS2BC | Heavy-duty ground spike with cast brass cap |
| GS3R | Heavy-duty ground spike with cast brass cap for telescoping riser |

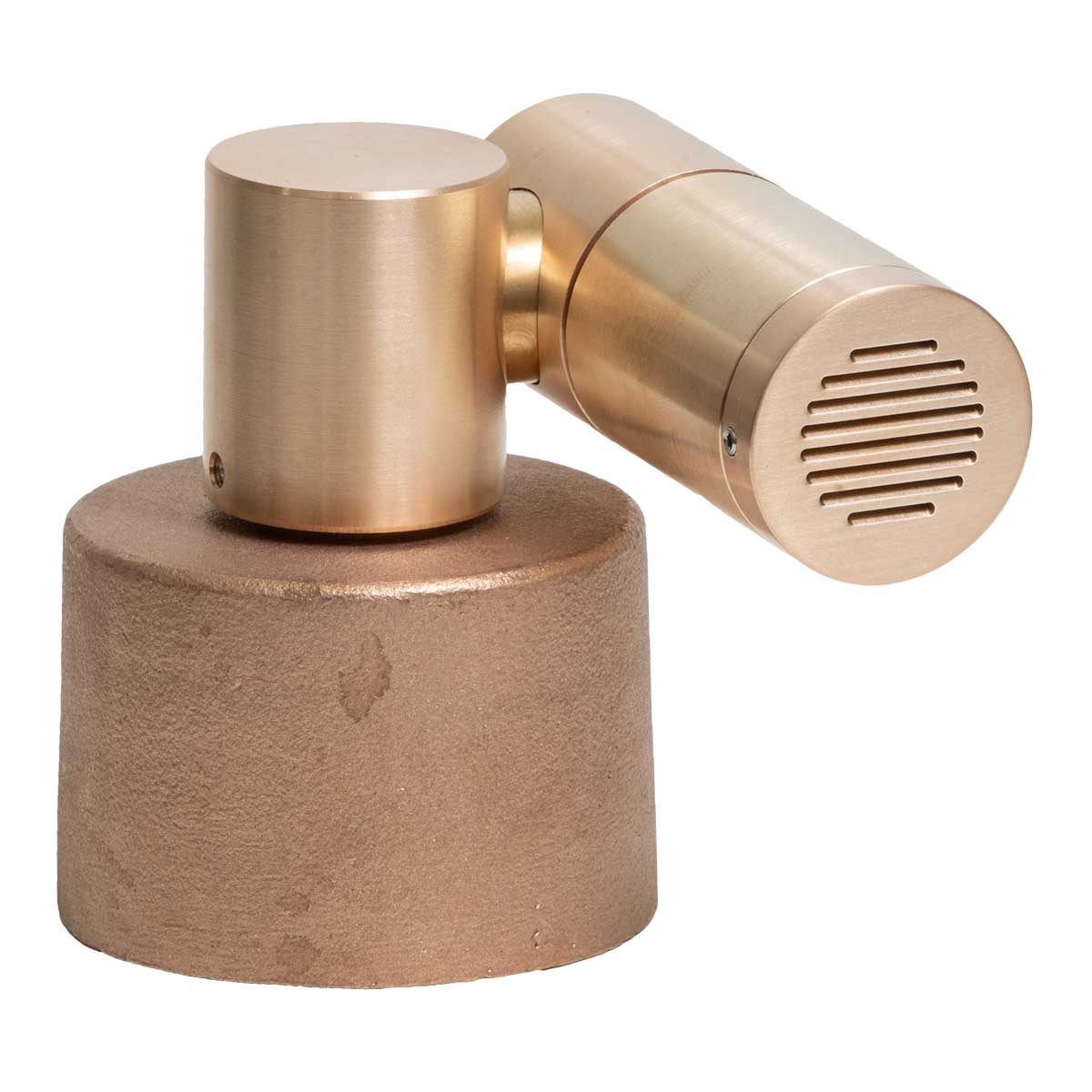

| GS4 | Standard ground spike with cast brass cap |

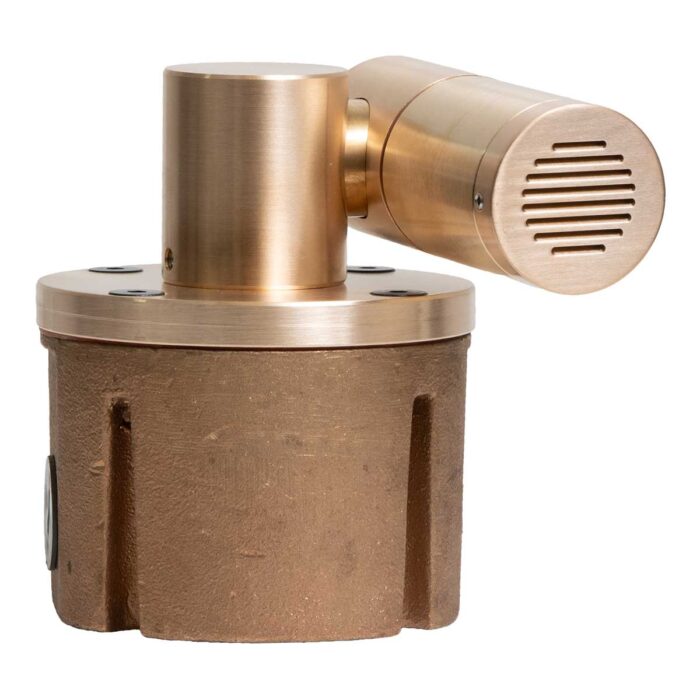

| JB | Cast brass junction box |
| TMJBX | Brass tree-mounted junction box, single fixture mount, stainless steel screws |
| CTO-1/4-1.36 | Color Temperature Orange filter 1/4 |
| CTO-1/2-1.36 | Color Temperature Orange filter 1/2 |
| CTO-3/4-1.36 | Color Temperature Orange filter 3/4 |
