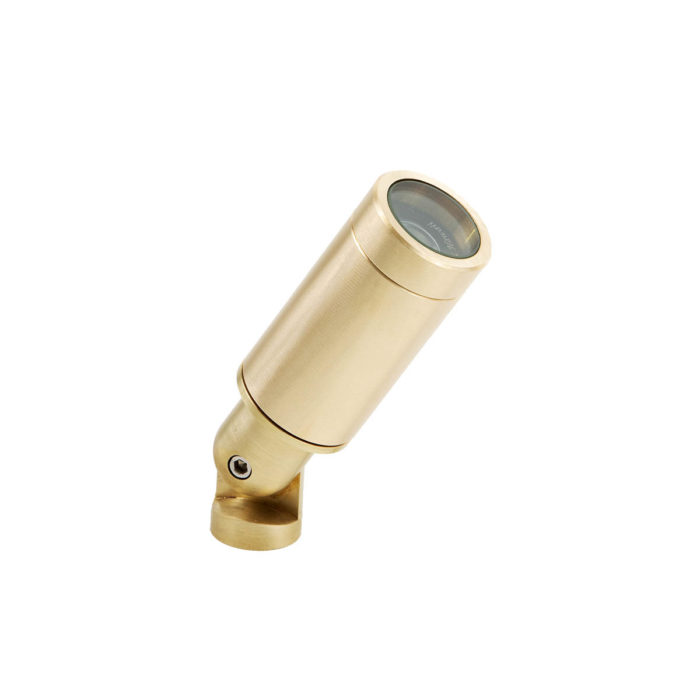

E8 Directionals

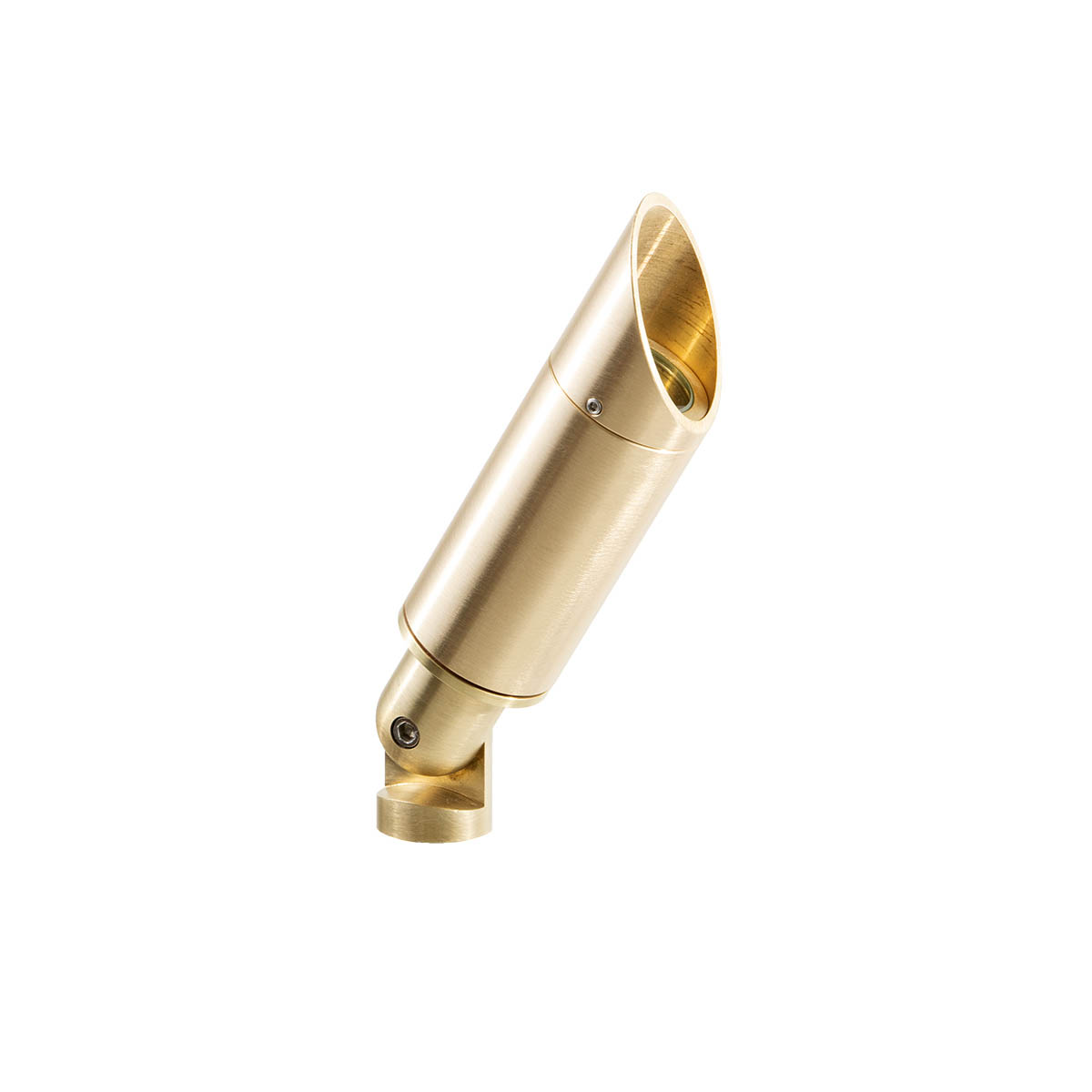

E8-bgs8 Directionals
E8-bgs8f Directionals

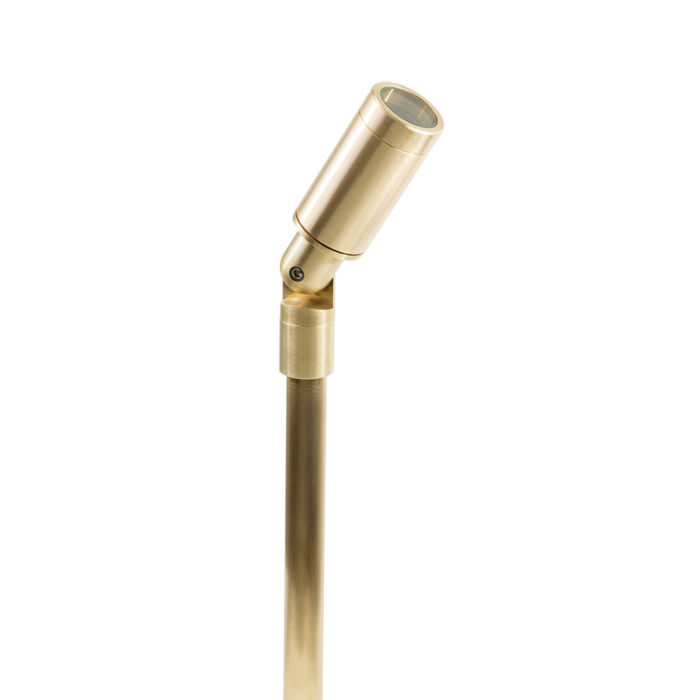

E8-stem Directionals
E8-bgs8-stem Directionals

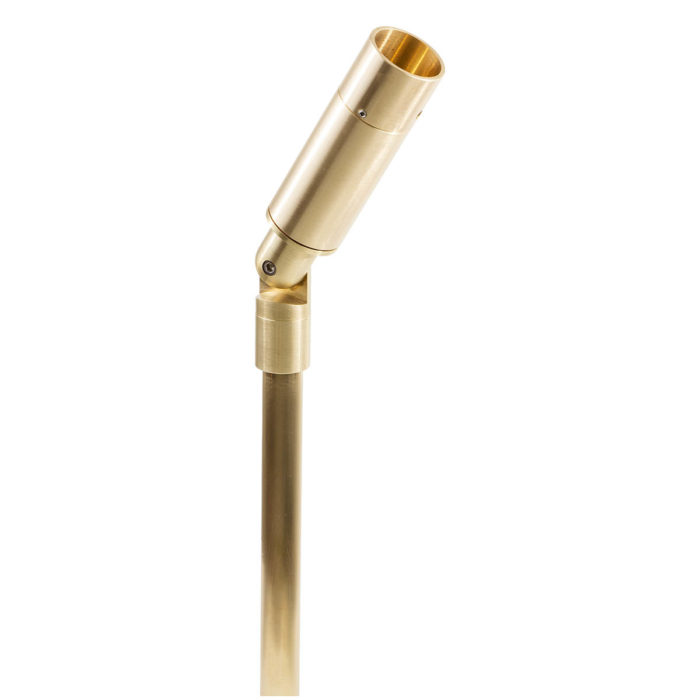

E8-bgs8f-stem Directionals
E8-s Directionals

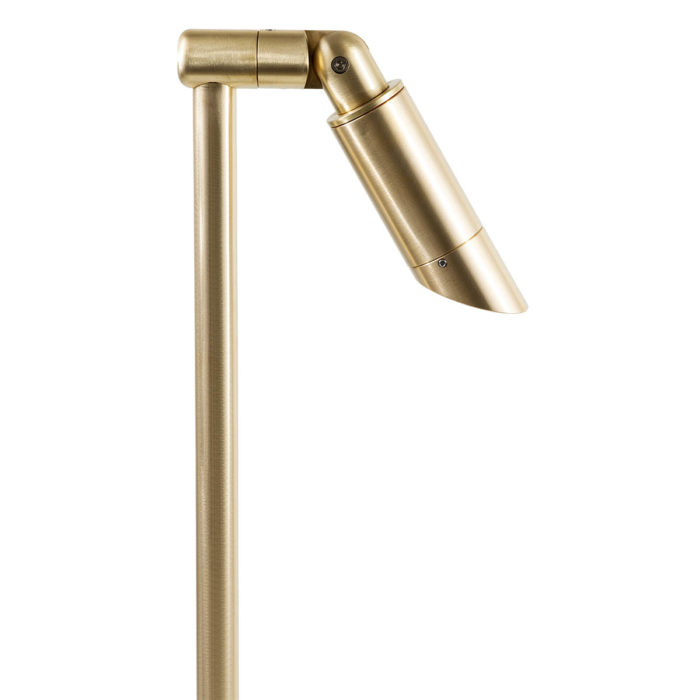

E8-s-bgs8 Directionals

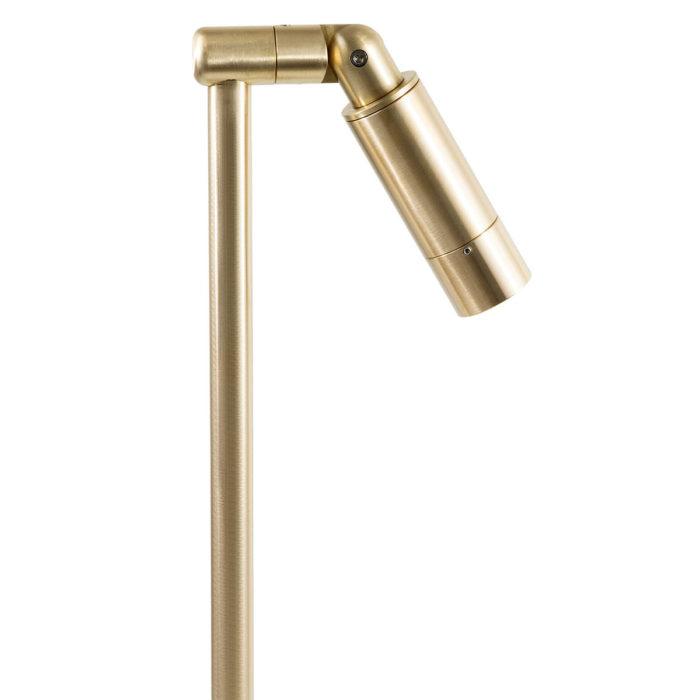

E8-s-bgs8f Directionals
E8-kp Directionals
E8 Dark Bronze Directionals
E8 Dark Bronze Directionals2
E8-bgs8 Dark Bronze Directionals
E8-bgs8f Directionals2
E8-bgs8f Directionals3
E8-bgsf8 Directionals

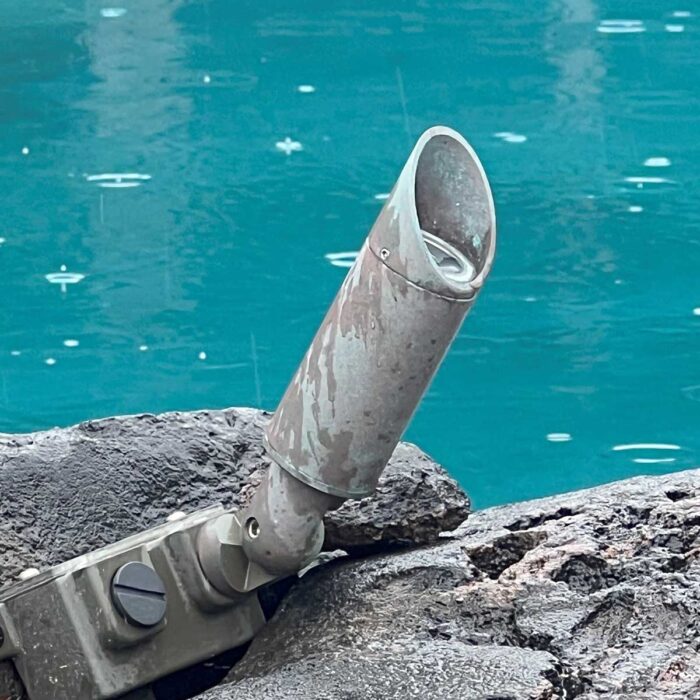

E8-bgs8-directionals2

E8
(12V Integrated LED)

Solid Brass, Low-profile, Low-Voltage Directional

  • Remote transformer required
Voltage 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V)
Lamps Integrated LED
Lumens 249
CCT 1000K
1500K
2700K
3000K
Dimensions Diameter: 1.6″ (4.2cm)
Overall length from knuckle pivot: 4.1″ (10.5cm)

Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

Cree XPE2: AMBER (1500K), RED-ORANGE (1000K)

2W-A-SP 2 Watt AMBER 10° beam / 20° field angle
2W-A-NFL 2 Watt AMBER 14° / 31°
2W-A-FL 2 Watt AMBER 29° / 61°
2W-A-NO 2 Watt AMBER 46° / 114°
2W-RO-SP 2 Watt RED-ORANGE 10° / 18°
2W-RO-NFL 2 Watt RED-ORANGE 13° / 28°
2W-RO-FL 2 Watt RED-ORANGE 32° / 56°
2W-RO-NO 2 Watt RED-ORANGE 49° / 114°

Cree XPG2: 3- and 4-Watt Warm White (3000K)*

3W-SP 3 Watt 13° / 24°
3W-NFL 3 Watt 17° / 37°
3W-FL 3 Watt 30° / 62°
3W-NO 3 Watt 47° / 86°
4W-SP 4 Watt 13° / 24°
4W-NFL 4 Watt 17° / 38°
4W-FL 4 Watt 30° / 62°
4W-NO** 4 Watt 71° / 121°

* Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K“
** When the 4W lamp is specified with No Optic, only one optical accessory may be used.

BSB Brass surface-mounted box for concrete and wood
GS2 Heavy-duty ground spike
GS2BC Heavy-duty ground spike with cast brass cap
GS23R Heavy-duty ground spike with brass cap for telescoping fixture riser
GS4 Standard ground spike with cast brass cap
JB Cast brass round junction box
SA Sure Aim locking rotation accessory (not available with STEM-S)
STEM-C Brass riser for applications where fixture is directed UPWARD (4″/10cm, 8″/20cm, 12″/30cm, 16″/40cm, 20″/51cm, or custom height—specify in inches)
STEM-S Brass riser for applications where fixture is directed DOWNWARD, such as lighting for steps (8″/20cm, 12″/30cm, 16″/40cm, 20″/51cm, or custom height—specify in inches)
TDM1 Brass tree/deck mount with stainless steel screws
TDM2 Brass tree mount with nylon strap (48″, 72″, or 96″)
TDM2SS Brass tree mount with stainless steel strap (48″, 72″, or 96″)
TDM3 Brass low-profile deck/wall mount (SA accessory recommended)
TDM4 Brass low-profile tree mount with notch for wire (SA accessory recommended)
TMJB Brass tree-mounted junction box, single fixture mount, stainless steel strap (48″, 72″, or 96″)
TMJB2 Brass tree-mounted junction box, double fixture mount, stainless steel strap (48″, 72″, or 96″)
TMJBX Brass tree-mounted junction box, single fixture mount, stainless steel screws
TMJB2X Brass tree-mounted junction box, double fixture mount, stainless steel screws
VTM Brass rectangular junction box, direct mount or as part of VTM-PALM
VTM-PALM Set of up to four VTM junction boxes, stainless steel strap (70 or 88″), and wiring. See spec. sheet for details.
BGS8 Brass glare shield, 45° cutoff
BGS8F Brass glare shield, full cutoff with weep hole
CTO-1/4-1.36 Color Temperature Orange filter 1/4
CTO-1/2-1.36 Color Temperature Orange filter 1/2
CTO-3/4-1.36 Color Temperature Orange filter 3/4
FR8 Frosted lens, 1/8″ (3mm) thick
HL8 Honeycomb louver, 1/8” (3mm) thick
KP Extended snoot (no weep hole) for DOWNLIGHTING only
PR8 Prismatic spread lens, 1/8” (3mm) thick
RT8 Rectilinear spread lens, 1/8” (3mm) thick
SL8 Solite (Soft Focus) lens, 1/8” (3mm) thick

Watch a video about the E8 fixture:

Optical Accessories

Mounting Accessories – Wall

Mounting Accessories – Landscape
