E8-H
(12V Integrated LED)

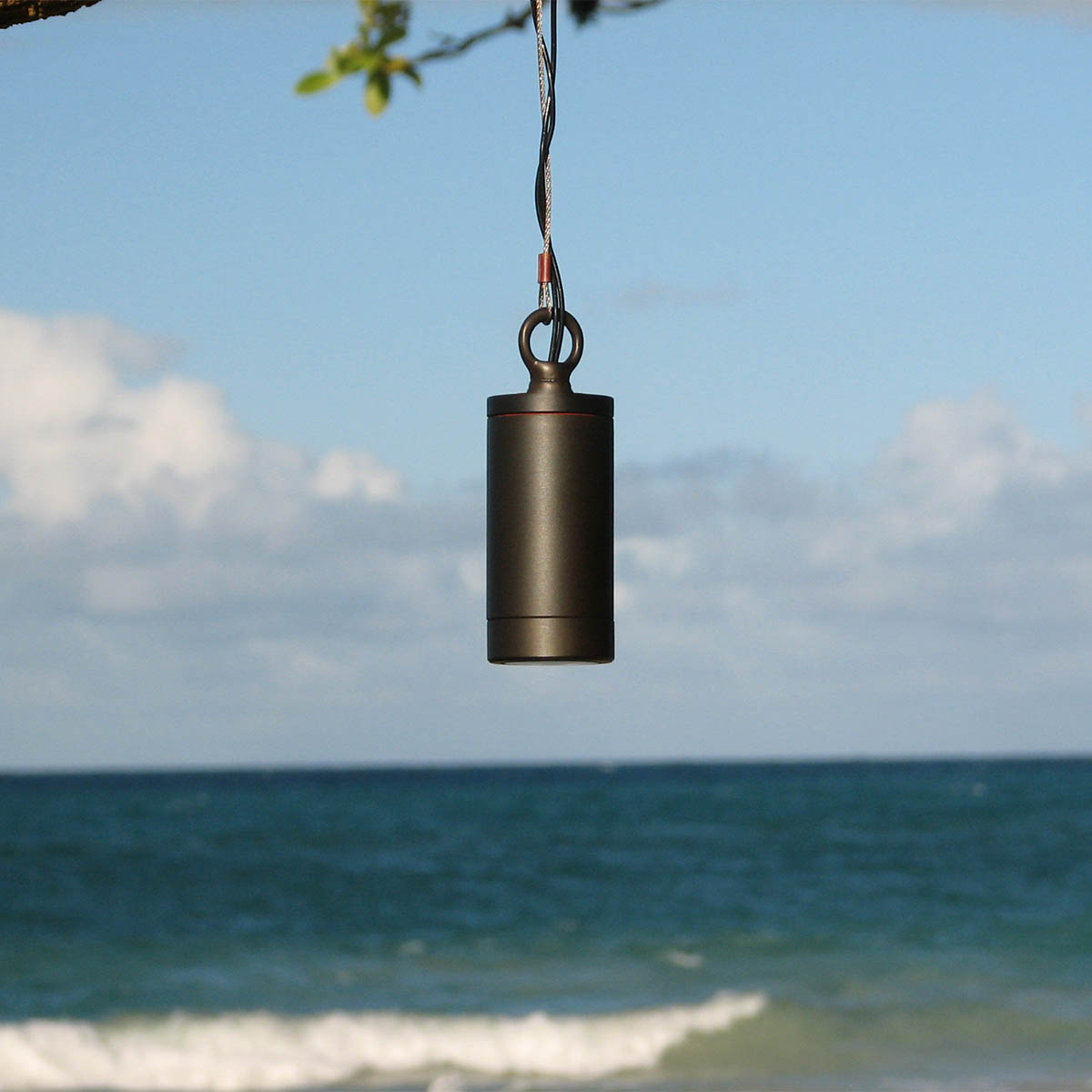

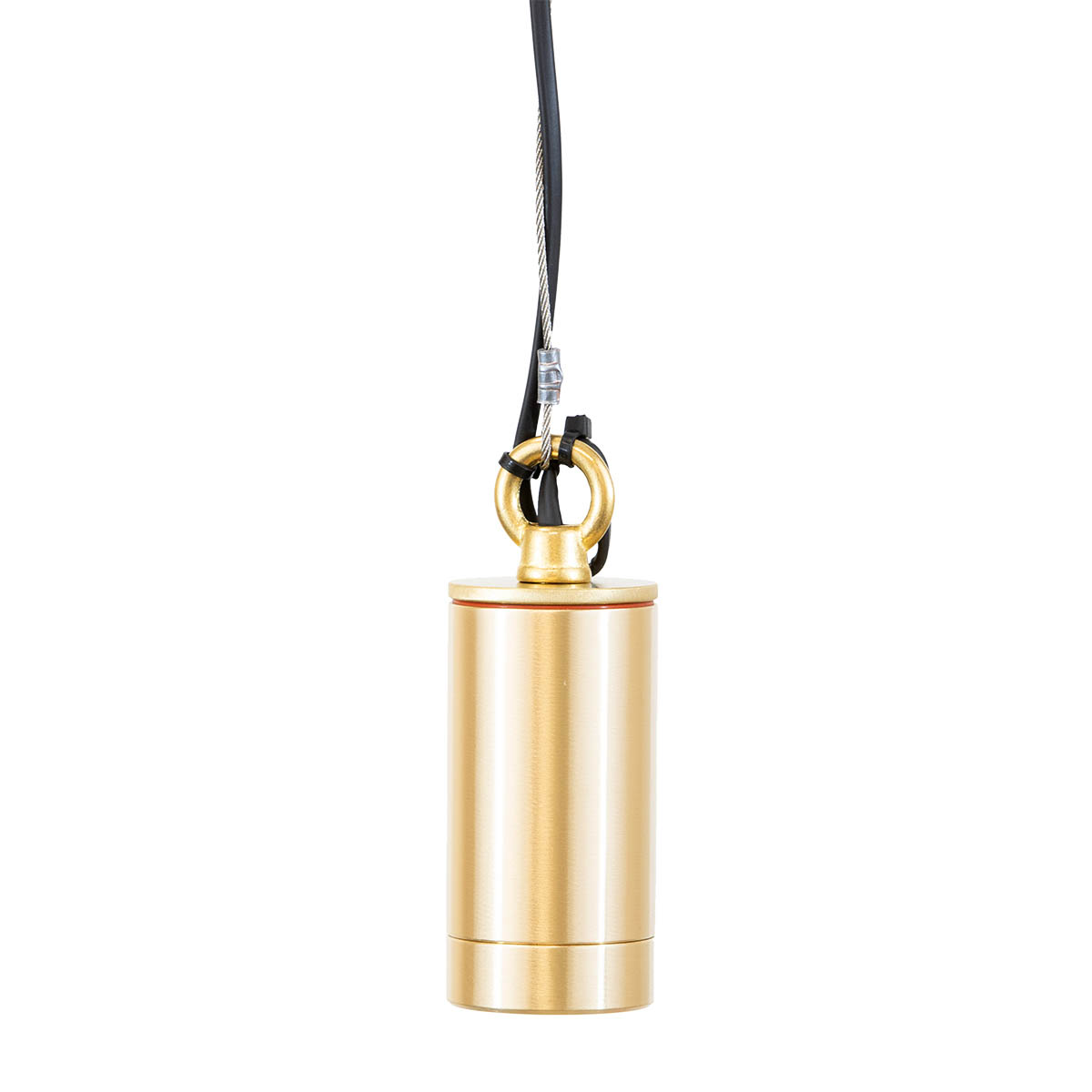

Solid Brass, Low-Profile, Hanging Downlight
- Supplied with 20″ stainless steel cable, 36″ lead wire, and 1/2″ male fitting for mounting accessory
- Can also be hung directly by loop
- Remote transformer required
| Voltage | 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V) |
| Lamps | Integrated LED |
| Lumens | 249 max |
| CCT | 1000K |
| 1500K | |
| 2700K | |
| 3000K | |
| Dimensions | 1.6″ dia. x 3.25″ (4.2 x 8.3 cm) |
Specifications
Installation Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2: AMBER (1500K)*, RED-ORANGE (1000K)*
TURTLE FRIENDLY
| 2W-A-SP | 2 Watt AMBER | 10° beam / 20° field angle |
| 2W-A-NFL | 2 Watt AMBER | 14° / 31° |
| 2W-A-FL | 2 Watt AMBER | 29° / 61° |
| 2W-A-NO | 2 Watt AMBER | 46° / 114° |
| 2W-RO-SP | 2 Watt RED-ORANGE | 10° / 18° |
| 2W-RO-NFL | 2 Watt RED-ORANGE | 13° / 28° |
| 2W-RO-FL | 2 Watt RED-ORANGE | 32° / 56° |
| 2W-RO-NO | 2 Watt RED-ORANGE | 49° / 114° |
Cree XPG2: 3- and 4-Watt Warm White (3000K)**
| 3W-SP | 3 Watt | 13° / 24° |
| 3W-NFL | 3 Watt | 17° / 37° |
| 3W-FL | 3 Watt | 30° / 62° |
| 3W-NO | 3 Watt | 47° / 86° |
| 4W-SP | 4 Watt | 13° / 24° |
| 4W-NFL | 4 Watt | 17° / 38° |
| 4W-FL | 4 Watt | 30° / 62° |
| 4W-NO*** | 4 Watt | 71° / 121° |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K”
*** When 4W lamp is specified with No Optic (NO), only one optical accessory may be used
| CMK | Catenary cable mounting kit (Instructions) |
| TDM1 | Brass tree/deck mount with stainless steel screws |
| TDM2 | Brass tree mount with nylon strap (48″, 72″, or 96″) |
| TDM2SS | Brass tree mount with stainless steel strap (48″, 72″, or 96″) |
| TDM3-HANG | Brass low-profile deck/wall mount—for hanging fixtures |
| TDM4-HANG | Brass low-profile tree mount with notches for wire—for hanging fixtures |
| TMJB | Brass tree-mounted junction box, single fixture mount, stainless steel strap (48″, 72″, or 96″) |
| TMJBX | Brass tree-mounted junction box, single fixture mount, stainless steel screws |
| CTO-1/4-1.36 | Color Temperature Orange filter 1/4 |
| CTO-1/2-1.36 | Color Temperature Orange filter 1/2 |
| CTO-3/4-1.36 | Color Temperature Orange filter 3/4 |
| FR8 | Frosted lens, 1/8″ (3mm) thick |
| HL8 | Honeycomb louver, 1/8” (3mm) thick |

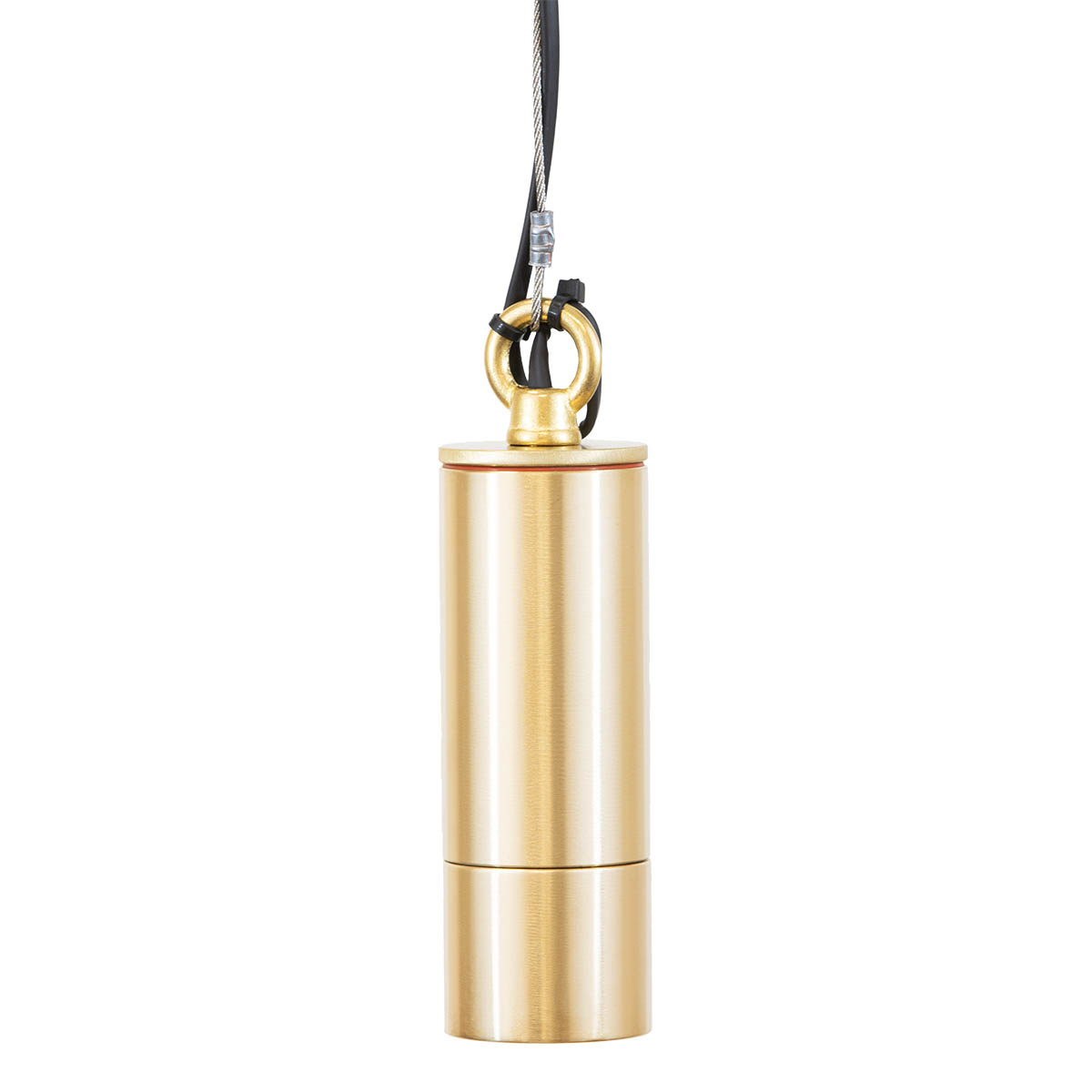

| KP | Extended snoot |
| PR8 | Prismatic spread lens, 1/8” (3mm) thick |
| RT8 | Rectilinear spread lens, 1/8” (3mm) thick |
| SL8 | Solite (Soft Focus) lens, 1/8” (3mm) thick |
Maximum two 1/8″-thick optical accessories; maximum one accessory with 4W-NO lamp/optic.
