E8-H-2×4.5 / E8-H-2×9
(12V LED)

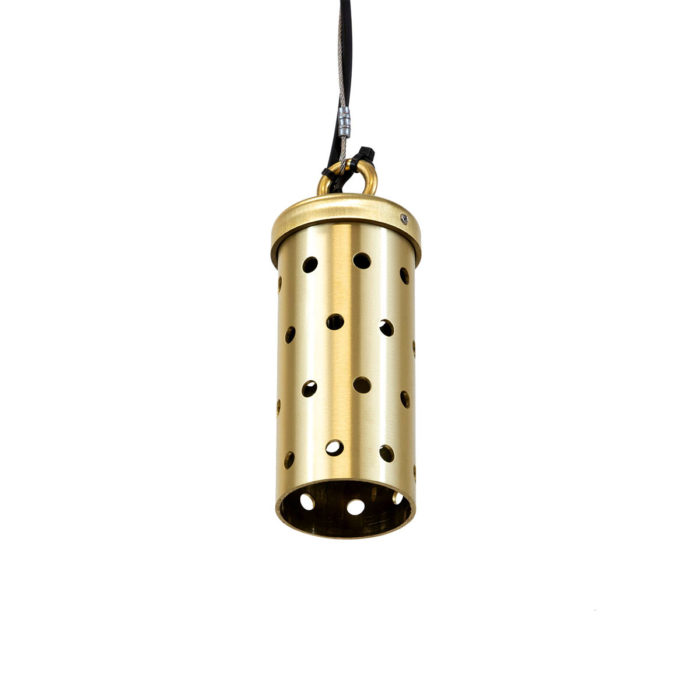

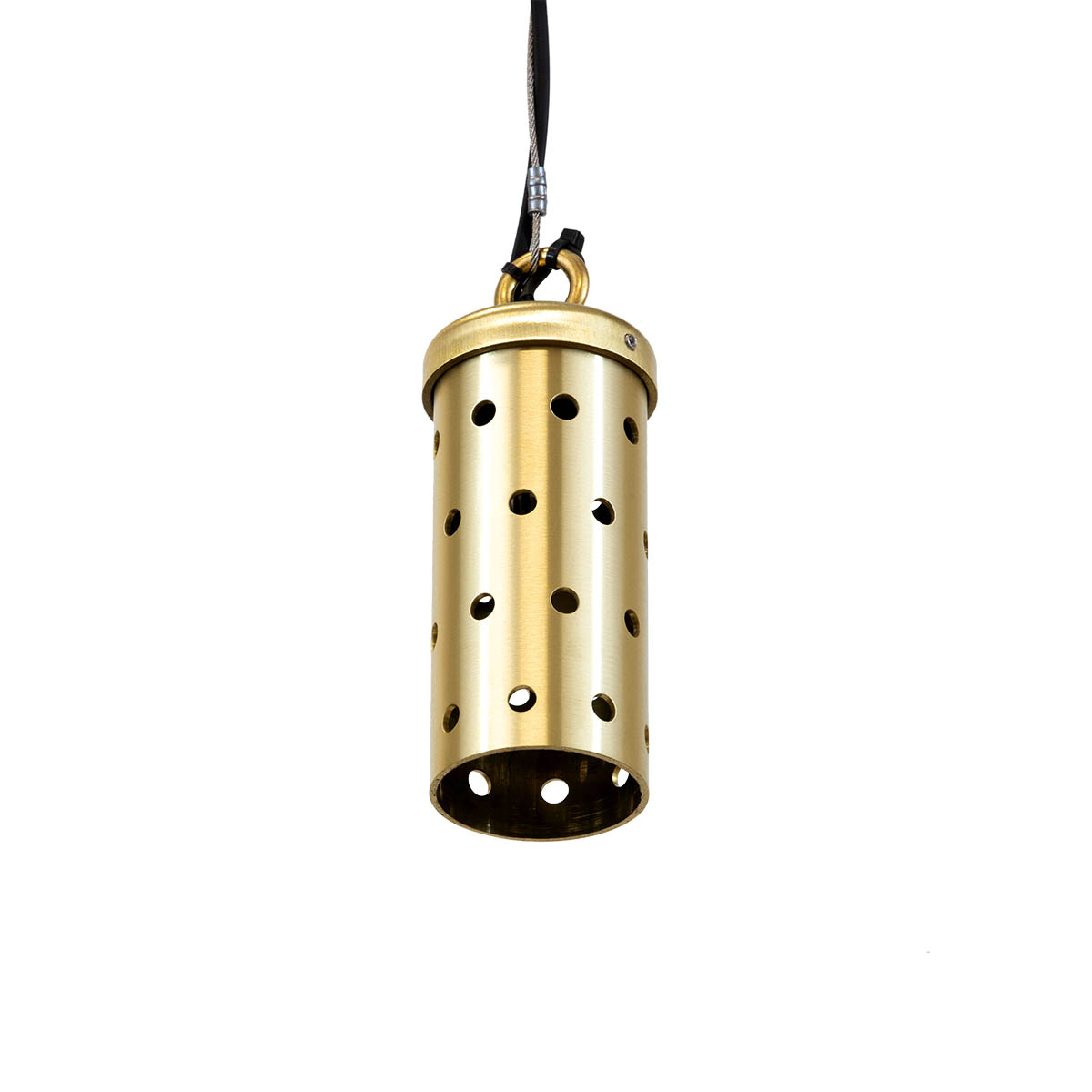

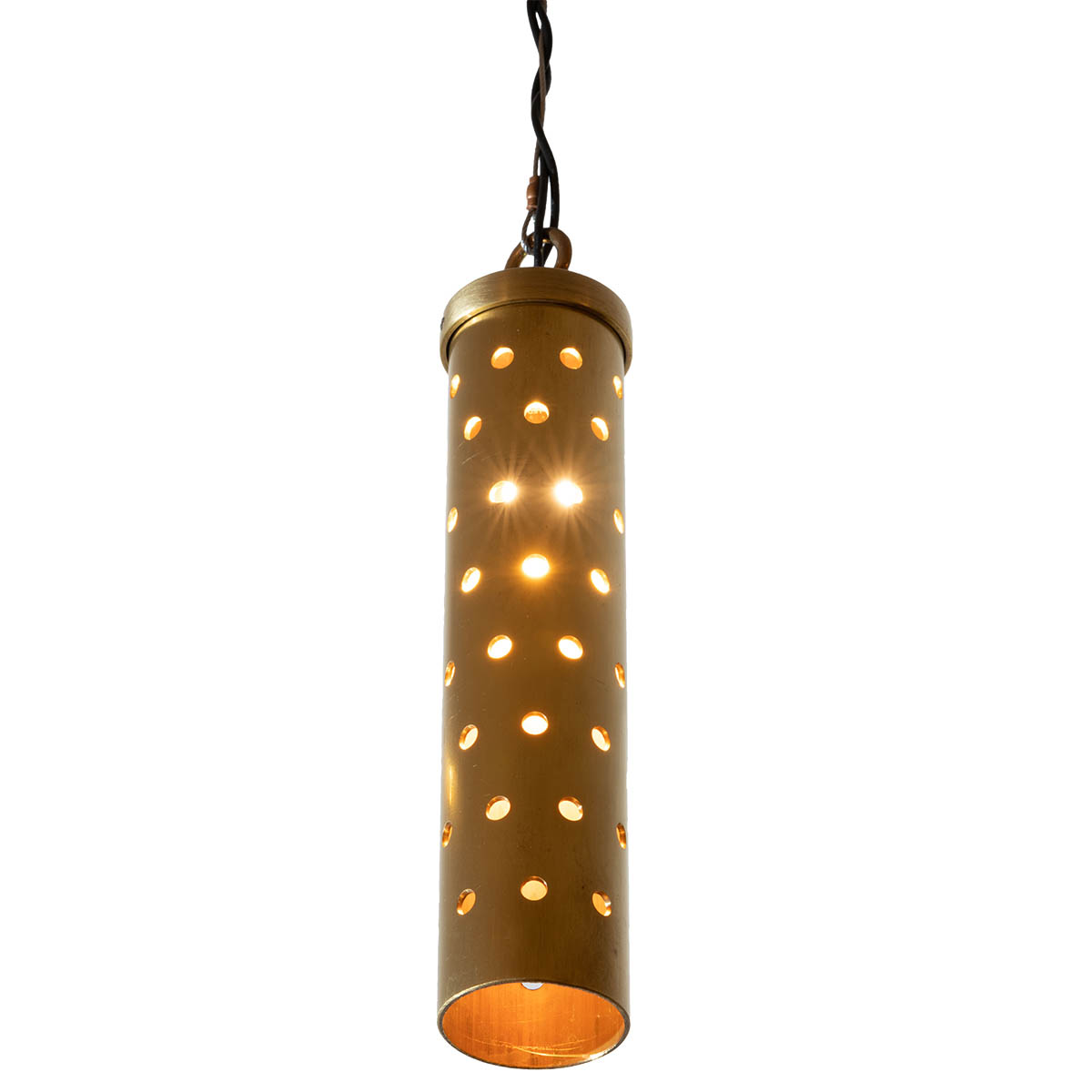

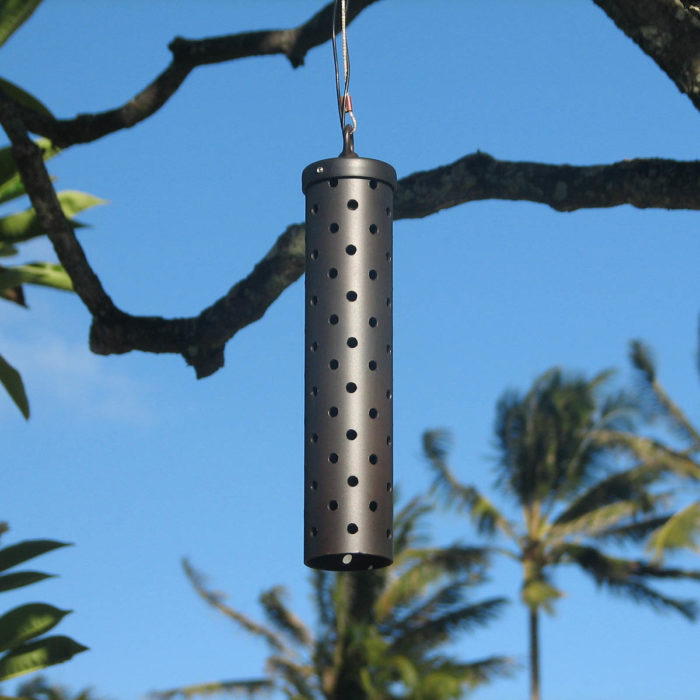

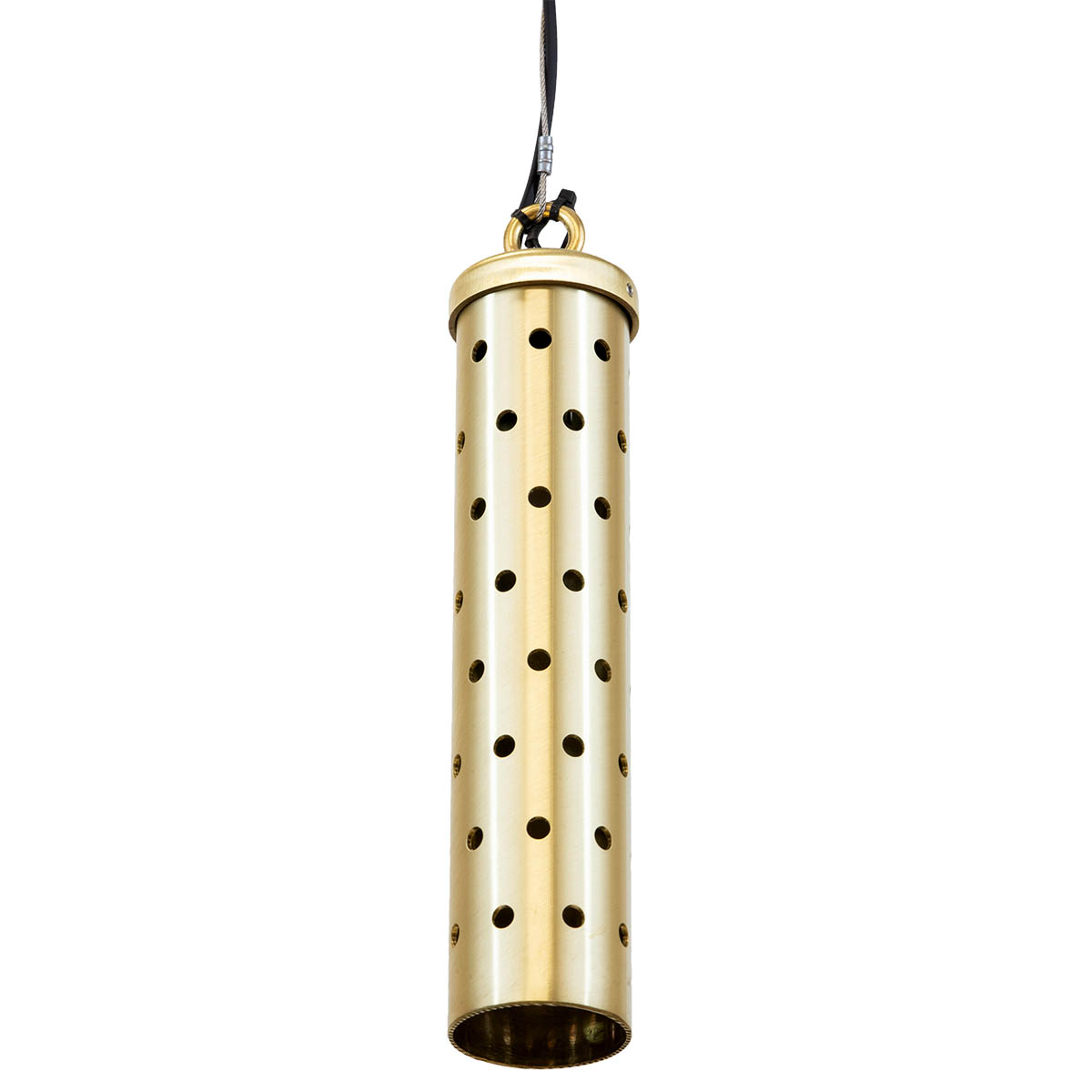

Solid Brass Decorative Hanging Downlight
- Supplied with 20″ stainless steel cable, 36″ lead wire, and 1/2″ male fitting for mounting accessory
- Can also be hung directly by loop
- Remote transformer required
| Voltage | 12V |
| Lamps | LED |
| Lumens | max 44 (4.5″), 24 (9″) |
| CCT | 1500K |
| 2700K | |
| 3000K | |
| Dimensions | 2″ (5.1 cm) diameter |
| Length: 4.6″ (11.7 cm) for 2×4.5 | |
| Length: 9.1″ (23.1 cm) for 2×9 |
| LM79 | IES | SPECTRAL POWER DISTRIBUTION / BLUE LIGHT CONTENT |
| E8-H-2×4.5-2W-A | E8-H-2×4.5-2W-A | E8-H-2×4.5-2W-A |
| E8-H-2×4.5-2W-DC-30 | E8-H-2×4.5-2W-DC-30 | |
| E8-H-2×9-2W-DC-30 | E8-H-2×9-2W-DC-30 |
BA15D double-contact bayonet
| 2W-A-DC | 2 Watt AMBER LED (1500K) |
| 2W-DC-27 | 2 Watt LED (2700K) |
| 2W-DC-30 | 2 Watt LED (3000K) |
| CMK | Catenary cable mounting kit (Instructions) |
| TDM1 | Brass tree/deck mount with stainless steel screws |
| TDM2 | Brass tree mount with nylon strap (48″, 72″, or 96″) |
| TDM2SS | Brass tree mount with stainless steel strap (48″, 72″, or 96″) |
| TDM3-HANG | Brass low-profile deck/wall mount—for hanging fixtures |
| TDM4-HANG | Brass low-profile tree mount with notches for wire—for hanging fixtures |
| TMJB | Brass tree-mounted junction box, single fixture mount, stainless steel strap (48″, 72″, or 96″) |
| TMJBX | Brass tree-mounted junction box, single fixture mount, stainless steel screws |
