E9-RC
(12V Integrated LED, MR16 LED)

E9-RC
(12V Integrated LED, MR16 LED)

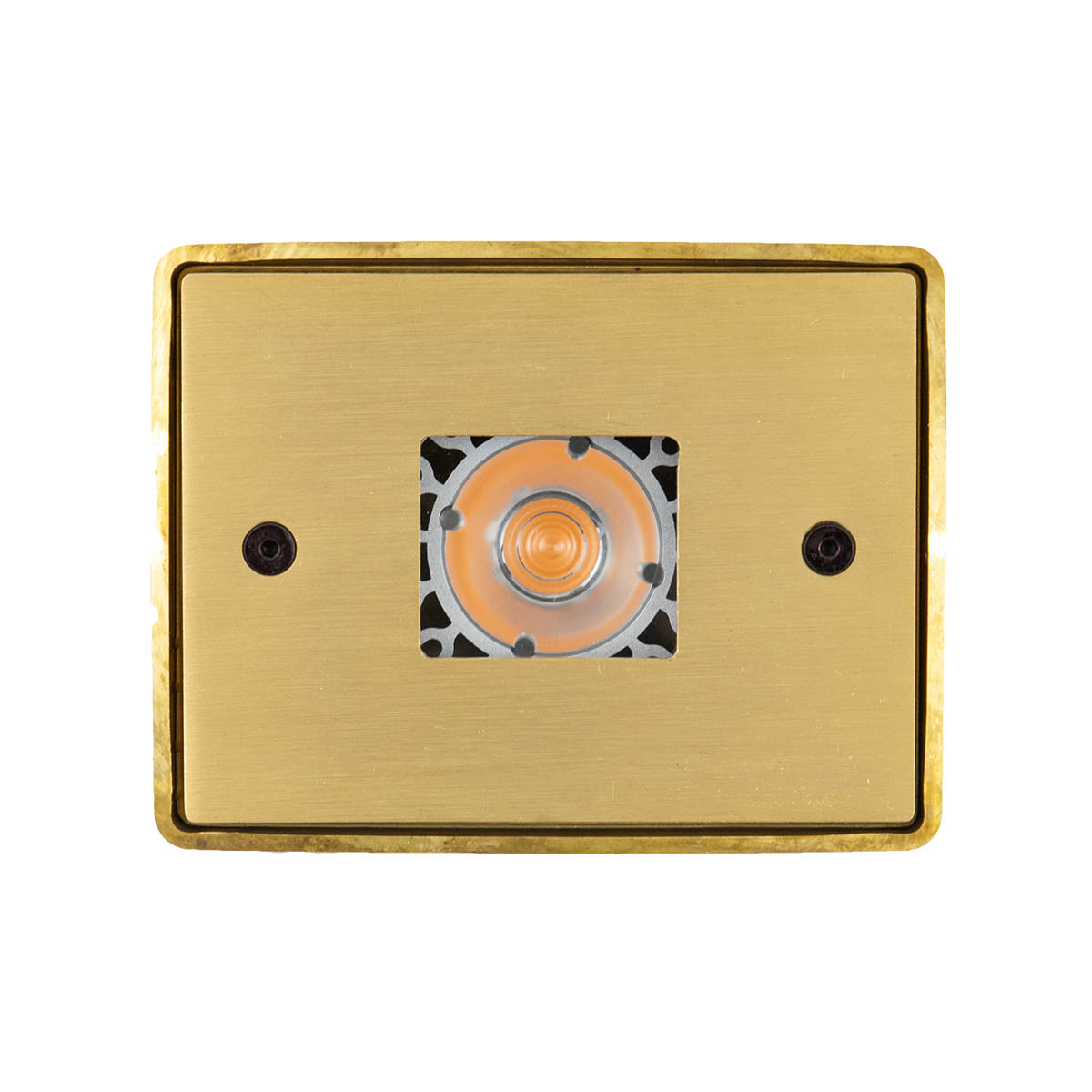

Solid Brass Rectangular Steplight / Uplight

  • Remote transformer required
  • Mountable as a steplight, uplight, or downlight
  • CR” versions add a Concrete Ring for fully recessed concrete installation.  Ring is 3.3 x 4.3″ (8.3 x 10.9 cm) and fixture depth increases to 5.3″ (13.5 cm).   [E9-RC-CR]

1500K

Voltage 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V)
Lamps Integrated LED, MR16 LED
Lumens 630 max
CCT 1000K
1300K
1500K
2700K
3000K
Dimensions 3 x 4″ trim, 5.0″ depth (7.6 x 10.2 cm, 12.6 cm)
The E9-RC shares the same light engines as the E8 fixtures.  Please refer to the E8 files for photometric information.
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

Cree XPE2 LED: AMBER (1500K), RED-ORANGE (1000K)

2W-A-SP 2 Watt AMBER spot
2W-A-NFL 2 Watt AMBER narrow flood
2W-A-FL 2 Watt AMBER flood
2W-A-NO 2 Watt AMBER no optic (wide flood)
2W-RO-SP 2 Watt RED-ORANGE spot
2W-RO-NFL 2 Watt RED-ORANGE narrow flood
2W-RO-FL 2 Watt RED-ORANGE flood
2W-RO-NO 2 Watt RED-ORANGE no optic (wide flood)

Cree XPG2 LED: Warm White (2700/3000K)*

3W-SP 3 Watt spot
3W-NFL 3 Watt narrow flood
3W-FL 3 Watt flood
3W-NO 3 Watt no optic (wide flood)

* Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K

GU5.3 MR16 LED
AMBER (1300K) and Warm White (2700/3000K)**

5W-A-NFL 5 Watt AMBER 25° narrow flood 83 lm
5W-SP 5 Watt 15° spot 320 lm
5W-NFL 5 Watt 25° narrow flood 320 lm
5W-FL 5 Watt 40° flood 320 lm
5W-FL/60 5 Watt 60° flood 320 lm
5W-WFL 5 Watt 100° wide flood 320 lm
7W-FL/60 7 Watt 60° flood 483 lm
8W-SP 8 Watt 10° spot 600 lm
8W-NFL 8 Watt 25° narrow flood 630 lm
8W-FL 8 Watt 36° flood 630 lm

** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27

Maximum two accessories. HL2 cannot be used with any other accessory.

FR Frosted lens
HL1 Honeycomb louver, 1/8” (3mm) thick
HL2 Honeycomb louver, 1/4” (6mm) thick
PR Prismatic spread lens
RT Rectilinear spread lens
