E9-RCL
(12V Integrated LED, MR16 LED)

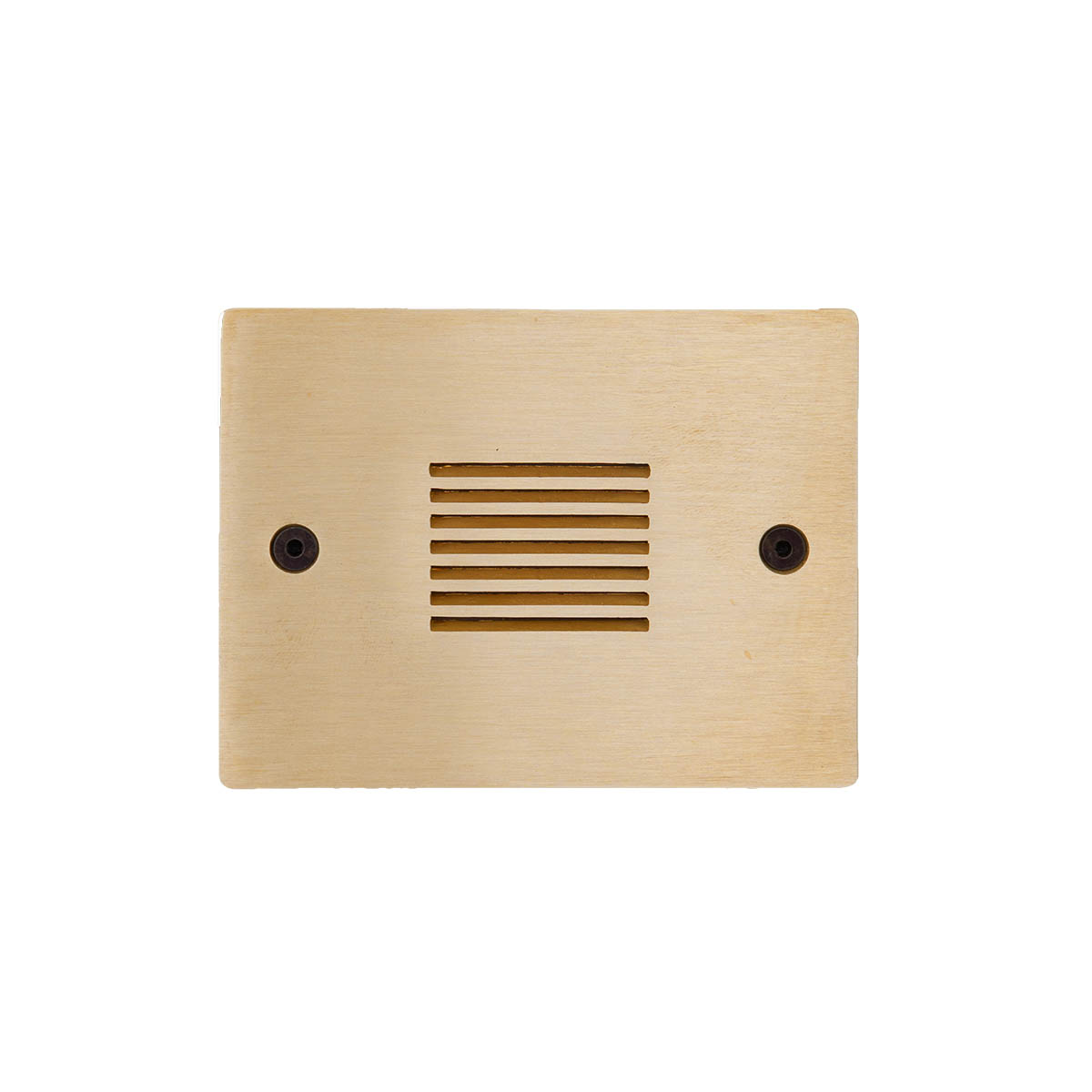

Solid Brass Rectangular Louvered Steplight
- Remote transformer required
- Mountable as a steplight, uplight, or downlight

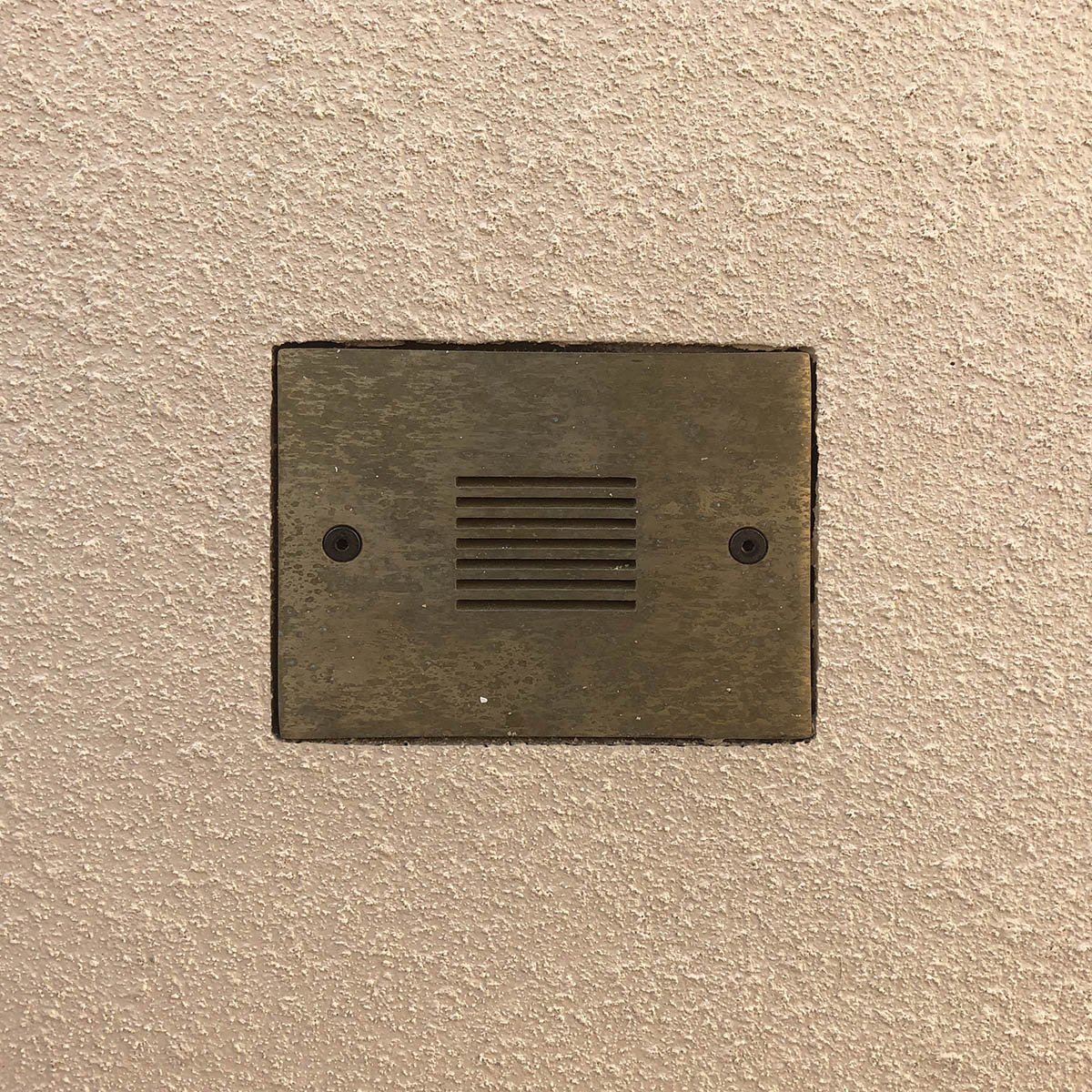

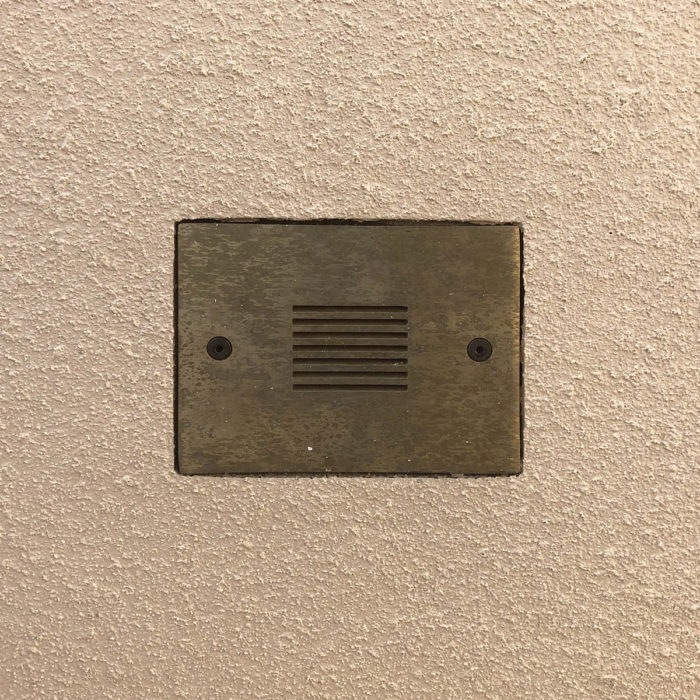

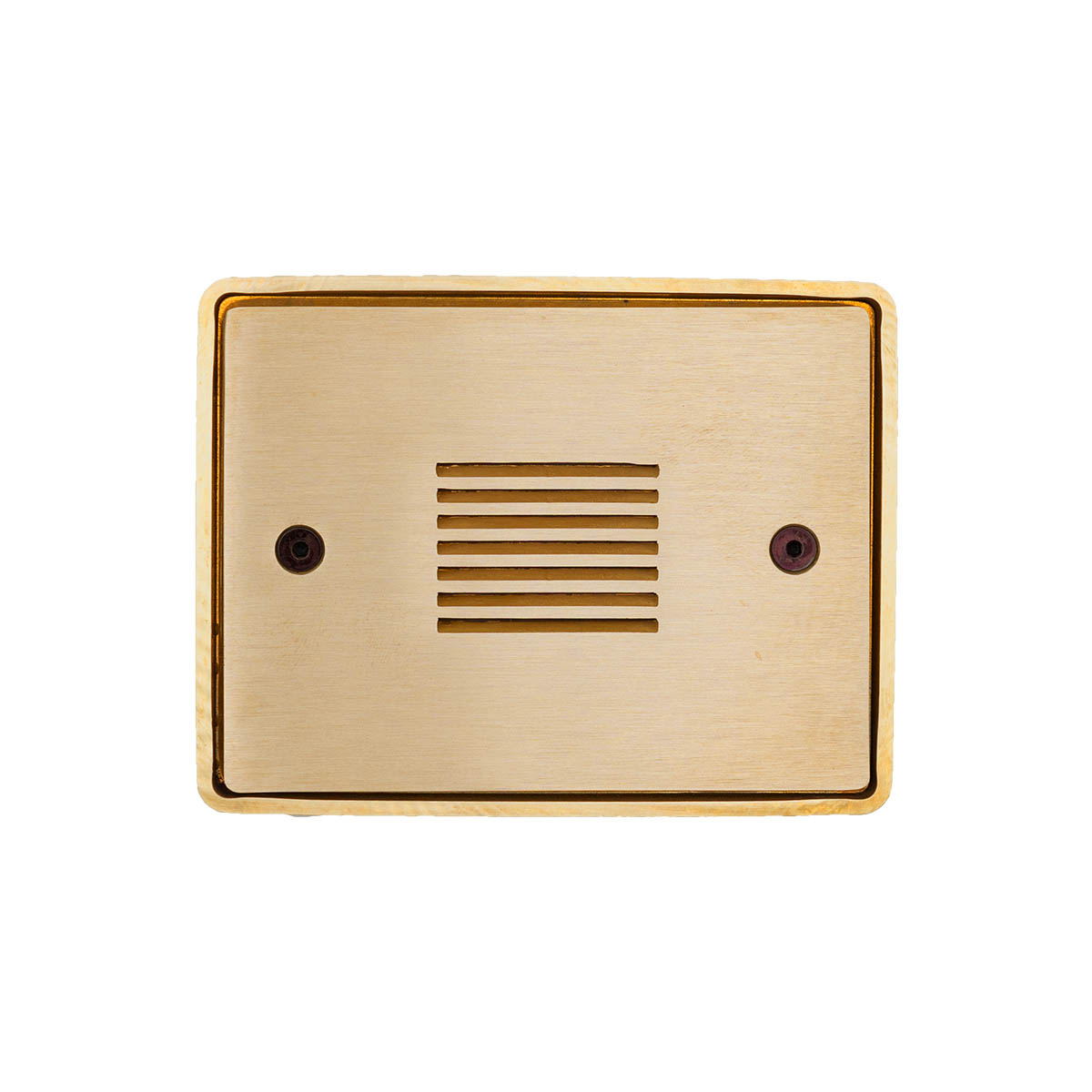

- “CR” versions add a Concrete Ring for fully recessed concrete installation. Ring is 3.3 x 4.3″ (8.3 x 10.9 cm) and fixture depth increases to 5.3″ (13.5 cm). [E9-RCL-CR]
| Voltage | 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V) |
| Lamps | Integrated LED, MR16 LED |
| CCT | 1000K |
| 1500K | |
| 2700K | |
| 3000K | |

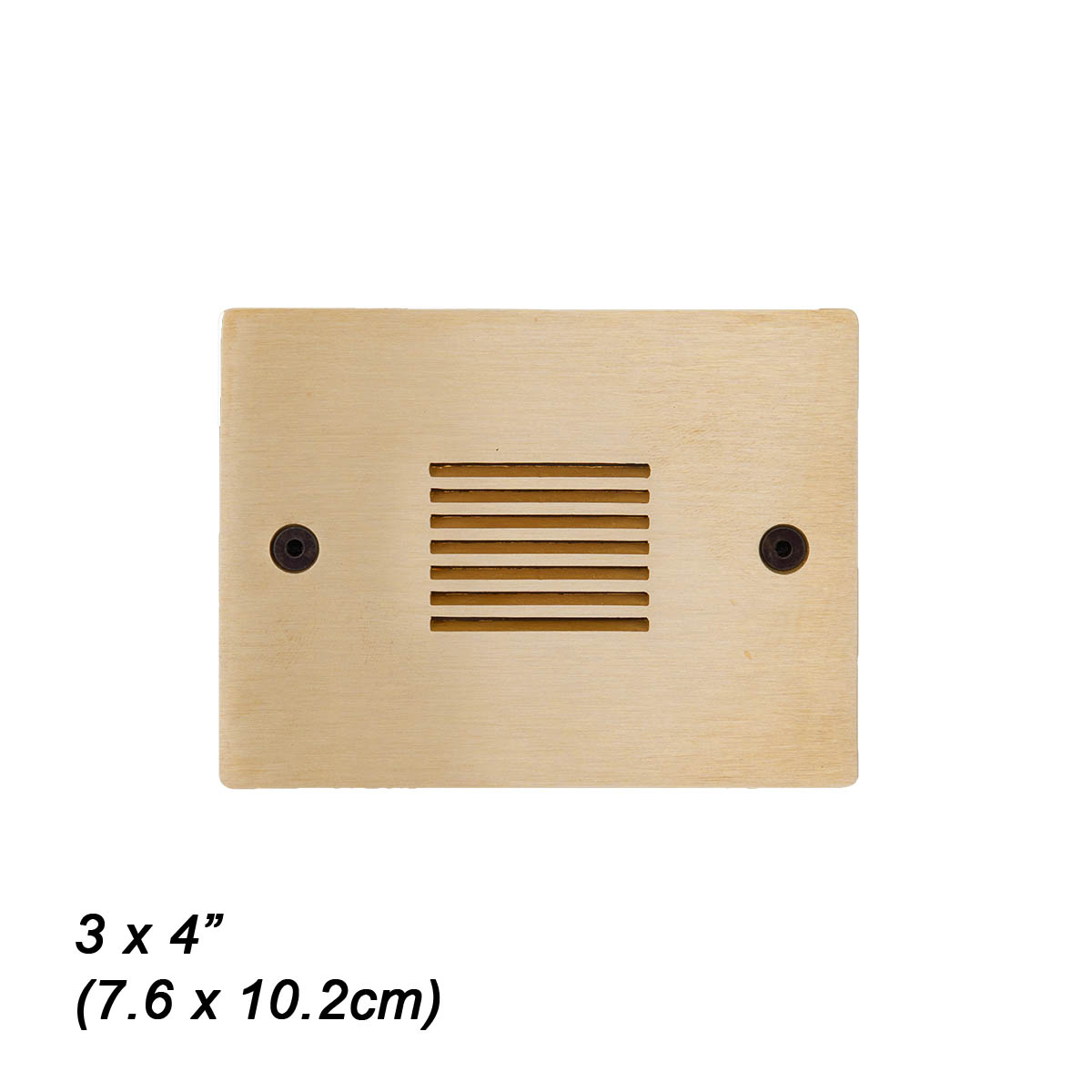

| Dimensions | 3 x 4″ trim, 5.0″ depth (7.6 x 10.2 cm, 12.6 cm) |
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

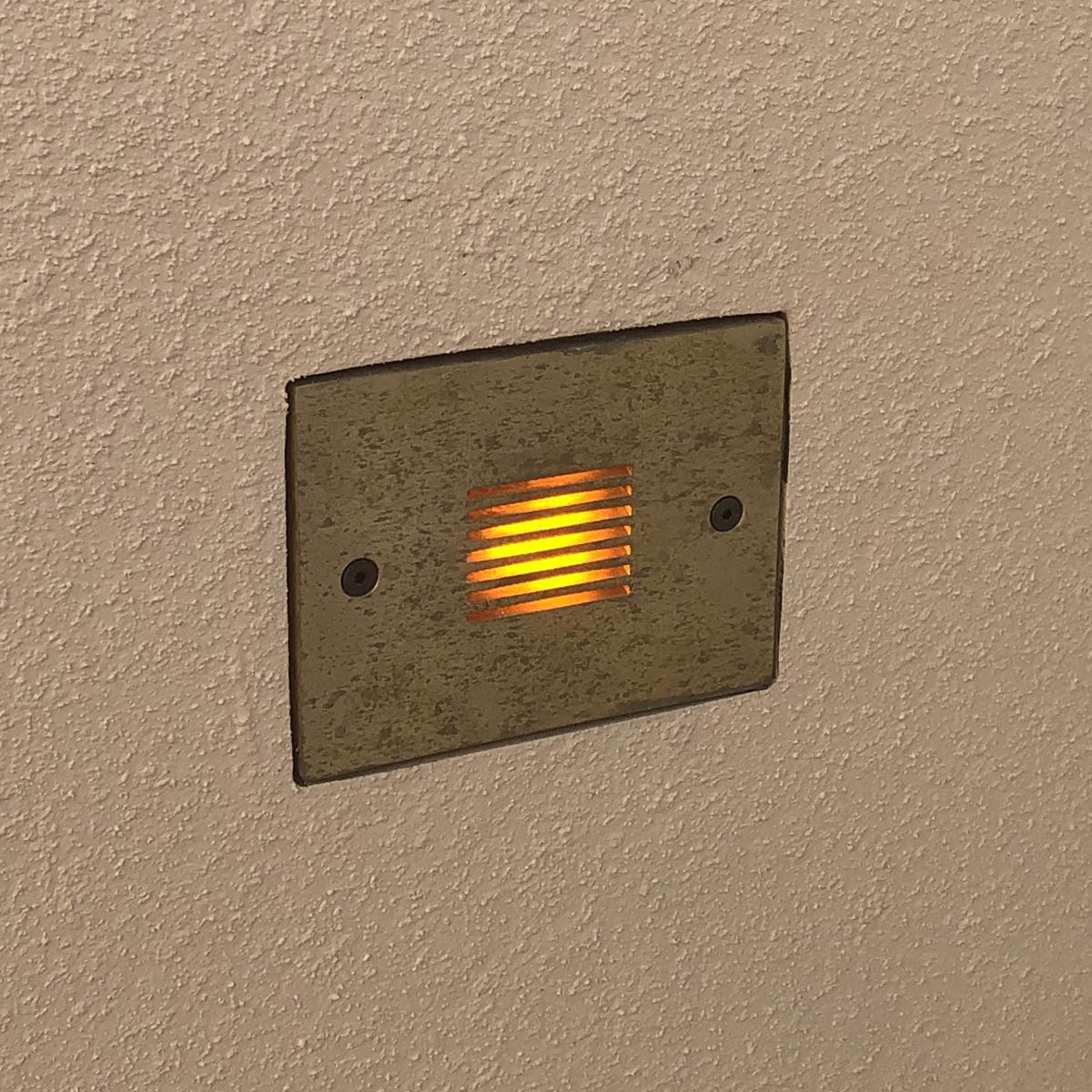

Cree XPE2 LED: AMBER (1500K), RED-ORANGE (1000K)
| 2W-A-SP | 2 Watt AMBER | spot |
| 2W-A-NFL | 2 Watt AMBER | narrow flood |
| 2W-A-FL | 2 Watt AMBER | flood |
| 2W-A-NO | 2 Watt AMBER | no optic (wide flood) |
| 2W-RO-SP | 2 Watt RED-ORANGE | spot |
| 2W-RO-NFL | 2 Watt RED-ORANGE | narrow flood |
| 2W-RO-FL | 2 Watt RED-ORANGE | flood |
| 2W-RO-NO | 2 Watt RED-ORANGE | no optic (wide flood) |
Cree XPG2 LED: Warm White (2700/3000K)*
| 3W-SP | 3 Watt | spot |
| 3W-NFL | 3 Watt | narrow flood |
| 3W-FL | 3 Watt | flood |
| 3W-NO | 3 Watt | no optic (wide flood) |
GU5.3 MR16 LED
AMBER (1500K) and Warm White (2700/3000K)*
| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
| 5W-SP | 5 Watt | 15° spot |
| 5W-NFL | 5 Watt | 25° narrow flood |
| 5W-FL | 5 Watt | 40° flood |
| 5W-FL/60 | 5 Watt | 60° flood |
| 5W-WFL | 5 Watt | 100° wide flood |
| 7W-FL/60 | 7 Watt | 60° flood |
| 8W-SP | 8 Watt | 10° spot |
| 8W-NFL | 8 Watt | 25° narrow flood |
| 8W-FL | 8 Watt | 36° flood |
* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“
Maximum Two Accessories
| HL1 | Honeycomb louver, 1/8” (3mm) thick |
| PR | Prismatic spread lens |
| RT | Rectilinear spread lens |
