E9-RCL Turtle Friendly
(12V Integrated LED, MR16 LED)

E9-RCL Turtle Friendly
(12V Integrated LED, MR16 LED)

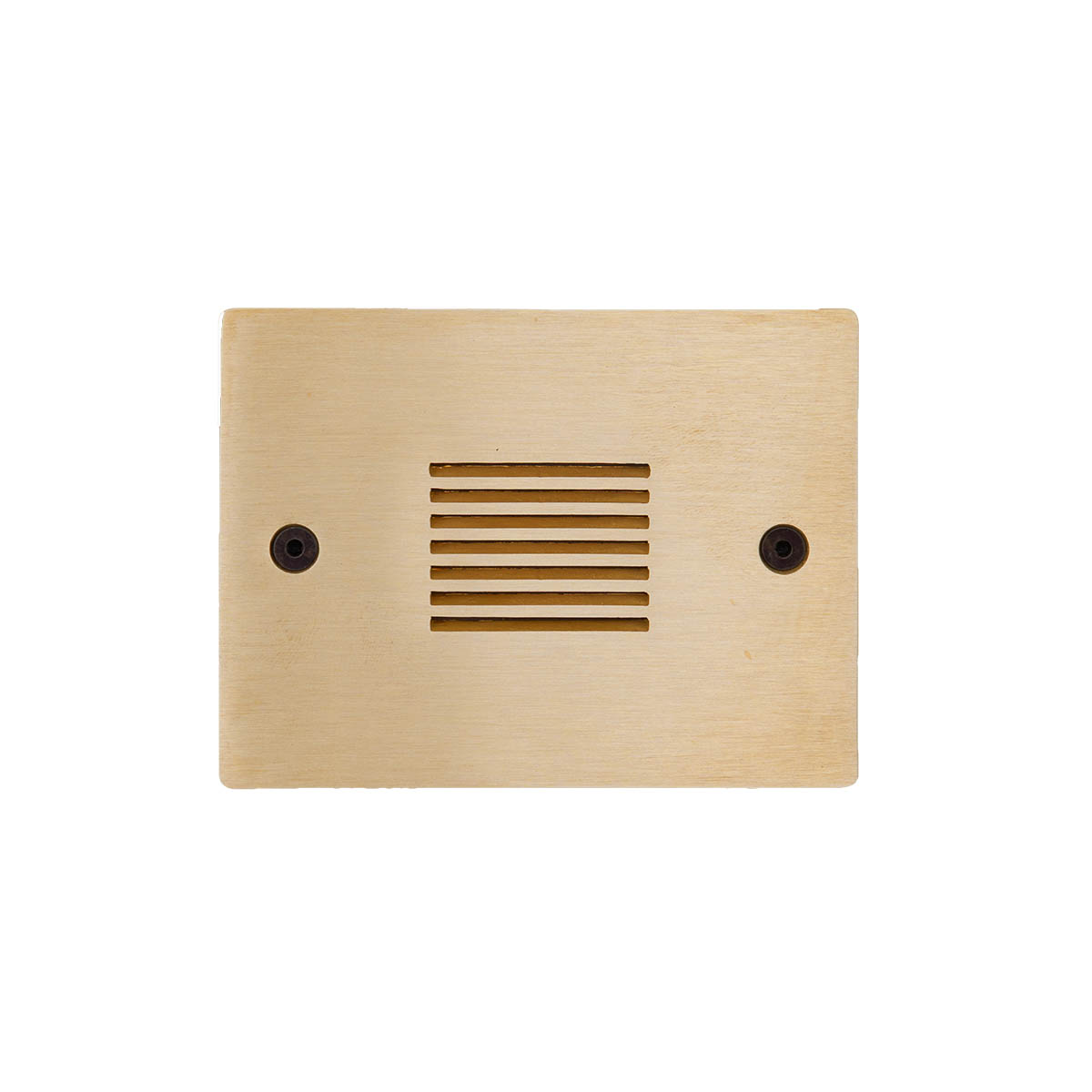

Solid Brass Rectangular Louvered Steplight

  • Remote transformer required
  • Mountable as a steplight or downlight

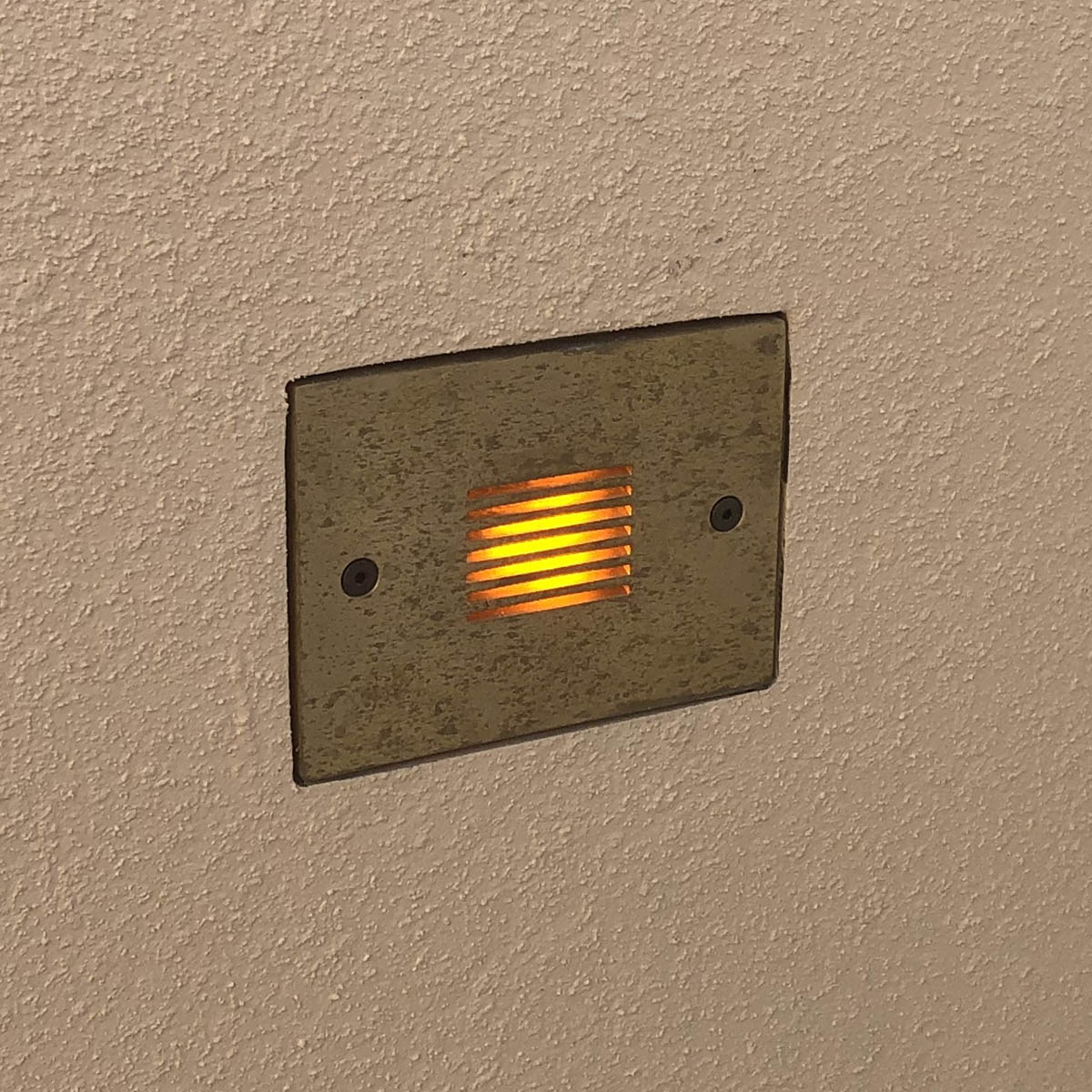

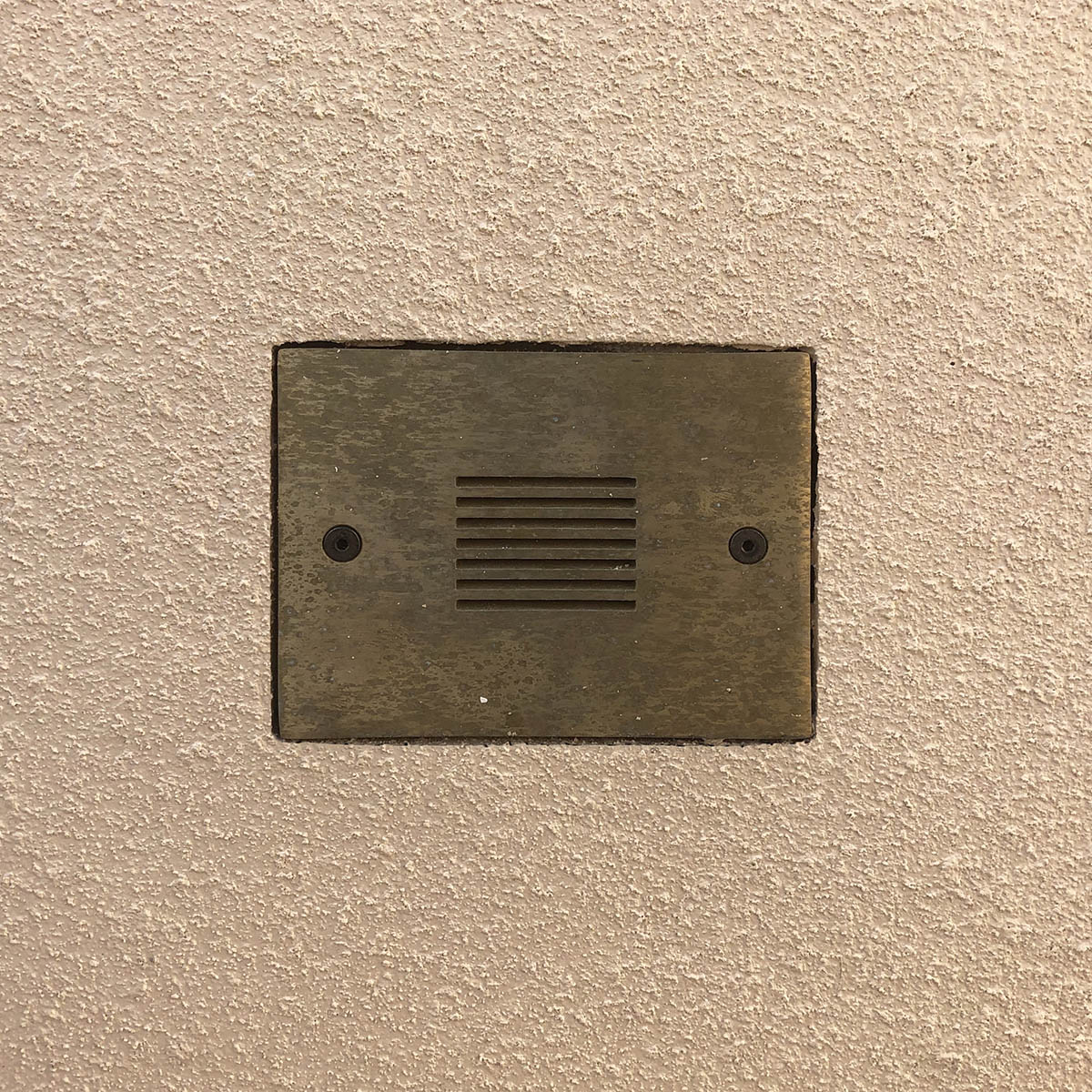

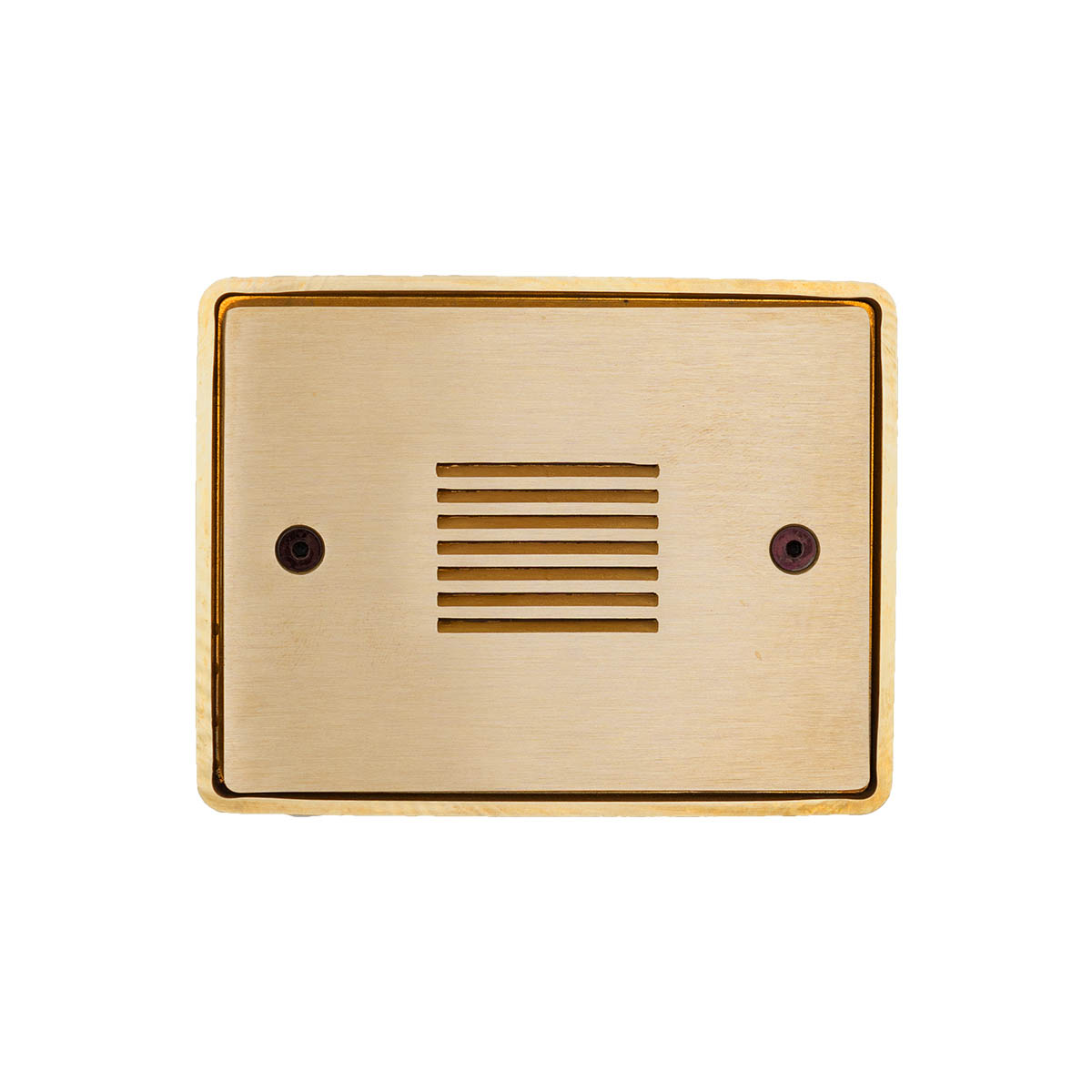

  • CR” versions add a Concrete Ring for fully recessed concrete installation.  Ring is 3.3 x 4.3″ (8.3 x 10.9 cm) and fixture depth increases to 4.4″ (11.3 cm).   [E9-RCL-CR]
Voltage 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V)
Lamps Integrated LED, MR16 LED
CCT 1000K
1500K
Dimensions 3 x 4″ trim, 4.1″ depth (7.6 x 10.2 cm, 10.4 cm)



Find A Sales Rep
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2 LED: AMBER (1541K), RED-ORANGE (1000K)

2W-A-SP 2 Watt AMBER spot
2W-A-NFL 2 Watt AMBER narrow flood
2W-A-FL 2 Watt AMBER flood
2W-A-NO 2 Watt AMBER no optic (wide flood)
2W-RO-SP 2 Watt RED-ORANGE spot
2W-RO-NFL 2 Watt RED-ORANGE narrow flood
2W-RO-FL 2 Watt RED-ORANGE flood
2W-RO-NO 2 Watt RED-ORANGE no optic (wide flood)

GU5.3 MR16 LED
AMBER (1500K )

5W-A-NFL 5 Watt AMBER 25° narrow flood
Two Accessories Maximum

HL1 Honeycomb louver, 1/8” (3mm) thick
PR Prismatic spread lens
RT Rectilinear spread lens

Optical Accessories
