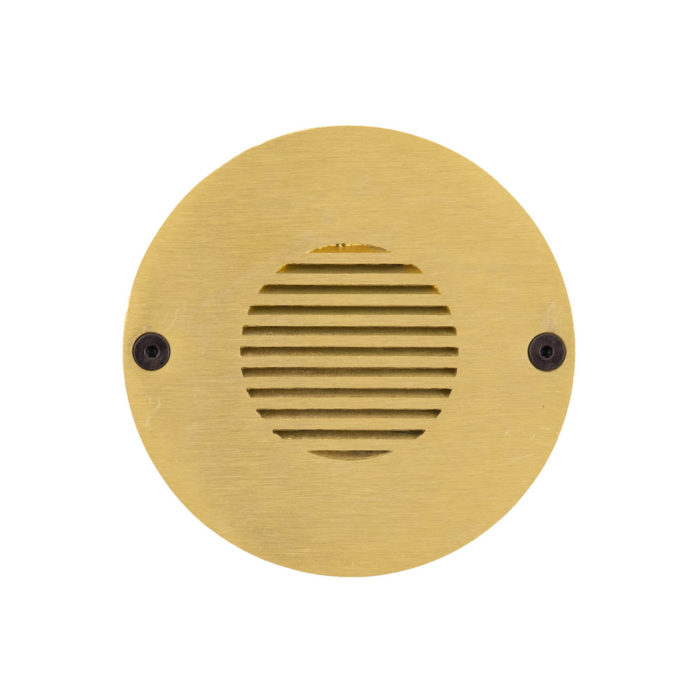

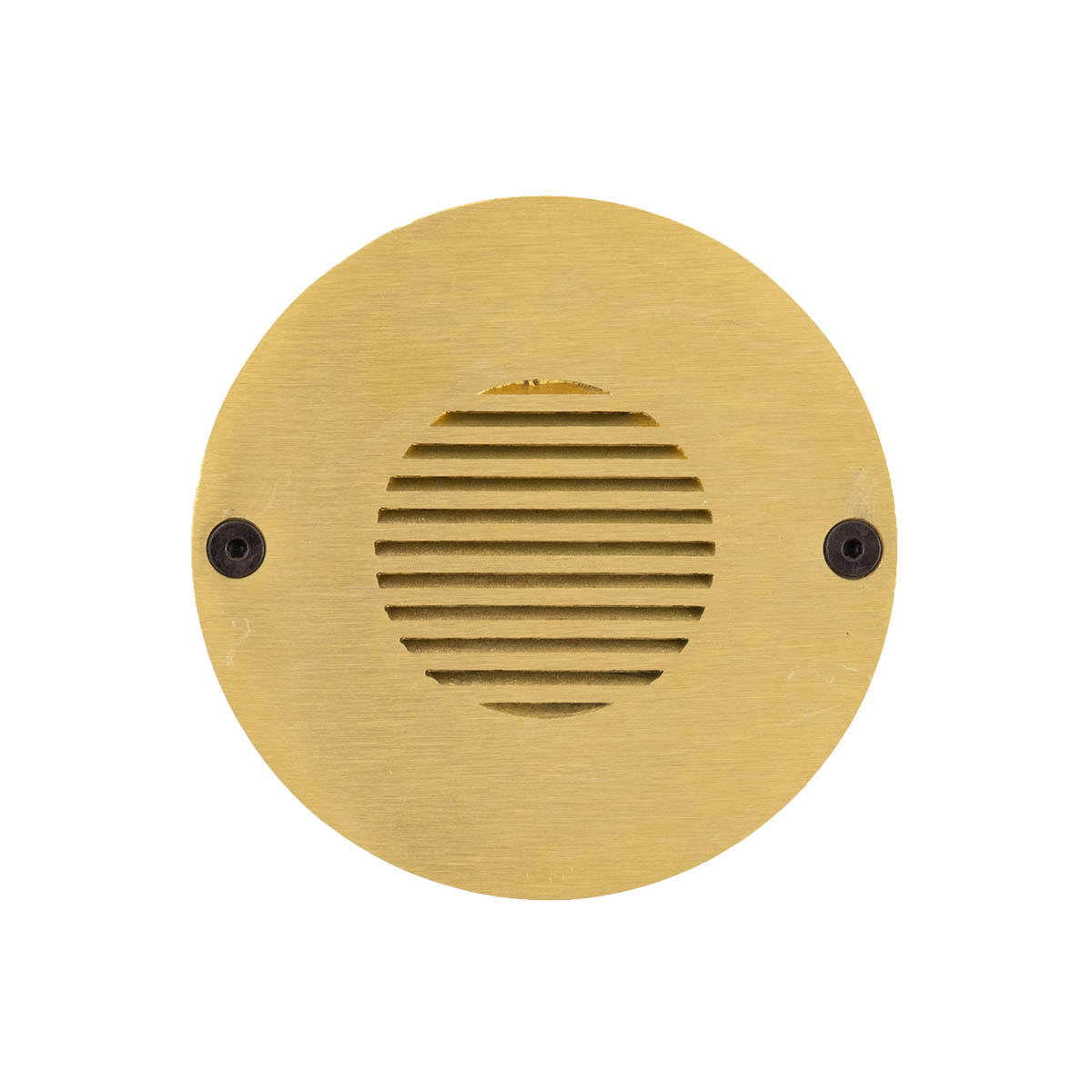

Solid Brass Round Louvered Steplight
- Remote transformer required

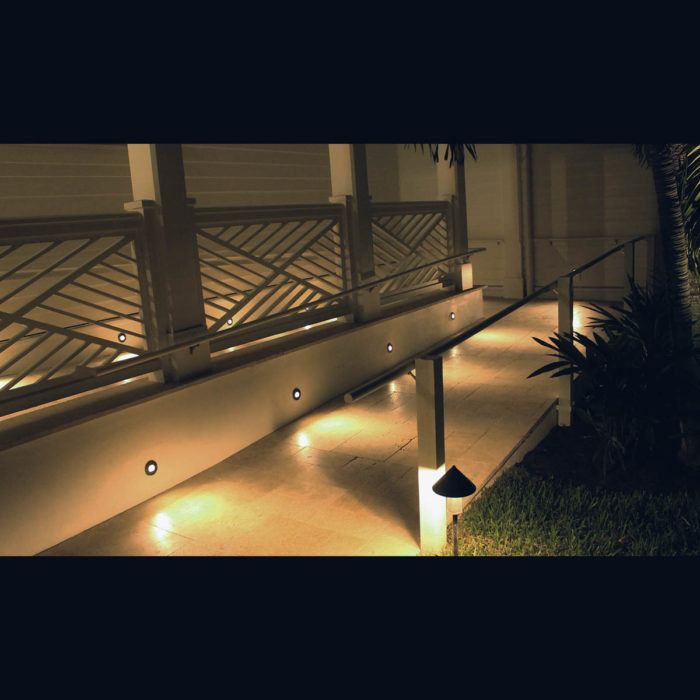

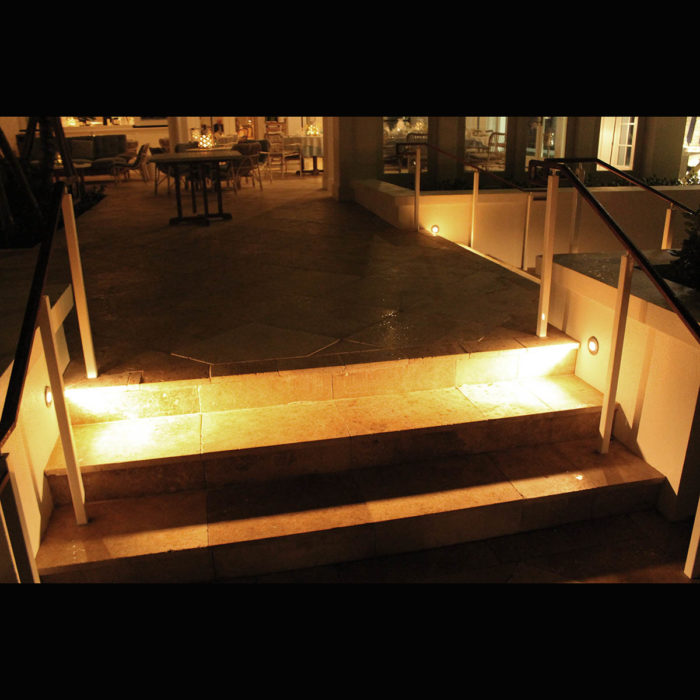

- Mountable as a steplight, uplight, or downlight
- “CR” versions add a Concrete Ring for fully recessed concrete installation. Ring diameter is 3.8″ (9.6 cm) and fixture depth increases to 5.3″ (13.5 cm). [E9-RL-CR]
Voltage | 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V) |
Lamps | Integrated LED, MR16 LED |
CCT | 1000K |
1500K | |
2700K | |
3000K | |

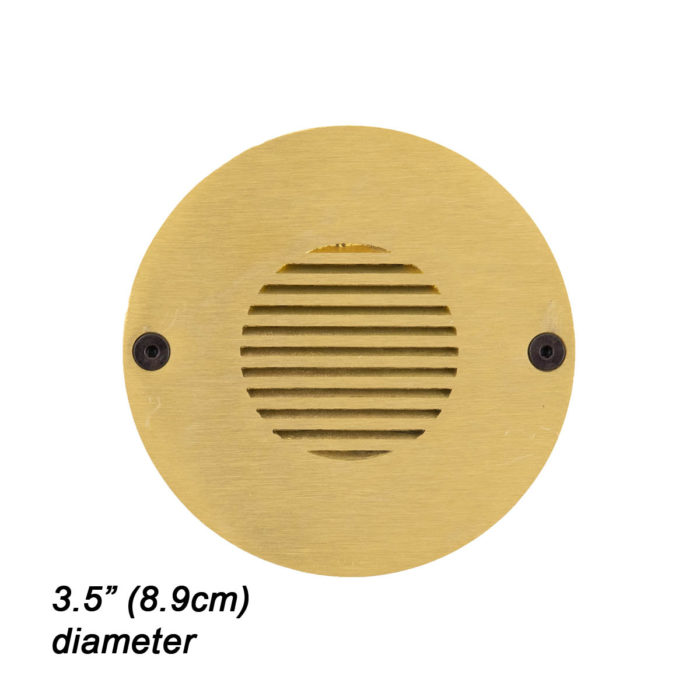

Dimensions | 3.5″ trim dia. x 5.0″ depth (8.9 x 12.6 cm) |
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

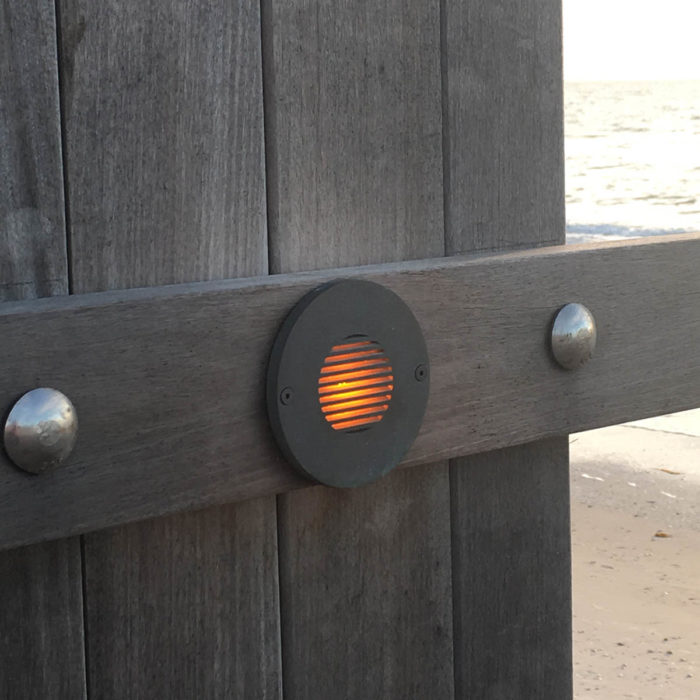

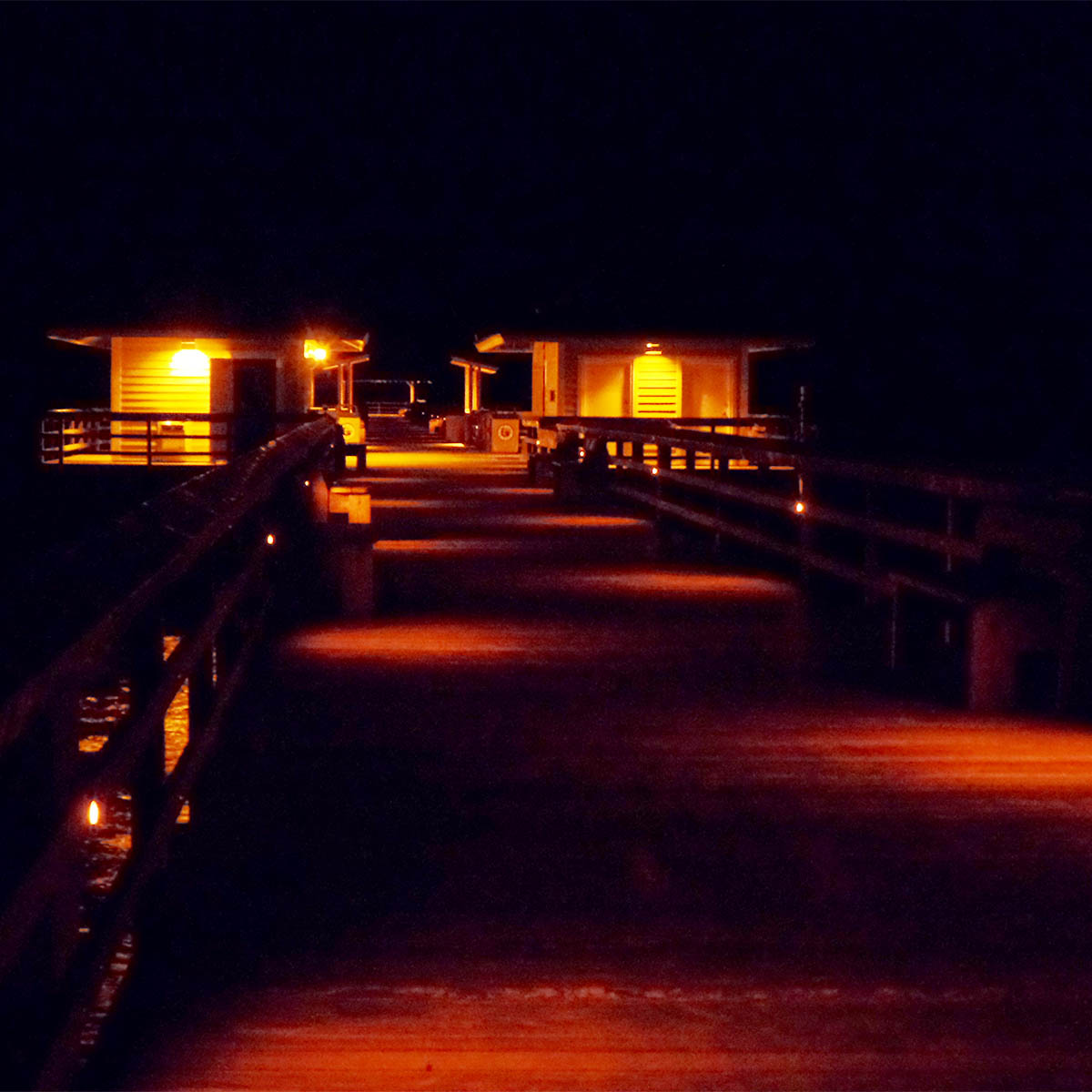

Cree XPE2 LED: AMBER (1500K), RED-ORANGE (1000K)
2W-A-SP | 2 Watt AMBER | spot |
2W-A-NFL | 2 Watt AMBER | narrow flood |
2W-A-FL | 2 Watt AMBER | flood |
2W-A-NO | 2 Watt AMBER | no optic (wide flood) |
2W-RO-SP | 2 Watt RED-ORANGE | spot |
2W-RO-NFL | 2 Watt RED-ORANGE | narrow flood |
2W-RO-FL | 2 Watt RED-ORANGE | flood |
2W-RO-NO | 2 Watt RED-ORANGE | no optic (wide flood) |
Cree XPG2 LED: Warm White (2700/3000K)*
3W-SP | 3 Watt | spot |
3W-NFL | 3 Watt | narrow flood |
3W-FL | 3 Watt | flood |
3W-NO | 3 Watt | no optic (wide flood) |
GU5.3 MR16 LED
AMBER (1500K) and Warm White (2700/3000K)*
5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
5W-SP | 5 Watt | 15° spot |
5W-NFL | 5 Watt | 25° narrow flood |
5W-FL | 5 Watt | 40° flood |
5W-FL/60 | 5 Watt | 60° flood |
5W-WFL | 5 Watt | 100° wide flood |
7W-FL/60 | 7 Watt | 60° flood |
8W-SP | 8 Watt | 10° spot |
8W-NFL | 8 Watt | 25° narrow flood |
8W-FL | 8 Watt | 36° flood |
* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“
Maximum Two Accessories
HL1 | Honeycomb louver, 1/8” (3mm) thick |
PR | Prismatic spread lens |
RT | Rectilinear spread lens |
