E9-SQL
(12V Integrated LED, MR16 LED)

E9-SQL
(12V Integrated LED, MR16 LED)

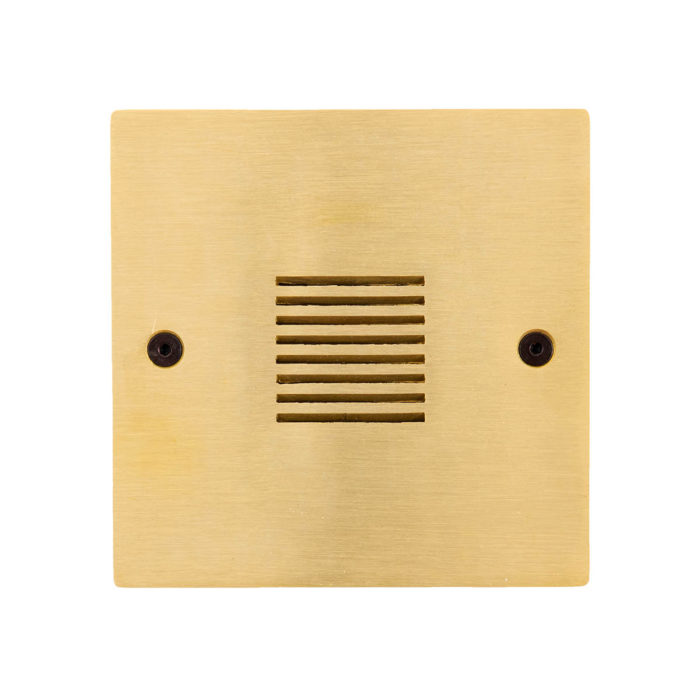

Solid Brass Square Louvered Steplight

  • Remote transformer required

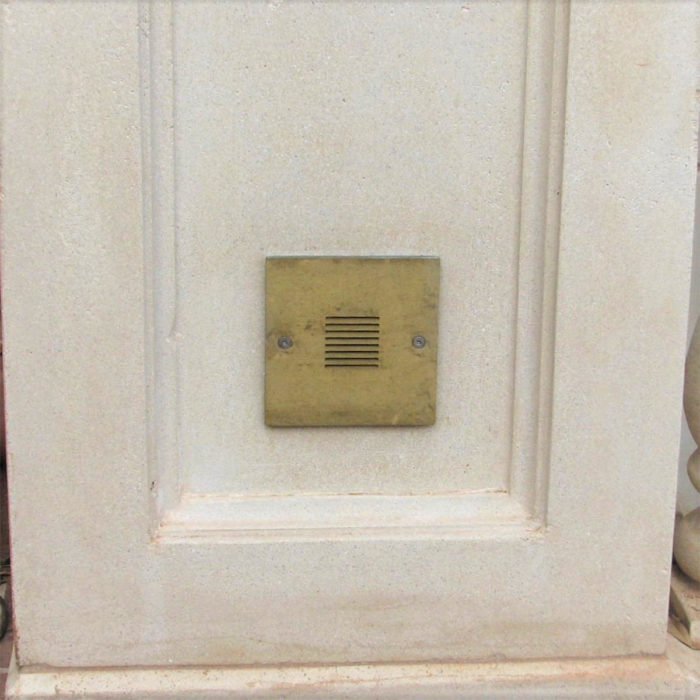

  • Mountable as a steplight, uplight, or downlight

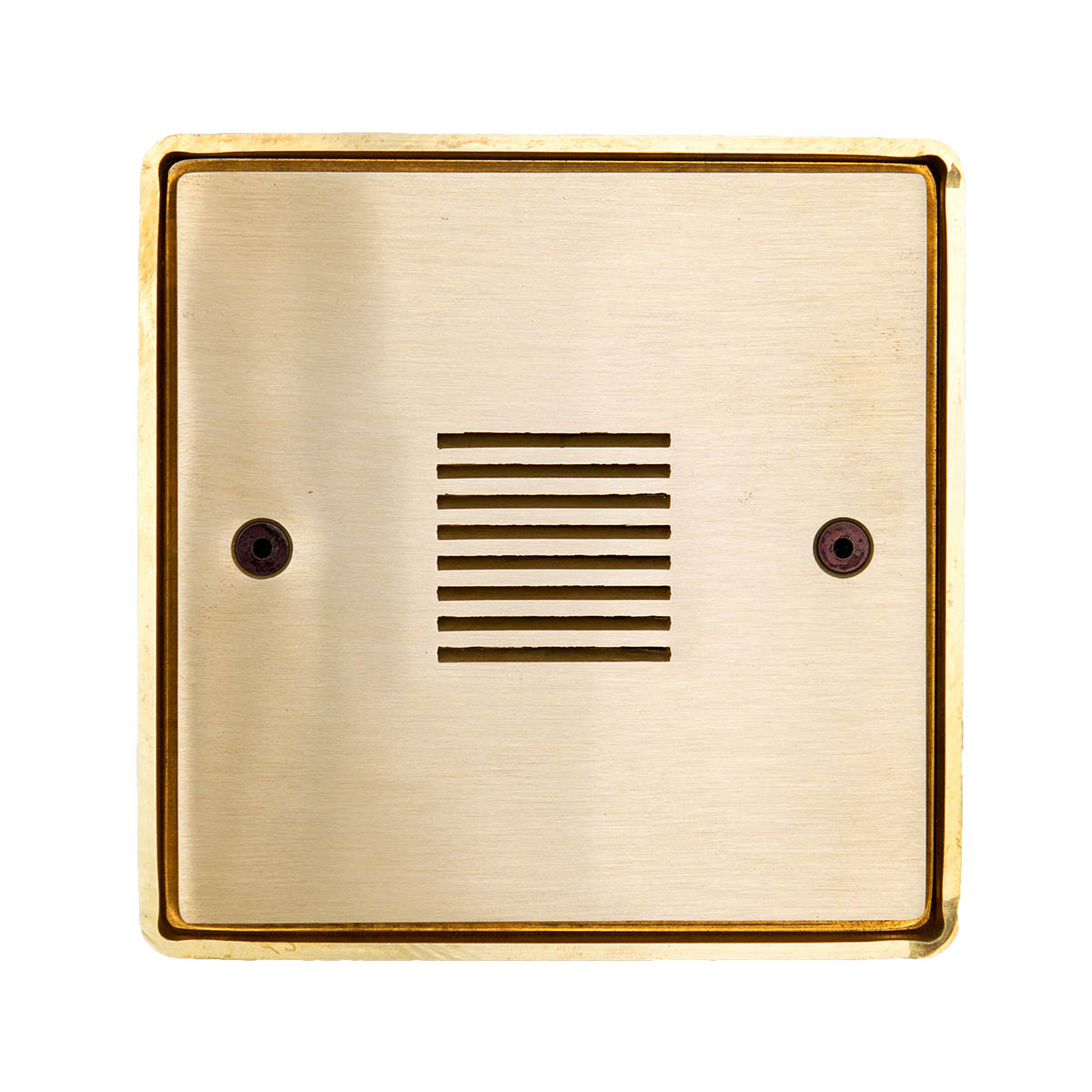

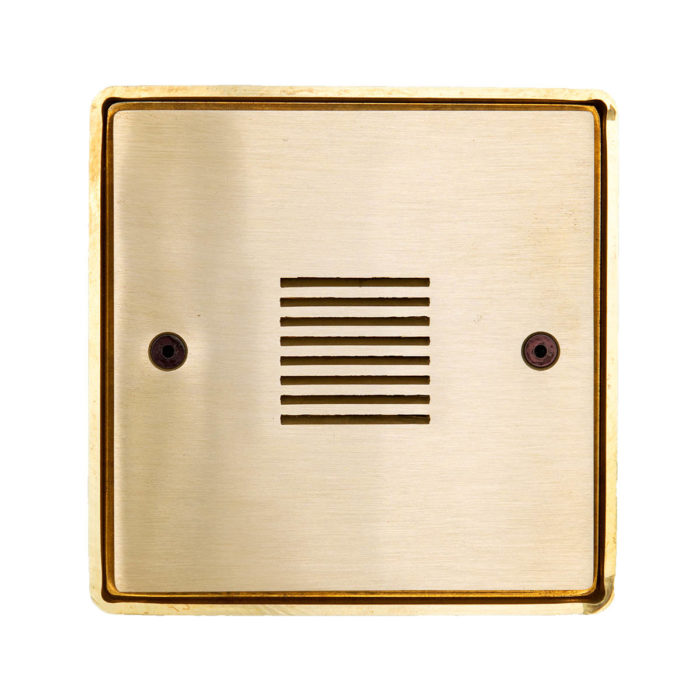

  • CR” versions add a Concrete Ring for fully recessed concrete installation.  Ring is 4.3″ square (10.9 cm) and fixture depth increases to 4.4″ (11.3 cm).   [E9-SQL-CR]
Voltage 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V)
Lamps Integrated LED, MR16 LED
CCT 1000K
1500K
2700K
3000K
Dimensions 4″ square trim x 4.1″ depth (10 x 10.4 cm)



Find A Sales Rep

Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ

Cree XPE2 LED: AMBER (1500K)*, RED-ORANGE (1000K)*

2W-A-SP 2 Watt AMBER spot
2W-A-NFL 2 Watt AMBER narrow flood
2W-A-FL 2 Watt AMBER flood
2W-A-NO 2 Watt AMBER no optic (wide flood)
2W-RO-SP 2 Watt RED-ORANGE spot
2W-RO-NFL 2 Watt RED-ORANGE narrow flood
2W-RO-FL 2 Watt RED-ORANGE flood
2W-RO-NO 2 Watt RED-ORANGE no optic (wide flood)

Cree XPG2 LED: Warm White (2700/3000K)**

3W-SP 3 Watt spot
3W-NFL 3 Watt narrow flood
3W-FL 3 Watt flood
3W-NO 3 Watt no optic (wide flood)

GU5.3 MR16 LED
AMBER (1500K )* or Warm White (2700/3000K)**

5W-A-NFL 5 Watt AMBER 25° narrow flood
5W-SP 5 Watt 15° spot
5W-NFL 5 Watt 25° narrow flood
5W-FL 5 Watt 40° flood
5W-FL/60 5 Watt 60° flood
5W-WFL 5 Watt 100° wide flood
7W-NFL 7 Watt 25° narrow flood
7W-FL 7 Watt 40° flood
7W-WFL 7 Watt 60° wide flood
8W-SP 8 Watt 10° spot
8W-NFL 8 Watt 25° narrow flood
8W-FL 8 Watt 36° flood

Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27

Maximum Two Accessories

HL1 Honeycomb louver, 1/8” (3mm) thick
PR Prismatic spread lens
RT Rectilinear spread lens

Optical Accessories
