E9-SQL Turtle Friendly
(12V Integrated LED, MR16 LED)

E9-SQL Turtle Friendly
(12V Integrated LED, MR16 LED)


Solid Brass Square Louvered Steplight

  • Remote transformer required

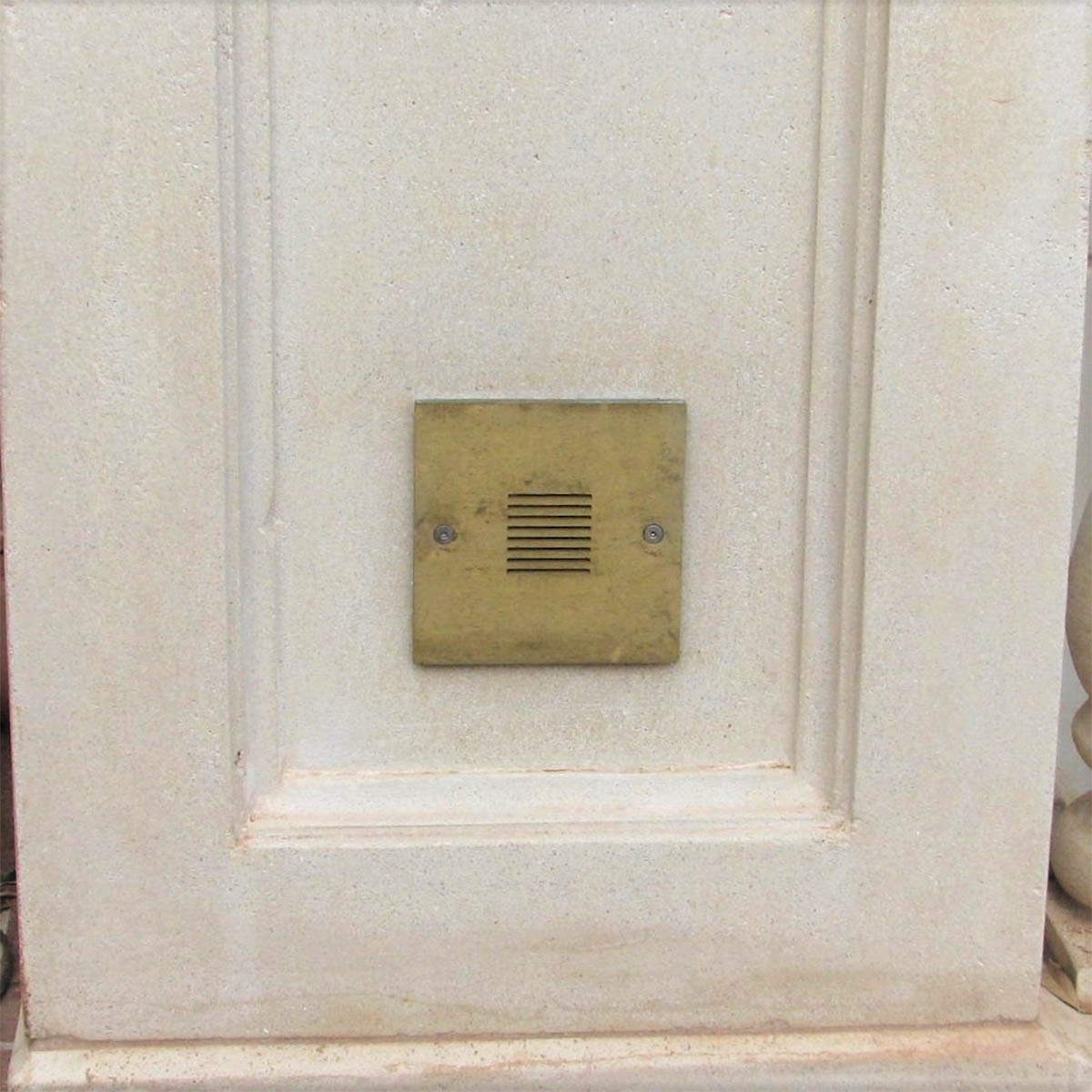

  • Mountable as a steplight or downlight

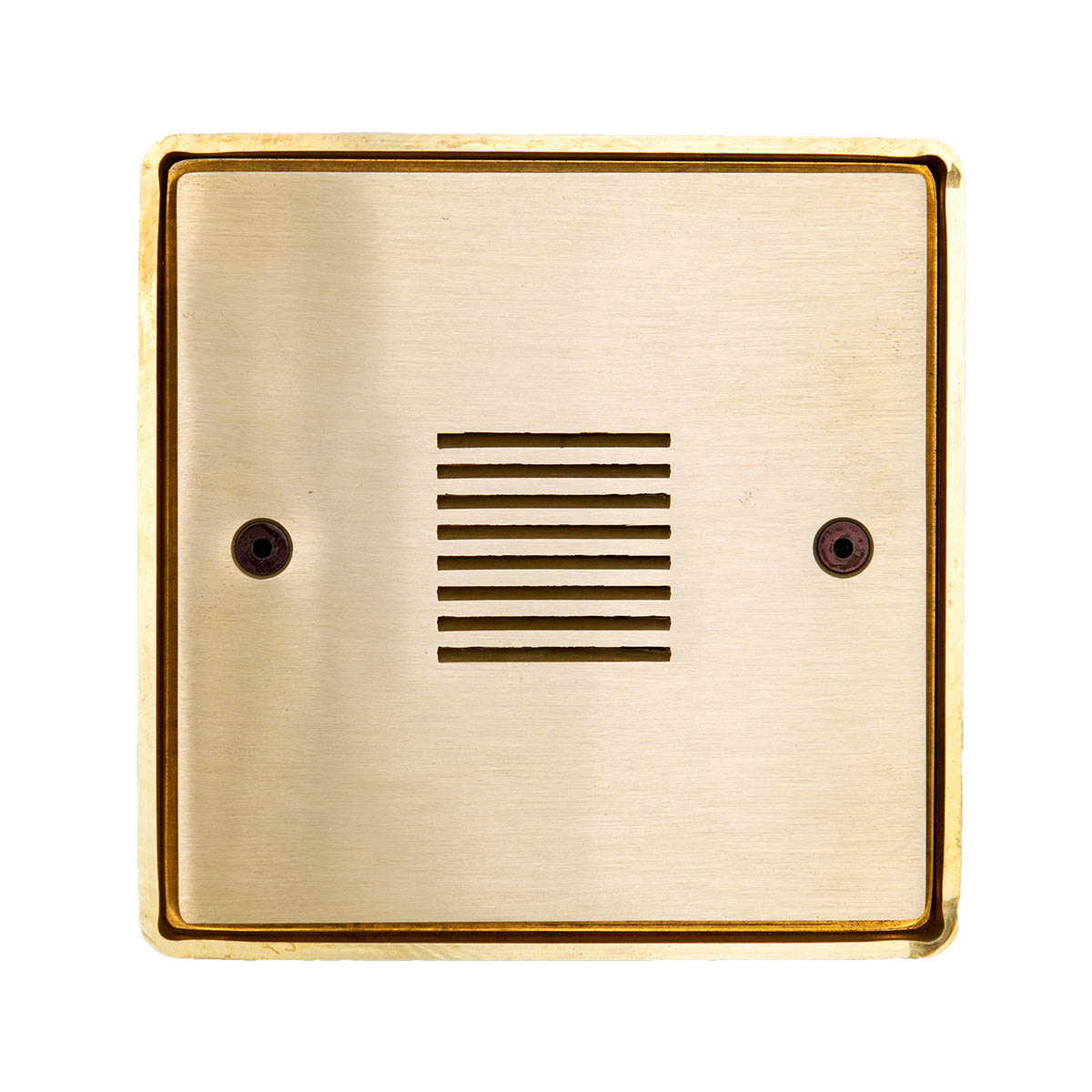

  • CR” versions add a Concrete Ring for fully recessed concrete installation.  Ring is 4.3″ square (10.9 cm) and fixture depth increases to 5.3″ (13.5 cm).   [E9-SQL-CR]
Voltage 12V AC/DC (LEDs with integral driver 9V-15V Input, dimmable below 9V)
Lamps Integrated LED, MR16 LED
CCT 1000K

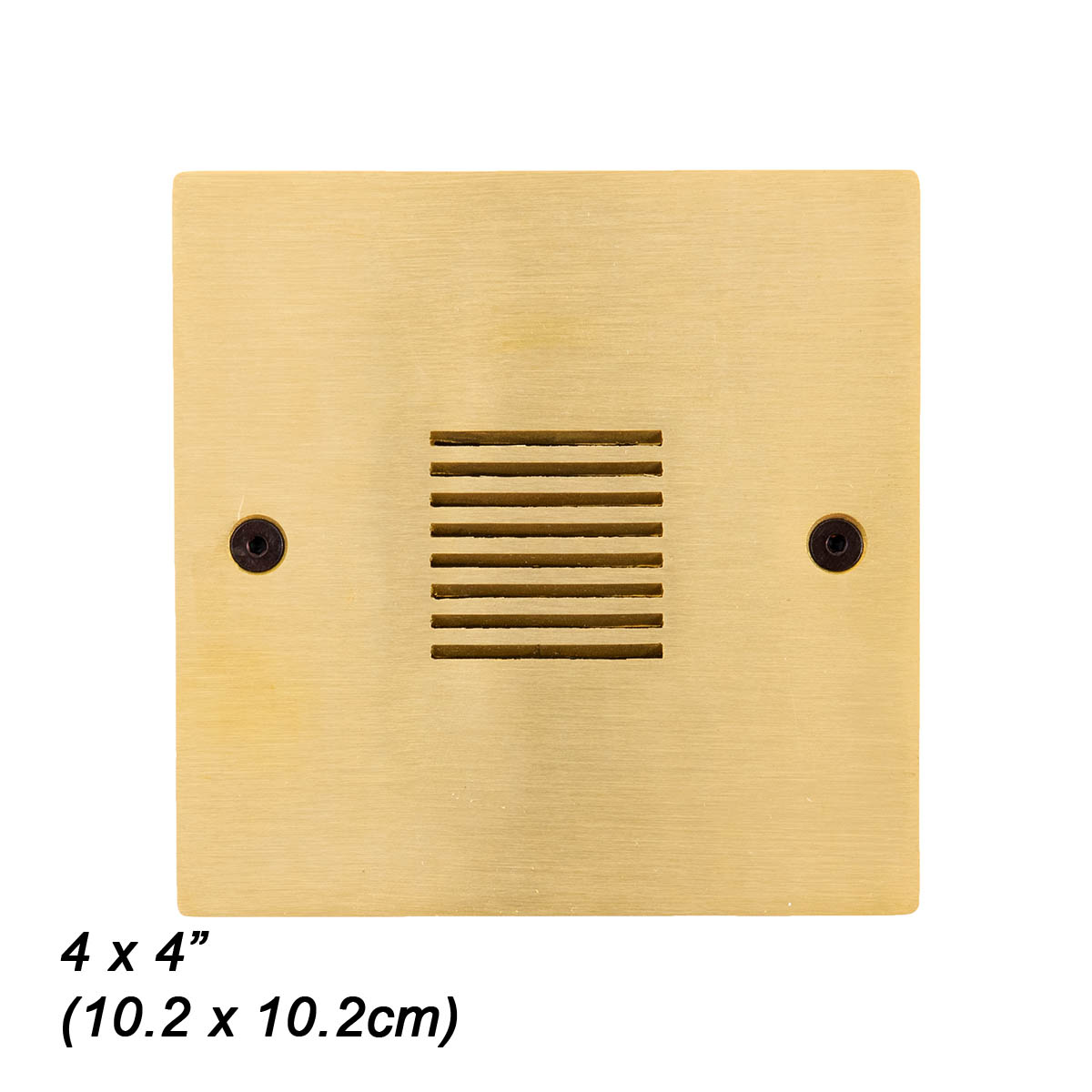

Dimensions 4″ square trim x 5.0″ depth (10 x 12.6 cm)

Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2 LED: AMBER (1500K), RED-ORANGE (1000K)

2W-A-SP 2 Watt AMBER spot
2W-A-NFL 2 Watt AMBER narrow flood
2W-A-FL 2 Watt AMBER flood
2W-A-NO 2 Watt AMBER no optic (wide flood)
2W-RO-SP 2 Watt RED-ORANGE spot
2W-RO-NFL 2 Watt RED-ORANGE narrow flood
2W-RO-FL 2 Watt RED-ORANGE flood
2W-RO-NO 2 Watt RED-ORANGE no optic (wide flood)

GU5.3 MR16 LED
AMBER (1500K )

5W-A-NFL 5 Watt AMBER 25° narrow flood

Two Accessories Maximum

HL1 Honeycomb louver, 1/8” (3mm) thick
PR Prismatic spread lens
RT Rectilinear spread lens
