GL100 & GL200 Stainless Steel Transformers
GL100- / 200-Watt Magnetic Transformers
The GL-series are stainless steel magnetic transformers, ideal for LED applications.
- Multi-Volt output (12V AC & 15V AC)

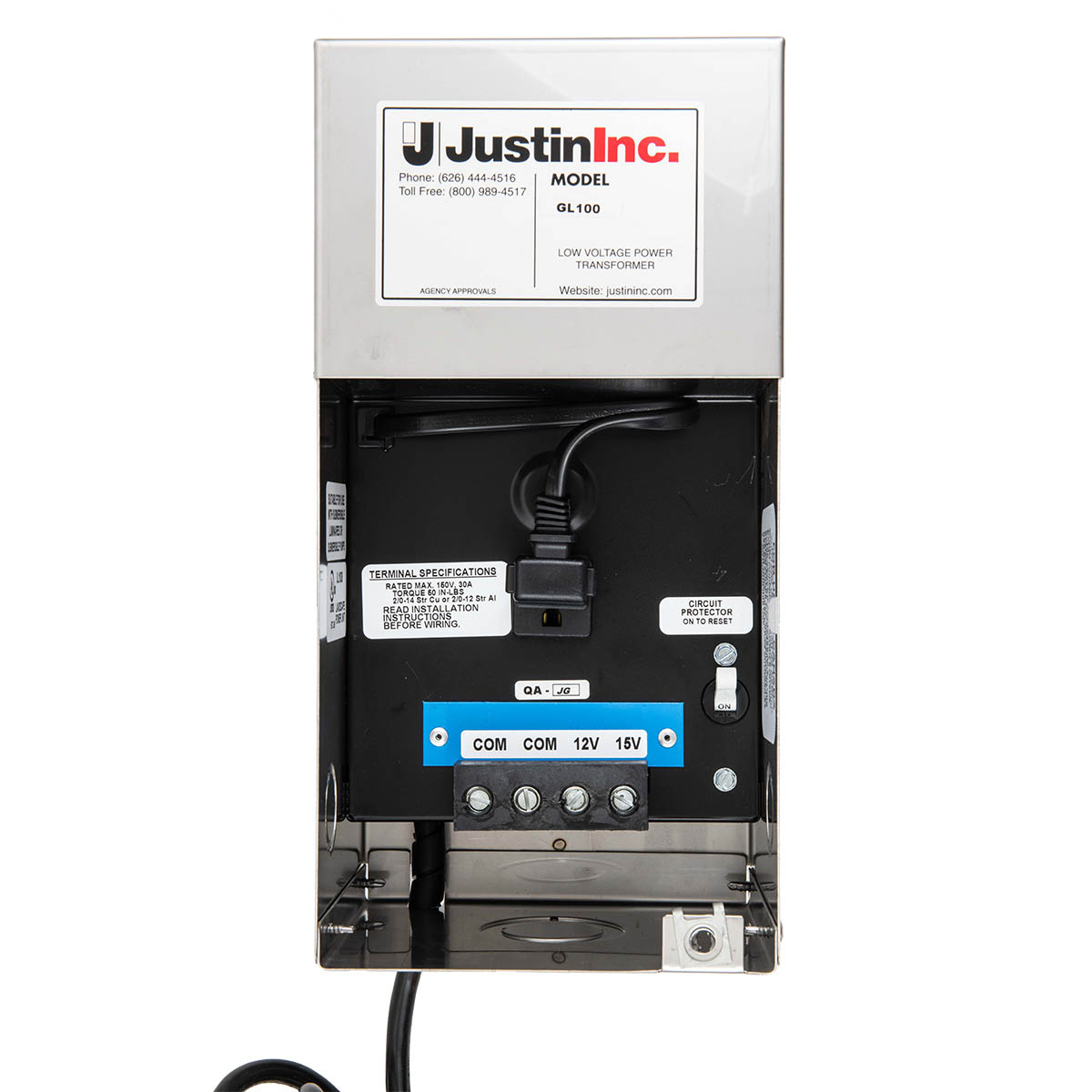

- Single circuit with two common taps
- Stainless Steel Housing with gasketed cover
- Circuit breaker protection
- 6-foot plug-in power cord
- X-10 remote control compatibility
- Dimmable with inductive magnetic low-voltage dimmers only, such as Lutron #NLV1500
Do not use incandescent or resistive load dimmers.

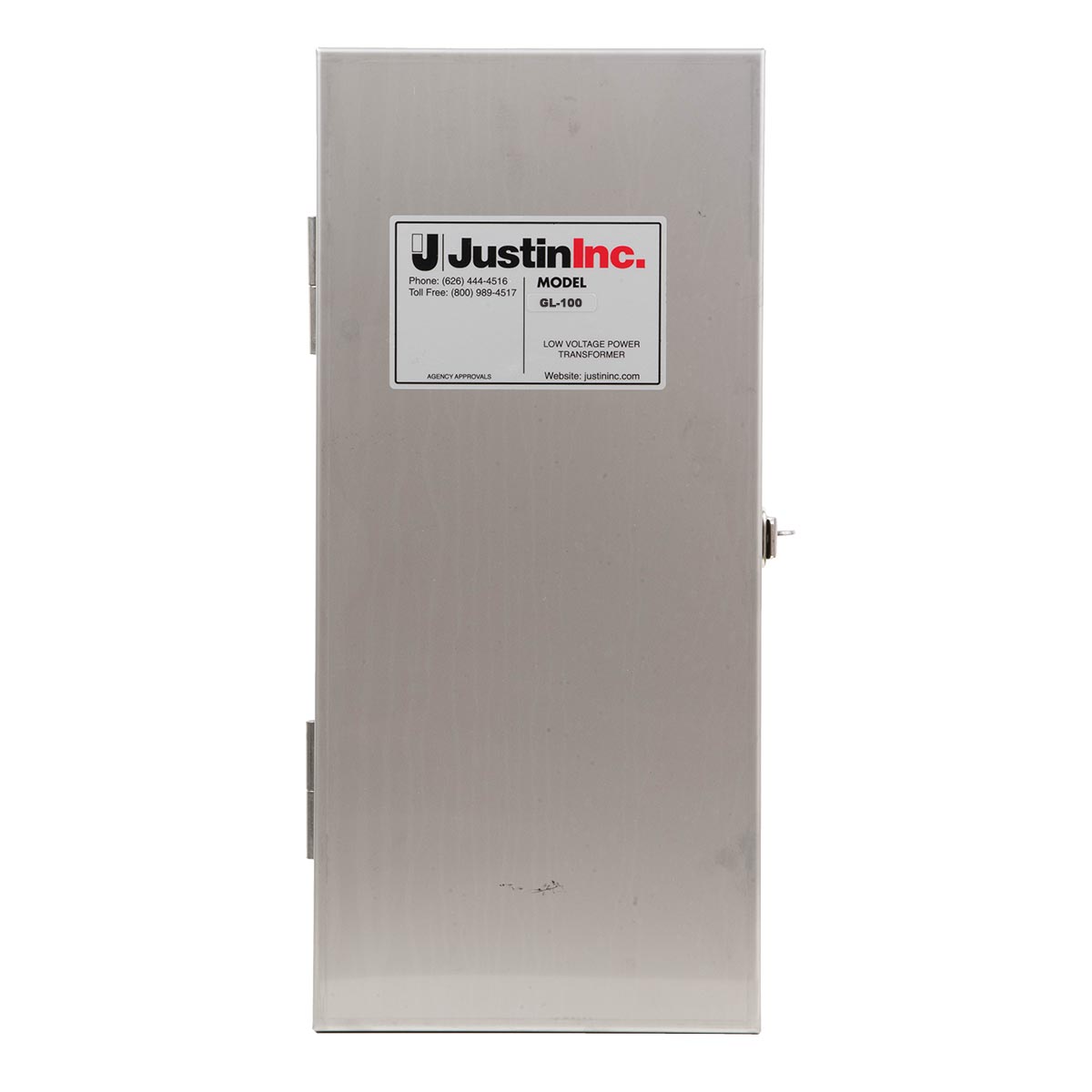

Dimensions: 14″ x 6.5″ x 5.5″ (35.6 x 16.5 x 14 cm) *Design with double-hinged swing door updated January 2022.
| GL100 | 100 watts |
| GL200 | 200 watts |
Specifications
TRP Timer + Remote Photocell on 20ft Cord Specs & Instructions
Installation and Operators Guide
Digital Timer Instructions
Photocell Instructions and Installation Photos
Timer + Photocell Instructions
Lutron Dimmers for use with Justin GL *
(* For reference only. Available from others.)
TRP Timer + Remote Photocell on 20ft Cord Specs & Instructions
Installation and Operators Guide
Digital Timer Instructions
Photocell Instructions and Installation Photos
Timer + Photocell Instructions
Lutron Dimmers for use with Justin GL *
(* For reference only. Available from others.)
| T | Timer, 24 hour removable plug-in |
| DT | Digital Timer, 24 hour removable plug-in w/ battery back-up |
| P | Photocell, field installed |
| TP | Photocell kit, field installed with timer |

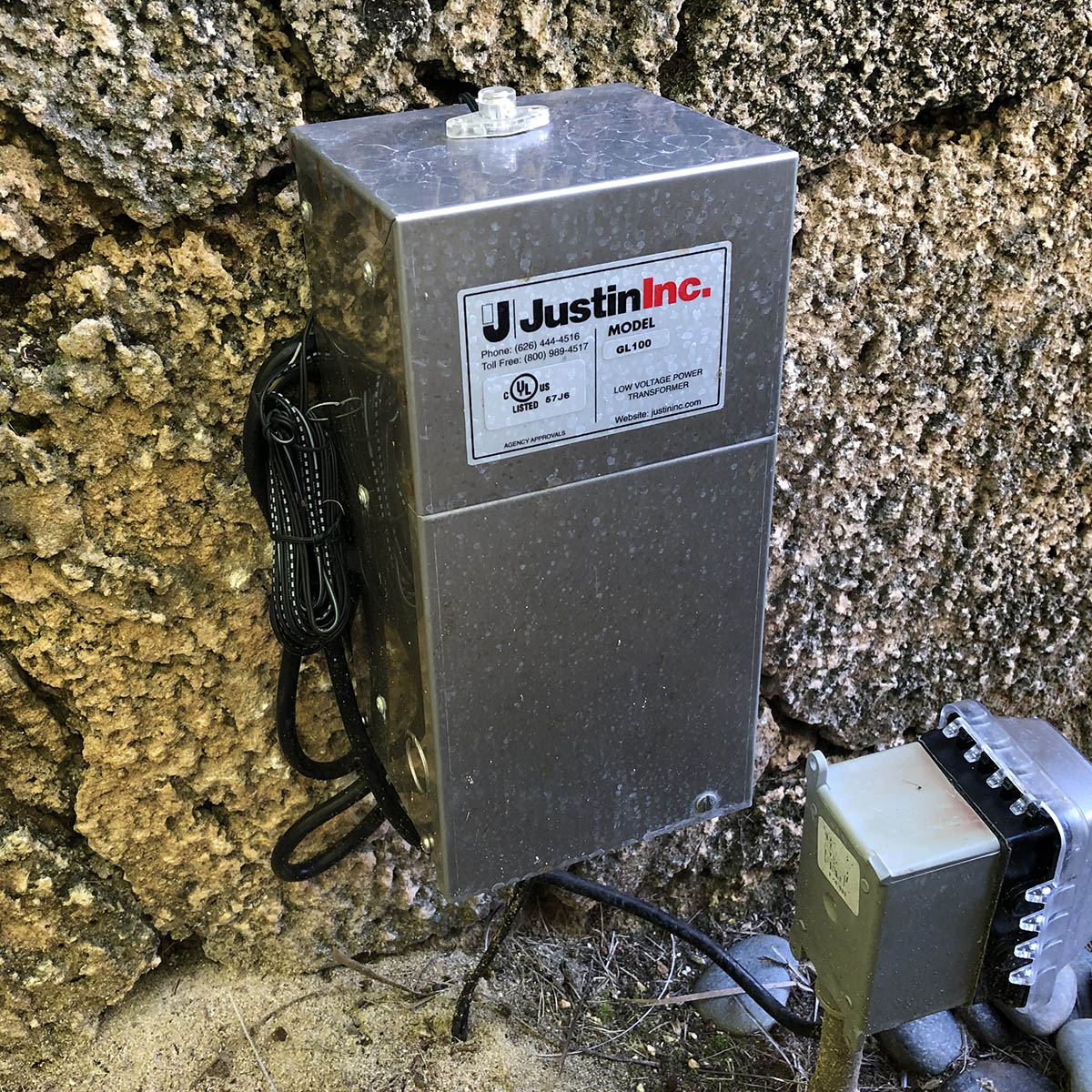

| TRP | Remote photocell on 20′ cord with 2-8 hour timer or dusk to dawn operation |
Add as suffix to model number, e.g. “GL100-T”
