L-010
(12V Integrated LED & MR16 LED, 120V/230V MR16 LED)

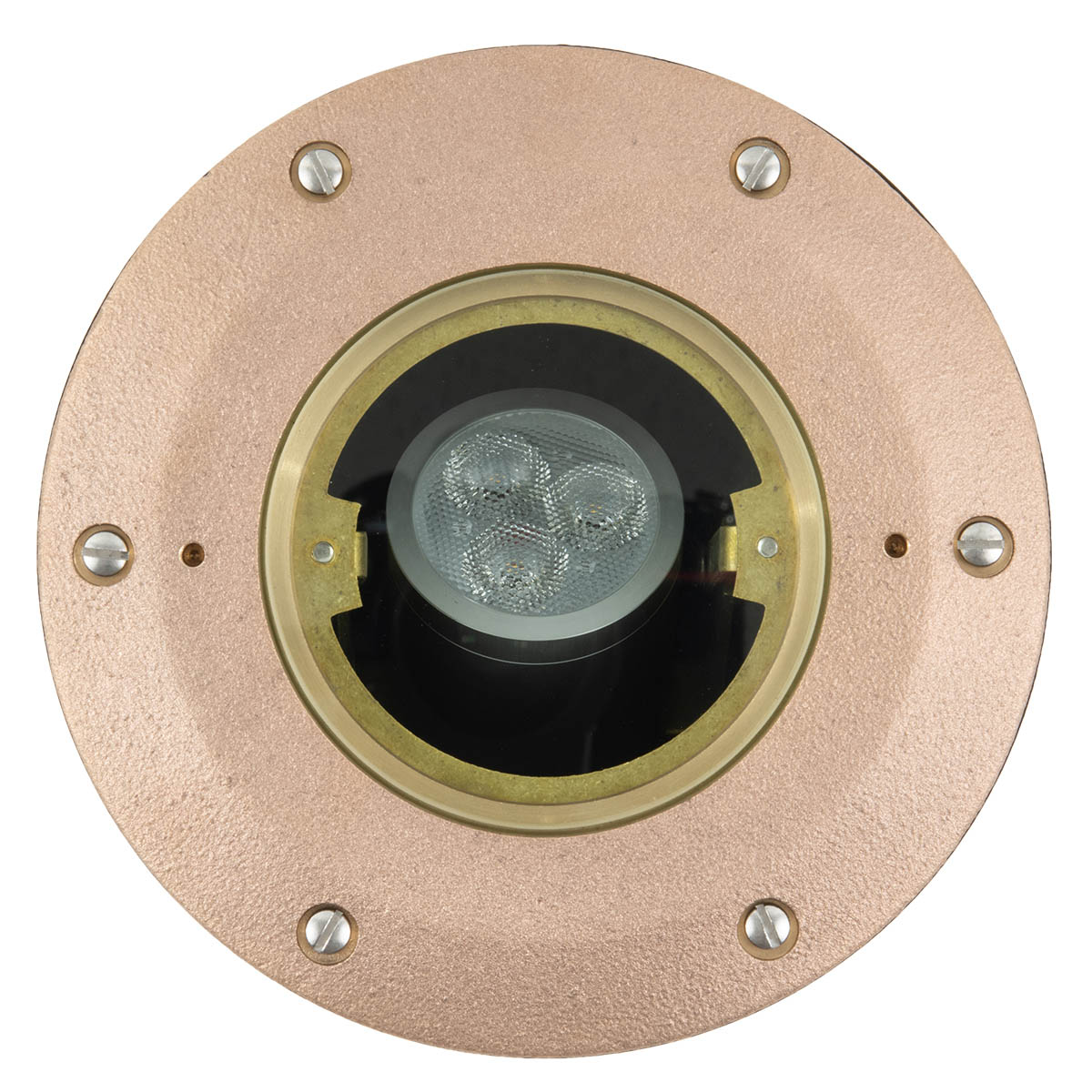

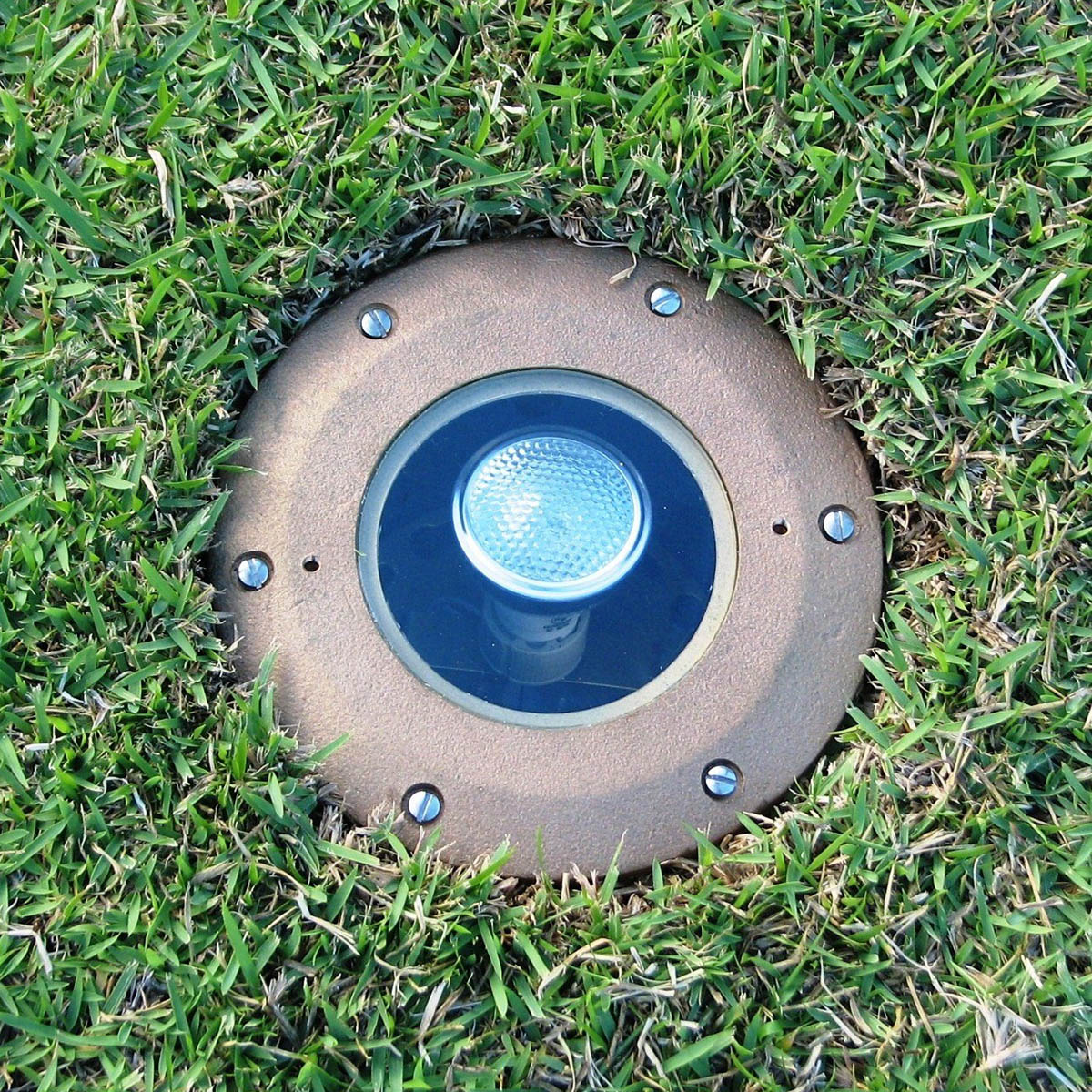

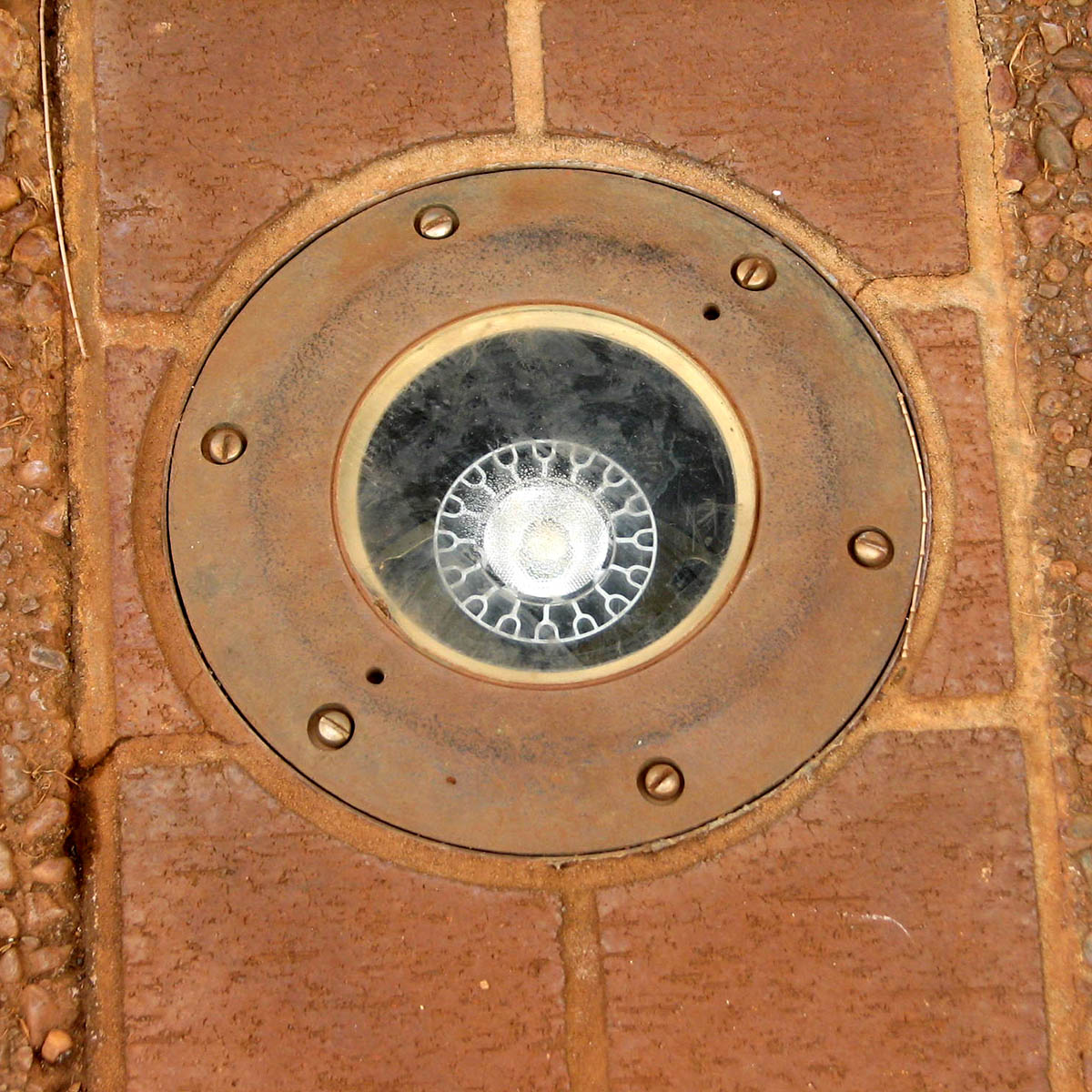

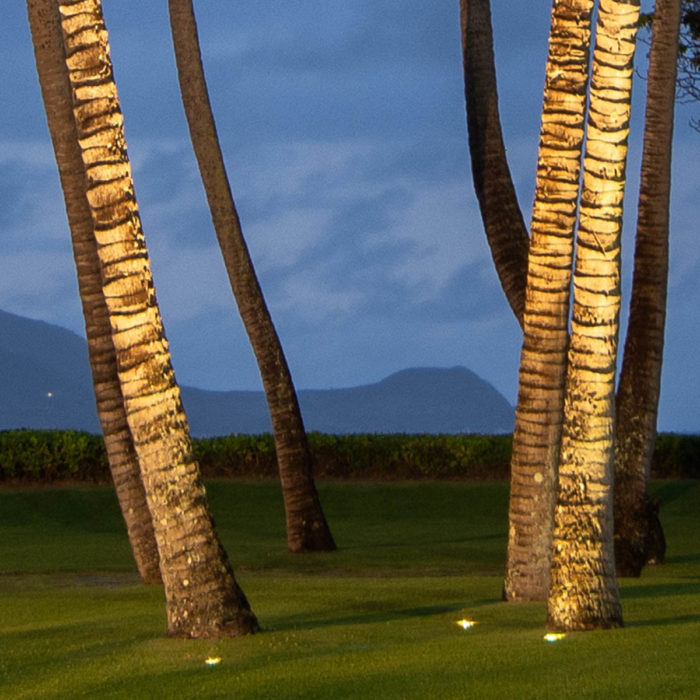

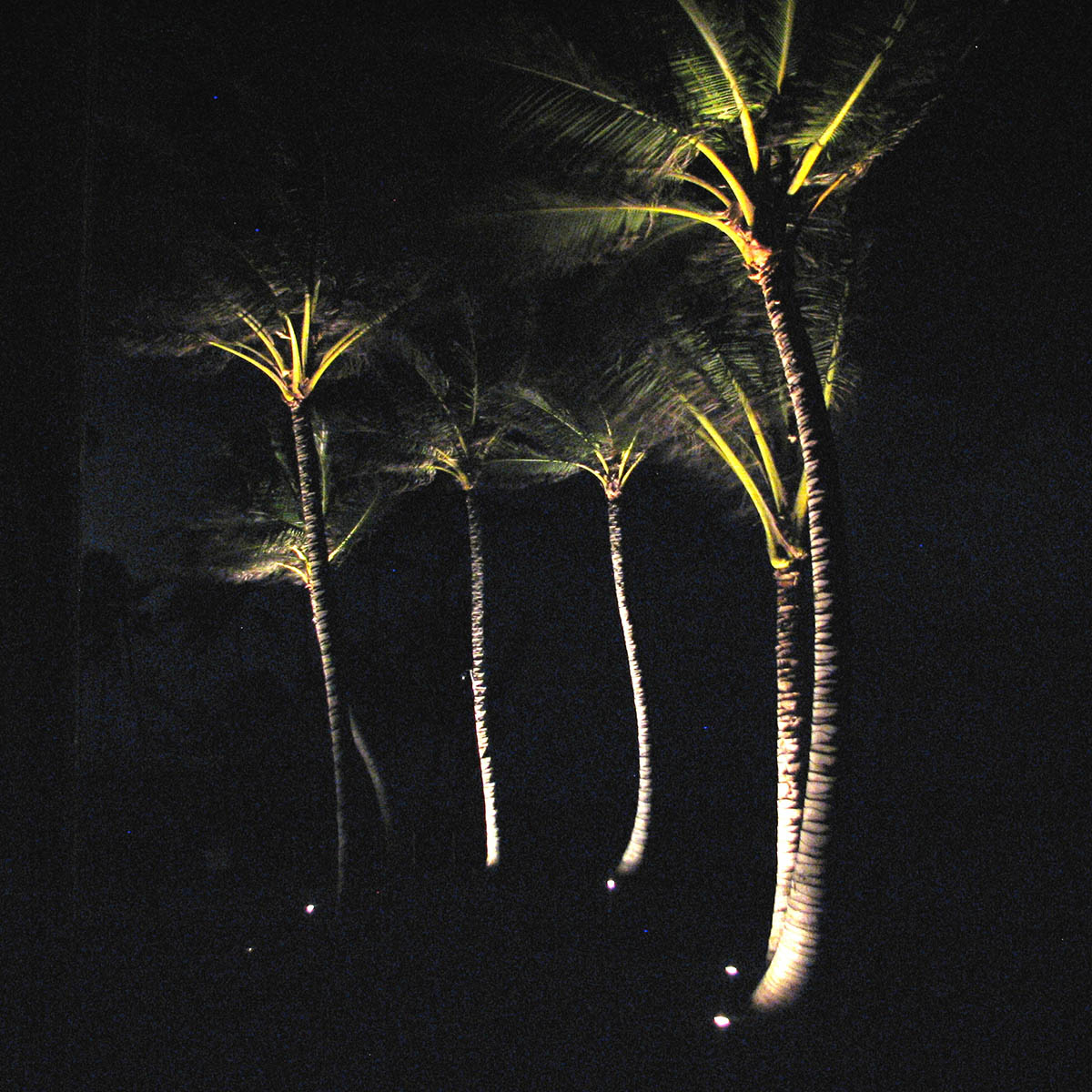

Brass & Composite In-Ground Aimable Uplight

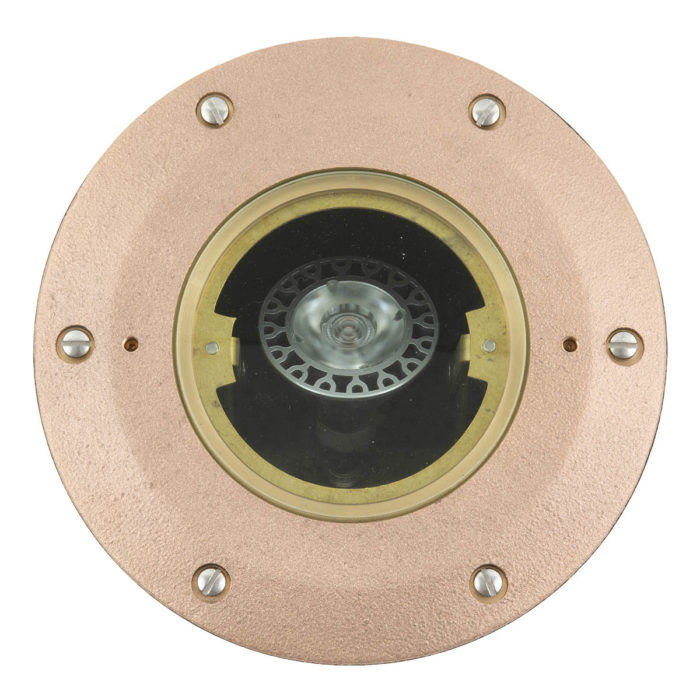

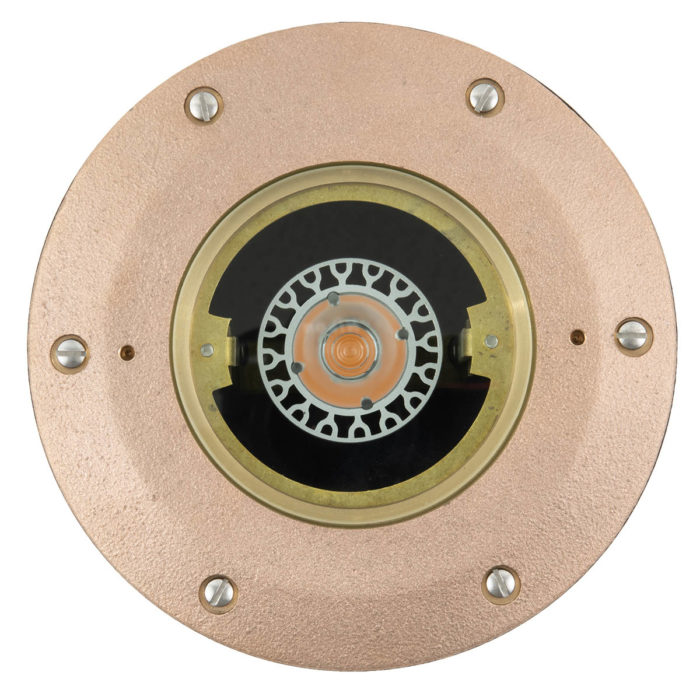

The L-010 series in-ground drive-over fixtures are brass & composite uplights for high-traffic areas. An internal bracket assembly allows 360° rotation and angling of the lamp up to 16° before any cutoff.

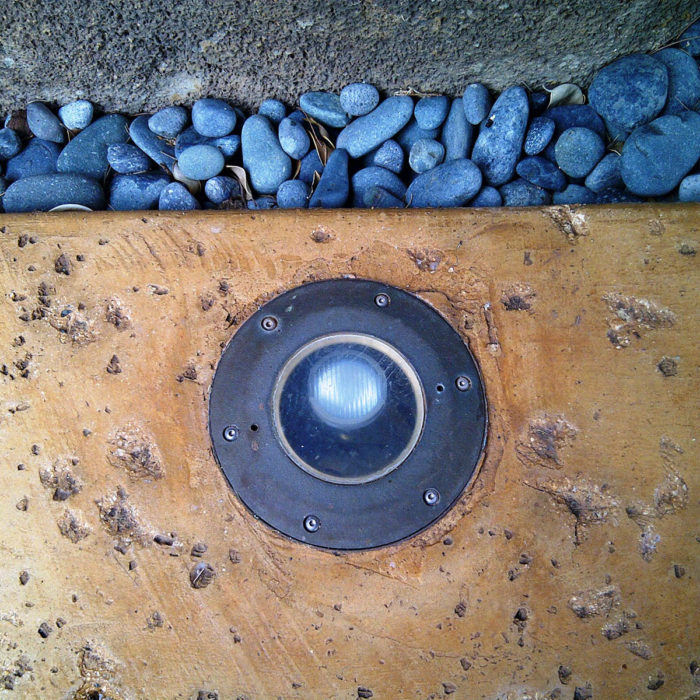

- “CP-KIT” accessory available for fully recessed concrete installation.
- Remote transformer required for 12V
| Voltage | 12V, 120v, 230V |
| Lamps | Integrated LED, MR16 LED |
| Lumens | 799 max |
| CCT | 1000K |
| 1500K | |
| 2700K | |
| 3000K | |
| Dimensions | 6.5″ dia. x 0.3″ exposed height (16.5 x 0.8 cm) |
L-010 Specifications (12V LED or Halogen)
L-010-C Specifications (120/230V LED)
CP-Kit Specifications
L-010 Instructions
L-010-C Instructions
CP-Kit Instructions
5- & 7-Watt 12V GU5.3 MR16 (Dauer) Information with Dimmer / Transformer Compatibility
8-Watt 12V GU5.3 MR16 (Soraa) Information with Dimmer / Transformer Compatibility
8-Watt 120V GU10 MR16 (Soraa) Information with Dimmer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Triple Chip Light Engine
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
12 Volt input, remote transformer required
GU5.3 MR16 LED • Warm White (2700K/3000K)*
| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
| 5W-SP | 5 Watt | 15° spot |
| 5W-NFL | 5 Watt | 25° narrow flood |
| 5W-FL | 5 Watt | 40° flood |
| 5W-FL/60 | 5 Watt | 60° flood |
| 5W-WFL | 5 Watt | 100° flood |
| 7W-FL/60 | 7 Watt | 60° flood |
| 8W-SP | 8 Watt | 10° spot |
| 8W-NFL | 8 Watt | 25° narrow flood |
| 8W-FL | 8 Watt | 36° flood |
* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“
Integrated triple LED light engine
Triac dimmable: MLV >1% typ, ELV >5% typ
Cree XPE2: AMBER (1500K), RED-ORANGE (1000K)
| 7W-A-SP | 7 Watt Amber | 10° spot |
| 7W-A-NFL | 7 Watt Amber | 30° narrow flood |
| 7W-A-FL | 7 Watt Amber | 60° flood |
| 8W-RO-SP | 8 Watt Red-Orange | 10° spot |
| 8W-RO-NFL | 8 Watt Red-Orange | 30° narrow flood |
| 8W-RO-FL | 8 Watt Red-Orange | 60° flood |
Cree XPG2 LED: 11-Watt Warm White, adjustable output
2700K
| 11W-827-SP | 11 Watt | 10° spot |
| 11W-827-NFL | 11 Watt | 30° narrow flood |
| 11W-827-FL | 11 Watt | 60° flood |
3000K
| 11W-830-SP | 11 Watt | 10° spot |
| 11W-830-NFL | 11 Watt | 30° narrow flood |
| 11W-830-FL | 11 Watt | 60° flood |
Cree XPG3 LED: High CRI 11-Watt Warm White, adjustable output
2700K
| 11W-927-SP | 11 Watt | 10° spot |
| 11W-927-NFL | 11 Watt | 30° narrow flood |
| 11W-927-FL | 11 Watt | 60° flood |
3000K
| 11W-930-SP | 11 Watt | 10° spot |
| 11W-930-NFL | 11 Watt | 30° narrow flood |
| 11W-930-FL | 11 Watt | 60° flood |
L-010-C
120 or 230 Volt input
GU10 MR16 LED • Warm White (2700K/3000K)*
| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
| 5W-NFL | 5 Watt | 25° narrow flood |
| 5W-FL | 5 Watt | 35° flood |
| 8W-SP | 8 Watt | 10° spot |
| 8W-NFL | 8 Watt | 25° narrow flood |
| 8W-FL | 8 Watt | 36° flood |
| 8W-WFL | 8 Watt | 60° wide flood |
* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “8W-NFL-27-120V“

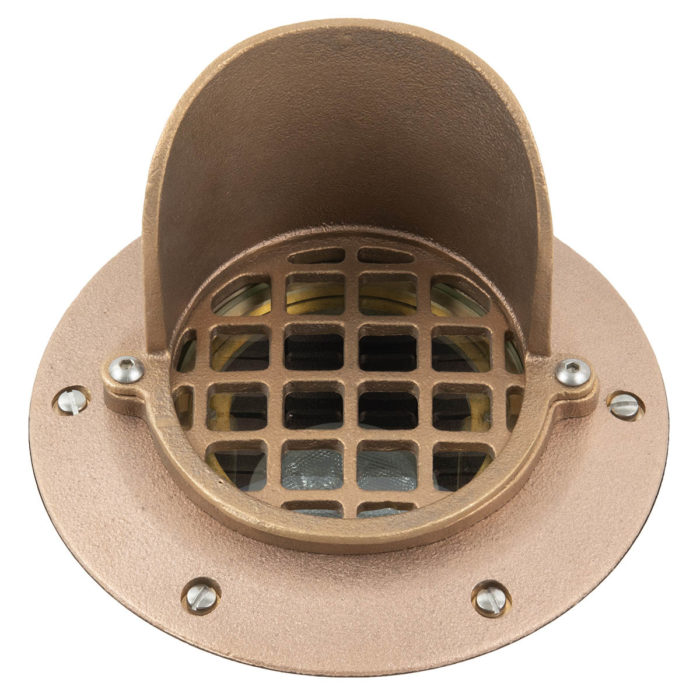

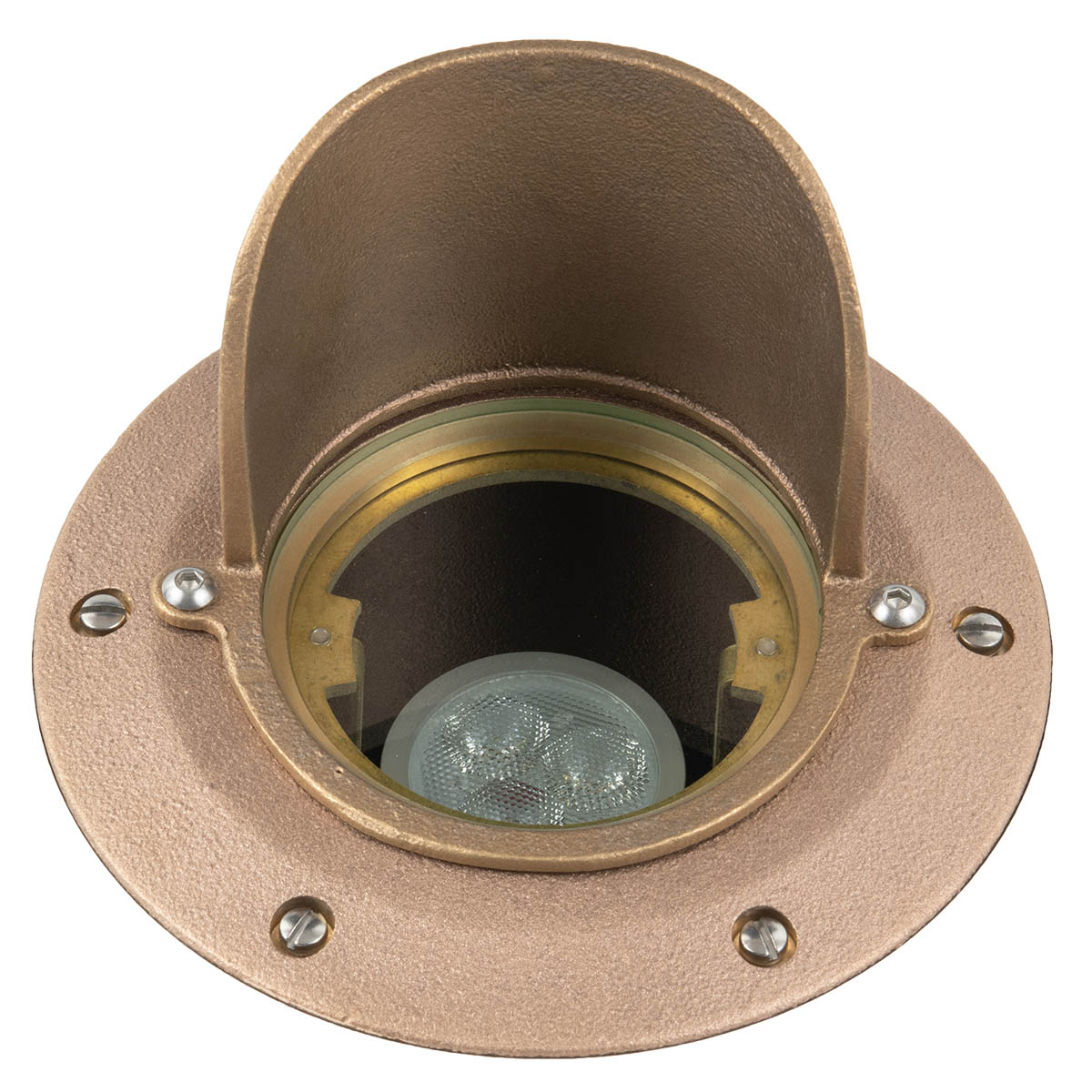

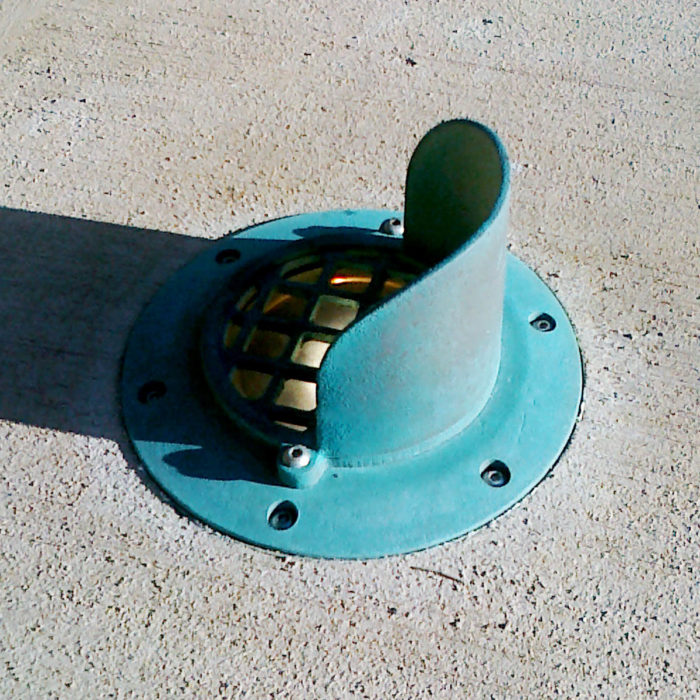

| BGS2 | Brass glare shield |

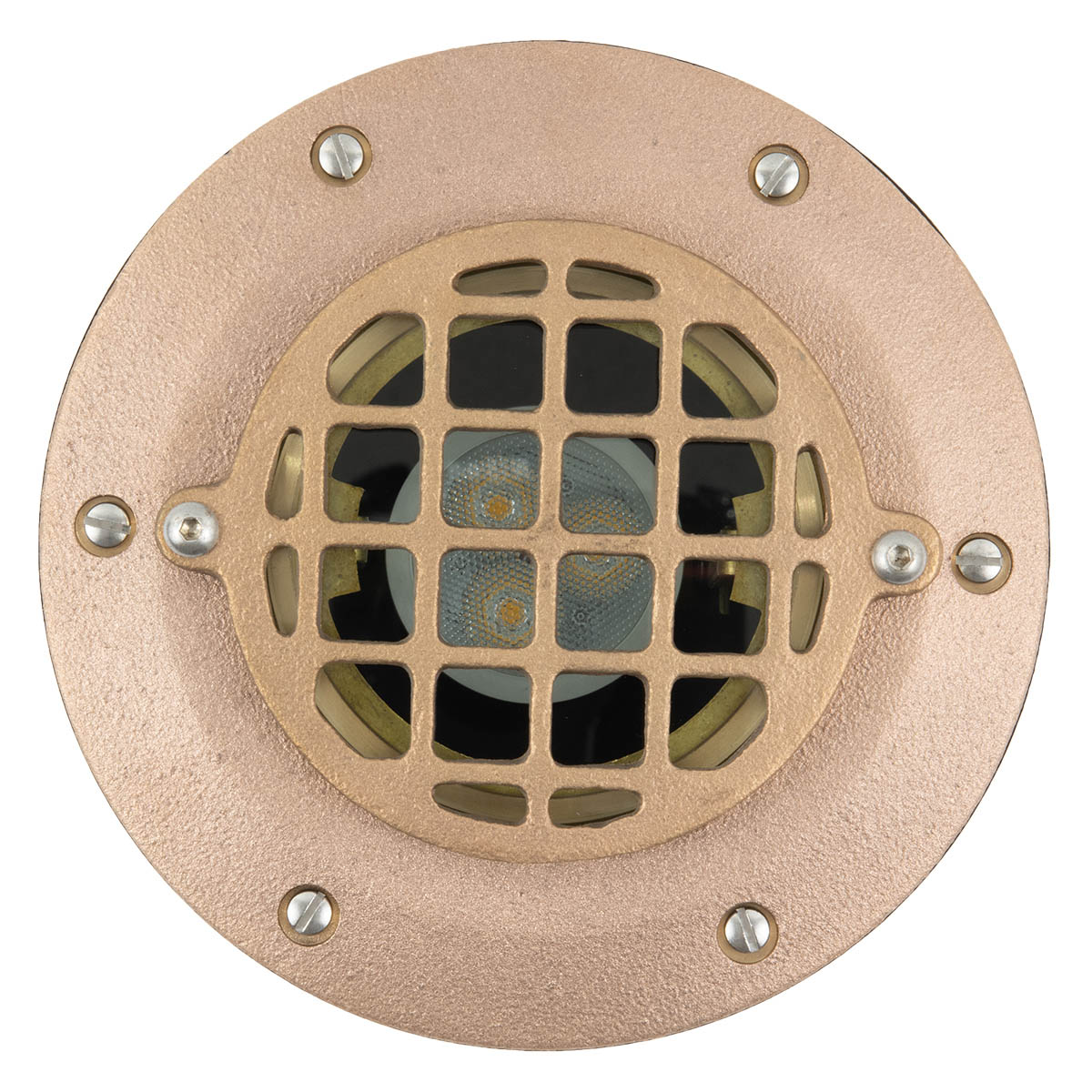

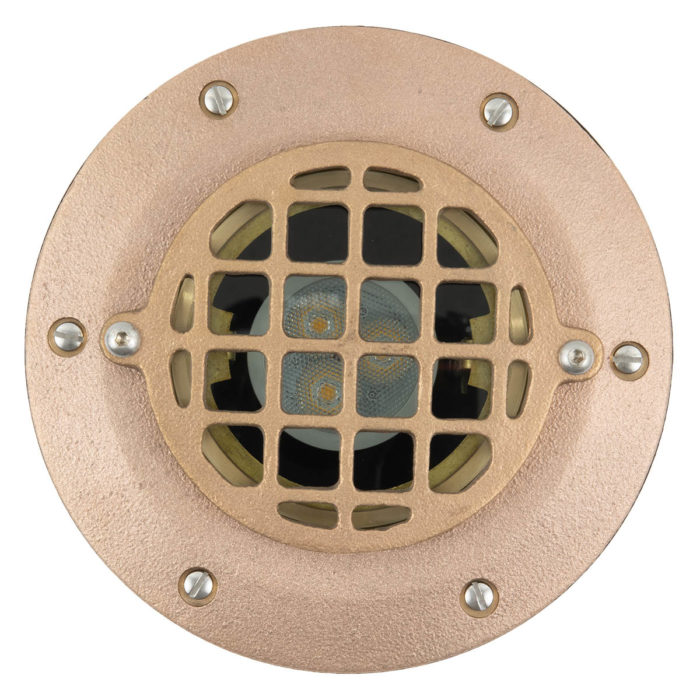

| PG | Protection grate |
| CP-KIT | Concrete pour kit |
| LAMP-ATTACHED | FOR LIGHT ENGINE | |
| HL-MR16 | Honeycomb louver, 1/8″ (3mm) thick | HL-LBTZ |
| FR-MR16 | Frosted lens | FR-LBTZ |
| PR-MR16 | Prismatic spread lens | PR-LBTZ |
| RT-MR16 | Rectilinear spread lens | RT-LBTZ |
| SL-MR16 | Solite (soft focus) lens | SL-LBTZ |
