L-011
(12V/120V/230V MR16 LED)
Solid Brass, All-Purpose Directional
- Lamp is recessed for glare reduction on 12V unshielded versions
- Stepped glass allows flush surface to prevent collection of dirt/debris
- Angled and full cutoff glare shields available
- Remote transformer required for 12V
| Voltage | 12V, 120V, 230V |
| Lamps | MR16 LED |
| Lumens | 630 max |
| CCT | 1500K |
| 2700K | |
| 3000K | |
| Dimensions | Diameter: 2.4″ (6 cm) |
| Overall length from knuckle pivot: 4.9″ (12.4 cm) |
L-011 Specifications
L-011-WA Specifications (12V only)
12V Instructions
12V Instructions for fixtures with STEM-S
120V Instructions
120V Instructions for fixtures with STEM-S
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
5- & 7-Watt 12V GU5.3 MR16 (Dauer) Information with Dimmer / Transformer Compatibility
8-Watt 12V GU5.3 MR16 (Soraa) Information with Dimmer / Transformer Compatibility
8-Watt 120V GU10 MR16 (Soraa) Information with Dimmer Compatibility
AMBER (1500K) and Warm White (2700/3000K)*
| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
| 5W-SP | 5 Watt | 15° spot |
| 5W-NFL | 5 Watt | 25° narrow flood |
| 5W-FL | 5 Watt | 40° flood |
| 5W-FL/60 | 5 Watt | 60° flood |
| 5W-WFL | 5 Watt | 100° flood |
| 7W-FL/60 | 7 Watt | 60° flood |
| 8W-SP | 8 Watt | 10° spot |
| 8W-NFL | 8 Watt | 25° narrow flood |
| 8W-FL | 8 Watt | 36° flood |
* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“
AMBER (1500K) and Warm White (2700/3000K)*

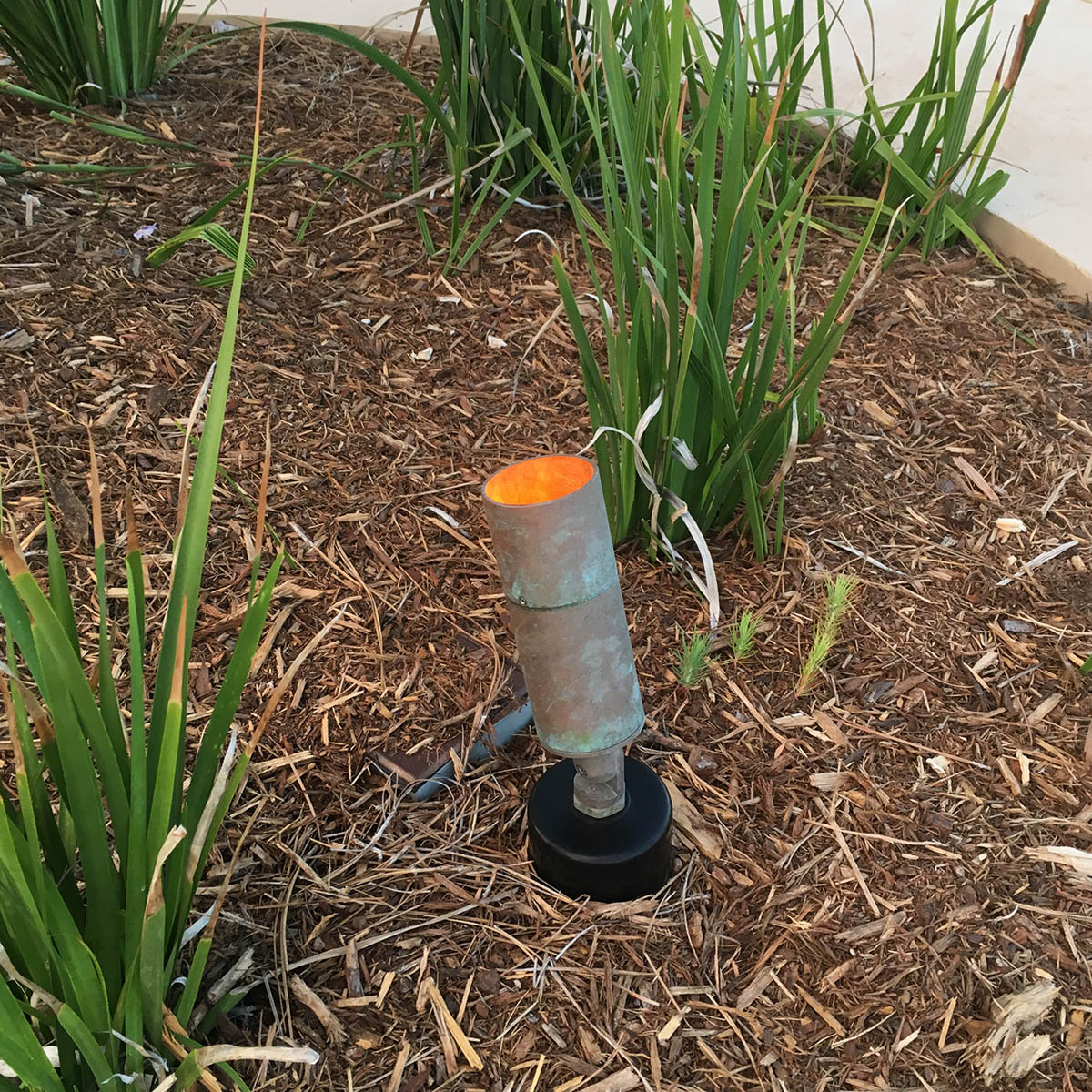

| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
| 5W-NFL | 5 Watt | 25° narrow flood |
| 5W-FL | 5 Watt | 35° flood |
| 8W-SP | 8 Watt | 10° spot |
| 8W-NFL | 8 Watt | 25° narrow flood |
| 8W-FL | 8 Watt | 36° flood |
| 8W-WFL | 8 Watt | 60° wide flood |
* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “8W-NFL-27-120V“
| BSB | Brass surface-mounted box for concrete and wood |
| GS2 | Heavy-duty ground spike |
| GS2BC | Heavy-duty ground spike with cast brass cap |
| GS23R | Heavy-duty ground spike with brass cap for telescoping fixture riser |

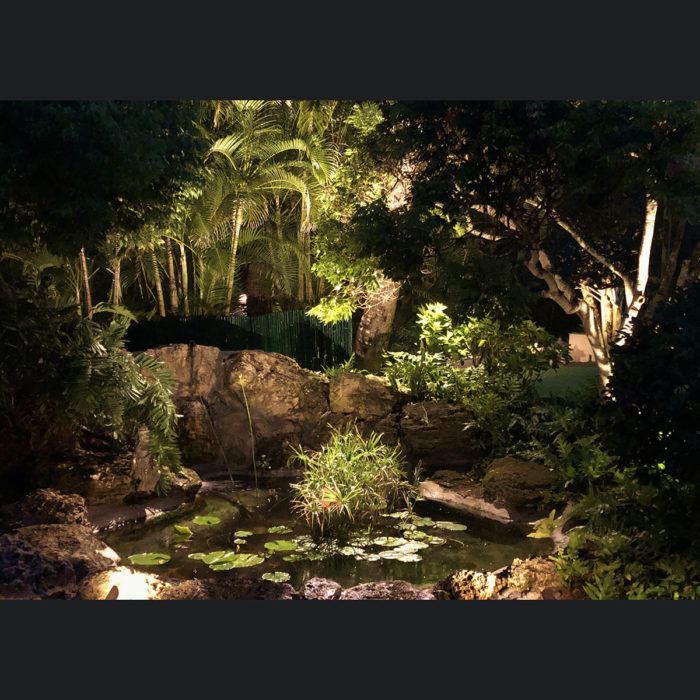

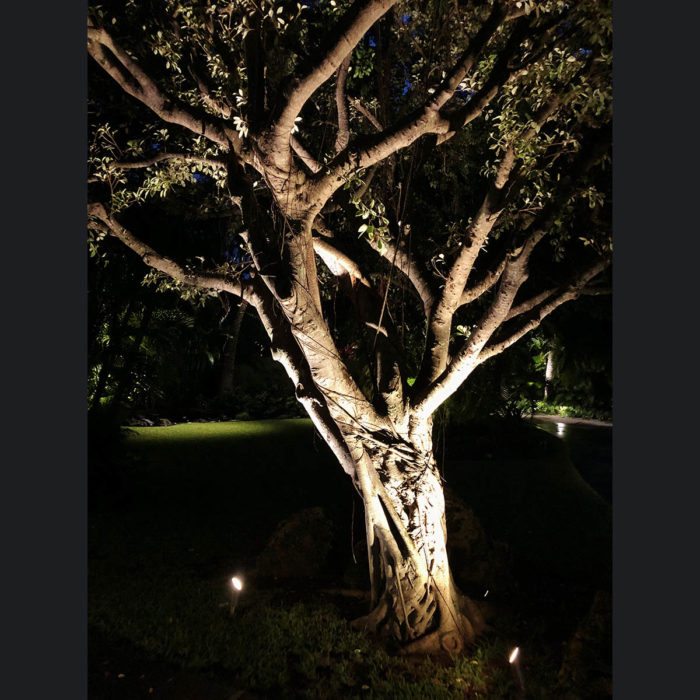

| GS4 | *Standard ground spike with cast brass cap |
| JB | Cast brass round junction box |
| SA | Sure Aim locking rotation accessory (not available with STEM-S) |

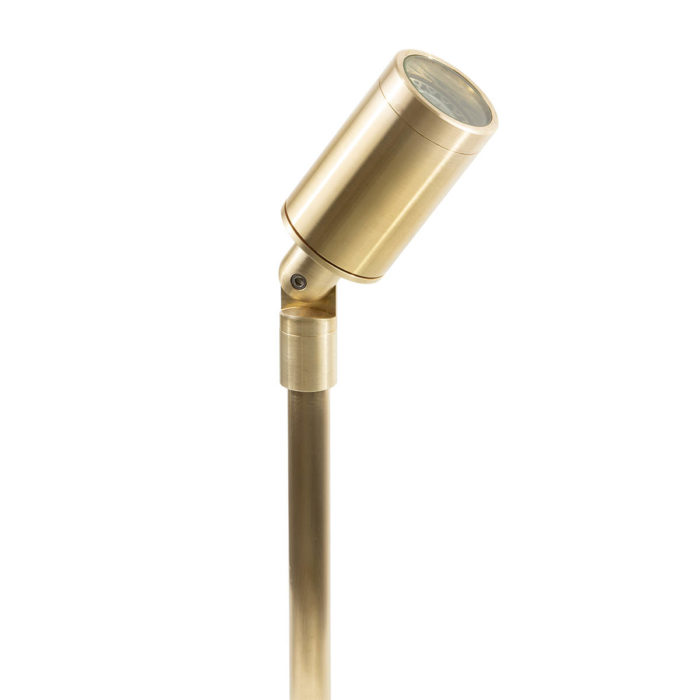

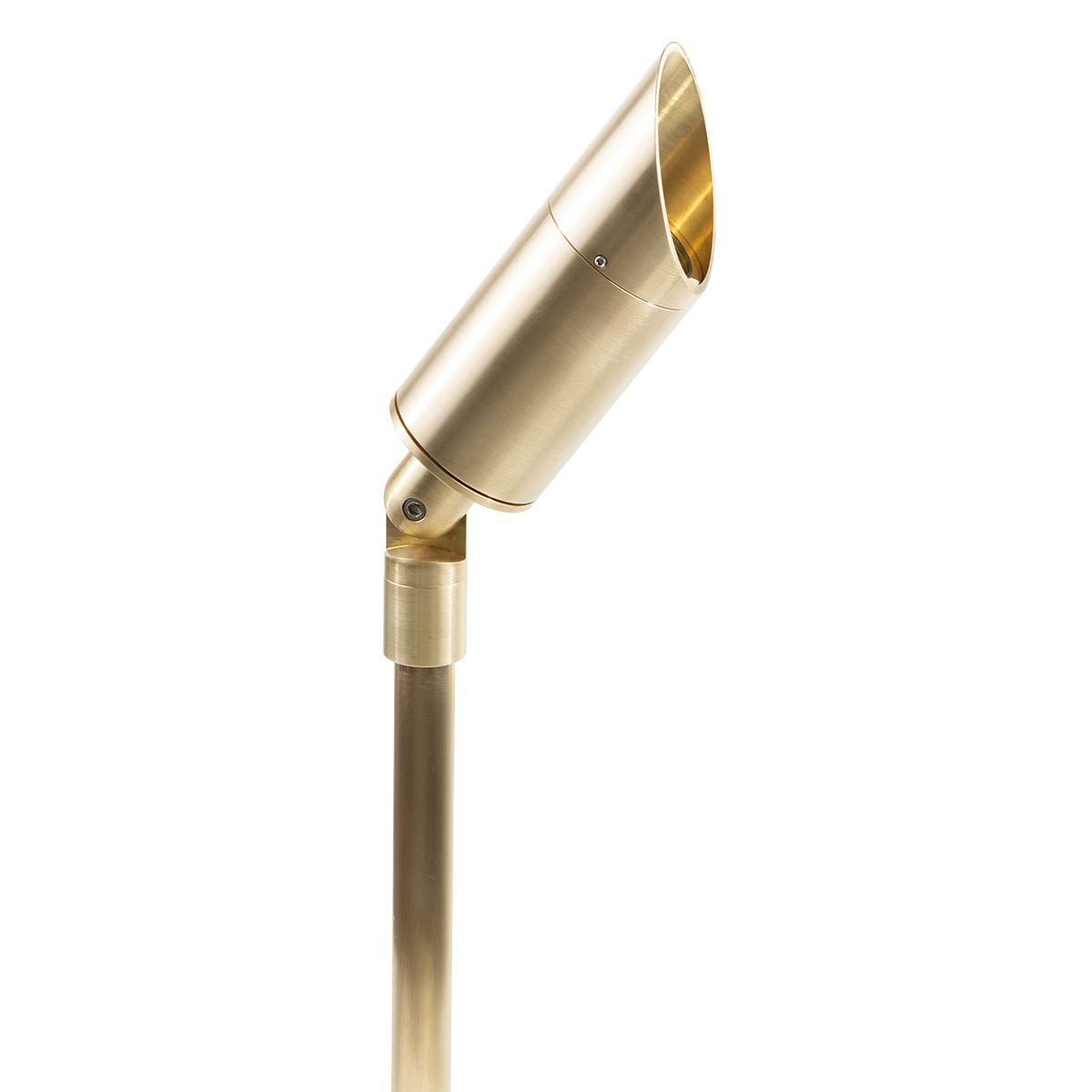

| STEM-C | Brass riser for applications where fixture is directed UPWARD, available in mulipile sizes |

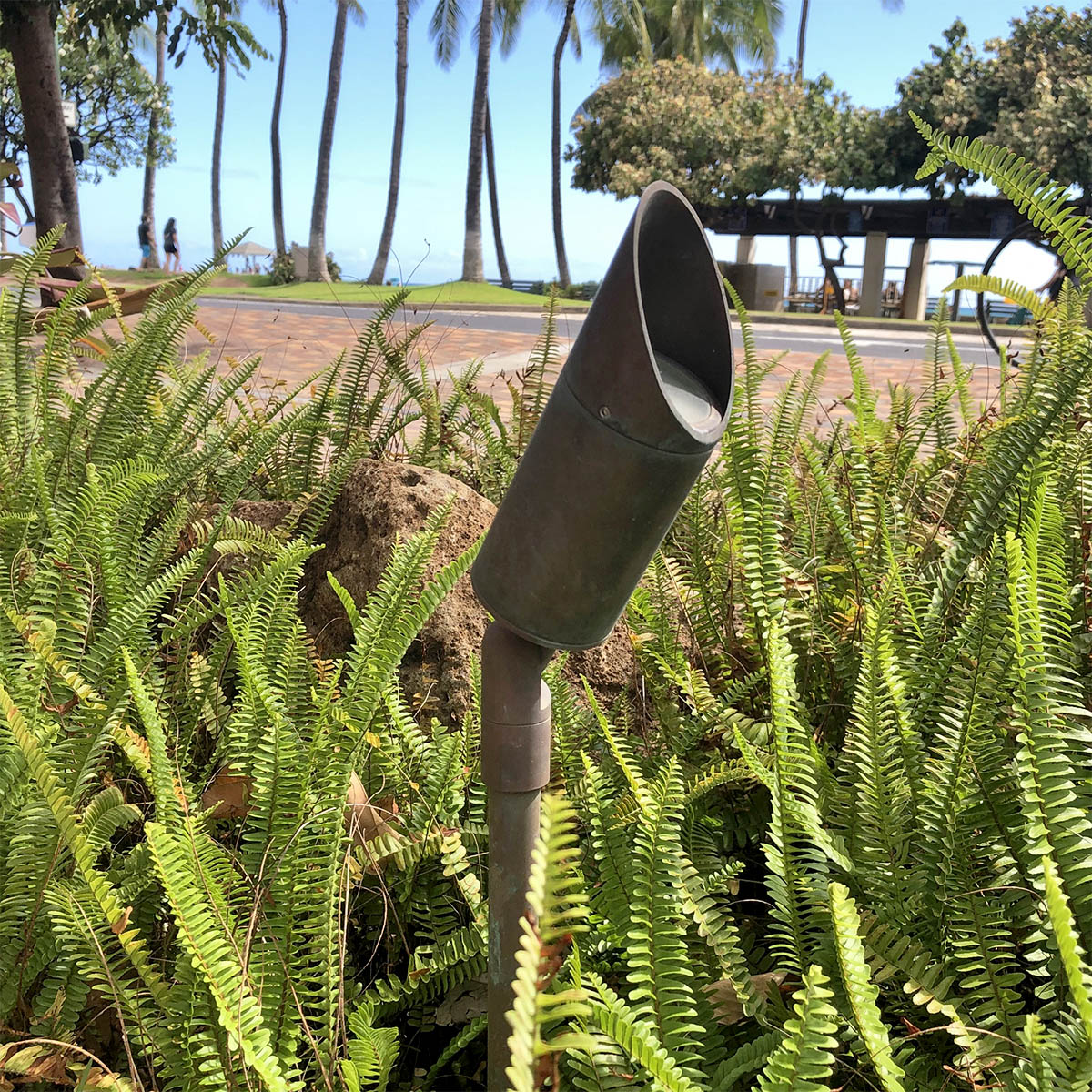

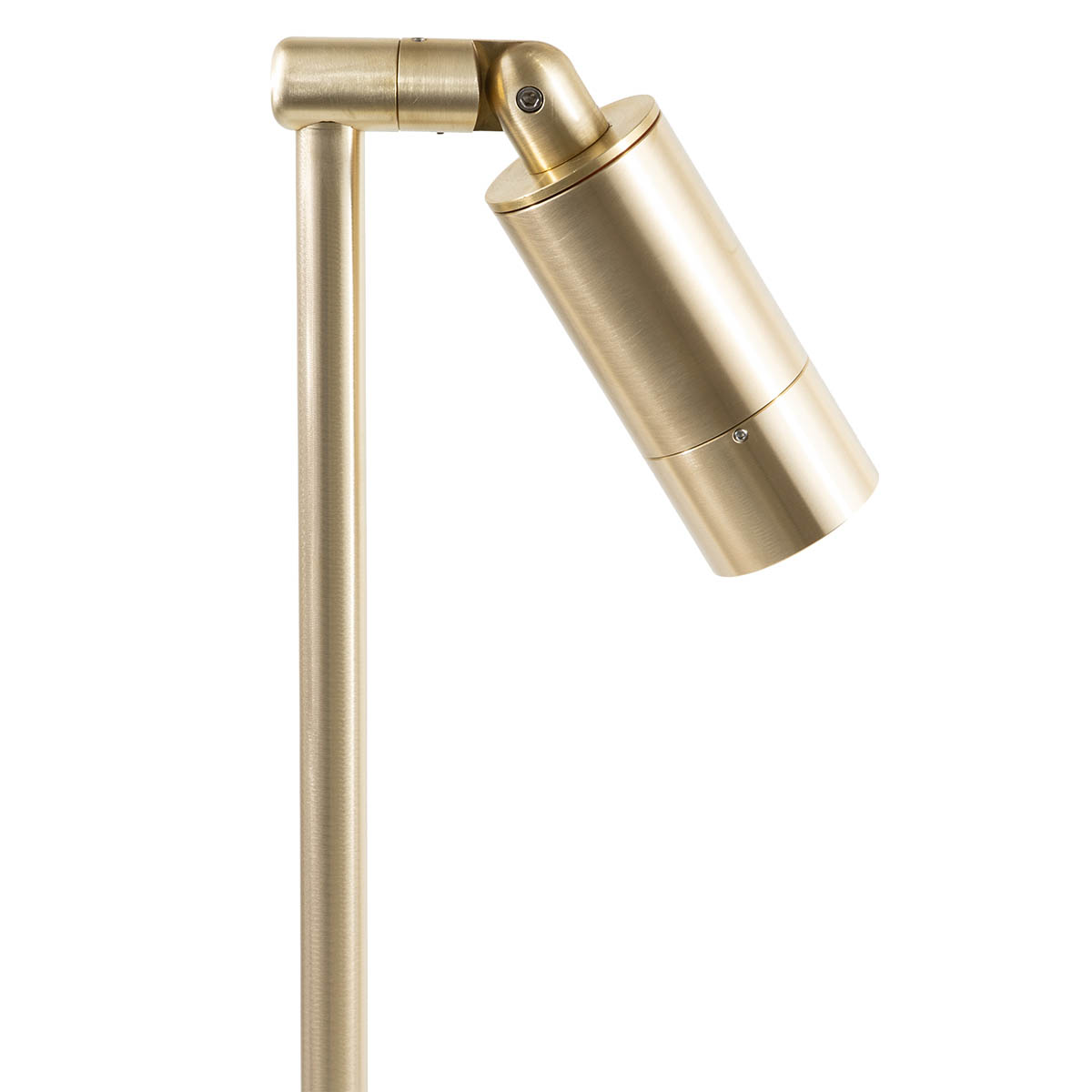

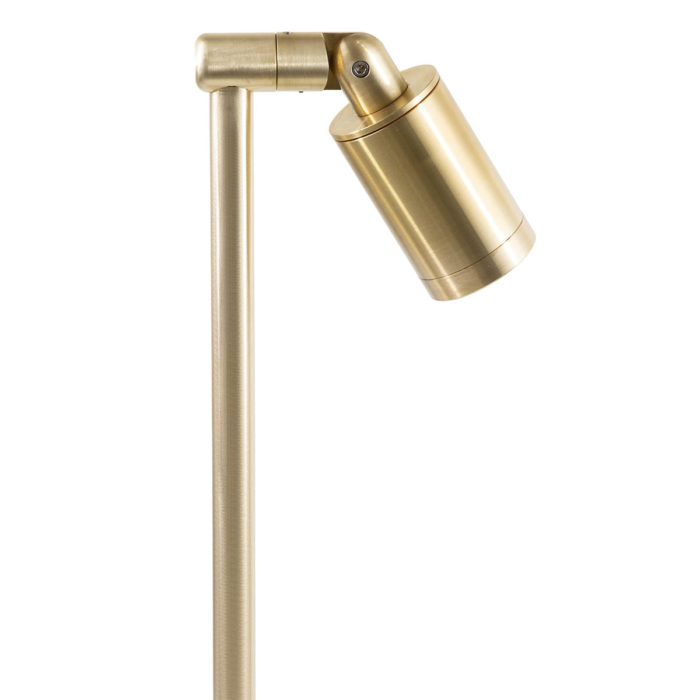

| STEM-S | Brass riser for applications where fixture is directed DOWNWARD, available in multiple sizes |

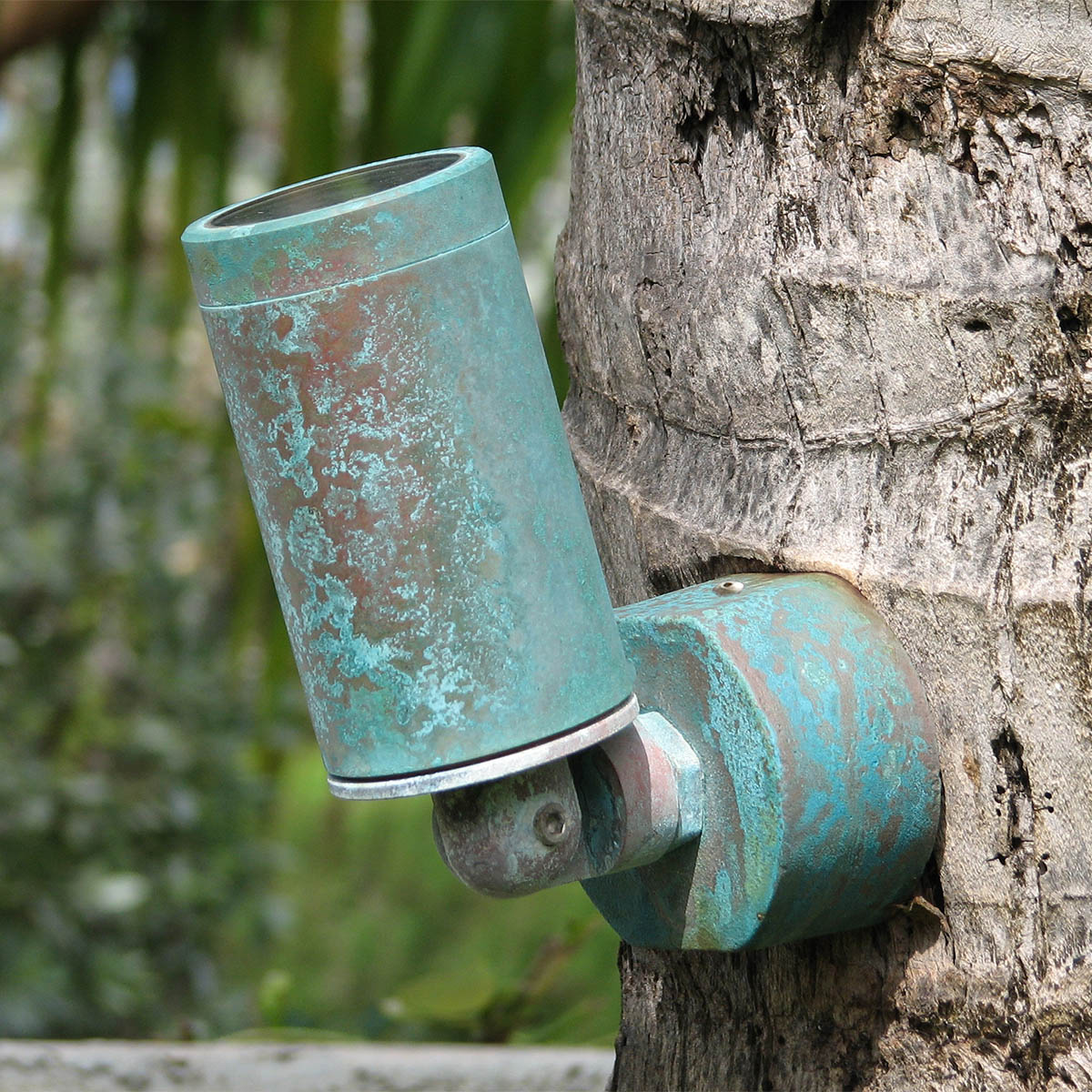

| TDM1 | *Brass tree/deck mount with stainless steel screws |
| TDM2 | *Brass tree mount with nylon strap (48″, 72″, or 96″) |
| TDM2SS | *Brass tree mount with stainless steel strap (48″, 72″, or 96″) |
| TDM3 | *Brass low-profile deck/wall mount (SA accessory recommended) |
| TDM4 | *Brass low-profile tree mount with notch for wire (SA accessory recommended) |

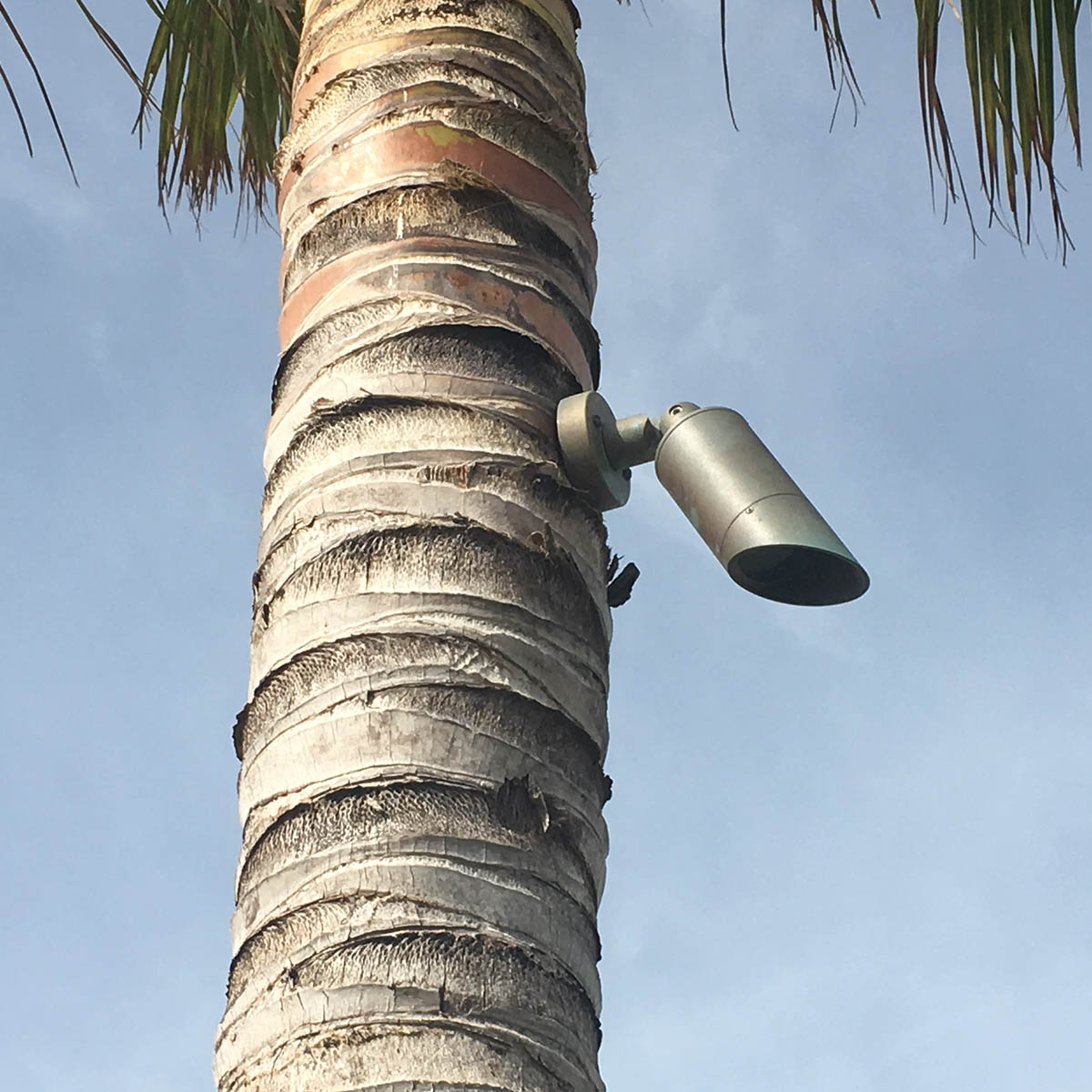

| TMJB | Brass tree-mounted junction box, single fixture mount, stainless steel strap (48″, 72″, or 96″) |

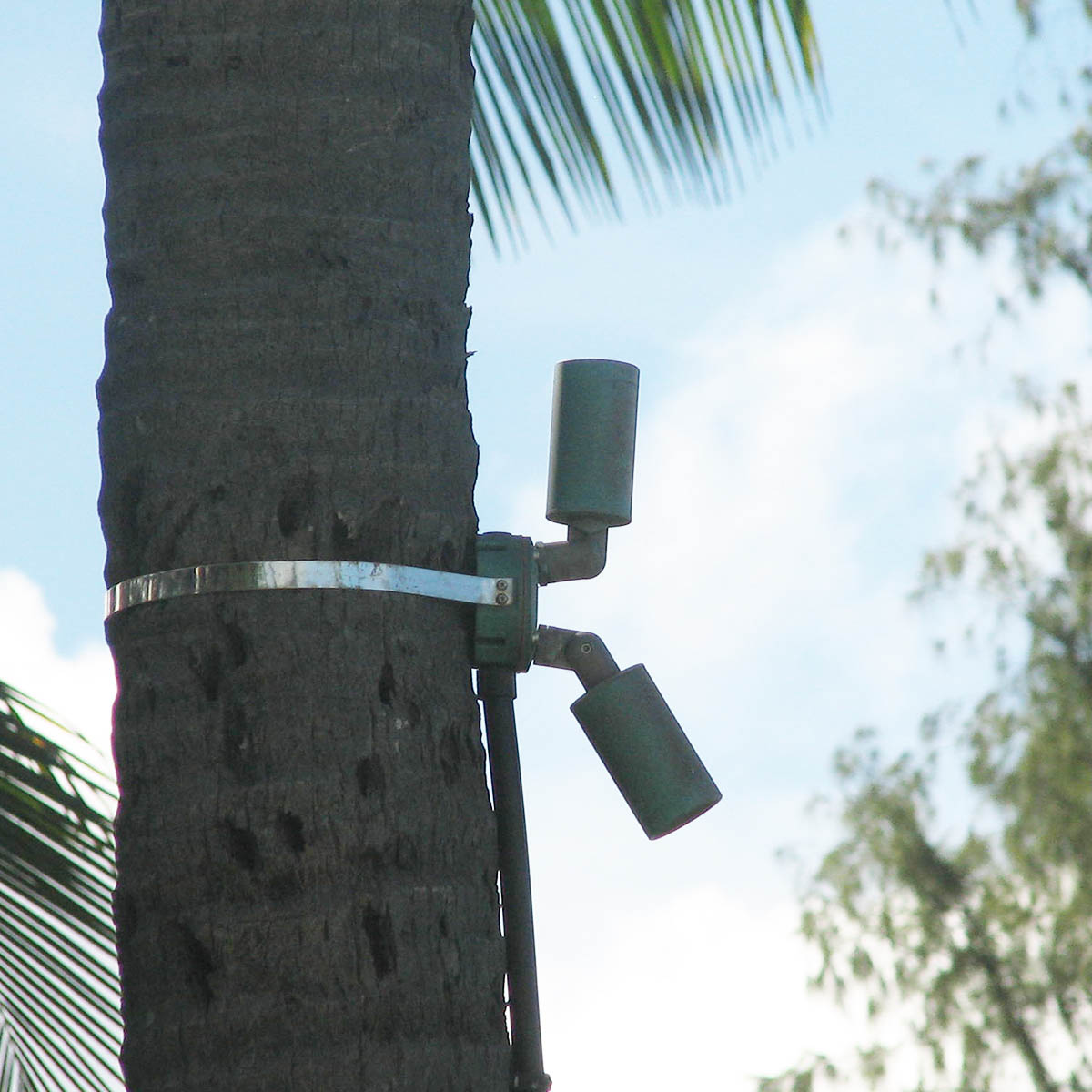

| TMJB2 | Brass tree-mounted junction box, double fixture mount, stainless steel strap (48″, 72″, or 96″) |
| TMJBX | Brass tree-mounted junction box, single fixture mount, stainless steel screws |
| TMJB2X | Brass tree-mounted junction box, double fixture mount, stainless steel screws |
| *This accessory for 12 Volt fixture only. | |
| VTM | Brass rectangular junction box, direct mount or as part of VTM-PALM |
| VTM-PALM | Set of up to four VTM junction boxes, stainless steel strap (70 or 88″), and wiring. See spec. sheet for details. |

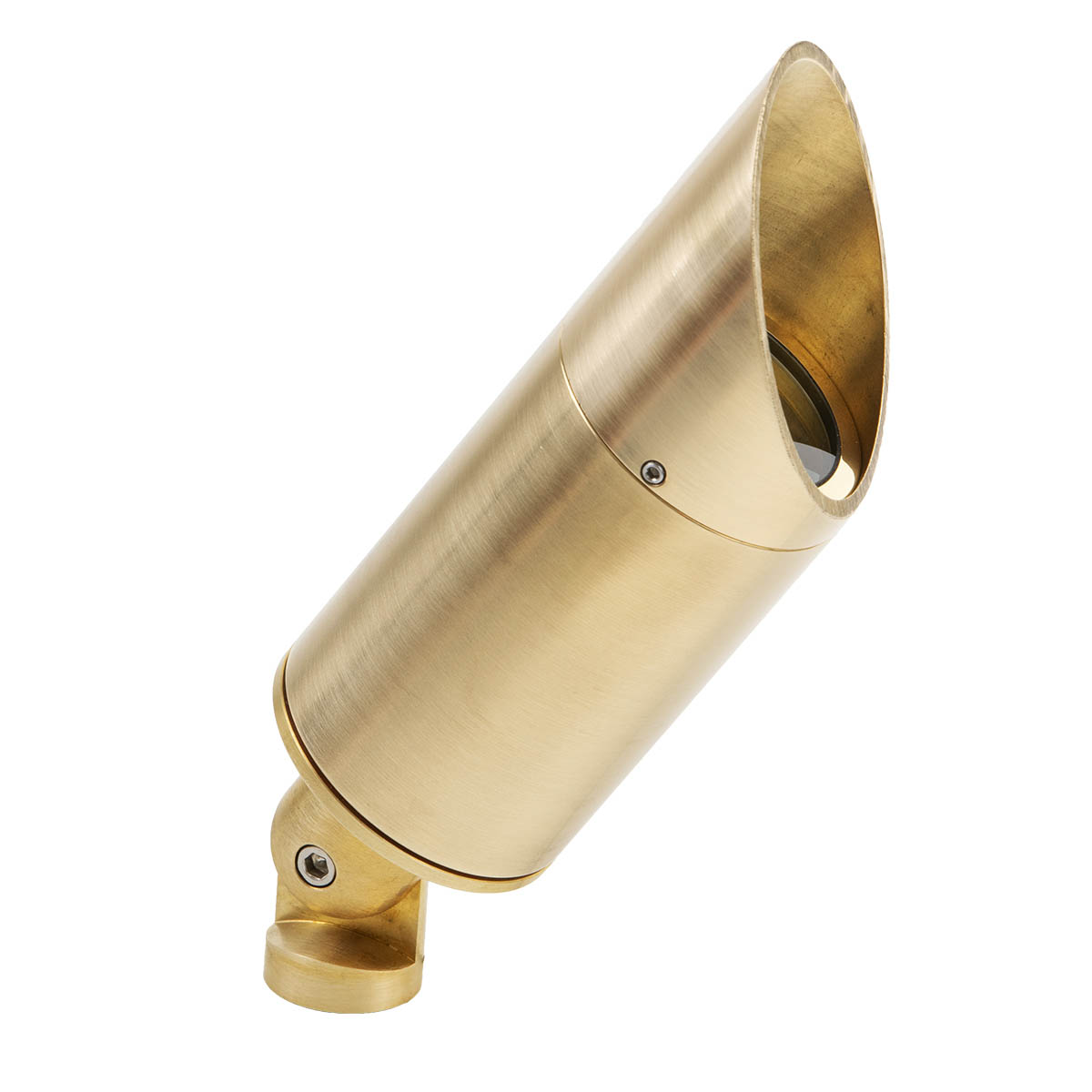

| BGS | Brass glare shield, 45° cutoff |

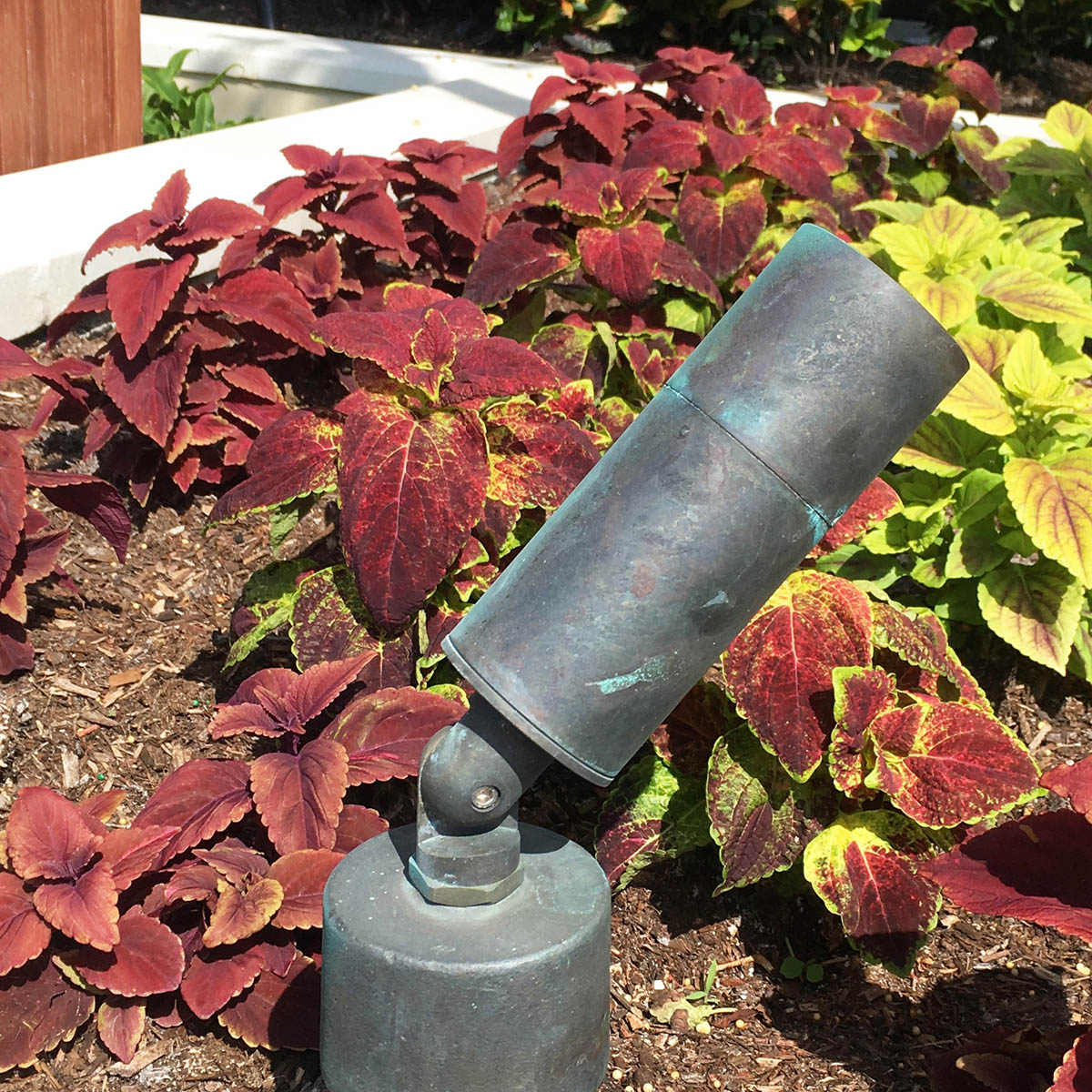

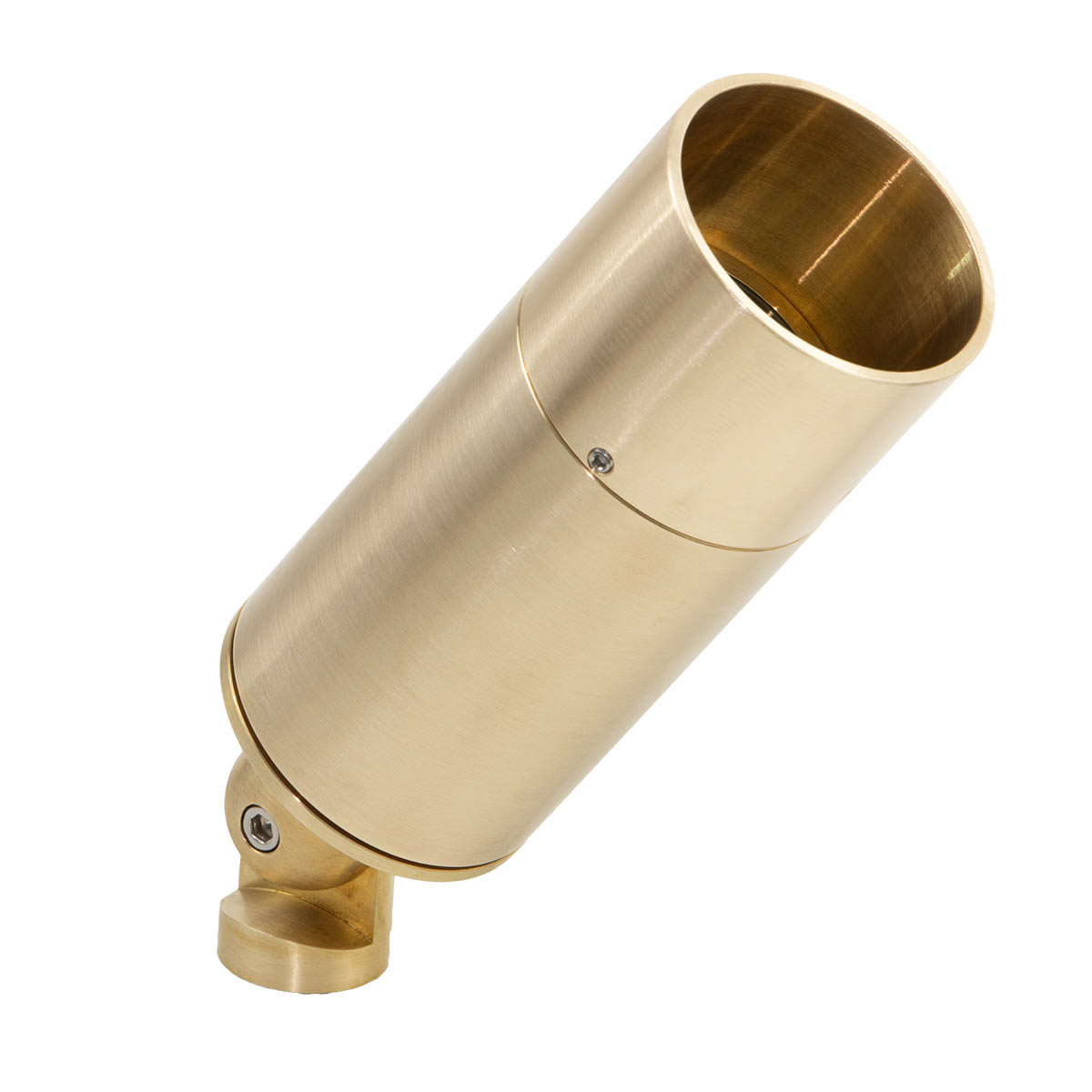

| BGSF | Brass glare shield, full cutoff with weep hole |
| CTO-1/4-2.04 | Color Temperature Orange filter 1/4 |
| CTO-1/2-2.04 | Color Temperature Orange filter 1/2 |
| CTO-3/4-2.04 | Color Temperature Orange filter 3/4 |
| FR | Frosted lens, 1/8” (3mm) thick |
| HL1 | Honeycomb louver, 1/8” (3mm) thick |
| HL2 | Honeycomb louver, 1/4” (6mm) thick |
| PR | Prismatic spread lens, 1/8” (3mm) thick |
| RT | Rectilinear spread lens, 1/8” (3mm) thick |
| SL | Solite (Soft Focus) lens, 1/8” (3mm) thick |
Maximum two 1/8″-thick optical accessories or one HL2 + one CTO filter
