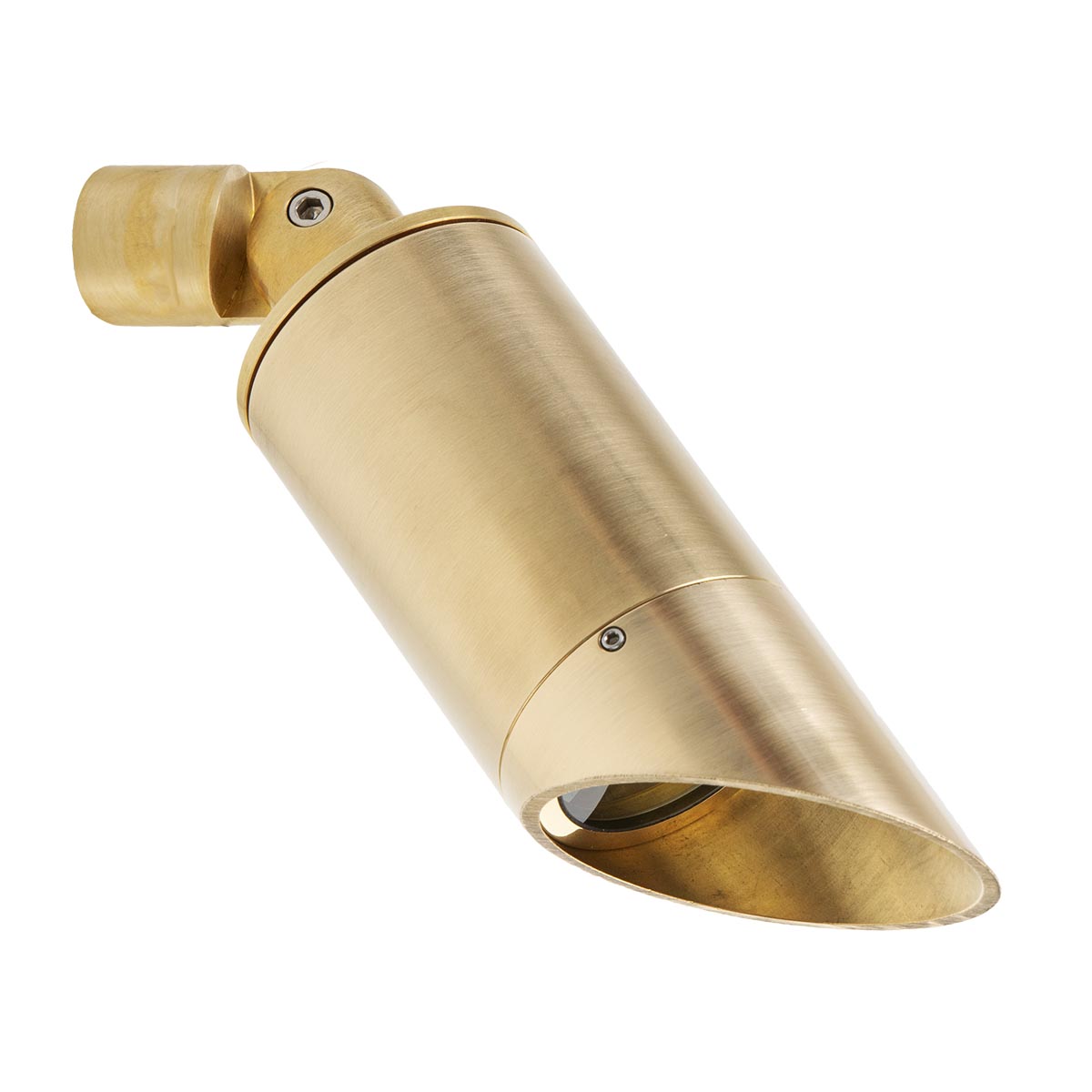

L-011-30-BGS-SA-WL Turtle Friendly
Down Only / Dark Sky
(12V/120V MR16 LED)
Solid Brass, All-Purpose Directional
- Directional downlight certified by International Dark Sky Association when mounted on VERTICAL surface and aimed downward. This fixture will not work nor be Dark Sky compliant if mounted to a horizontal surface such as the ground or ceiling.
- Fixture comes standard with angled glare shield and Sure Aim accessory
- Knuckle can be angled from 0o (straight down) to a maximum of 30o from vertical
- Remote transformer required for 12V
| Voltage | 12V, 120V |
| Lamps | MR16 LED |
| Lumens | 79 max |
| CCT | 1500K |
| Dimensions | Diameter: 2.4″ (6 cm) |
| Overall length from knuckle pivot: 7.3″ (18.4 cm) |
Specifications
12V Instructions
120V Instructions
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
5- & 7-Watt 12V GU5.3 MR16 (Dauer) Information with Dimmer / Transformer Compatibility
Dark Sky – Sea Turtle Sensitive (Using Long Wavelength Amber)
| LM79 | IES | SPECTRAL POWER DISTRIBUTION / BLUE LIGHT CONTENT |
| L-011-30-5W-A-BGS-SA | L-011-30-5W-A-BGS-SA | L-011-30-5W-A-NFL-BGS-SA |
GU5.3 MR16 LED
AMBER (1500K)
| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
GU10 MR16 LED
AMBER (1500K)
AMBER (1500K)
| 5W-A-NFL-120V | 5 Watt AMBER | 25° narrow flood |
| SA | Sure Aim locking rotation accessory (STANDARD) |
| TDM1 | *Brass tree/deck mount with stainless steel screws |
| TDM2 | *Brass tree mount with nylon strap (48″, 72″, or 96″) |
| TDM2SS | *Brass tree mount with stainless steel strap (48″, 72″, or 96″) |
| TDM3 | *Brass low-profile deck/wall mount |
| TDM4 | *Brass low-profile tree mount with notch for wire |
| TMJB | Brass tree-mounted junction box, single fixture mount, stainless steel strap (48″, 72″, or 96″) |
| TMJBX | Brass tree-mounted junction box, single fixture mount, stainless steel screws |
| *These accessories for 12 Volt fixture only. |
| BGS | Brass glare shield, 45° cutoff (STANDARD) |
| CTO-1/4-2.04 | Color Temperature Orange filter 1/4 |
| CTO-1/2-2.04 | Color Temperature Orange filter 1/2 |
| CTO-3/4-2.04 | Color Temperature Orange filter 3/4 |
| FR | Frosted lens, 1/8” (3mm) thick |
| HL1 | Honeycomb louver, 1/8” (3mm) thick |
| HL2 | Honeycomb louver, 1/4” (6mm) thick |
| PR | Prismatic spread lens, 1/8” (3mm) thick |
| RT | Rectilinear spread lens, 1/8” (3mm) thick |
| SL | Solite (Soft Focus) lens, 1/8” (3mm) thick |
Maximum two 1/8″-thick optical accessories or one HL2 + one CTO filter
