L-011-CM
(12/120/230V Integrated LED & MR16 LED)
Solid Brass Fixed Downlight
- Lamp is recessed for glare reduction
- Remote transformer required for 12V
| Voltage | 12V, 120V, 230V |
| Lamps | Integrated LED, MR16 LED & Halogen |
| Lumens | 791 max (11W) |
| CCT | 1000K |
| 1500K | |
| 2700K | |
| 3000K | |
| Dimensions | 2.4″ dia. body x 4.75″ dia. base x 4.7″ (6 x 12.1 x 12 cm) |
Specifications
12V Instructions
120V Instructions
Brass Crossbar (for standard round and 4.75″ square canopies only)
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
5- & 7-Watt 12V GU5.3 MR16 (Dauer) Information with Dimmer / Transformer Compatibility
8-Watt 12V GU5.3 MR16 (Soraa) Information with Dimmer / Transformer Compatibility
8-Watt 120V GU10 MR16 (Soraa) Information with Dimmer Compatibility
Integrated triple LED Light Engine
Triac dimmable: MLV >1% typ, ELV >5% typ
Cree XPE2 LED: AMBER (1500K)*, RED-ORANGE (1000K)*
TURTLE FRIENDLY
| 7W-A-SP | 7 Watt Amber | 10° spot |
| 7W-A-NFL | 7 Watt Amber | 30° narrow flood |
| 7W-A-FL | 7 Watt Amber | 60° flood |
| 8W-RO-SP | 8 Watt Red-Orange | 10° spot |
| 8W-RO-NFL | 8 Watt Red-Orange | 30° narrow flood |
| 8W-RO-FL | 8 Watt Red-Orange | 60° flood |
Cree XPG2 LED: 11-Watt Warm White, adjustable output
2700K
| 11W-827-SP | 11 Watt | 10° spot |
| 11W-827-NFL | 11 Watt | 30° narrow flood |
| 11W-827-FL | 11 Watt | 60° flood |
3000K
| 11W-830-SP | 11 Watt | 10° spot |
| 11W-830-NFL | 11 Watt | 30° narrow flood |
| 11W-830-FL | 11 Watt | 60° flood |
Cree XPG3 LED: High CRI 11-Watt Warm White, adjustable output
2700K
| 11W-927-SP | 11 Watt | 10° spot |
| 11W-927-NFL | 11 Watt | 30° narrow flood |
| 11W-927-FL | 11 Watt | 60° flood |
3000K
| 11W-930-SP | 11 Watt | 10° spot |
| 11W-930-NFL | 11 Watt | 30° narrow flood |
| 11W-930-FL | 11 Watt | 60° flood |
11-Watt light engine features adjustable output via a switch under the optic
GU5.3 MR16 LED
AMBER (1500K, TURTLE FRIENDLY)*, Warm White (2700/3000K)**
| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
| 5W-SP | 5 Watt | 15° spot |
| 5W-NFL | 5 Watt | 25° narrow flood |
| 5W-FL | 5 Watt | 40° flood |
| 5W-FL/60 | 5 Watt | 60° flood |
| 5W-WFL | 5 Watt | 100° flood |
| 7W-FL/60 | 7 Watt | 60° flood |
| 8W-SP | 8 Watt | 10° spot |
| 8W-NFL | 8 Watt | 25° narrow flood |
| 8W-FL | 8 Watt | 36° flood |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“
GU10 MR16 LED
AMBER (1300K, TURTLE FRIENDLY)*, Warm White (2700/3000K)**
| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
| 5W-NFL | 5 Watt | 25° narrow flood |
| 5W-FL | 5 Watt | 35° flood |
| 8W-SP | 8 Watt | 10° spot |
| 8W-NFL | 8 Watt | 25° narrow flood |
| 8W-FL | 8 Watt | 36° flood |
| 8W-WFL | 8 Watt | 60° wide flood |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “8W-NFL-27-120V“
| NC | No Canopy (1/2″ NPSM brass threaded fitting only) |
| SQ1 | 4.75″ (12.1cm) Square canopy substitution for standard round canopy |
| SQ1-3.5 | 3.5″ (8.9cm) Small square canopy substitution for standard round canopy |

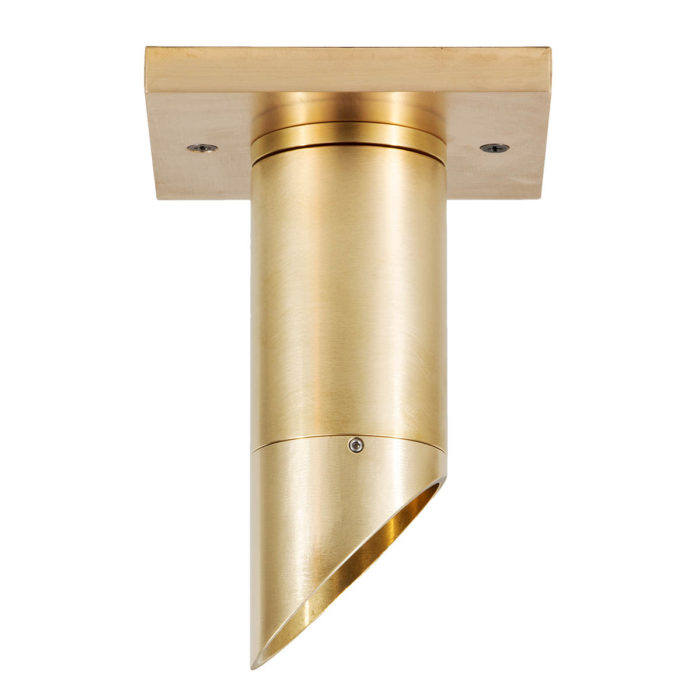

| BGS | Brass glare shield, 45° cutoff |
| FR | Frosted lens |
| HL1 | Honeycomb louver, 1/8” (3mm) thick |
| HL2 | Honeycomb louver, 1/4” (6mm) thick |

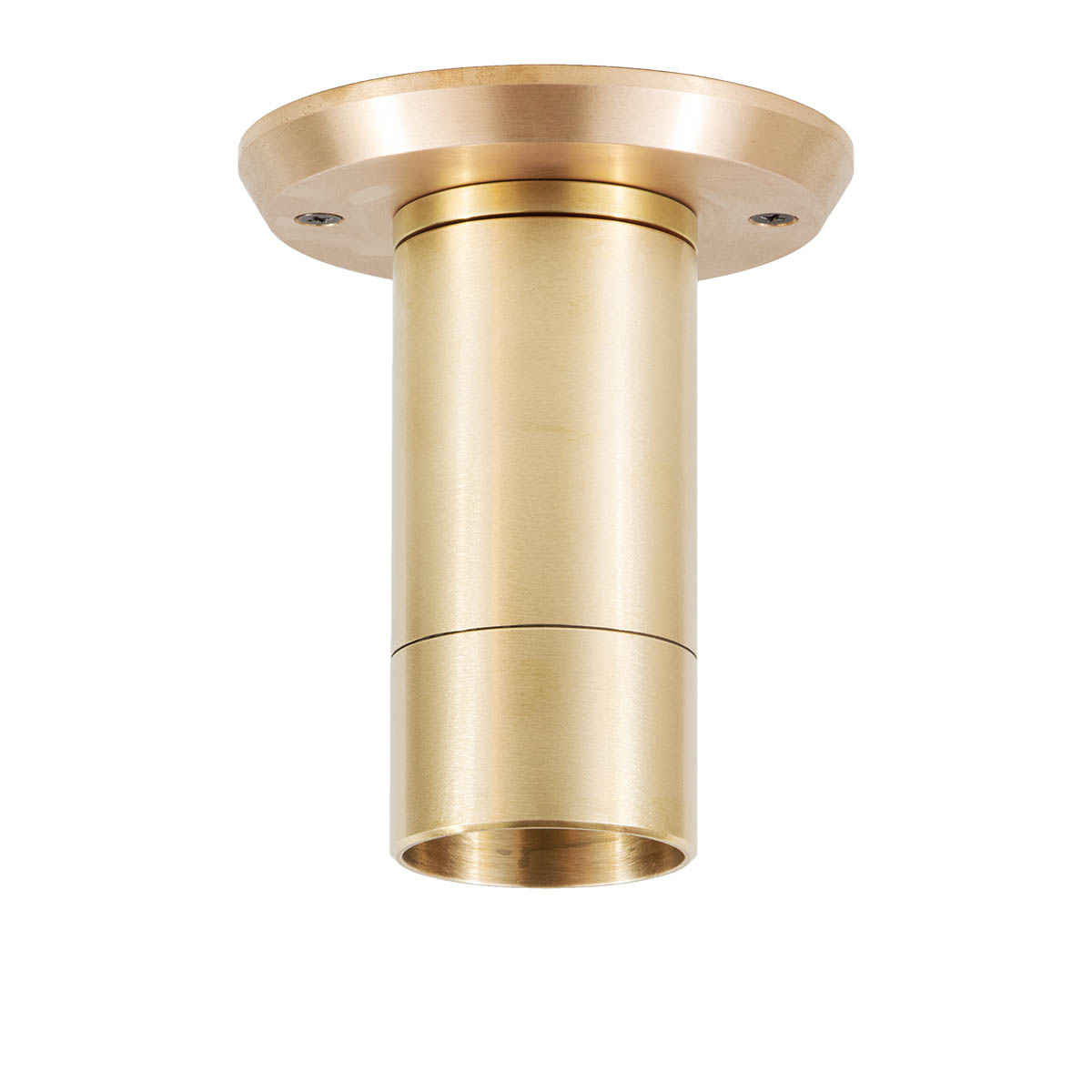

| KP | Extended snoot |
| PR | Prismatic spread lens |
| RT | Rectilinear spread lens |
| SL | Solite lens |
Maximum two 1/8″-thick optical accessories or one HL2
