L-011-CM1
(12V/120V/230V MR16 LED)

L-011-CM1
(12V/120V/230V MR16 LED)

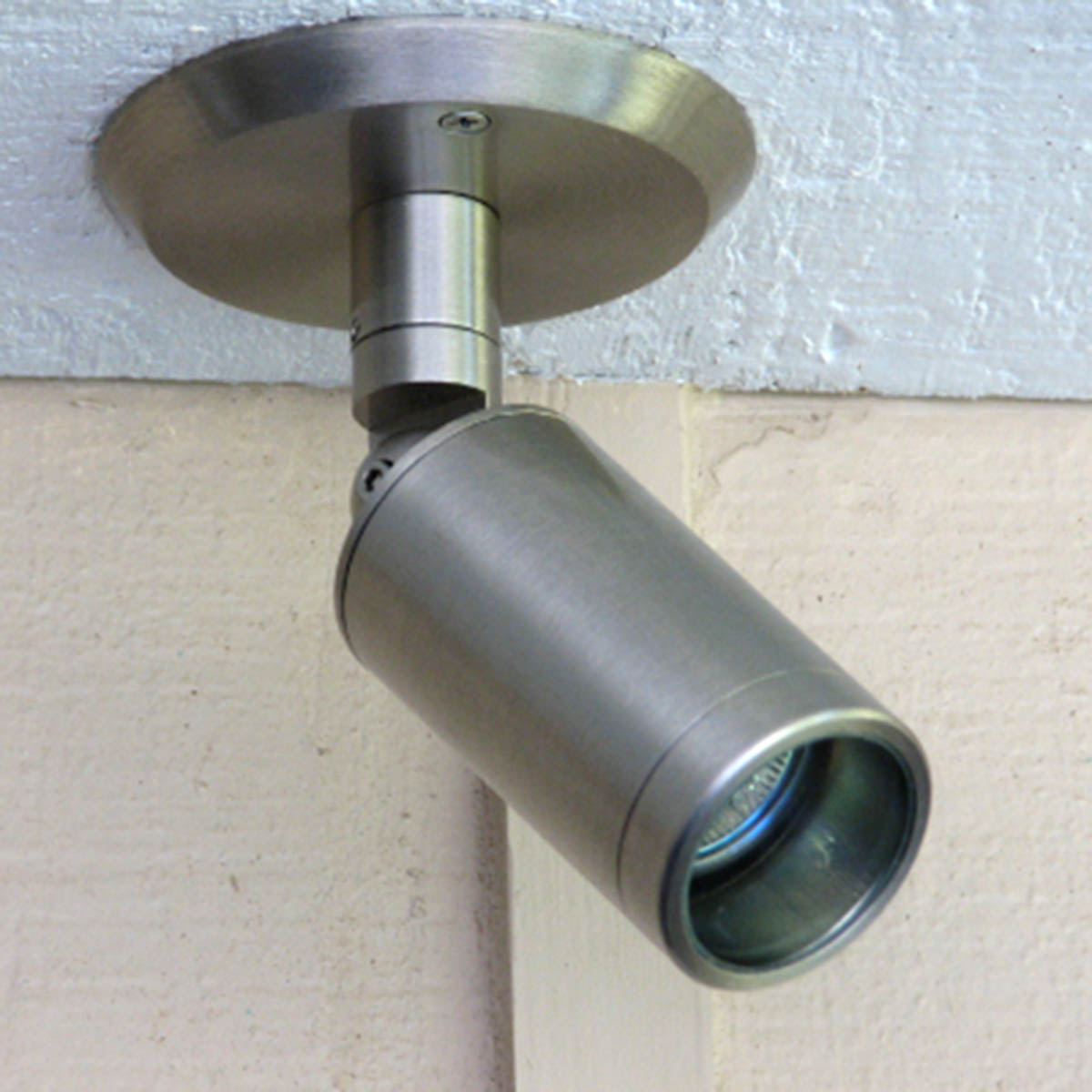

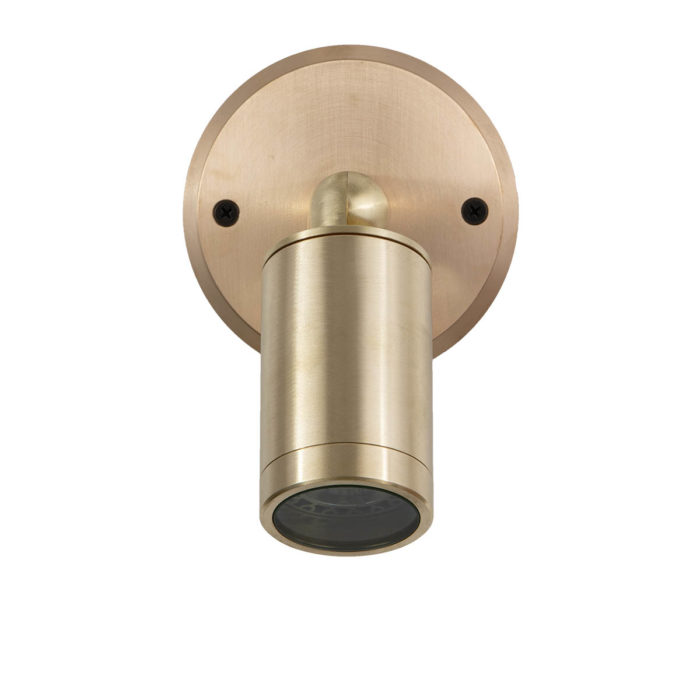

Solid Brass Canopy-Mounted Directional

  • Lamp is recessed for glare reduction on 12V unshielded versions
  • Remote transformer required for 12V
Voltage 12V, 120V, 230V
Lamps MR16 LED
Lumens 630 max
CCT 1500K
2700K
3000K
Dimensions Diameter: 2.4″ (6 cm)
Length from knuckle pivot: 4.9″ (12.4 cm)
GU5.3 MR16 LED
AMBER (1500K) and Warm White (2700/3000K)*

5W-A-NFL 5 Watt AMBER 25° narrow flood
5W-SP 5 Watt 15° spot
5W-NFL 5 Watt 25° narrow flood
5W-FL 5 Watt 40° flood
5W-FL/60 5 Watt 60° flood
5W-WFL 5 Watt 100° flood
7W-FL/60 7 Watt 60° flood
8W-SP 8 Watt 10° spot
8W-NFL 8 Watt 25° narrow flood
8W-FL 8 Watt 36° flood

* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27

GU10 MR16 LED
AMBER (1500K) and Warm White (2700/3000K)*

5W-A-NFL 5 Watt AMBER 25° narrow flood
5W-NFL 5 Watt 25° narrow flood
5W-FL 5 Watt 35° flood
8W-SP 8 Watt 10° spot
8W-NFL 8 Watt 25° narrow flood
8W-FL 8 Watt 36° flood
8W-WFL 8 Watt 60° wide flood

* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “8W-NFL-27-120V

SA Sure-Aim locking rotation accessory

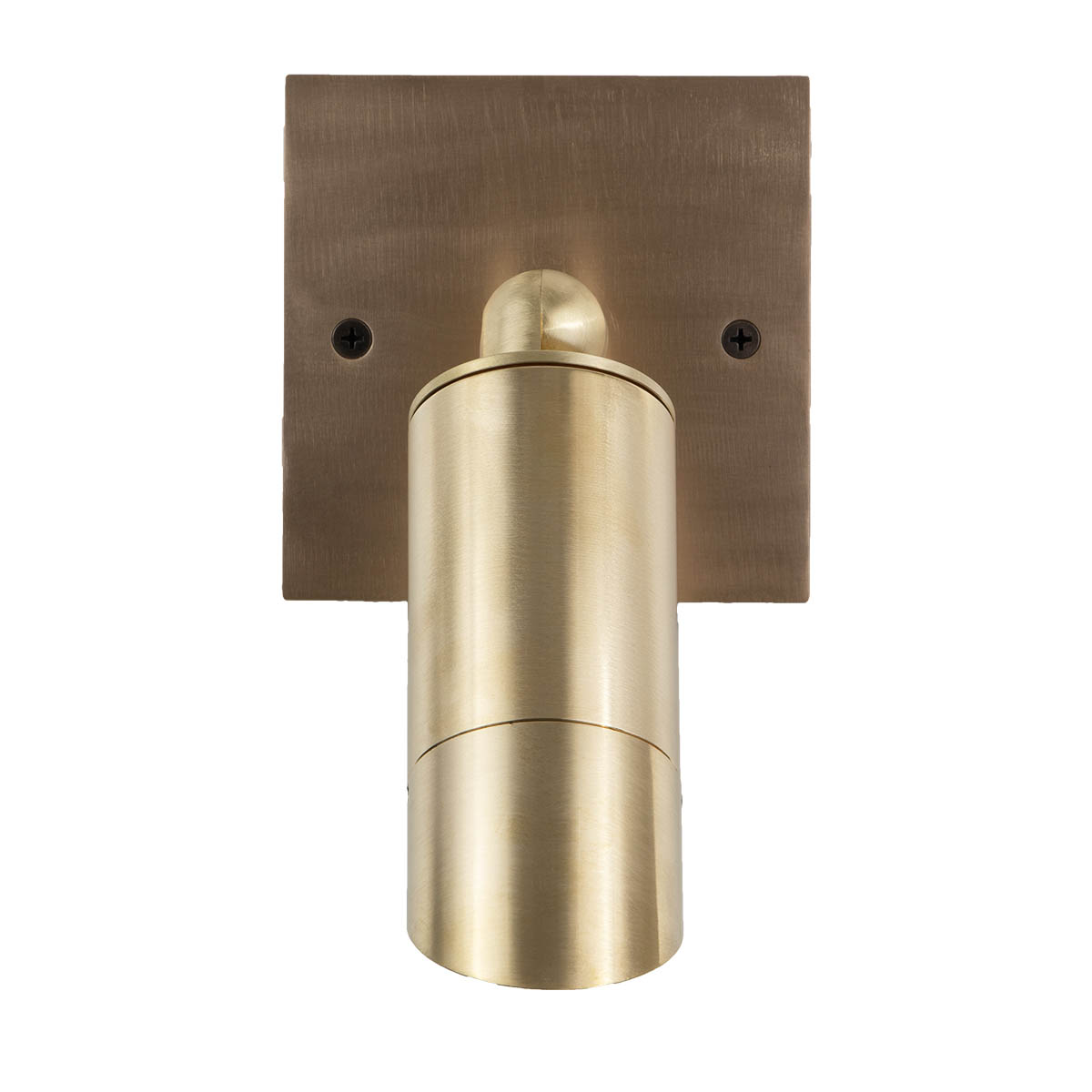

SQ1 4.75″ (12.1cm) Square canopy substitution for standard round canopy
SQ1-3.5 3.5″ (8.9cm) Small square canopy substitution for standard round canopy

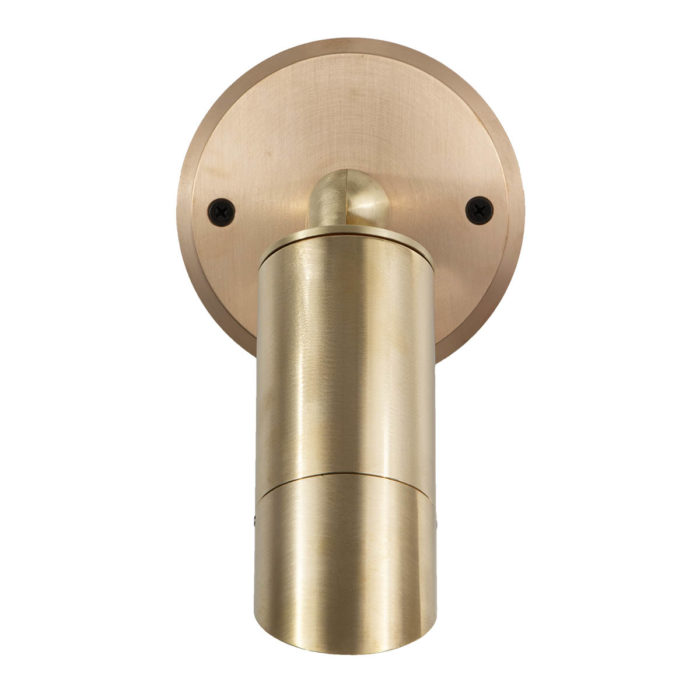

BGS Brass glare shield, 45° cutoff
FR Frosted lens
HL1 Honeycomb louver, 1/8” (3mm) thick
HL2 Honeycomb louver, 1/4” (6mm) thick

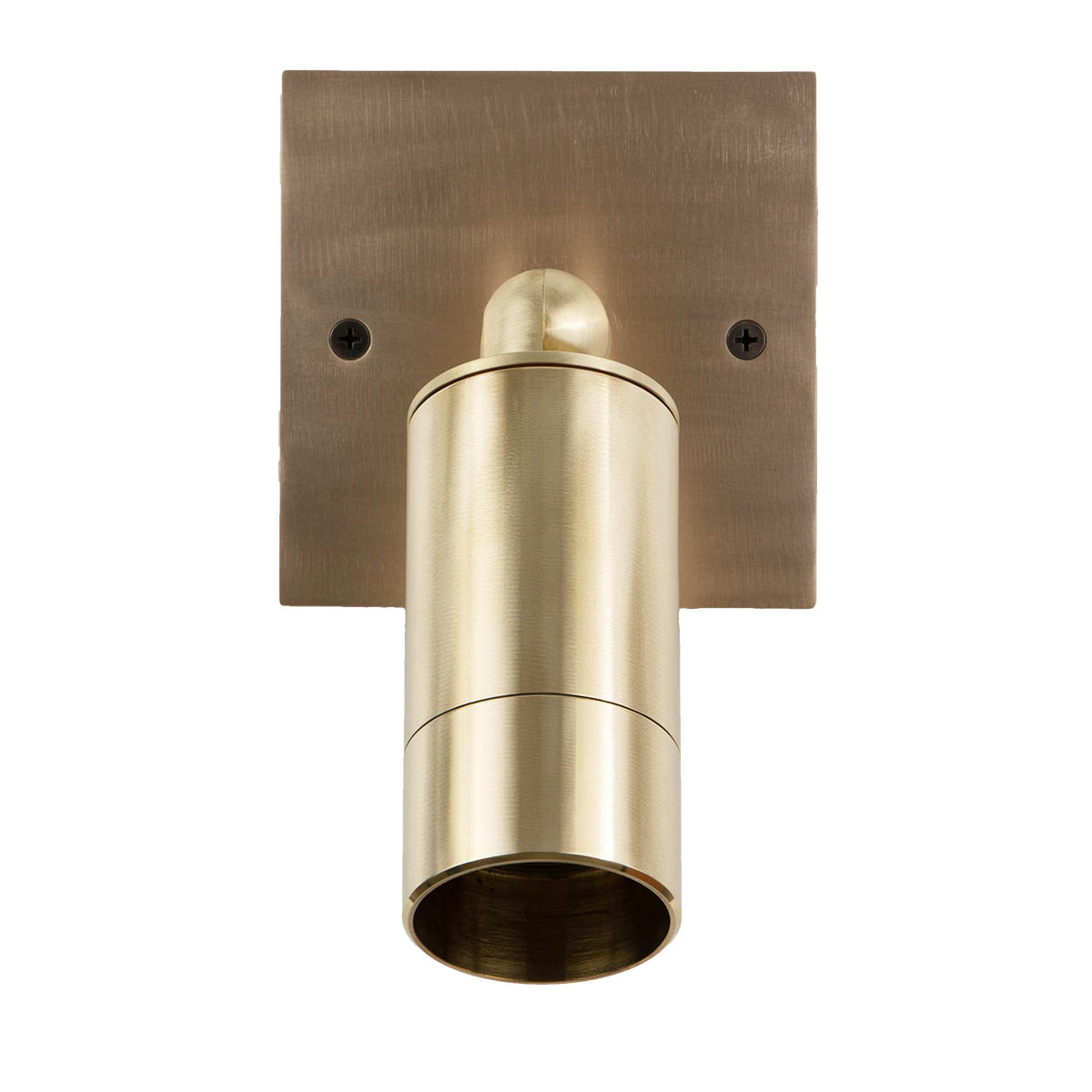

KP Extended snoot (no weep hole) for DOWNLIGHTING only
PR Prismatic spread lens
RT Rectilinear spread lens
SL Solite lens
