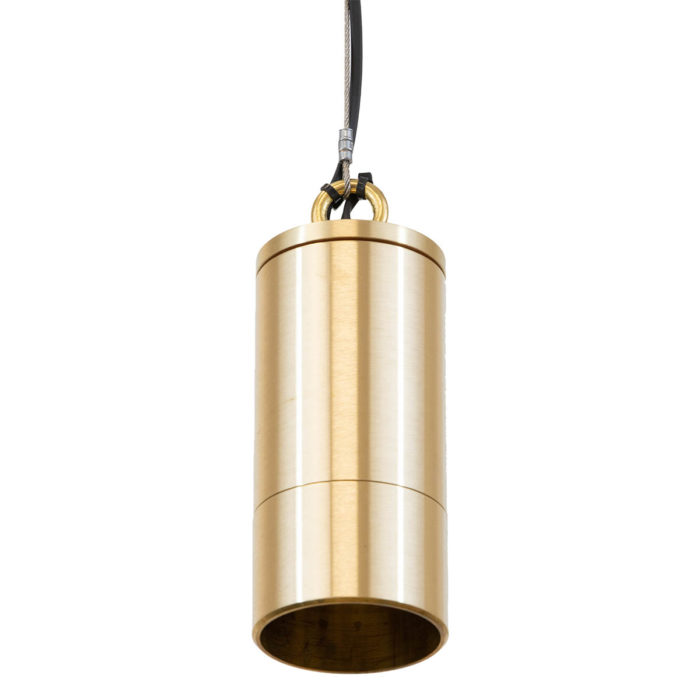

L-011-H
(12V MR16 LED/Halogen)
Solid Brass Hanging Downlight
- Supplied with 20″ stainless steel cable, 36″ lead wire, and 1/2″ male fitting for mounting accessory
- Can also be hung directly by loop
- Remote transformer required
| Voltage | 12V AC |
| Lamps | MR16 LED & Halogen |
| Lumens | 630 max (LED) |
| CCT | 1500K |
| 2700K | |
| 3000K | |
| Dimensions | 2.4″ dia. x 4.2″ (6 x 10.6 cm) |
Specifications
Installation Instructions
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
5- & 7-Watt 12V GU5.3 MR16 (Dauer) Information with Dimmer / Transformer Compatibility
8-Watt 12V GU5.3 MR16 (Soraa) Information with Dimmer / Transformer Compatibility
GU5.3 MR16 LED
AMBER (1500K) and Warm White (2700/3000K)*
| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
| 5W-SP | 5 Watt | 15° spot |
| 5W-NFL | 5 Watt | 25° narrow flood |
| 5W-FL | 5 Watt | 40° flood |
| 5W-FL/60 | 5 Watt | 60° flood |
| 5W-WFL | 5 Watt | 100° flood |
| 7W-FL/60 | 7 Watt | 60° flood |
| 8W-SP | 8 Watt | 10° spot |
| 8W-NFL | 8 Watt | 25° narrow flood |
| 8W-FL | 8 Watt | 36° flood |
* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“
| CMK | Catenary cable mounting kit (Instructions) |
| TDM1 | Brass tree/deck mount with stainless steel screws |
| TDM2 | Brass tree mount with nylon strap (48″, 72″, or 96″) |
| TDM2SS | Brass tree mount with stainless steel strap (48″, 72″, or 96″) |
| TDM3-HANG | Brass low-profile deck/wall mount—for hanging fixtures |
| TDM4-HANG | Brass low-profile tree mount with notches for wire—for hanging fixtures |
| TMJB | Brass, tree-mounted junction box, single fixture mount, stainless steel strap (48″, 72″, or 96″) |
| TMJBX | Brass, tree-mounted junction box, single fixture mount, stainless steel screws |

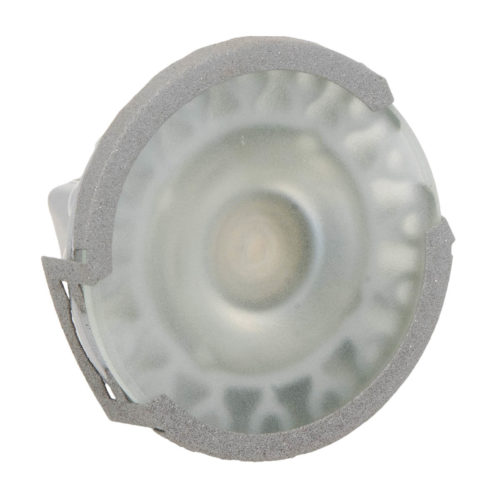

| FR | Frosted lens |

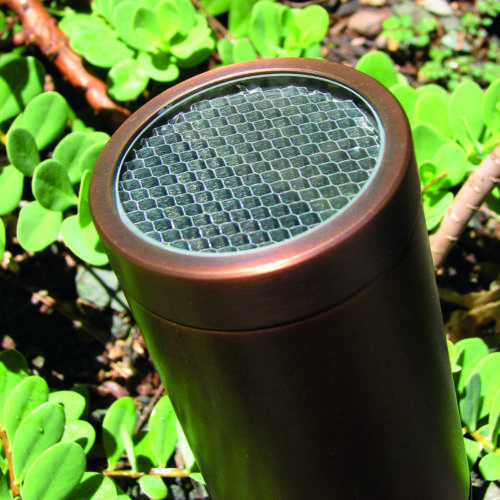

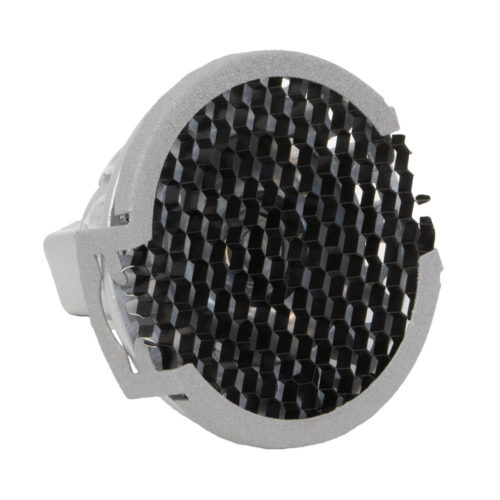

| HL1 | Honeycomb louver, 1/8” (3mm) thick |
| KP | Extended snoot |
| PR | Prismatic spread lens |

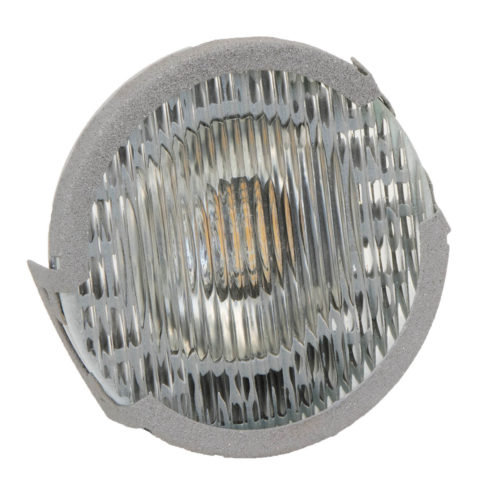

| RT | Rectilinear spread lens |

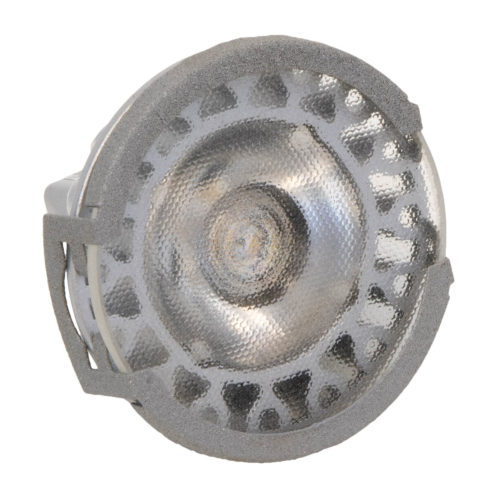

| SL | Solite lens |
