L-011-P
(12V MR16 LED, 120/230V MR16 LED/Metal Halide)
Brass Outdoor Gobo Pattern Projector

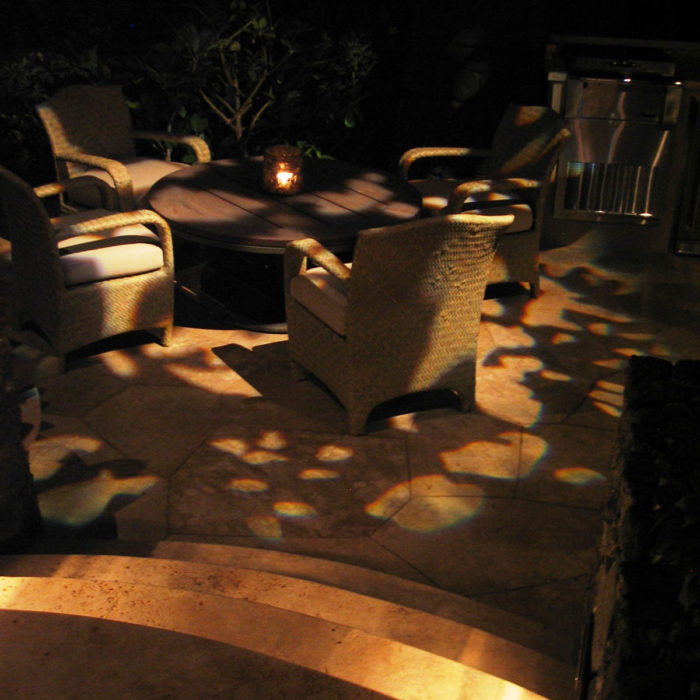

- Fixture uses stainless steel gobos (51.5 mm overall diameter) to project a pattern onto ground or wall
- Remote transformer required for 12 Volt
Voltage | 12V, 120V, 230V |
Lamps | MR16 LED & Metal Halide |
CCT | 2700K |
3000K | |
Dimensions | 2.5″ diameter (6.3 cm) |
Overall length from knuckle pivot: 5.7″ (14.5 cm) for 12 Volt, 6.4″ (16.4 cm) for 120/230 Volt |
Specifications
12V Instructions
120V Instructions
Metal Halide Instructions
Image Display Dimensions
Randall Whitehead Write-up in Residential Lighting
L-011-P
12 Volts, Remote transformer required
GU5.3 MR16 LED • Warm White (2700/3000K)
8W-NFL-27 | 8 Watt (2700K) | 25° narrow flood |
8W-NFL-30 | 8 Watt (3000K) | 25° narrow flood |
L-011-P-120V, L-011-P-230V
120/230 Volts
GU10 MR16 LED • Warm White (2700/3000K)
8W-NFL-27-120V | 8 Watt (2700K) | 25° narrow flood |
8W-NFL-30-120V | 8 Watt (3000K) | 25° narrow flood |

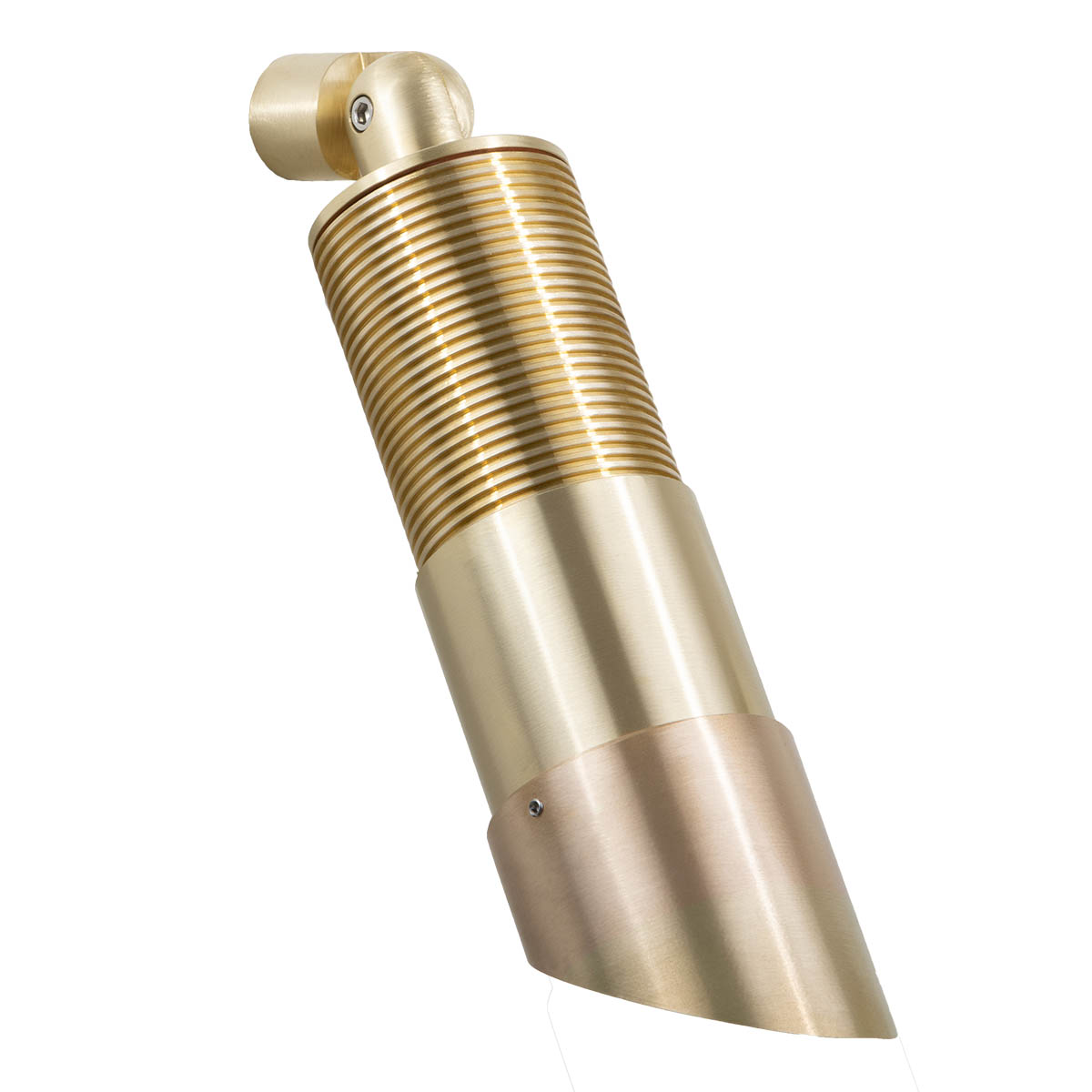

L-011-P-MH-120V, L-011-P-MH-230V
120/230 Volts, Ceramic Metal Halide
GX10 MR16 MH • Remote ballast required
MH20MR16SP | 20 Watt | 12° spot |
MH39MR16SP | 39 Watt | 12° spot |

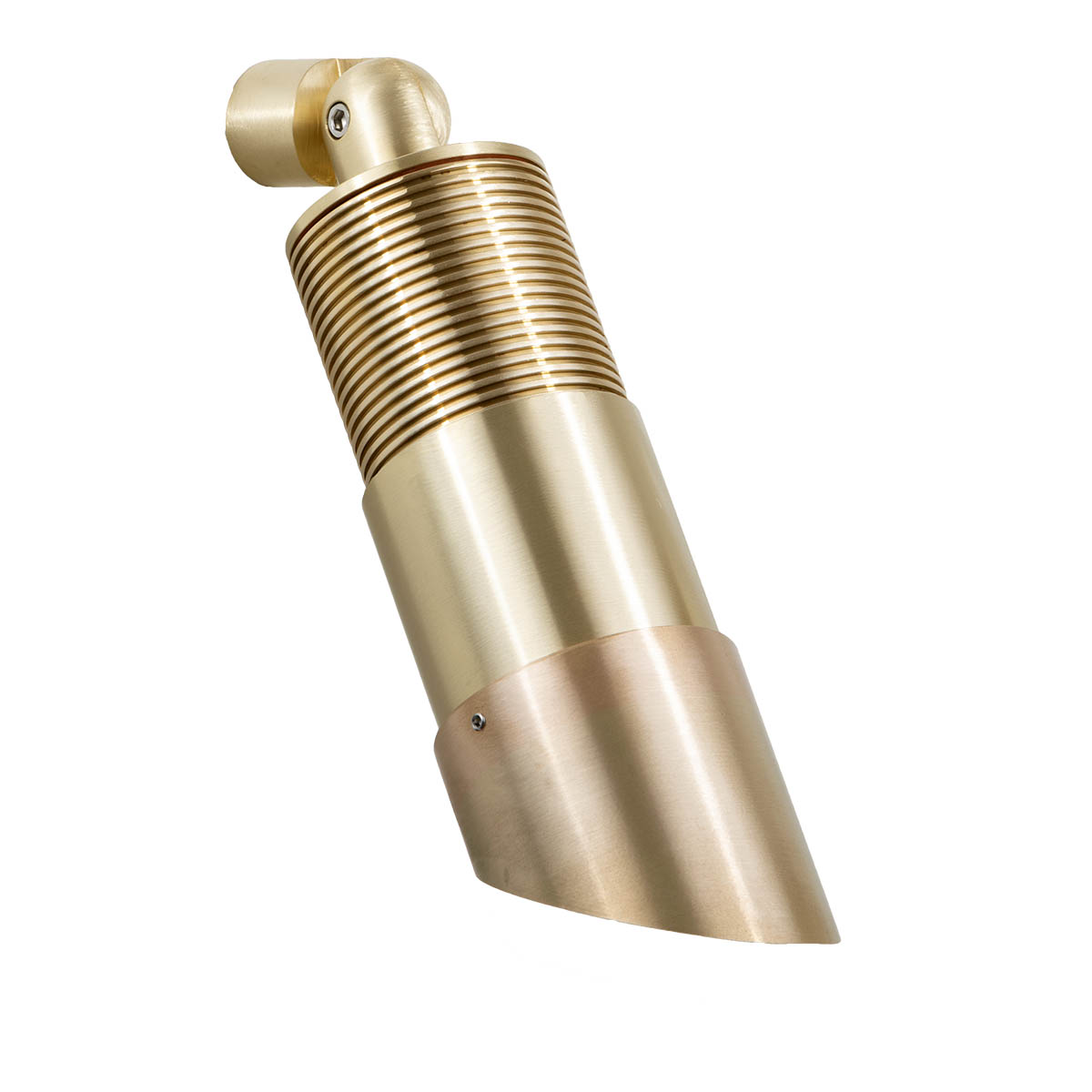

BGS9 | Brass glare shield, 45° cutoff |
GS2 | Heavy-duty ground spike |
GS2BC | Heavy-duty ground spike with cast brass cap |
GS4 | *Standard ground spike with cast brass cap |
JB | Cast brass round junction box |
SA | Sure Aim locking rotation accessory |

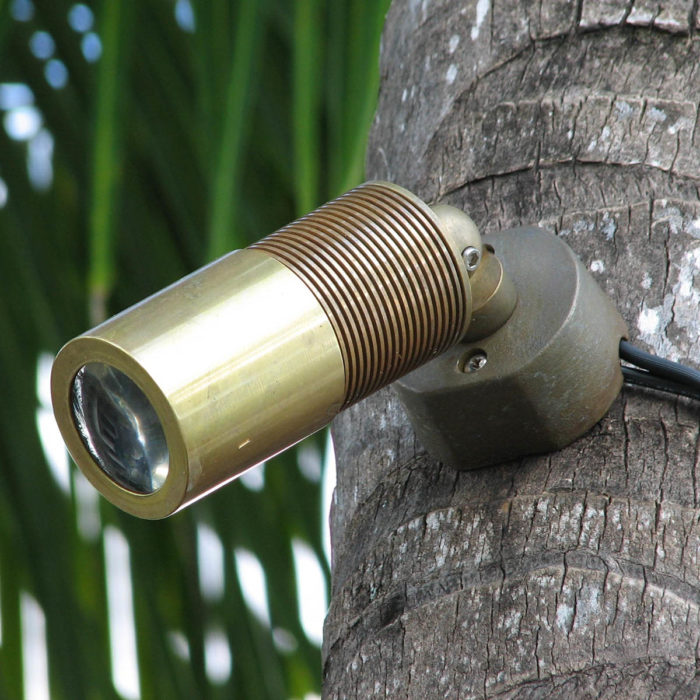

TDM1 | *Brass tree/deck mount with stainless steel screws |
TDM2 | *Brass tree mount with nylon strap (48″, 72″, or 96″) |
TDM2-SS | *Brass tree mount with stainless steel strap (48″, 72″, or 96″) |
TDM3 | *Brass low-profile deck/wall mount (SA accessory recommended) |
TDM4 | *Brass low-profile tree mount with notch for wire (SA accessory recommended) |
TMJB | Brass tree-mounted junction box, single fixture mount, stainless steel strap (48″, 72″, or 96″) |

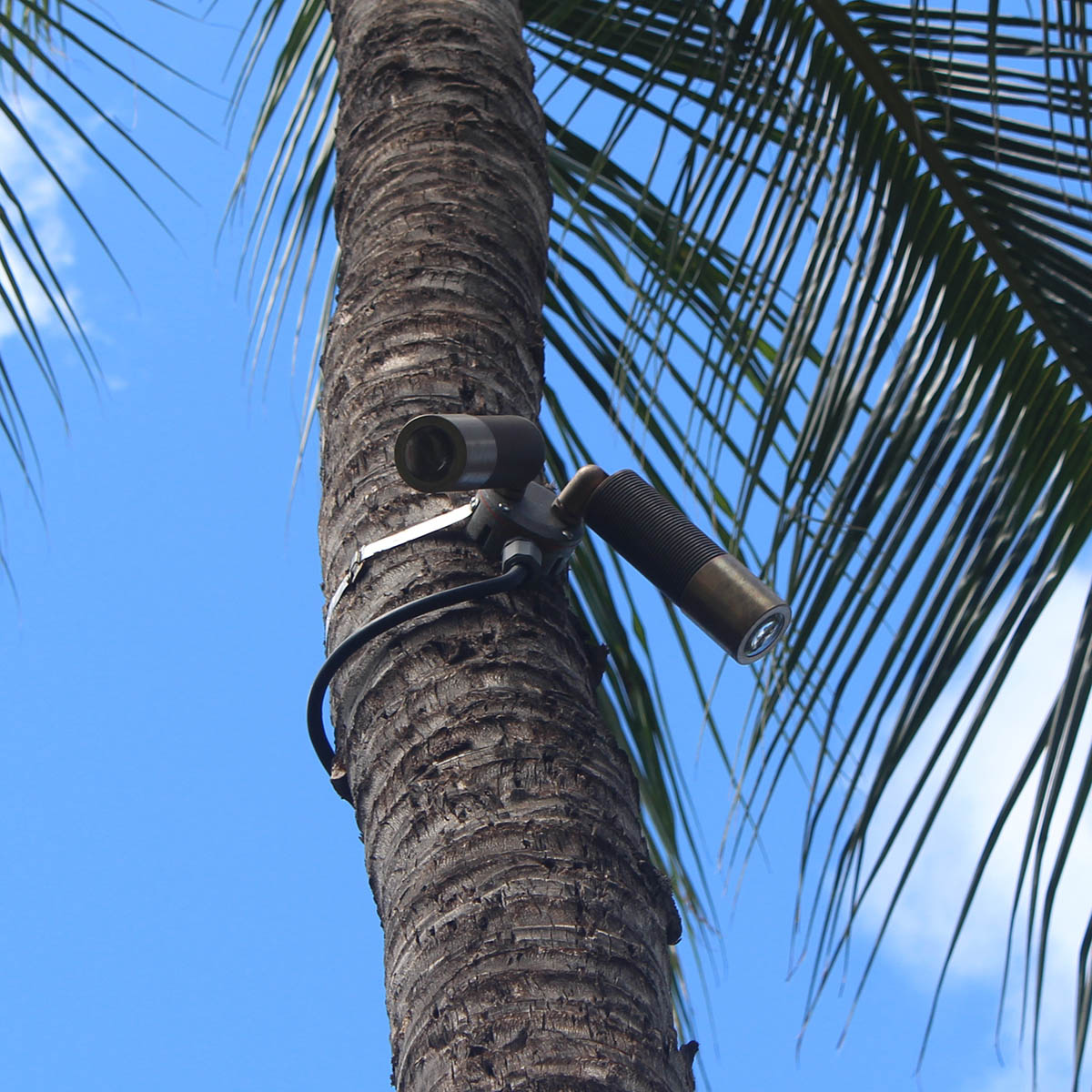

TMJB2 | Brass tree-mounted junction box, double fixture mount, stainless steel strap (48″, 72″, or 96″) |
TMJBX | Brass tree-mounted junction box, single fixture mount, stainless steel screws |
TMJB2X | Brass tree-mounted junction box, double fixture mount, stainless steel screws |
VTM | Brass rectangular junction box, direct mount or as part of VTM-PALM |
VTM-PALM | Set of up to four VTM junction boxes, stainless steel strap (70 or 88″), and wiring. See spec. sheet for details. |
*12 Volt only
Gobo Patterns
Standard gobo patterns shown below. Many custom patterns are available. See Other Patterns Here (specify Apollo part number).
