L-011-P-H
(12V MR16 LED)

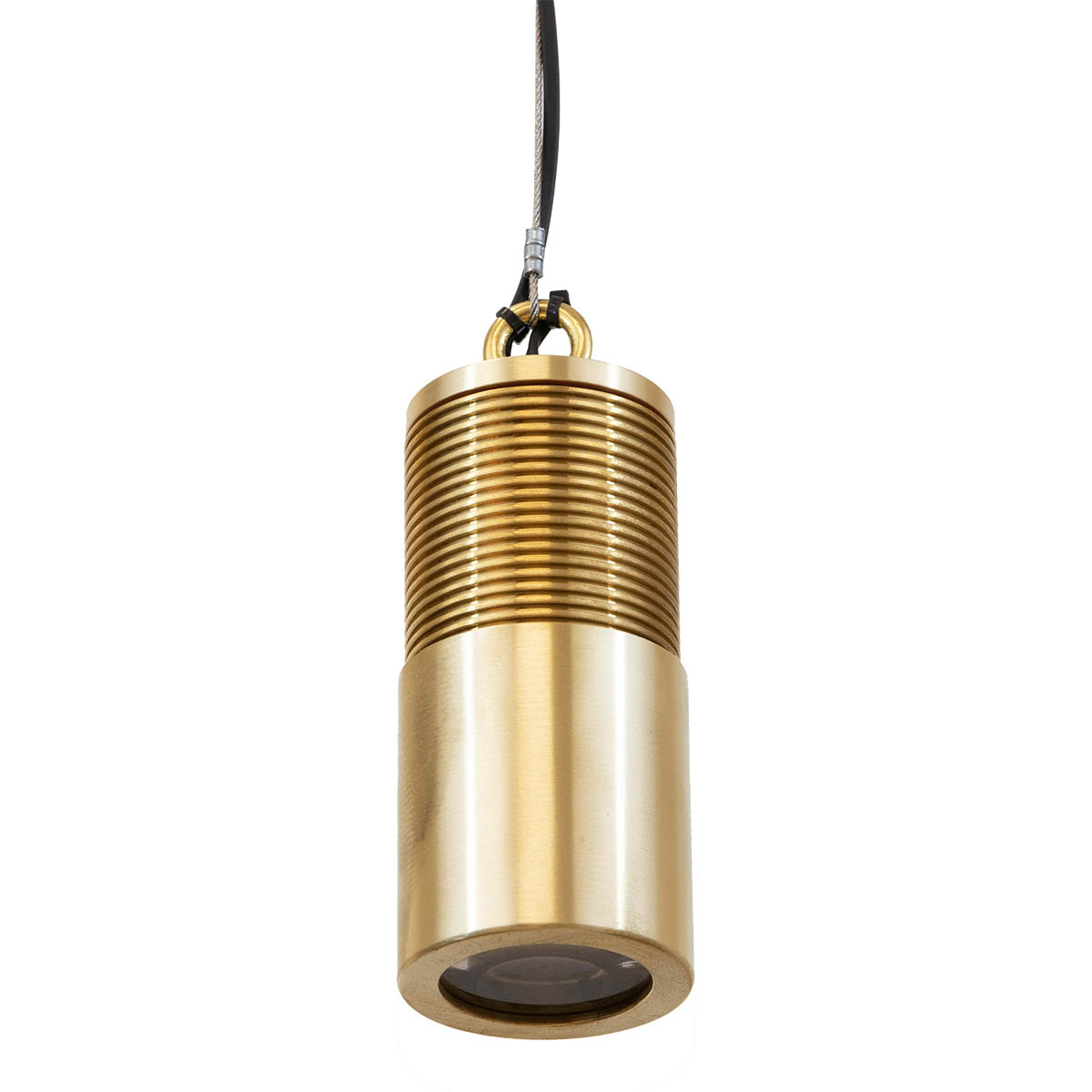

Brass Hanging Projection Downlight
- Fixture uses stainless steel gobos (51.5 mm overall diameter) to project a pattern onto ground
- Supplied with 20″ stainless steel cable, 36″ lead wire, and 1/2″ male fitting for mounting accessory
- Can also be hung directly by loop
- Remote transformer required
| Voltage | 12V AC |
| Lamps | MR16 LED |
| CCT | 2700K |
| 3000K | |
| Dimensions | 2.5″ dia. x 5.0″ (6.3 x 12.7 cm) |
Specifications
Instructions
Image Display Dimensions
Randall Whitehead Write-up in Residential Lighting
GU5.3 MR16 LED • Warm White
| 8W-NFL | 8 Watt (3000K) | 25° narrow flood |
| 8W-NFL-2700K | 8 Watt (2700K) | 25° narrow flood |
| BGS9 | Brass glare shield, 45° cutoff |
| CMK | Catenary cable mounting kit (Instructions) |
| TDM1 | Brass tree/deck mount with stainless steel screws |
| TDM2 | Brass tree mount with nylon strap (48″, 72″, or 96″) |
| TDM2SS | Brass tree mount with stainless steel strap (48″, 72″, or 96″) |
| TDM3-HANG | Brass low-profile deck/wall mount |
| TDM4-HANG | Brass low-profile tree mount with notches for wire |
| TMJB | Brass, tree-mounted junction box, single fixture mount, stainless steel strap (48″, 72″, or 96″) |
| TMJBX | Brass, tree-mounted junction box, single fixture mount, stainless steel screws |
Gobo Patterns
Standard gobo patterns shown below. Many custom patterns are available. See Other Patterns Here (specify Apollo part number).
AMPH
Amorphous
EP
Egyptian Palms
