L-012
(12V MR16 LED)

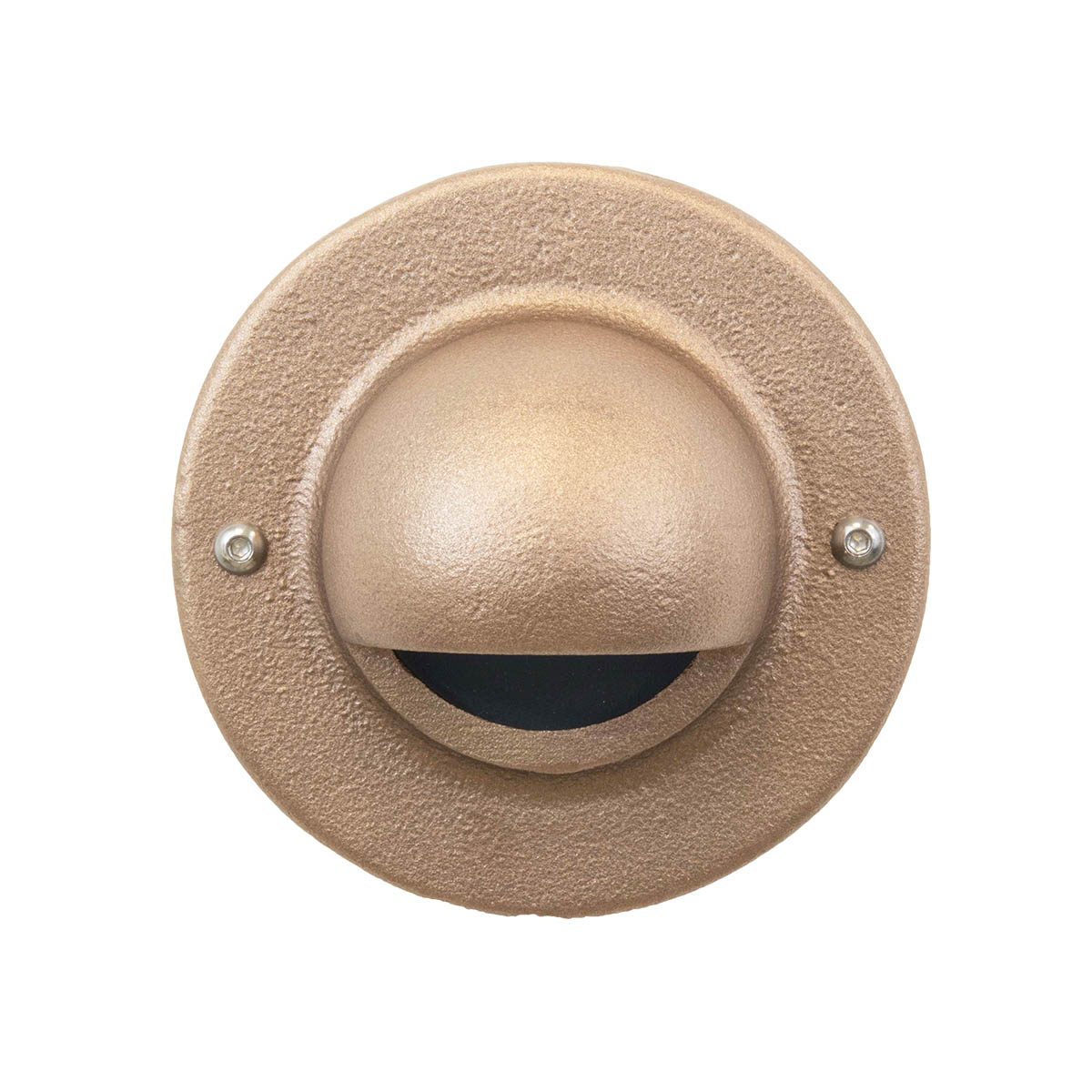

Recessed Cast Brass Steplight

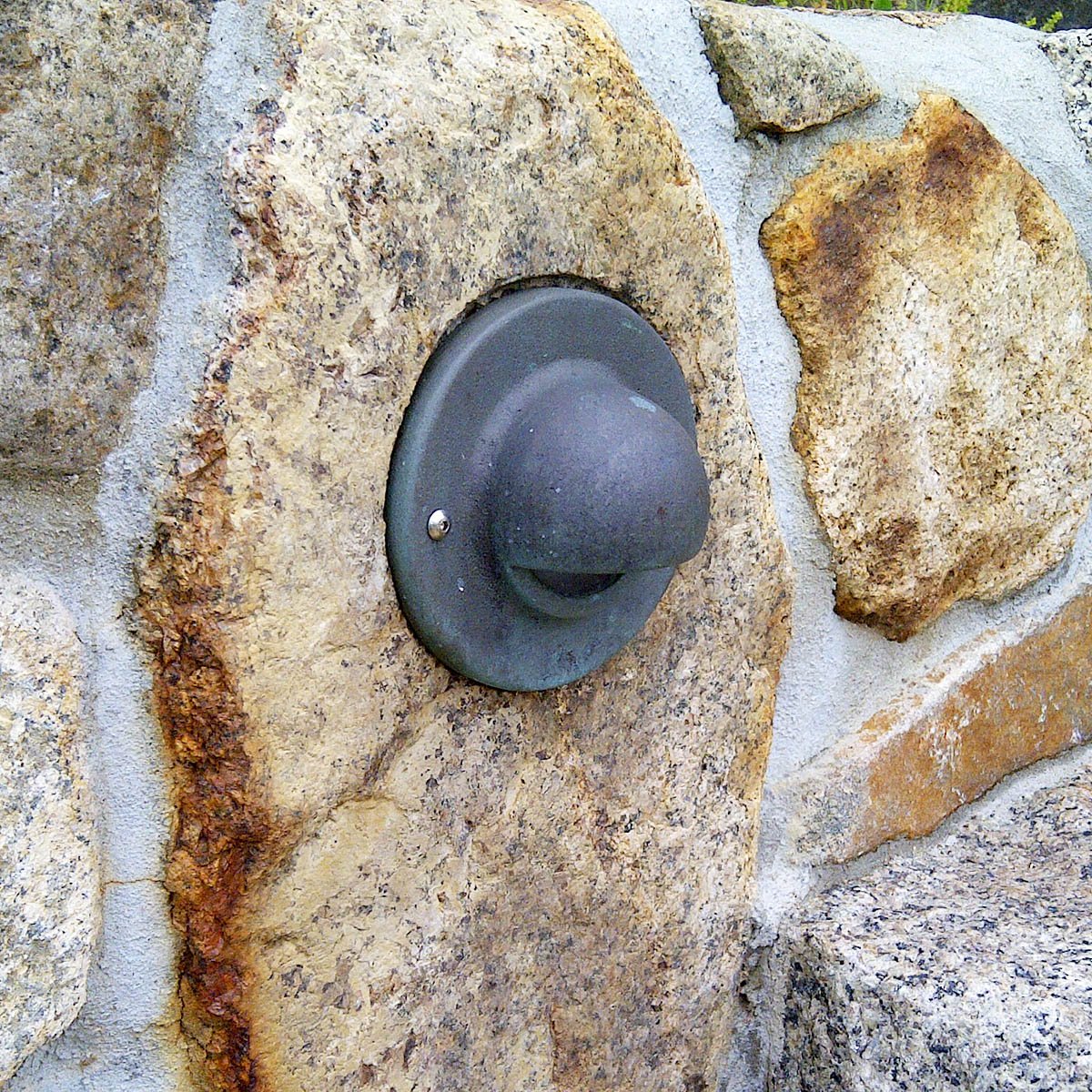

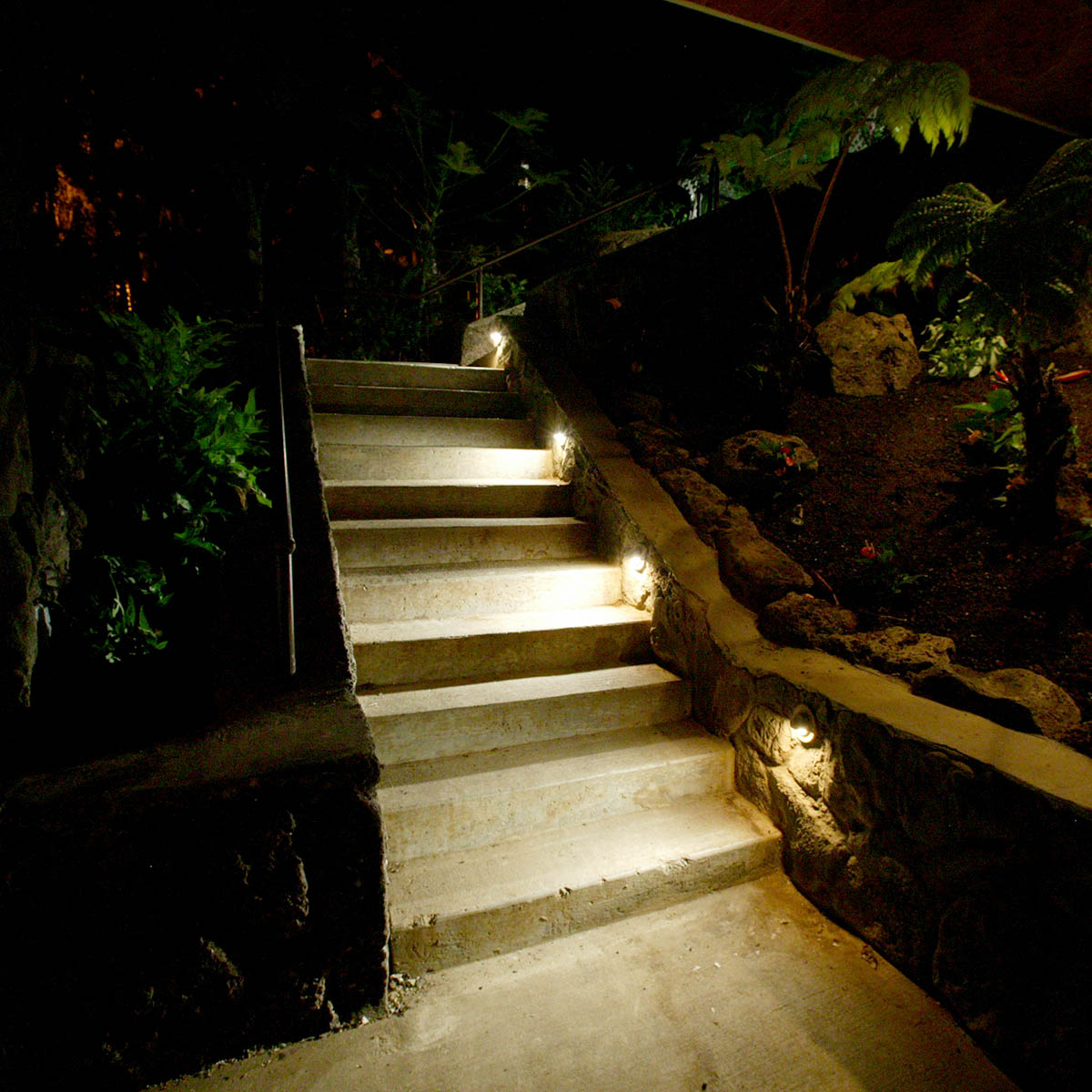

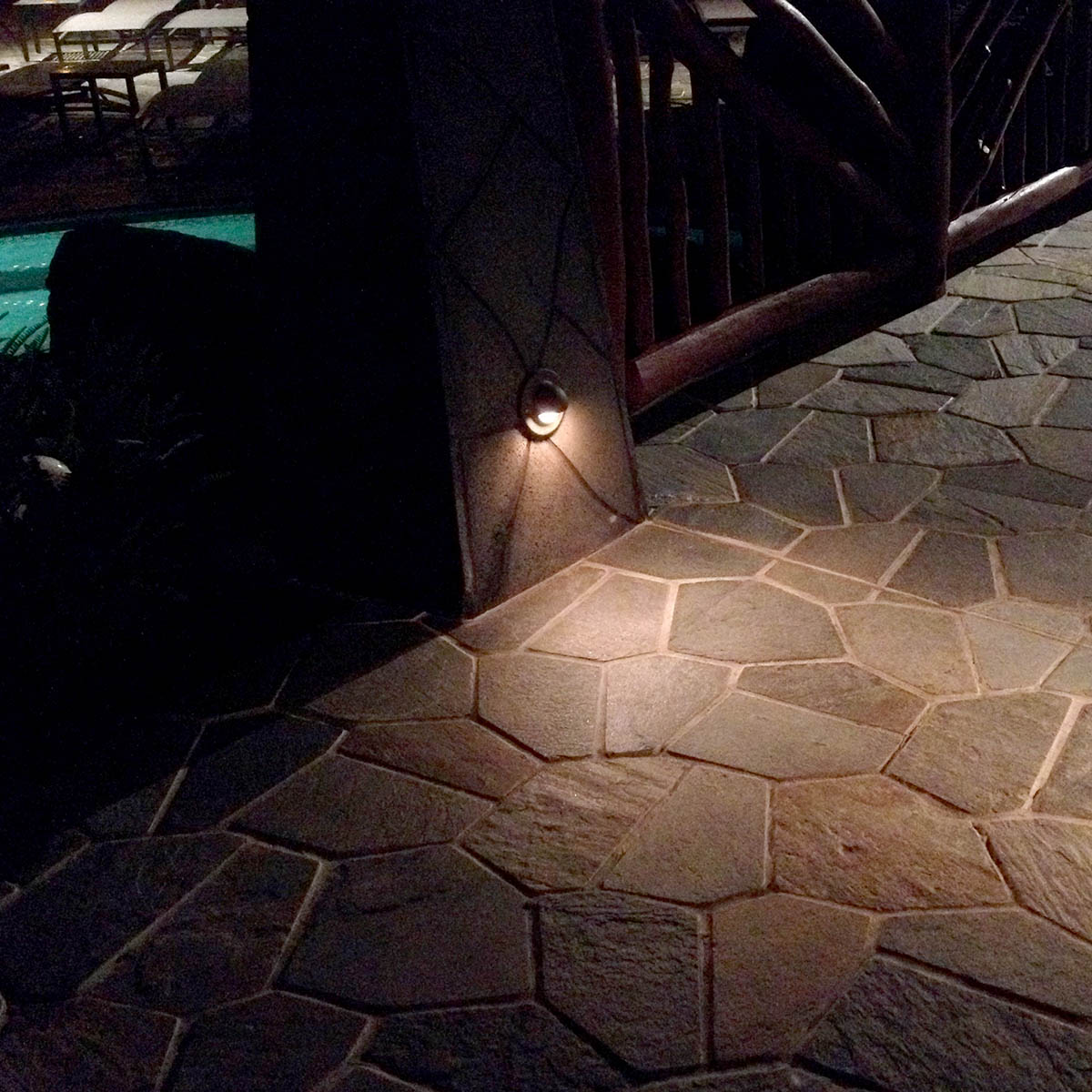

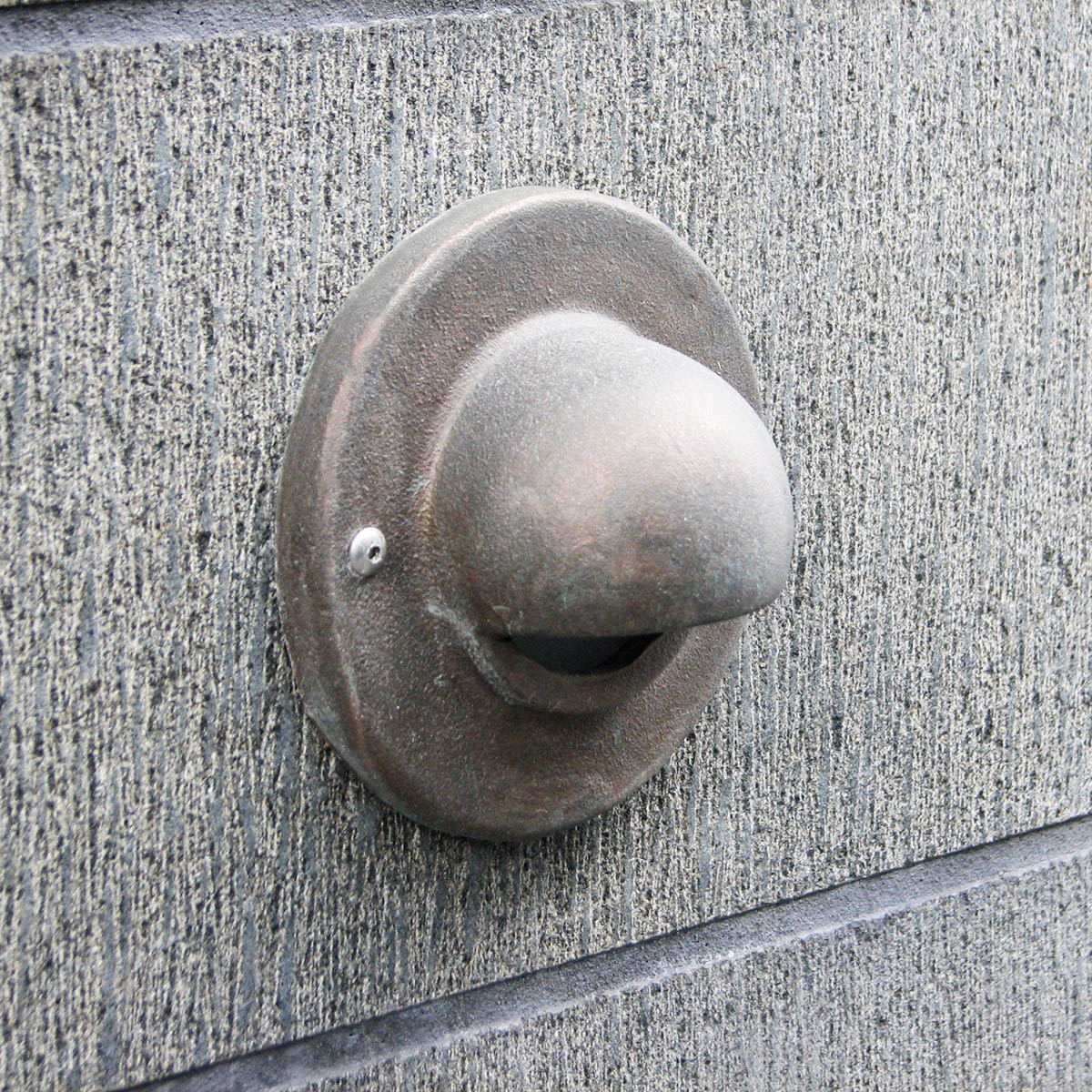

The L-012 is a recessed, low-voltage steplight that uses MR16 lamps and is available with clear, frosted, and rectilinear spread glass lenses.
- Remote transformer required
- Suitable for combustible and non-combustible mounting surfaces
- Suitable for indoor or outdoor use
| Voltage | 12V AC/DC |
| Lamps | MR16 LED |
| Lumens | 52 max |
| CCT | 1500 |
| 2700 | |
| 3000 | |
| Dimensions | Faceplate: 4.4″ dia. x 2.1″ extension (11.2 x 5.2 cm) Body: 2.4″ dia. x 2.1″ recessed depth (6.0 x 5.2 cm) |
| PVC rough-in housing: 2.9″ dia. x 5.1″ deep (7.3 x 13 cm) |
| CL | Clear glass |
| FR | Frosted glass |
| RT | Rectilinear spread lens |
Combustible surface installation and indoor use limited to 10 Watts max.
GU5.3 MR16 LED
AMBER (1500K, TURTLE FRIENDLY)*, Warm White (2700/3000K)**
| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
| 5W-SP | 5 Watt | 15° spot |
| 5W-NFL | 5 Watt | 25° narrow flood |
| 5W-FL | 5 Watt | 40° flood |
| 5W-FL/60 | 5 Watt | 60° flood |
| 5W-WFL | 5 Watt | 100° flood |
| 7W-FL/60 | 7 Watt | 60° flood |
| 8W-SP | 8 Watt | 10° spot |
| 8W-NFL | 8 Watt | 25° narrow flood |
| 8W-FL | 8 Watt | 36° flood |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“
