L-013-R-series
(12V G4 & MR16, 120V G9 & MR16)

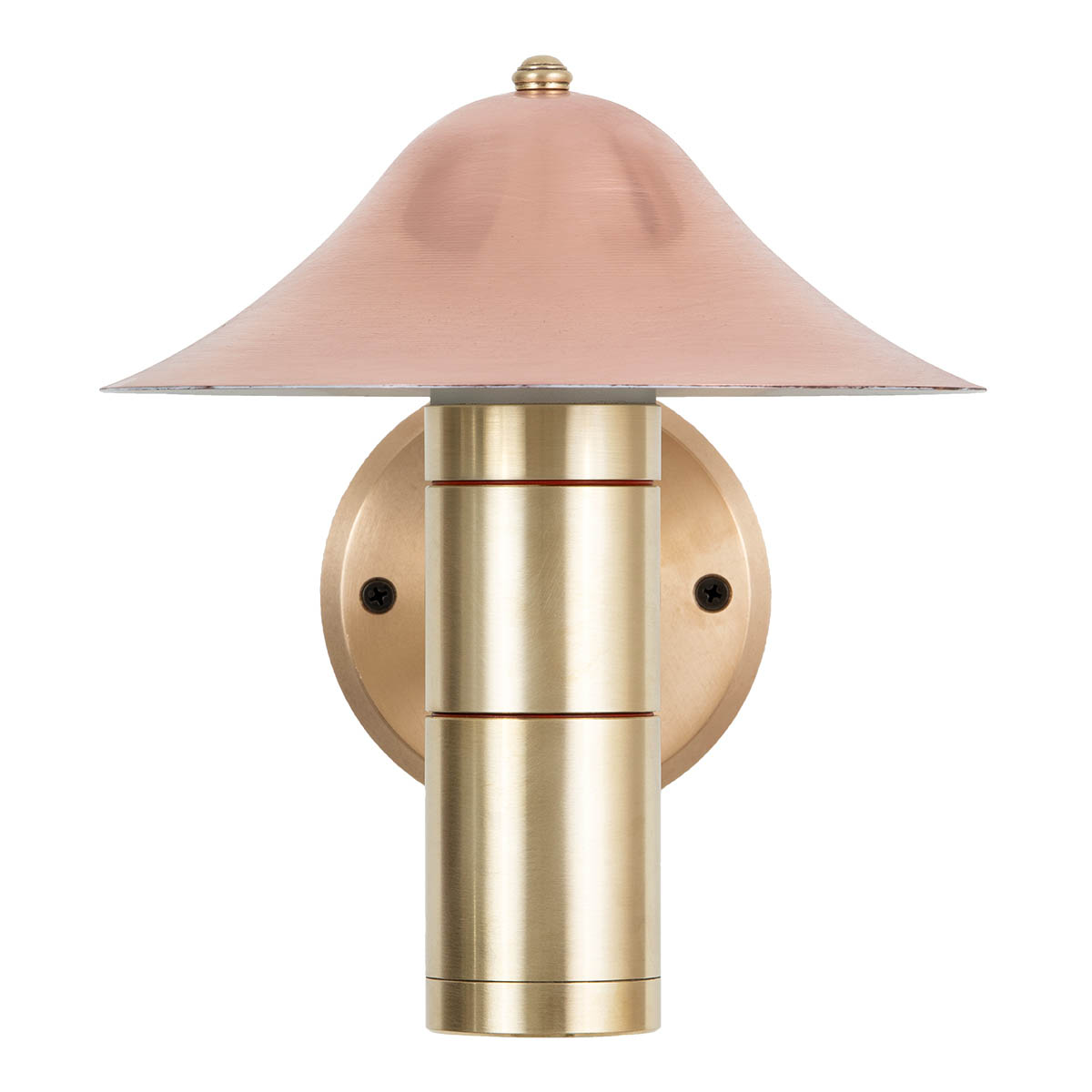

L-013-r3-s Architectural

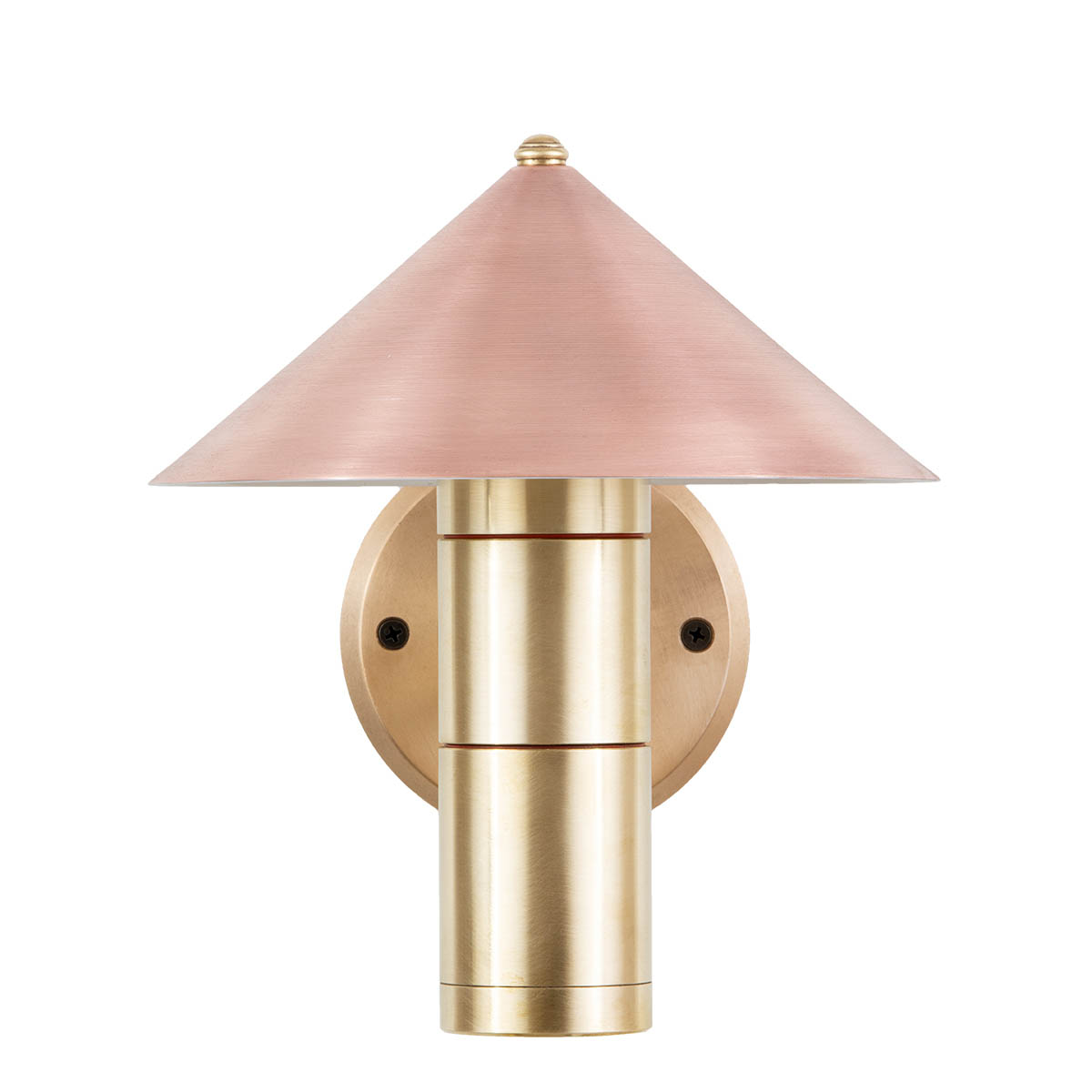

L-013-r3a-s Architectural

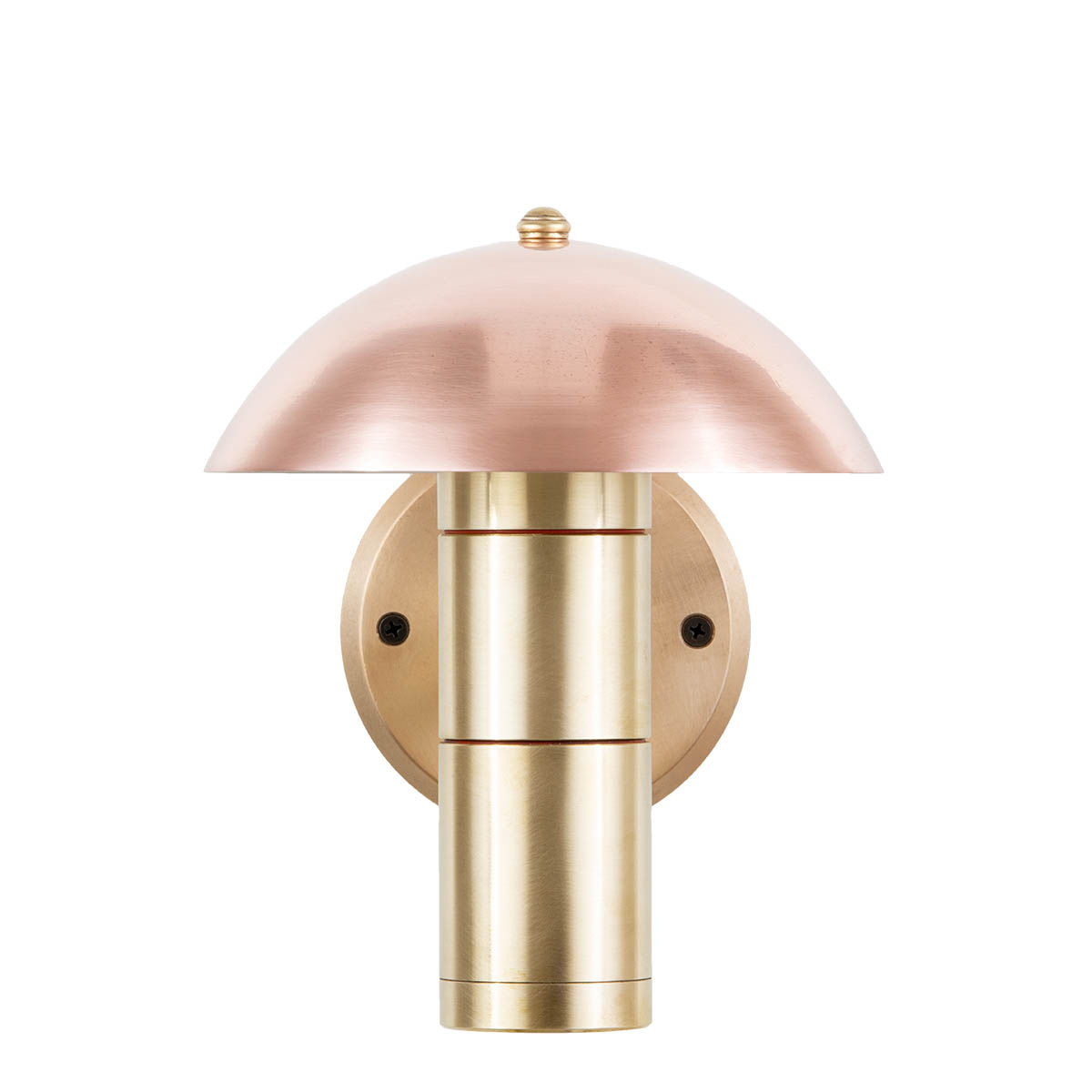

L-013-r5-s Architectural

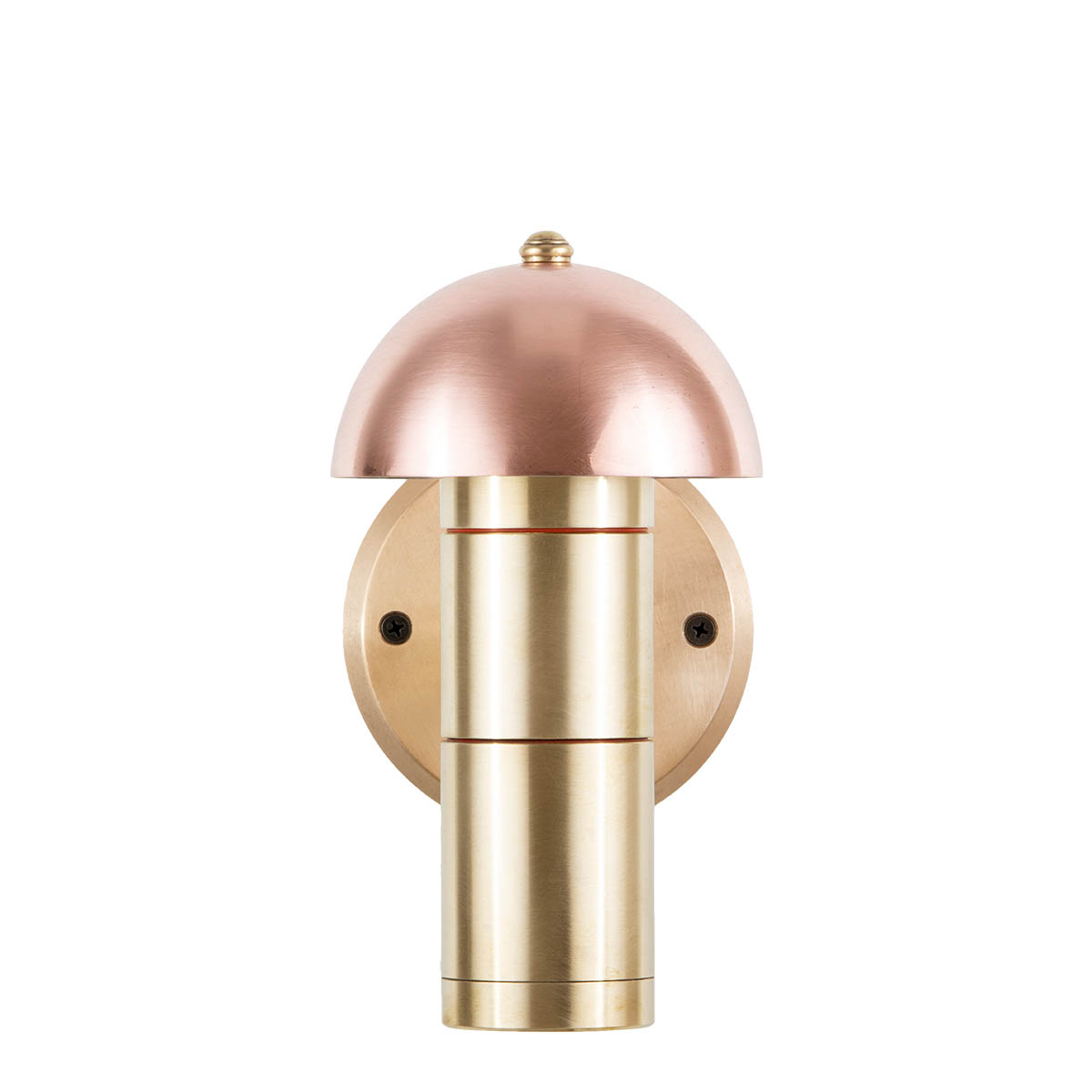

L-013-r5a-s Architectural

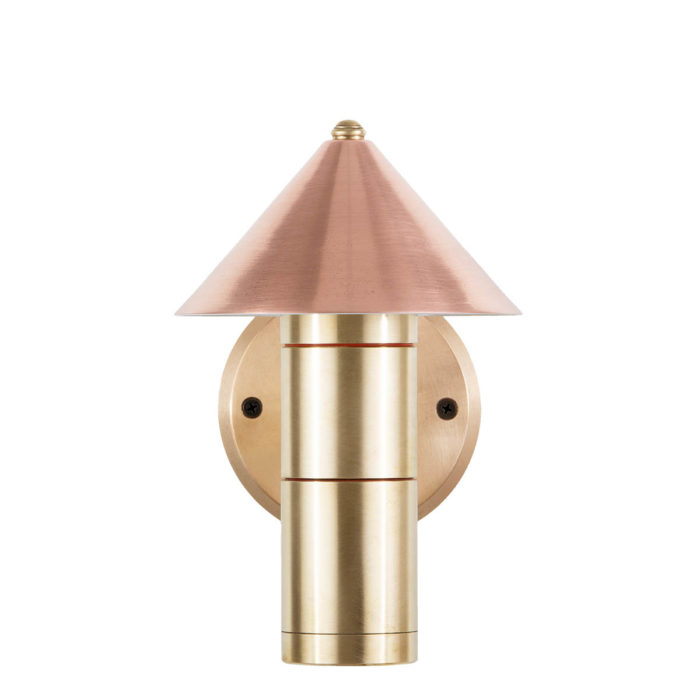

L-013-r7-s Architectural

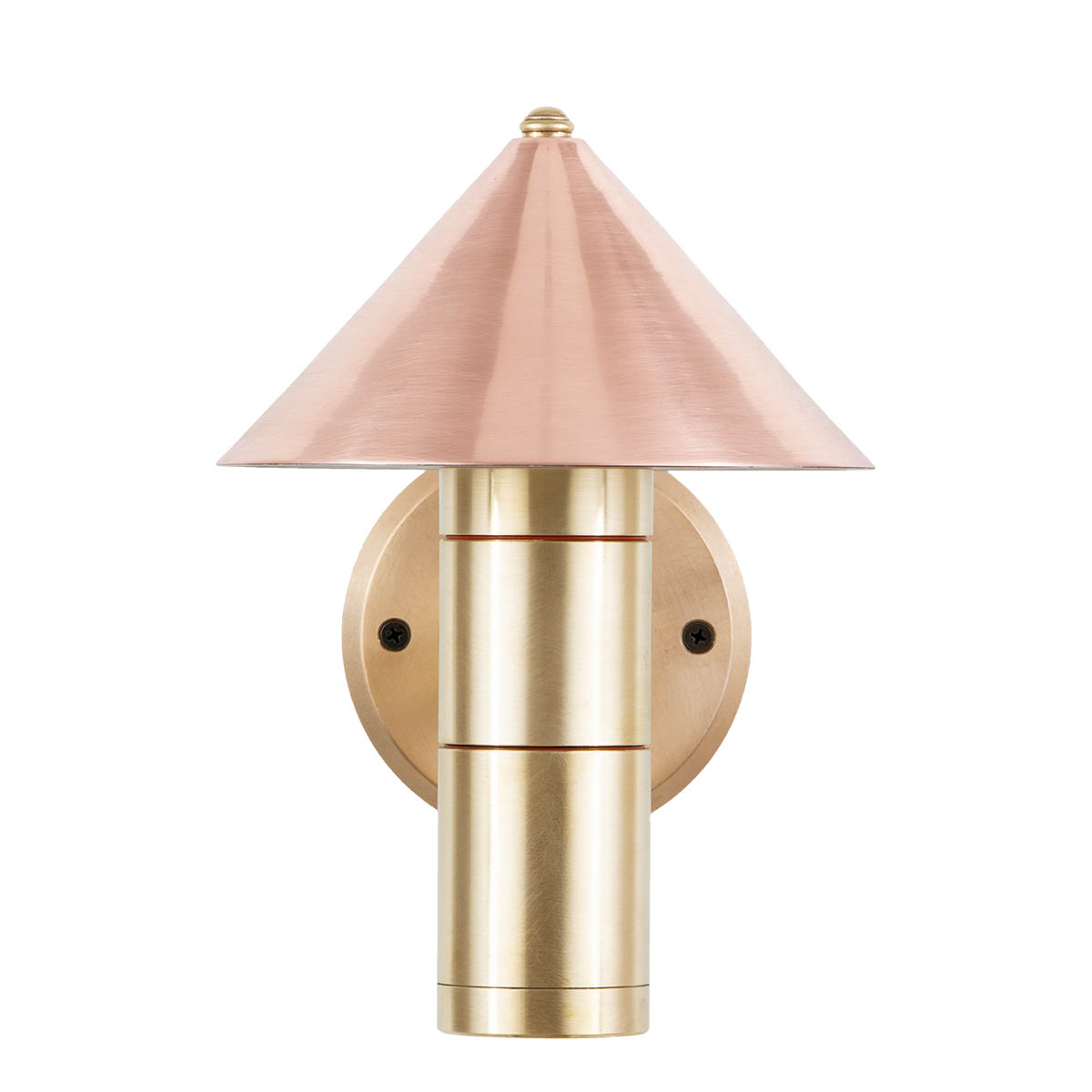

L-013-r8-s Architectural

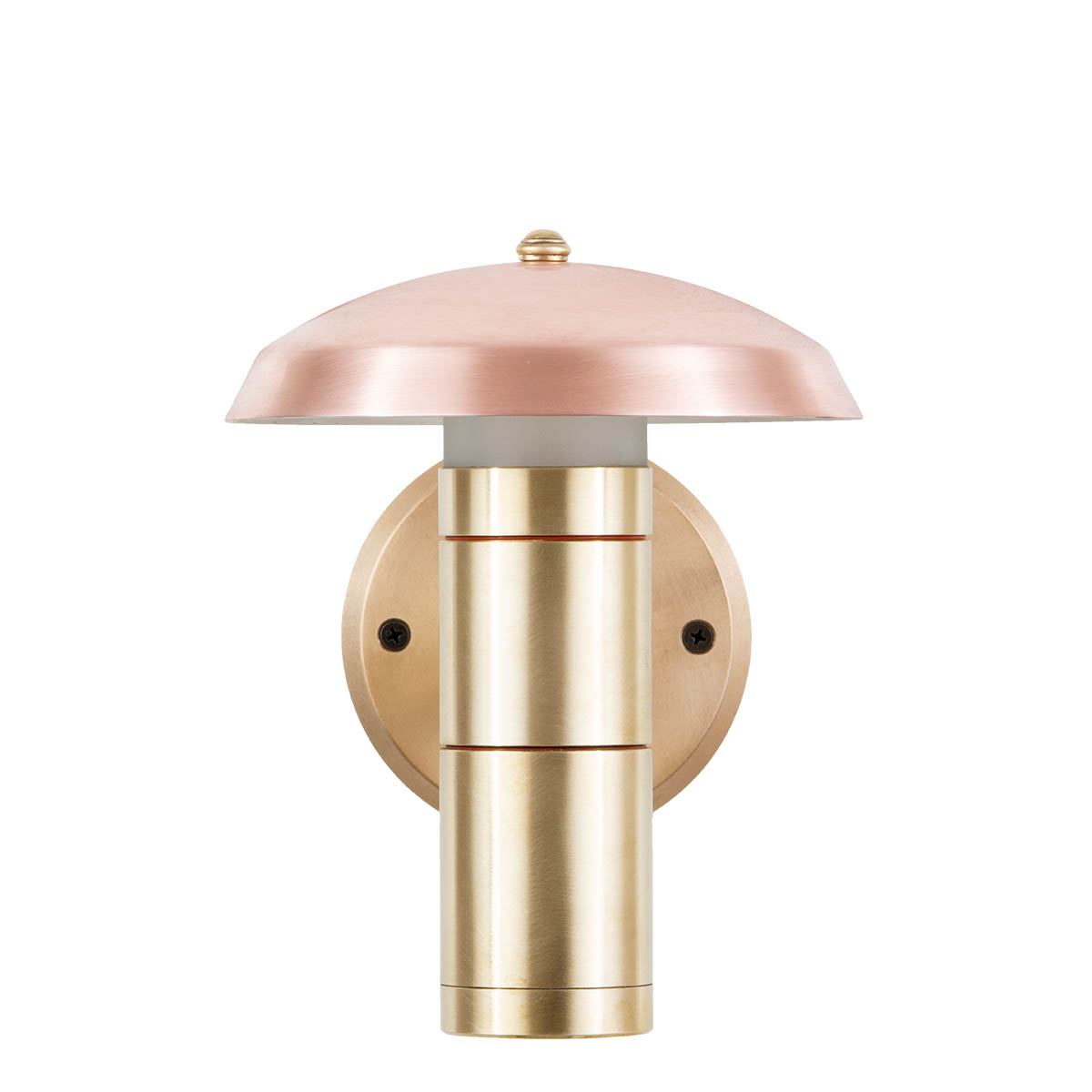

L-013-r19-s Architectural

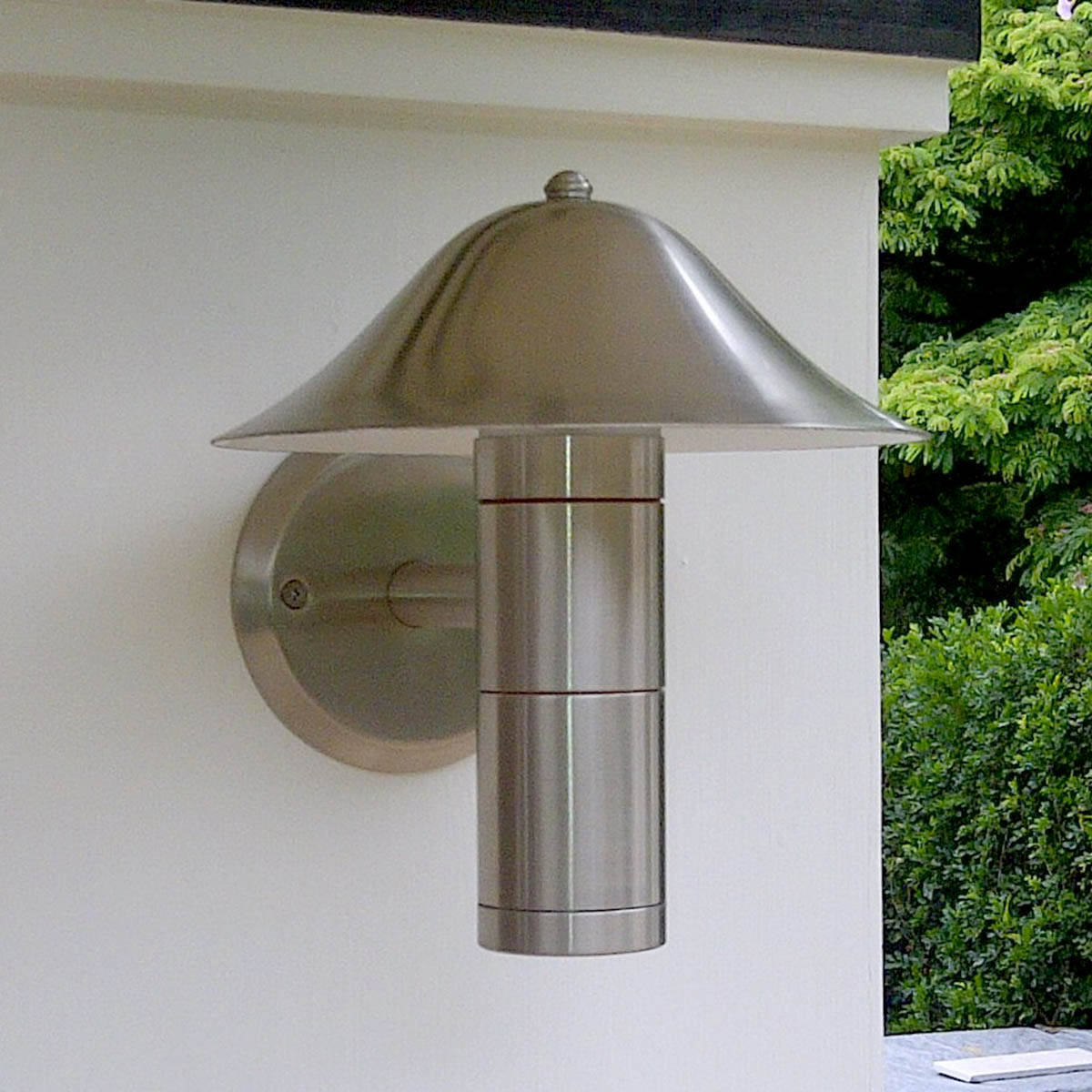

L-013-r3-s Nickel Architectural
L-013-r3a-s Architectural2

L-013-R-series
(12V G4 & MR16, 120V G9 & MR16)

Wall-Mounted Brass Up-/Downlight with Copper Shade

  • Remote transformer required for 12V
  • CSA Listed for US and Canada, file #190030
  • Certified for indoor (12V) or outdoor use
Voltage 12V, 120V
Lamps (12V) G4 LED, GU5.3 MR16 LED
Lamps (120V) G9 LED, GU10 MR16 LED
Lumens 525 max (bottom)
CCT 1300K
1400K
1500K
2700K
3000K
Dimensions R3: 9.0″ shade diameter x 9.6″ height (22.9 x 24.3 cm)

TOP LAMP — G4 LED

4W-A-G4 4 Watt Amber (1500K)
4W-G4-27 4 Watt Warm White (2700K)
4W-G4-30 4 Watt Warm White (3000K)

BOTTOM LAMP — GU5.3 MR16 LED
AMBER (1500K), Warm White (2700/3000K)*

5W-A-NFL 5 Watt Amber 25° narrow flood
5W-NFL 5 Watt 25° narrow flood
5W-FL 5 Watt 40° flood
5W-FL/60 5 Watt 60° flood
5W-WFL 5 Watt 100° flood
7W-FL/60 7 Watt 60° flood
8W-NFL 8 Watt 25° narrow flood
8W-FL 8 Watt 36° flood

* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“

TOP LAMP — G9 LED

3W-A-G9 3 Watt Amber (1400K)
4W-G9-27 4 Watt Warm White (2700K)
4W-G9-30 4 Watt Warm White (3000K)

BOTTOM LAMP — GU10 MR16 LED
AMBER (1300K), Warm White (2700/3000K)*

5W-A-NFL 5 Watt Amber 25° narrow flood
5W-NFL 5 Watt 25° narrow flood
5W-FL 5 Watt 35° flood
8W-NFL 8 Watt 25° narrow flood
8W-FL 8 Watt 36° flood
8W-WFL 8 Watt 60° wide flood

* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “8W-NFL-27-120V“

RS1260M 60-Watt transformer for LED applications (12V)
HL1 Honeycomb louver, 1/8” (3mm) thick  (bottom lamp only)
HL2 Honeycomb louver, 1/4” (6mm) thick  (bottom lamp only)

Optical Accessories
