L-013-S
(12V Integrated LED & MR16 LED, 120V/230V MR16 LED)

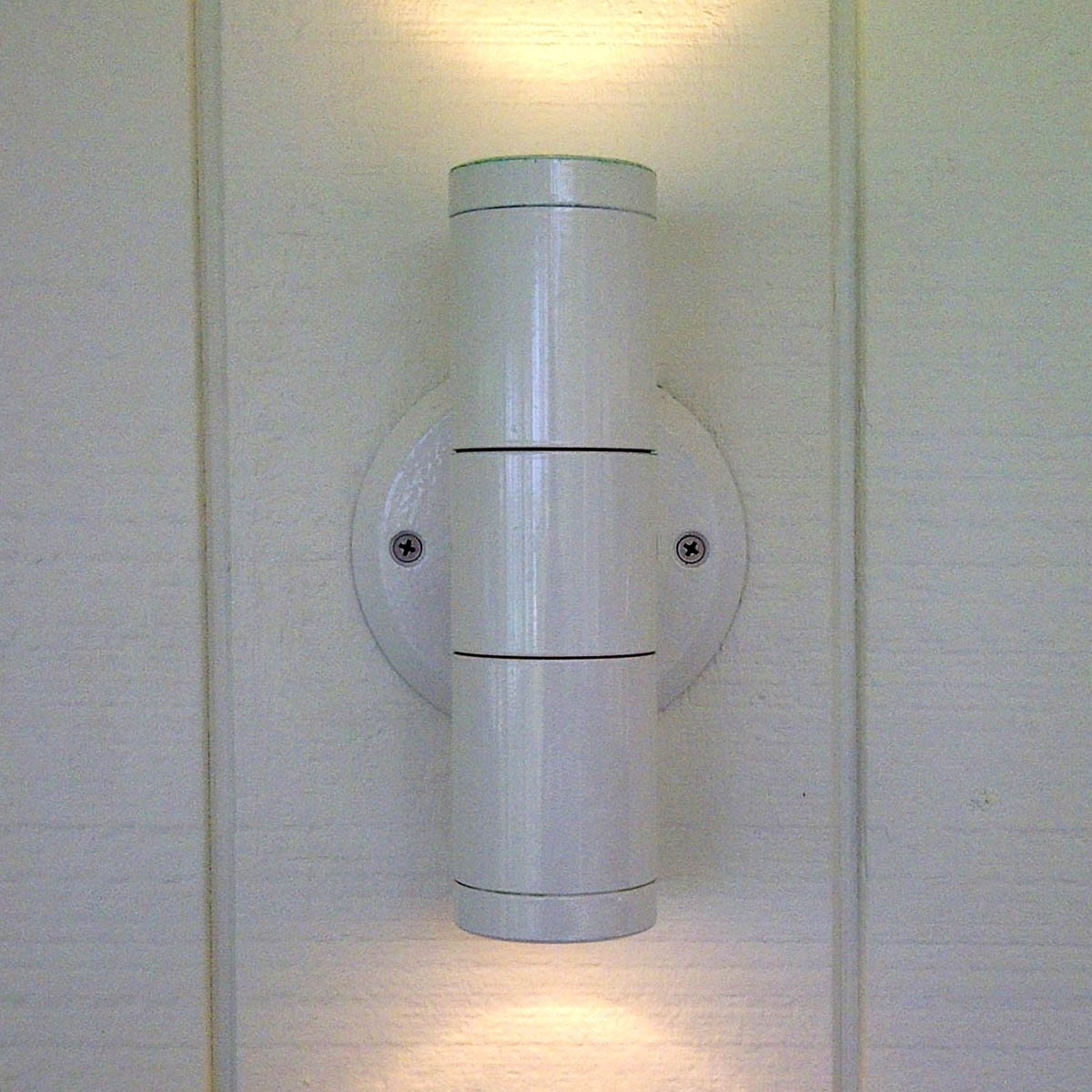

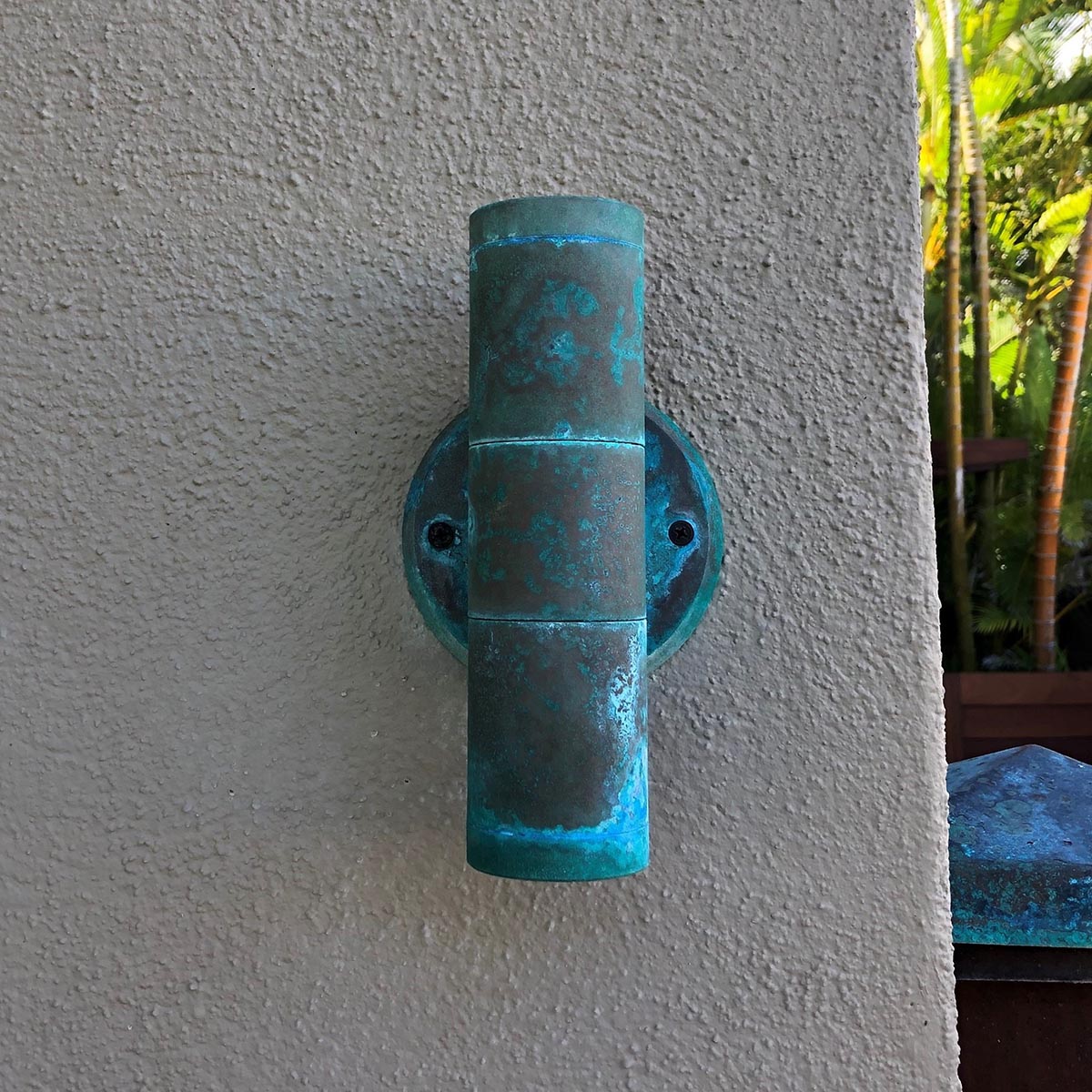

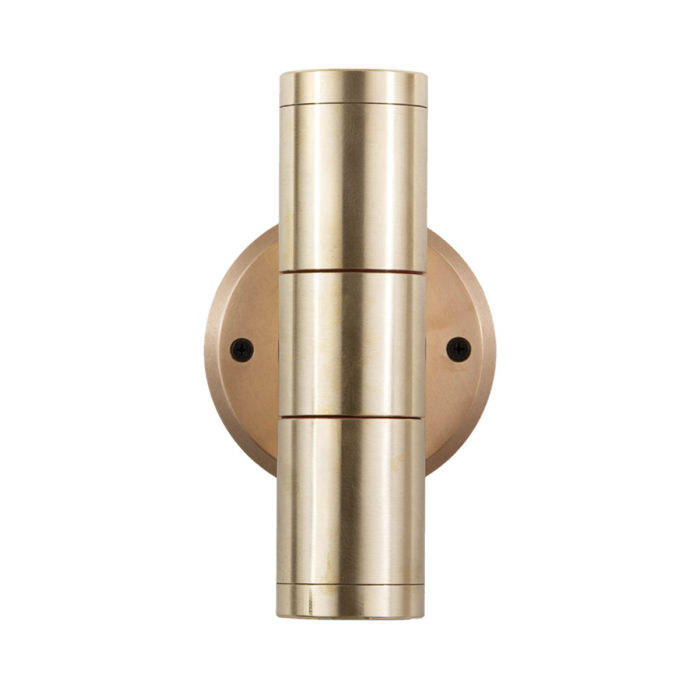

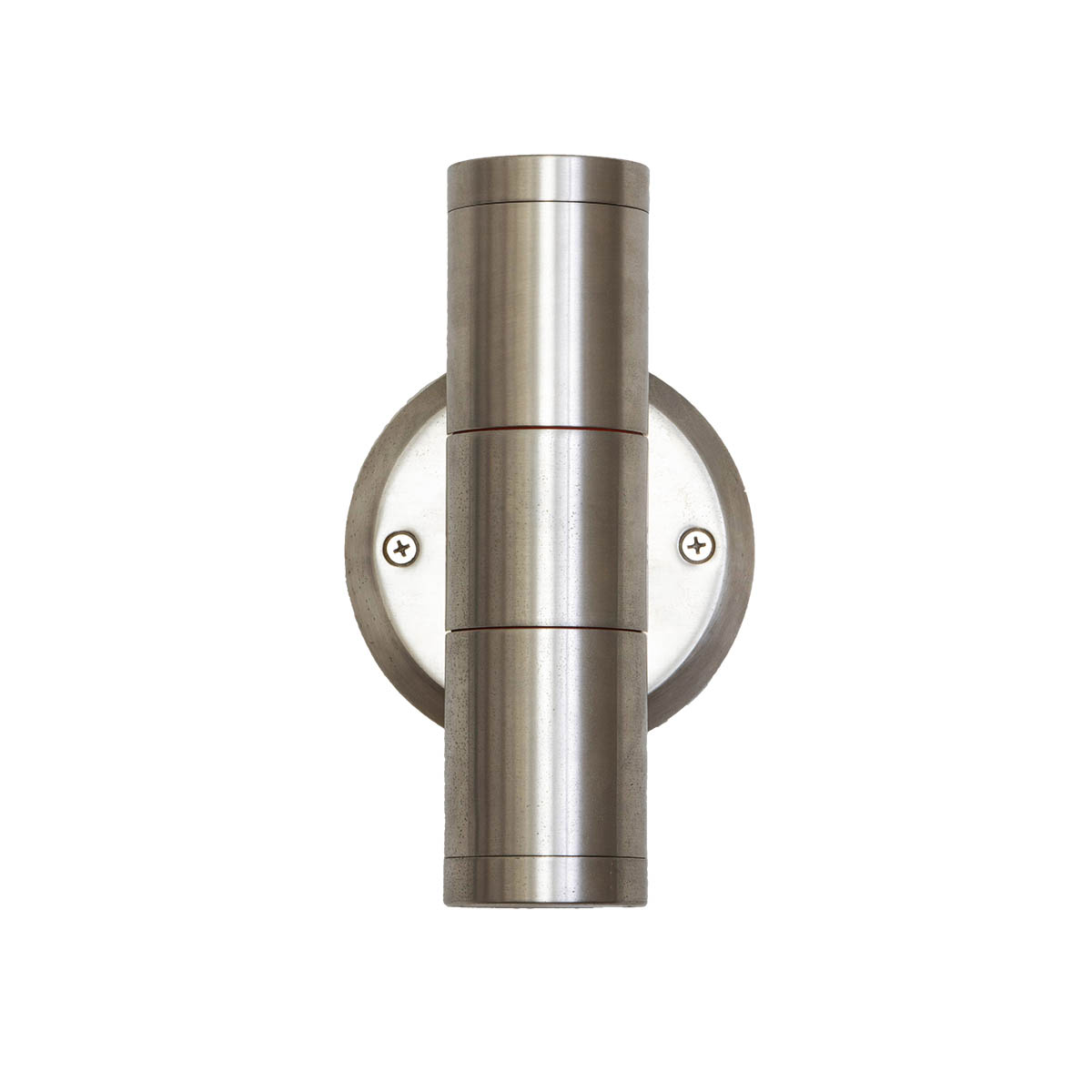

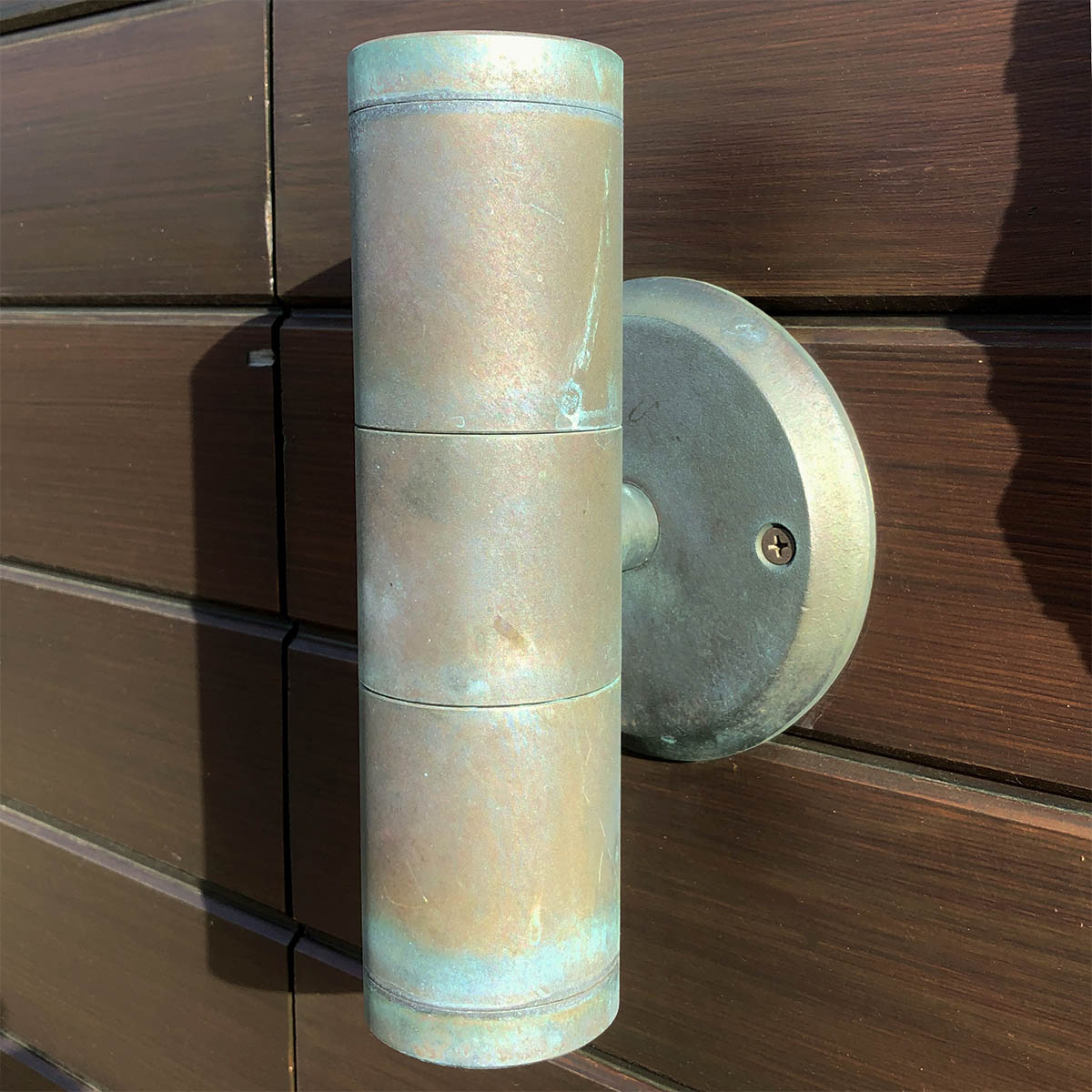

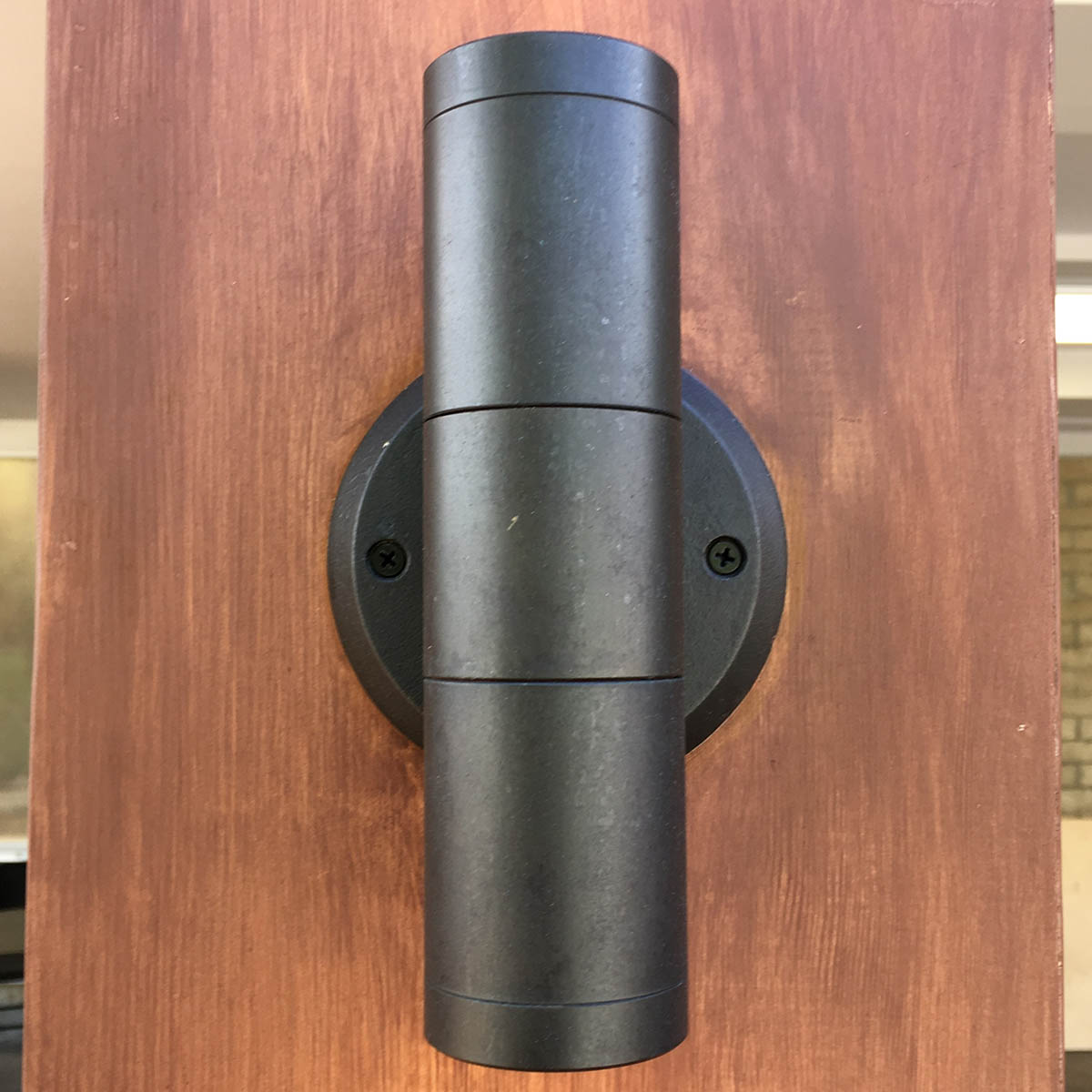

Wall-Mounted Brass Up-/Downlight
- Remote transformer required for 12V
- CSA Listed for US and Canada, file #190030
- Certified for indoor (12V) or outdoor use
Voltage | 12V, 120V, 230V |
Lamps | Integrated LED light engine, MR16 LED |
Lumens | 799 max (per lamp) |
CCT | 1000K |
1300K | |
1500K | |
2700K | |
3000K | |
Dimensions | 8.5″/21.6 cm tall (MR16), 10″/25.3 cm tall (light engine) |
2.4″ dia lamp body x 3.7″ extension from wall (6 x 9.3 cm) |
Specifications
12V Instructions
120V Instructions
Brass Crossbar (for standard round and 4.75″ square canopies only)
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Triple Chip Light Engine
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
5- & 7-Watt 12V GU5.3 MR16 (Dauer) Information with Dimmer / Transformer Compatibility
8-Watt 12V GU5.3 MR16 (Soraa) Information with Dimmer / Transformer Compatibility
8-Watt 120V GU10 MR16 (Soraa) Information with Dimmer Compatibility
Integrated LED Light Engine
Triac dimmable: MLV >1% typ, ELV >5% typ
Cree XPE2: AMBER (1500K), RED-ORANGE (1000K)
7W-A-SP | 7 Watt Amber | 10° spot |
7W-A-NFL | 7 Watt Amber | 30° narrow flood |
7W-A-FL | 7 Watt Amber | 60° flood |
8W-RO-SP | 8 Watt Red-Orange | 10° spot |
8W-RO-NFL | 8 Watt Red-Orange | 30° narrow flood |
8W-RO-FL | 8 Watt Red-Orange | 60° flood |
Cree XPG3 LED: High CRI 11-Watt Warm White, adjustable output
2700K
11W-927-SP | 11 Watt | 10° spot |
11W-927-NFL | 11 Watt | 30° narrow flood |
11W-927-FL | 11 Watt | 60° flood |
3000K
11W-930-SP | 11 Watt | 10° spot |
11W-930-NFL | 11 Watt | 30° narrow flood |
11W-930-FL | 11 Watt | 60° flood |
GU5.3 MR16 LED
AMBER (1500K), Warm White (2700/3000K)*
5W-A-NFL | 5 Watt Amber | 25° narrow flood |
5W-SP | 5 Watt | 15° spot |
5W-NFL | 5 Watt | 25° narrow flood |
5W-FL | 5 Watt | 40° flood |
5W-FL/60 | 5 Watt | 60° flood |
5W-WFL | 5 Watt | 100° flood |
7W-FL/60 | 7 Watt | 60° flood |
8W-SP | 8 Watt | 10° spot |
8W-NFL | 8 Watt | 25° narrow flood |
8W-FL | 8 Watt | 36° flood |
* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“
GU10 MR16 LED
AMBER (1300K), Warm White (2700/3000K)*
5W-A-NFL | 5 Watt Amber | 25° narrow flood |
5W-NFL | 5 Watt | 25° narrow flood |
5W-FL | 5 Watt | 35° flood |
8W-SP | 8 Watt | 10° spot |
8W-NFL | 8 Watt | 25° narrow flood |
8W-FL | 8 Watt | 36° flood |
8W-WFL | 8 Watt | 60° wide flood |
* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “8W-NFL-27-120V“
SQ | 4.75″ (12.1cm) Square canopy substitution for standard round canopy |

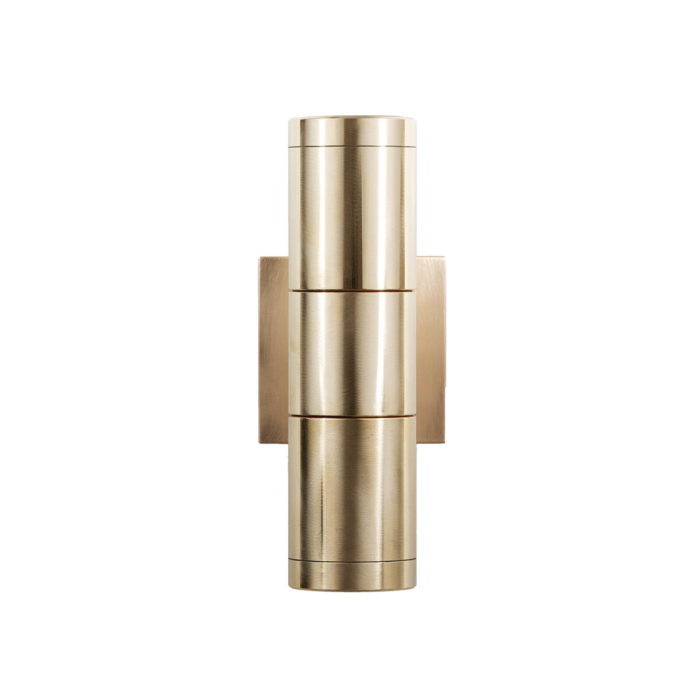

SQ-3.5 | 3.5″ (8.9cm) Small square canopy substitution for standard round canopy |
FR | Frosted lens |
HL1 | Honeycomb louver, 1/8” (3mm) thick |
HL2 | Honeycomb louver, 1/4” (6mm) thick |
KP-WP | Extended 1″ snoot with weep hole |
PR | Prismatic spread lens |
RT | Rectilinear spread lens |
SL | Solite lens |
