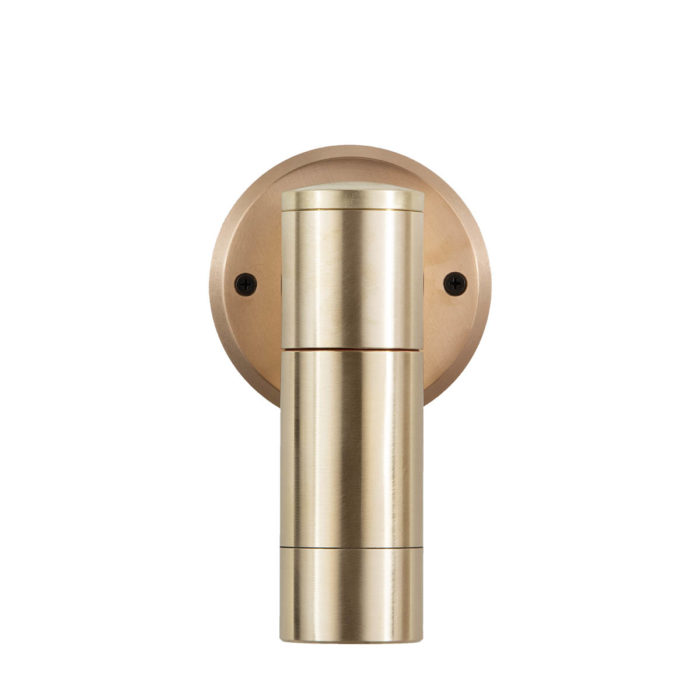

L-014-s-kp Architectural
L-014-s-sq-3 5 Architectural
L-014-s-sq-3 5-kp Architectural
L-014-s-fin-db Architectural
L-014-s-fin-db Architectural2
L-014-s Architectural2
L-014-s Architectural4
L-014-s Architectural3
L-014-s Architectural5

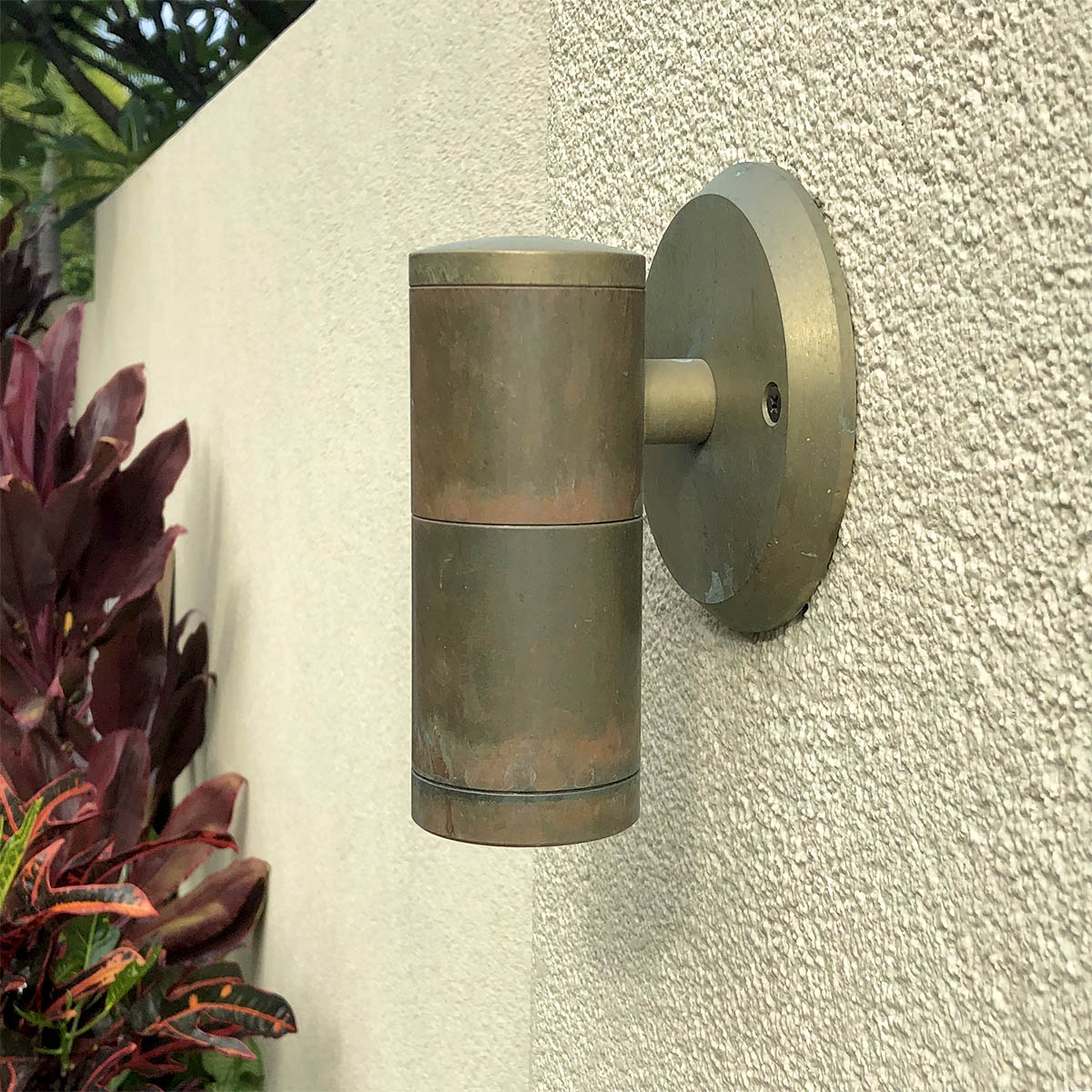

L-014-s Side Architectural

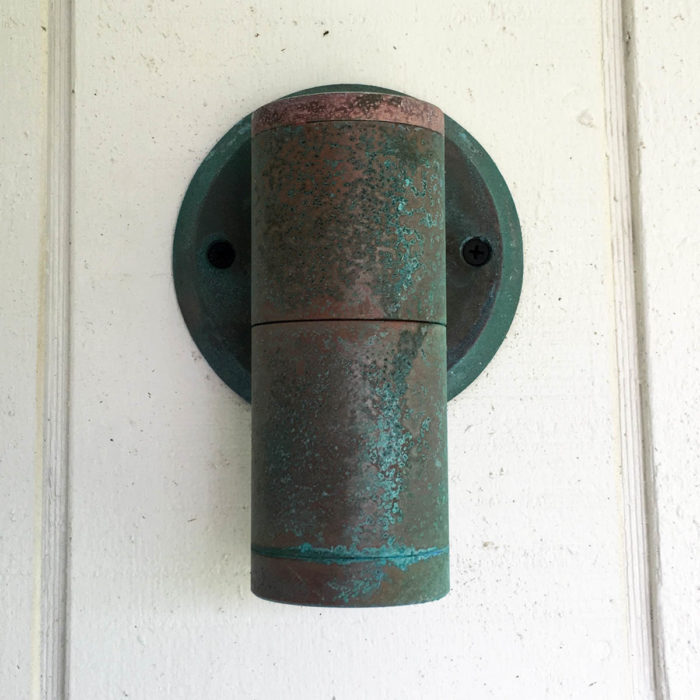

L-014-s Architectural6

L-014-S
(12V Integrated LED & MR16 LED, 120V/230V MR16 LED)

Wall-Mounted Brass Downlight

  • Remote transformer required for 12V
  • CSA Listed for US and Canada, file #190030
  • Certified for indoor (12V) or outdoor use
Voltage 12V, 120V, 230V
Lamps Integrated LED light engine, MR16 LED
Lumens 799 max
CCT 1000K
1300K
1500K
2700K
3000K
Dimensions 5.9″/14.9 cm tall (MR16), 6.6″/16.8 cm tall (light engine)
2.4″ dia lamp body x 3.7″ extension from wall (6 x 9.3 cm)



Integrated LED Light Engine
Triac dimmable: MLV >1% typ, ELV >5% typ

Cree XPE2: AMBER (1500K)*, RED-ORANGE (1000K)*
TURTLE FRIENDLY

7W-A-SP 7 Watt Amber 10° spot
7W-A-NFL 7 Watt Amber 30° narrow flood
7W-A-FL 7 Watt Amber 60° flood
8W-RO-SP 8 Watt Red-Orange 10° spot
8W-RO-NFL 8 Watt Red-Orange 30° narrow flood
8W-RO-FL 8 Watt Red-Orange 60° flood

Cree XPG3 LED: High CRI 11-Watt Warm White, adjustable output
2700K

11W-927-SP 11 Watt 10° spot
11W-927-NFL 11 Watt 30° narrow flood
11W-927-FL 11 Watt 60° flood

3000K

11W-930-SP 11 Watt 10° spot
11W-930-NFL 11 Watt 30° narrow flood
11W-930-FL 11 Watt 60° flood

GU5.3 MR16 LED
AMBER (1500K, TURTLE FRIENDLY)*, Warm White (2700/3000K)**

5W-A-NFL 5 Watt Amber 25° narrow flood
5W-SP 5 Watt 15° spot
5W-NFL 5 Watt 25° narrow flood
5W-FL 5 Watt 40° flood
5W-FL/60 5 Watt 60° flood
5W-WFL 5 Watt 100° flood
7W-FL/60 7 Watt 60° flood
8W-SP 8 Watt 10° spot
8W-NFL 8 Watt 25° narrow flood
8W-FL 8 Watt 36° flood

* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“

GU10 MR16 LED
AMBER (1300K, TURTLE FRIENDLY)*, Warm White (2700/3000K)**

5W-A-NFL 5 Watt AMBER 25° narrow flood
5W-NFL 5 Watt 25° narrow flood
5W-FL 5 Watt 35° flood
8W-SP 8 Watt 10° spot
8W-NFL 8 Watt 25° narrow flood
8W-FL 8 Watt 36° flood
8W-WFL 8 Watt 60° wide flood

* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “8W-NFL-27-120V“

SQ 4.75″ (12.1cm) Square canopy substitution for standard round canopy
SQ-3.5 3.5″ (8.9cm) Small square canopy substitution for standard round canopy
FR Frosted lens
HL1 Honeycomb louver, 1/8” (3mm) thick
HL2 Honeycomb louver, 1/4” (6mm) thick
KP Extended 1″ snoot
PR Prismatic spread lens
RT Rectilinear spread lens
SL Solite lens

Optical Accessories

Mounting Accessories – Wall
