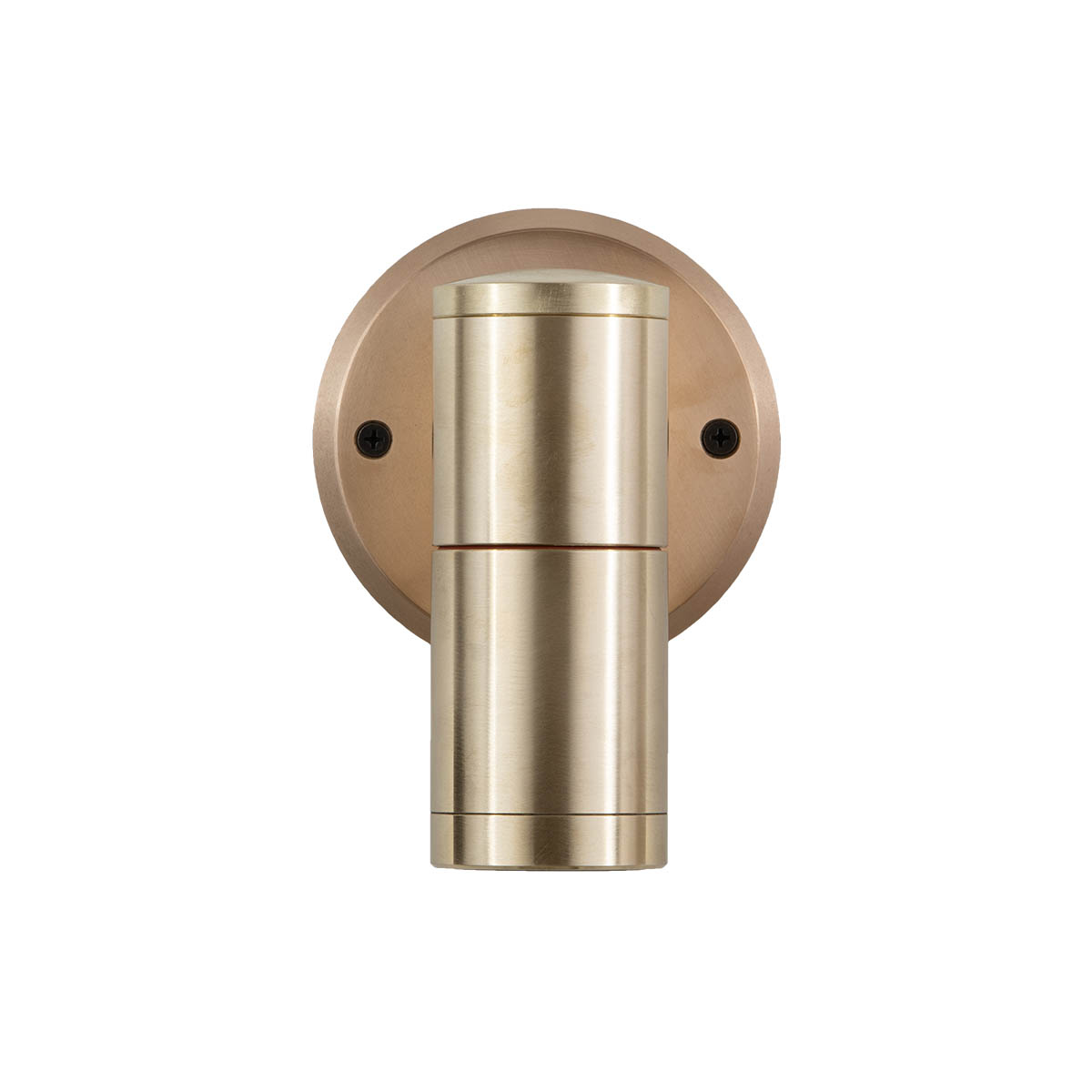

Wall-Mounted Brass Downlight
- Remote transformer required for 12V
- Certified for indoor (12V) or outdoor use
Voltage | 12V, 120V, 230V |
Lamps | Integrated LED light engine, MR16 LED |
Lumens | 372 max |
CCT | 1000K |
1300K | |
1500K | |
Dimensions | 5.9″/14.9 cm tall (MR16), 6.6″/16.8 cm tall (light engine) |
2.4″ dia lamp body x 3.7″ extension from wall (6 x 9.3 cm) |
Specifications
12V Instructions
120V Instructions
Brass Crossbar (for standard round and 4.75″ square canopies only)
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Triple Chip Light Engine
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
LM79 | IES | SPECTRAL POWER DISTRIBUTION / BLUE LIGHT CONTENT |
L-014-S-7W-A-FL | L-014-S-7W-A-FL | |
L-014-S-7W-A-NFL | L-014-S-7W-A-NFL | L-014-S-7W-A-NFL |
L-014-S-8W-RO-FL | L-014-S-8W-RO-FL | |
L-014-S-8W-RO-NFL | L-014-S-8W-RO-NFL | L-014-S-8W-RO-NFL |
L-014-S-120V-5W-A-NFL | L-014-S-120V-5W-A-NFL | L-014-S-120V-5W-A-NFL |
Integrated LED Light Engine
Triac dimmable: MLV >1% typ, ELV >5% typ
Cree XPE2: AMBER (1500K), RED-ORANGE (1000K)
7W-A-SP | 7 Watt Amber | 10° spot |
7W-A-NFL | 7 Watt Amber | 30° narrow flood |
7W-A-FL | 7 Watt Amber | 60° flood |
8W-RO-SP | 8 Watt Red-Orange | 10° spot |
8W-RO-NFL | 8 Watt Red-Orange | 30° narrow flood |
8W-RO-FL | 8 Watt Red-Orange | 60° flood |
GU5.3 MR16 LED
AMBER (1300K)
5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
GU10 MR16 LED
AMBER (1300K)
5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
SQ | 4.75″ (12.1cm) Square canopy substitution for standard round canopy |

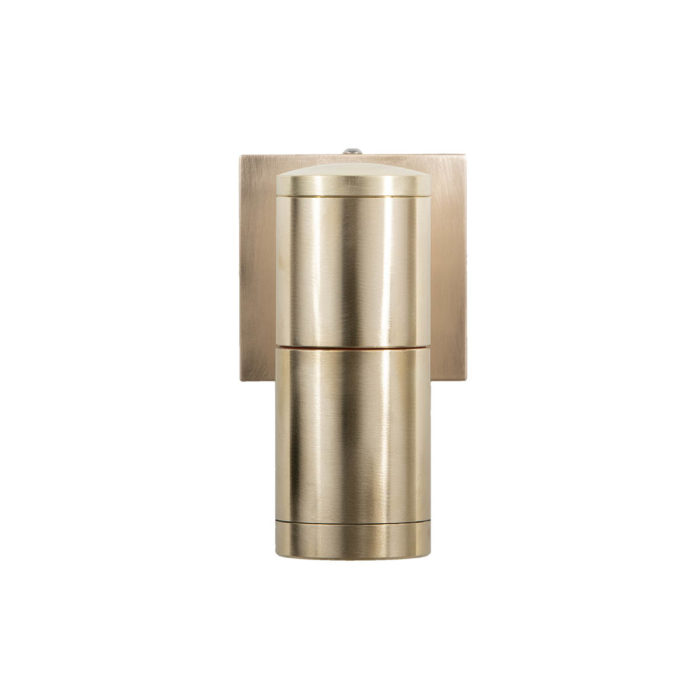

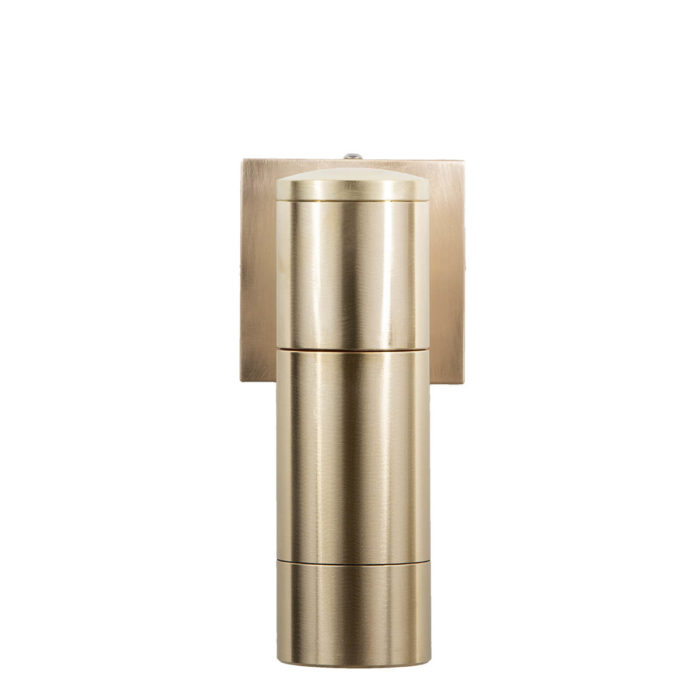

SQ-3.5 | 3.5″ (8.9cm) Small square canopy substitution for standard round canopy |
FR | Frosted lens |
HL1 | Honeycomb louver, 1/8” (3mm) thick |
HL2 | Honeycomb louver, 1/4” (6mm) thick |

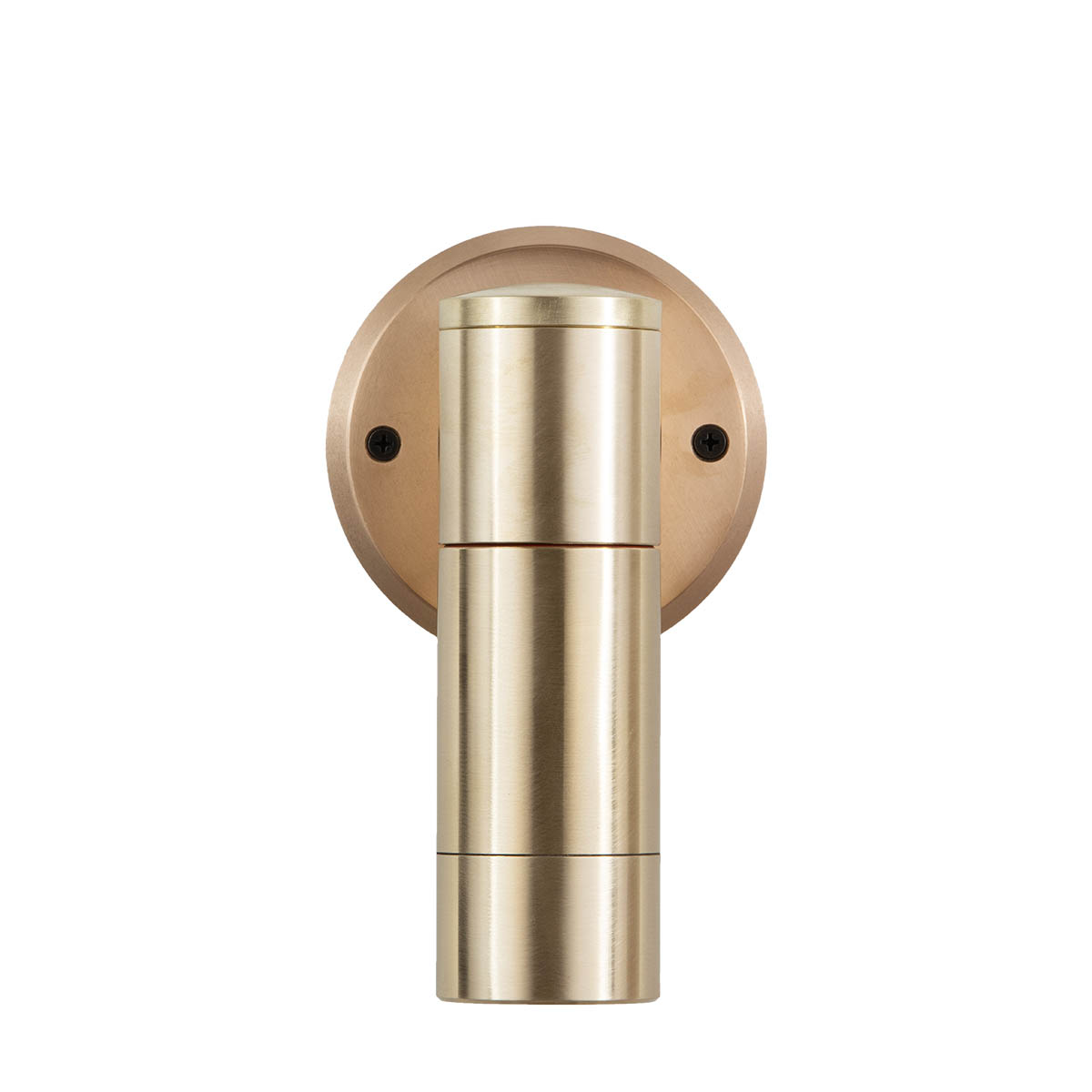

KP | Extended 1″ snoot |
PR | Prismatic spread lens |
RT | Rectilinear spread lens |
SL | Solite lens |
