L-016-F / L-016R-F
(12V Integrated LED & MR16 LED with Integral Transformer)

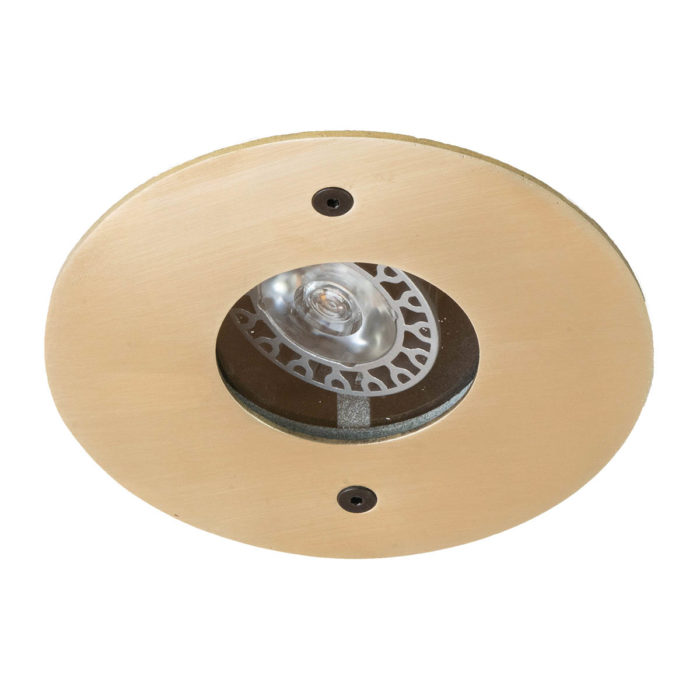

L-016-f Architectural
L-016-f Architectural2

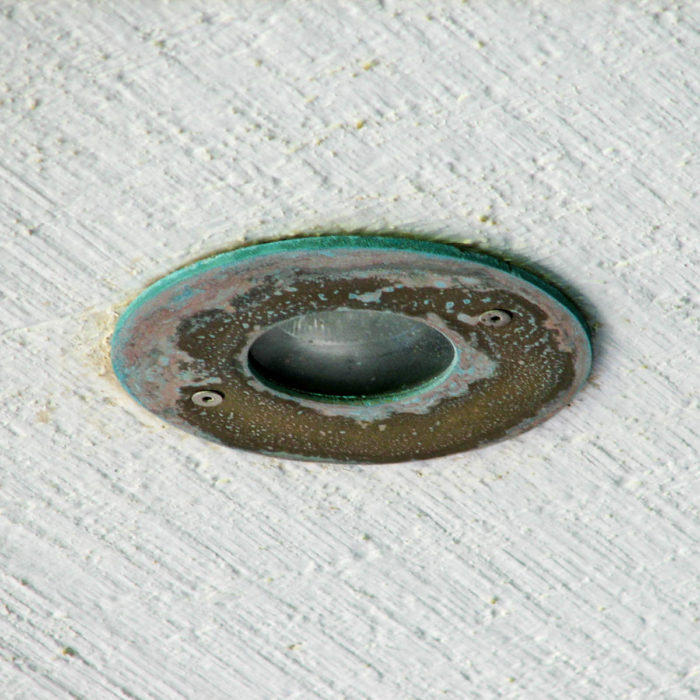

L-016-f Architectural3

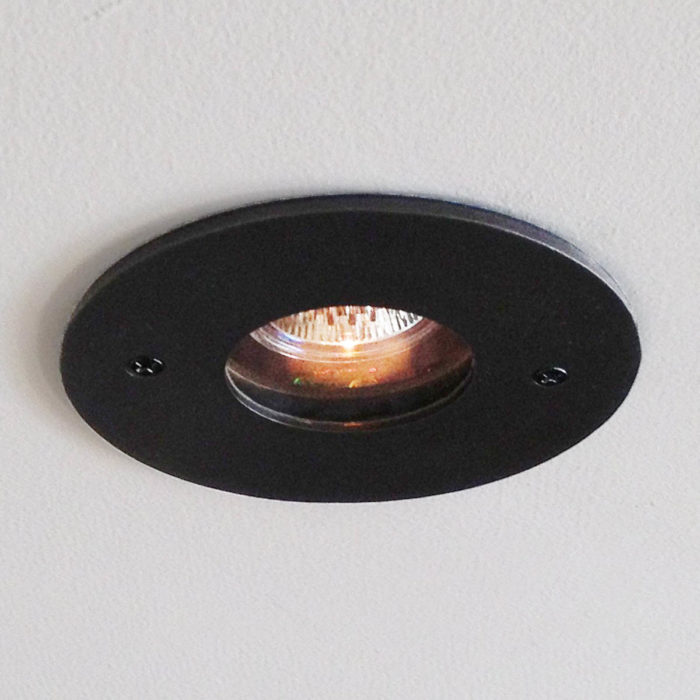

L-016-f-fin-db Architectural

L-016-F / L-016R-F
(12V Integrated LED & MR16 LED with Integral Transformer)

Darksky

L-016-F:  New Construction
L-016R-F:  Remodel

  • Rotation ring and angling bracket allow aiming in any direction
  • FLAT ROUND brass trim
  • Suitable for wet locations
  • Suitable for indoor use when equipped with integrated light engine
Voltage 12V with integral magnetic transformer
Lamps Integrated LED, MR16 LED
Lumens 678 max
CCT 1000K
1500K
2700K
3000K
Faceplate
Dimensions		 5″ dia x 0.2″ thick (12.7 x 0.4 cm)
CL Clear, tempered soda lime glass
FR Frosted, tempered soda lime glass

Integrated LED Light Engine
Triac dimmable: MLV >1% typ, ELV >5% typ

Cree XPE2: AMBER (1500K)*, RED-ORANGE (1000K)*
TURTLE FRIENDLY

7W-A-NFL 7 Watt AMBER 30° narrow flood
7W-A-FL 7 Watt AMBER 60° flood
10W-RO-NFL 10 Watt RED-ORANGE 30° narrow flood
10W-RO-FL 10 Watt RED-ORANGE 60° flood

Cree XPG3 LED: High CRI 11-Watt Warm White, adjustable output
2700K

11W-927-NFL 11 Watt 30° narrow flood
11W-927-FL 11 Watt 60° flood

3000K

11W-930-NFL 11 Watt 30° narrow flood
11W-930-FL 11 Watt 60° flood

GU5.3 MR16 LED
AMBER (1500K, TURTLE FRIENDLY)*, Warm White (2700/3000K)**

5W-A-NFL 5 Watt AMBER 25° narrow flood
5W-SP 5 Watt 15° spot
5W-NFL 5 Watt 25° narrow flood
5W-FL 5 Watt 40° flood
5W-FL/60 5 Watt 60° flood
5W-WFL 5 Watt 100° flood
7W-FL/60 7 Watt 60° flood
8W-SP 8 Watt 10° spot
8W-NFL 8 Watt 25° narrow flood
8W-FL 8 Watt 36° flood

* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“

LAMP-ATTACHED FOR LIGHT ENGINE
HL-MR16 Honeycomb louver, 1/8″ (3mm) thick HL-LBTZ
FR-MR16 Frosted lens FR-LBTZ
PR-MR16 Prismatic spread lens PR-LBTZ
RT-MR16 Rectilinear spread lens RT-LBTZ
FIN-BK Black acid finish
FIN-DB Dark Bronze acid finish
FIN-NA Nickel acid finish
FIN-WH White powder coating

Optical Accessories
