L-016 / L-016R
(12V Integrated LED & MR16 LED with Integral Transformer)

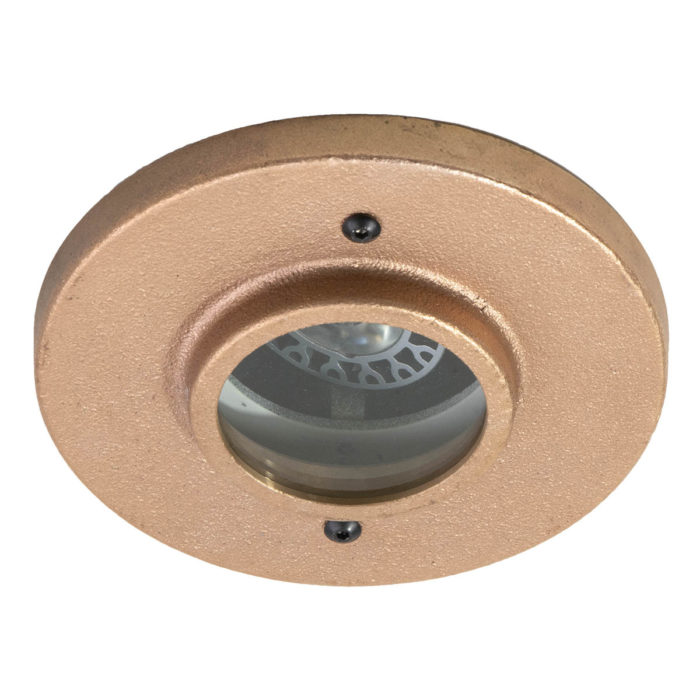

L-016 Architectural

L-016 Architectural2

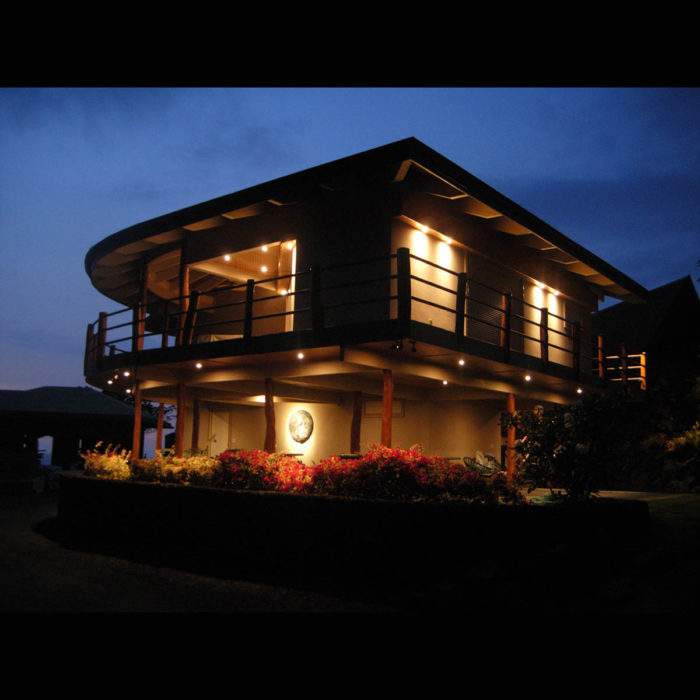

L-016 Architectural3

L-016 Architectural4

L-016 Architectural5

L-016 / L-016R
(12V Integrated LED & MR16 LED with Integral Transformer)

L-016: New Construction
L-016R: Remodel

Rotation ring and angling bracket allow aiming in any direction
Cast brass trim
Suitable for wet locations
Suitable for indoor use when equipped with integrated light engine

Voltage	12V with integral magnetic transformer
Lamps	Integrated LED, MR16 LED
Lumens	678 max
CCT	1000K
	1500K
	2700K
	3000K
Faceplate Dimensions	5″ dia x 0.8″ high (12.7 x 2.1 cm)

Find A Sales Rep

Downloads

Specifications – L-016 (New Construction)
Instructions – L-016 (New Construction)

Specifications – L-016R (Remodel Construction)
Instructions – L-016R (Remodel Construction)

5- & 7-Watt 12V GU5.3 MR16 (Dauer) Information with Dimmer / Transformer Compatibility
8-Watt 12V GU5.3 MR16 (Soraa) Information with Dimmer / Transformer Compatibility

Test Reports / Photometrics*

LM79	IES
L-016-F-5W-A-NFL	L-016-F-5W-A-NFL
	L-016-F-5W-A-NFL-PR-MR16

	L-016-F-7W-A-NFL
L-016-F-7W-A-FL	L-016-F-7W-A-FL

L-016-F-10W-RO-NFL	L-016-F-10W-RO-NFL
L-016-F-10W-RO-FL	L-016-F-10W-RO-FL

L-016-F-11W-930-NFL	L-016-F-11W-930-NFL
L-016-F-11W-930-FL	L-016-F-11W-930-FL

*L-016 has the same housing and lamping options as L-016-F

Lens Type

CL	Clear tempered soda lime glass
FR	Frosted tempered soda lime glass

Lamps

Integrated LED Light Engine
Triac dimmable: MLV >1% typ, ELV >5% typ

Cree XPE2: AMBER (1500K)*, RED-ORANGE (1000K)*
TURTLE FRIENDLY

7W-A-NFL	7 Watt AMBER	30° narrow flood
7W-A-FL	7 Watt AMBER	60° flood

10W-RO-NFL	10 Watt RED-ORANGE	30° narrow flood
10W-RO-FL	10 Watt RED-ORANGE	60° flood

Cree XPG3 LED: High CRI 11-Watt Warm White, adjustable output
2700K

11W-927-NFL	11 Watt	30° narrow flood
11W-927-FL	11 Watt	60° flood

3000K

11W-930-NFL	11 Watt	30° narrow flood
11W-930-FL	11 Watt	60° flood

GU5.3 MR16 LED
AMBER (1500K, TURTLE FRIENDLY)*, Warm White (2700/3000K)**

5W-A-NFL	5 Watt AMBER	25° narrow flood

5W-SP	5 Watt	15° spot
5W-NFL	5 Watt	25° narrow flood
5W-FL	5 Watt	40° flood
5W-FL/60	5 Watt	60° flood
5W-WFL	5 Watt	100° flood

7W-FL/60	7 Watt	60° flood

8W-SP	8 Watt	10° spot
8W-NFL	8 Watt	25° narrow flood
8W-FL	8 Watt	36° flood

* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“

Accessories

LAMP-ATTACHED		FOR LIGHT ENGINE
HL-MR16	Honeycomb louver, 1/8″ (3mm) thick	HL-LBTZ
FR-MR16	Frosted lens	FR-LBTZ
PR-MR16	Prismatic spread lens	PR-LBTZ
RT-MR16	Rectilinear spread lens	RT-LBTZ

Finish

FIN-BK	Black acid finish
FIN-DB	Dark Bronze acid finish
FIN-NA	Nickel acid finish
FIN-WH	White powder coating

Optical Accessories

Title
