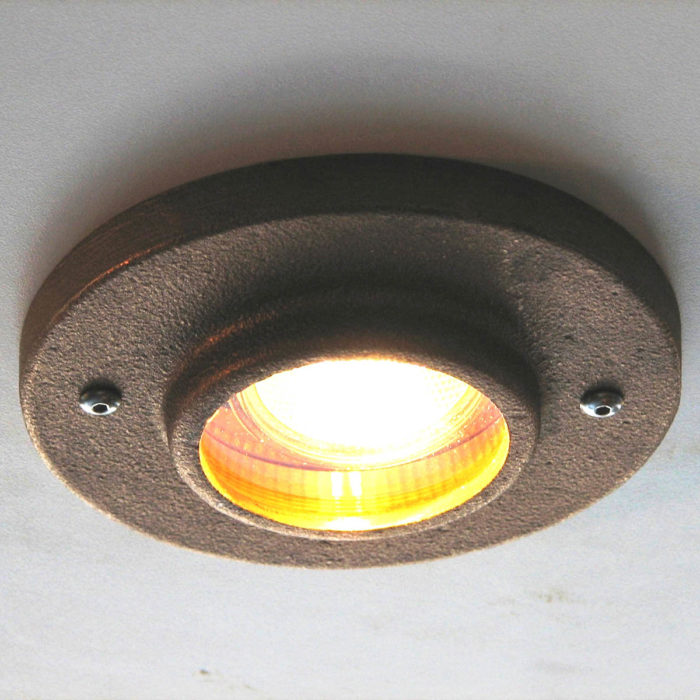

L-016 / L-016R Turtle Friendly
(12V Integrated LED & MR16 LED with Integral Transformer)

L-016 / L-016R Turtle Friendly
(12V Integrated LED & MR16 LED with Integral Transformer)

L-016:  New Construction
L-016R:  Remodel

  • Rotation ring and angling bracket allow aiming in any direction
  • Cast brass trim
  • Suitable for wet locations
  • Suitable for indoor use when equipped with integrated light engine
Voltage 12V with integral magnetic transformer
Lamps Integrated LED, MR16 LED
Lumens 212 max
CCT 1000K
1500K
Faceplate
Dimensions
5″ dia x 0.8″ high (12.7 x 2.1 cm)



Find A Sales Rep

*L-016 has the same housing and lamping options as L-016-F

CL Clear, tempered soda lime glass
FR Frosted, tempered soda lime glass

Integrated Triple-LED Light Engine
Cree XPE2: AMBER (1500K), RED-ORANGE (1000K)

7W-A-NFL 7 Watt AMBER 28° beam / 49° field
7W-A-FL 7 Watt AMBER 66° / 109°
10W-RO-NFL 10 Watt RED-ORANGE 27° / 43°
10W-RO-FL 10 Watt RED-ORANGE 51° / 78°

GU5.3 MR16 LED
AMBER (1500K)

5W-A-NFL 5 Watt AMBER 25° narrow flood
HL-LBTZ Honeycomb louver, 1/8″ (3 mm) thick, for light engines
HL-MR16 Lamp-attached honeycomb louver, 1/8″ (3 mm) thick
PR-LBTZ Prismatic spread lens for light engines
PR-MR16 Lamp-attached prismatic spread lens
FIN-BK Black acid finish
FIN-DB Dark Bronze acid finish
FIN-NA Nickel acid finish
FIN-WH White powder coating

Optical Accessories
