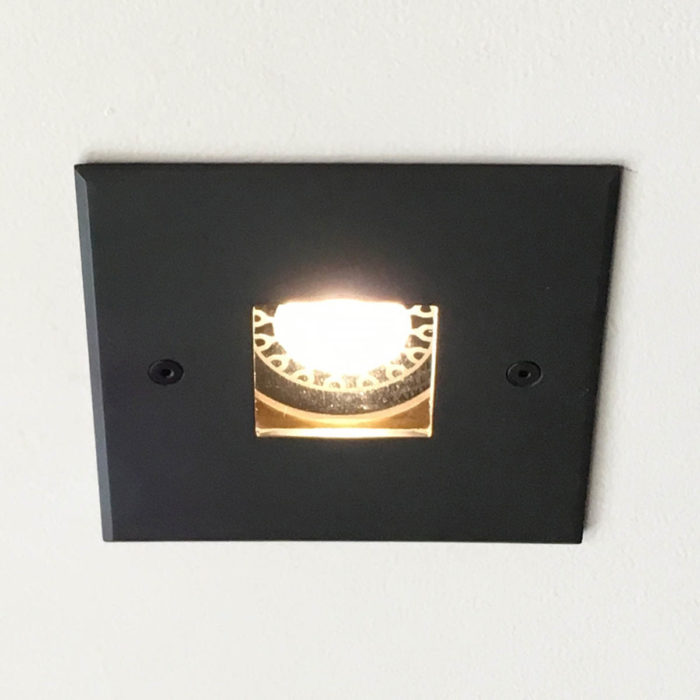

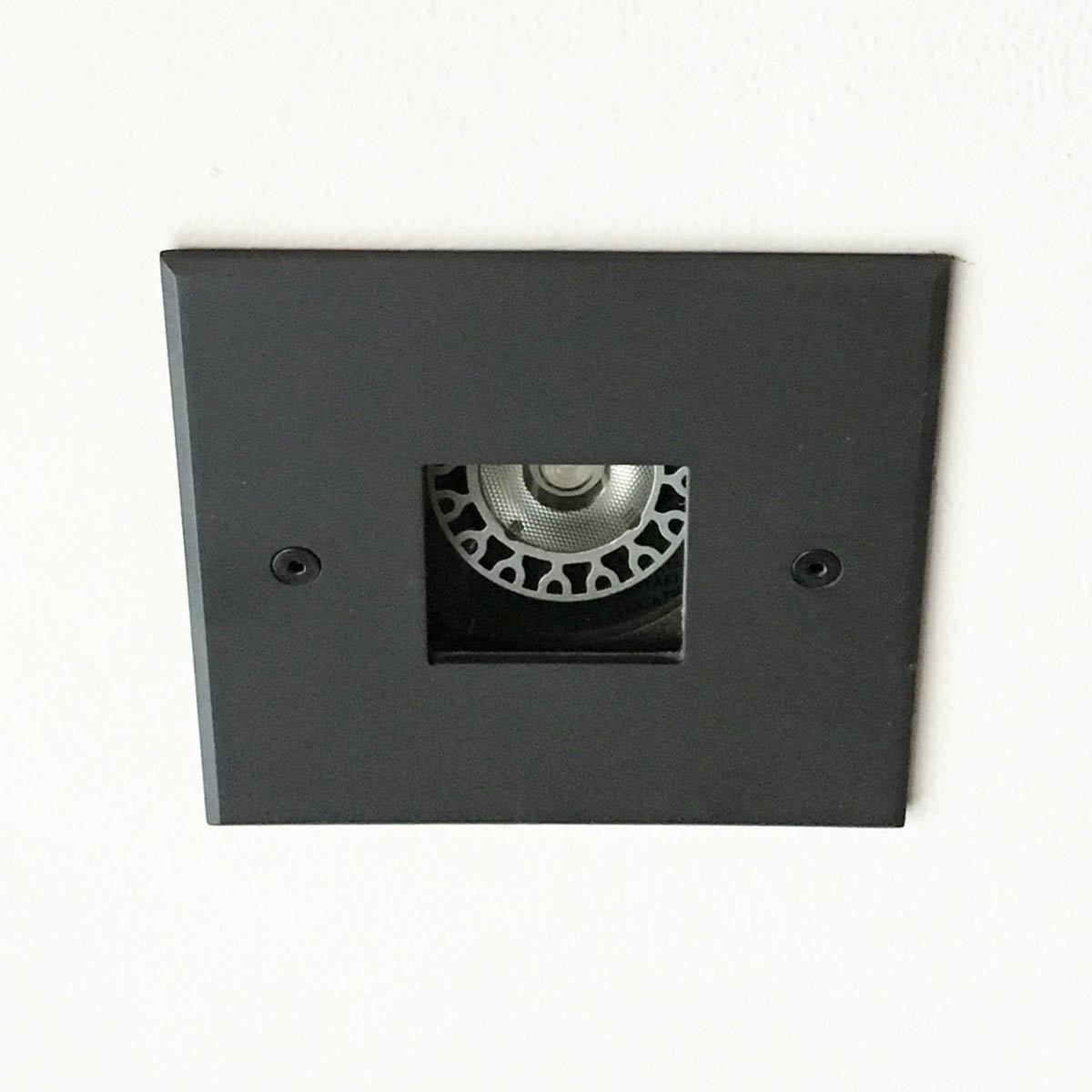

L-016-SQ / L-016R-SQ (square trim) Turtle Friendly
(12V Integrated LED & MR16 LED with Integral Transformer)
L-016-SQ: New Construction
L-016R-SQ: Remodel
- Rotation ring and angling bracket allow aiming in any direction

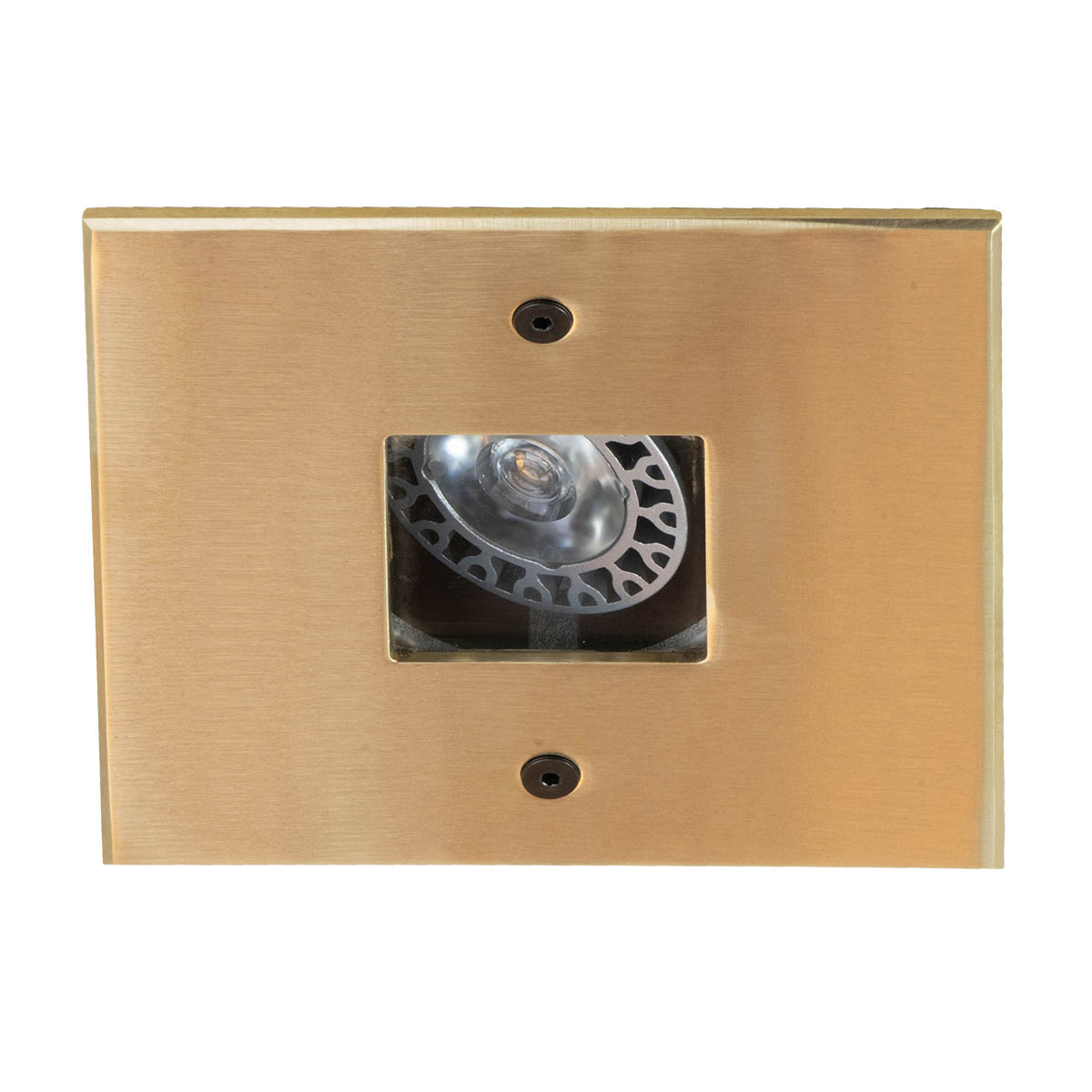

- FLAT SQUARE brass trim
- Suitable for wet locations
- Suitable for indoor use when equipped with integrated light engine
| Voltage | 12V with integral magnetic transformer |
| Lamps | Integrated LED, MR16 LED |
| Lumens | 212 max |
| CCT | 1000K |
| 1500K | |
| Faceplate Dimensions |
5″ square x 0.2″ thick (12.7 x 0.4 cm) |
L-016-SQ Specifications (New Construction)
L-016R-SQ Specifications (Remodel)
New Construction Instructions
Remodel Instructions
FFWCC Certification Letter
| LM79 | IES | SPECTRAL POWER DISTRIBUTION / BLUE LIGHT CONTENT |
| L-016-F-5W-A-NFL | L-016-F-5W-A-NFL | L-016-F-5W-A-NFL |
| L-016-F-5W-A-NFL-PR-MR16 | ||
| L-016-F-7W-A-NFL | ||
| L-016-F-7W-A-FL | L-016-F-7W-A-FL | L-016-F-7W-A-FL |
| L-016-F-10W-RO-NFL | L-016-F-10W-RO-NFL | L-016-F-10W-RO-NFL |
| L-016-F-10W-RO-FL | L-016-F-10W-RO-FL |
*L-016-SQ has the same housing and lamping options as L-016-F
| CL | Clear, tempered soda lime glass |
| FR | Frosted, tempered soda lime glass |
Integrated Triple-LED Light Engine
Cree XPE2: AMBER (1500K), RED-ORANGE (1000K)
| 7W-A-NFL | 7 Watt AMBER | 28° beam / 49° field |
| 7W-A-FL | 7 Watt AMBER | 66° / 109° |
| 10W-RO-NFL | 10 Watt RED-ORANGE | 27° / 43° |
| 10W-RO-FL | 10 Watt RED-ORANGE | 51° / 78° |
GU5.3 MR16 LED
AMBER (1500K)
| 5W-A-NFL | 5 Watt AMBER | 25° narrow flood |
| LAMP-ATTACHED | FOR LIGHT ENGINE | |
| HL-MR16 | Honeycomb louver, 1/8″ (3mm) thick | HL-LBTZ |
| FR-MR16 | Frosted lens | FR-LBTZ |
| PR-MR16 | Prismatic spread lens | PR-LBTZ |
| RT-MR16 | Rectilinear spread lens | RT-LBTZ |
| FIN-BK | Black acid finish |
| FIN-DB | Dark Bronze acid finish |
| FIN-NA | Nickel acid finish |
| FIN-WH | White powder coating |
