L-017 Turtle Friendly
(12/120/230V MR16 LED)

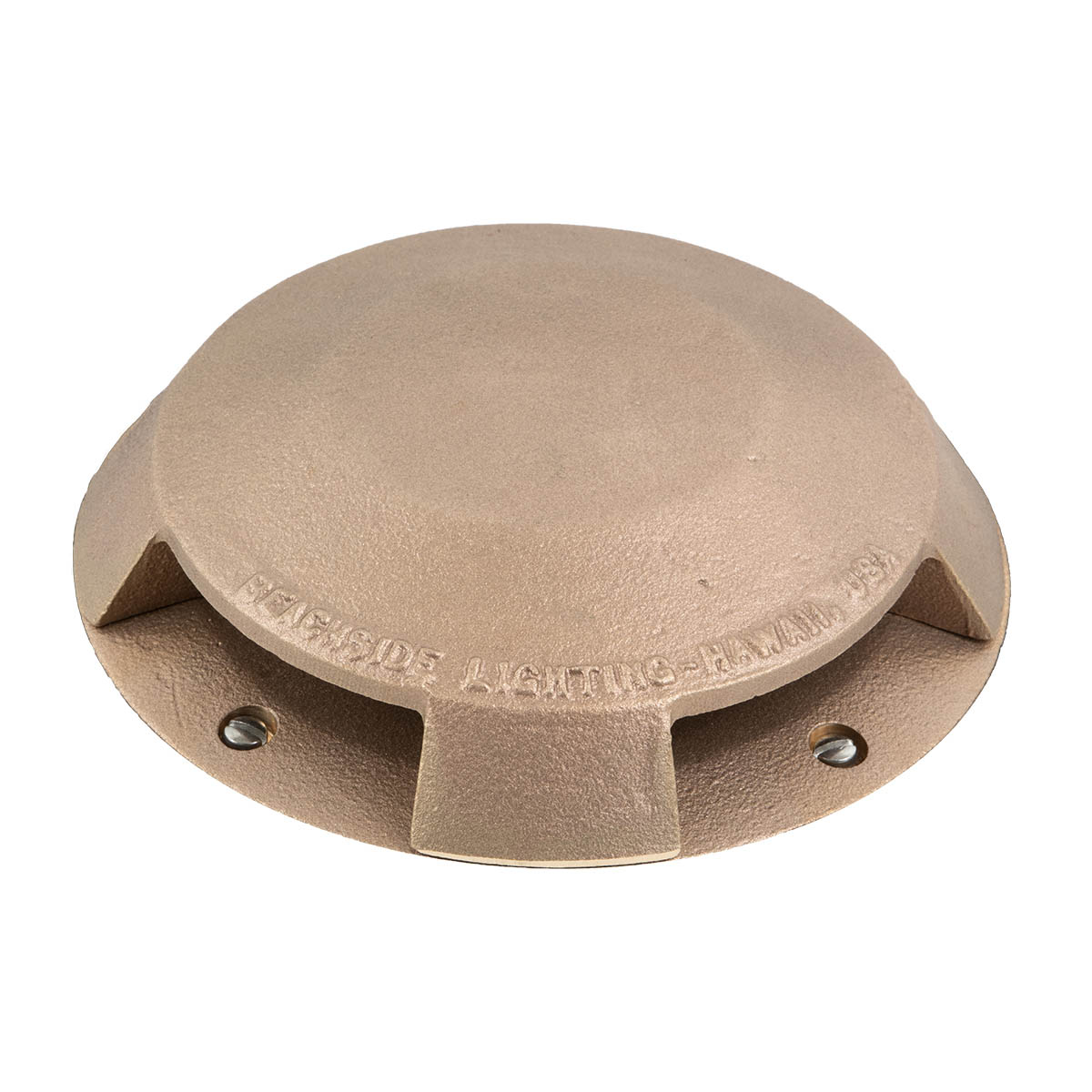

Brass & Composite In-Ground Pathlight for High Traffic & Drive-Over Applications

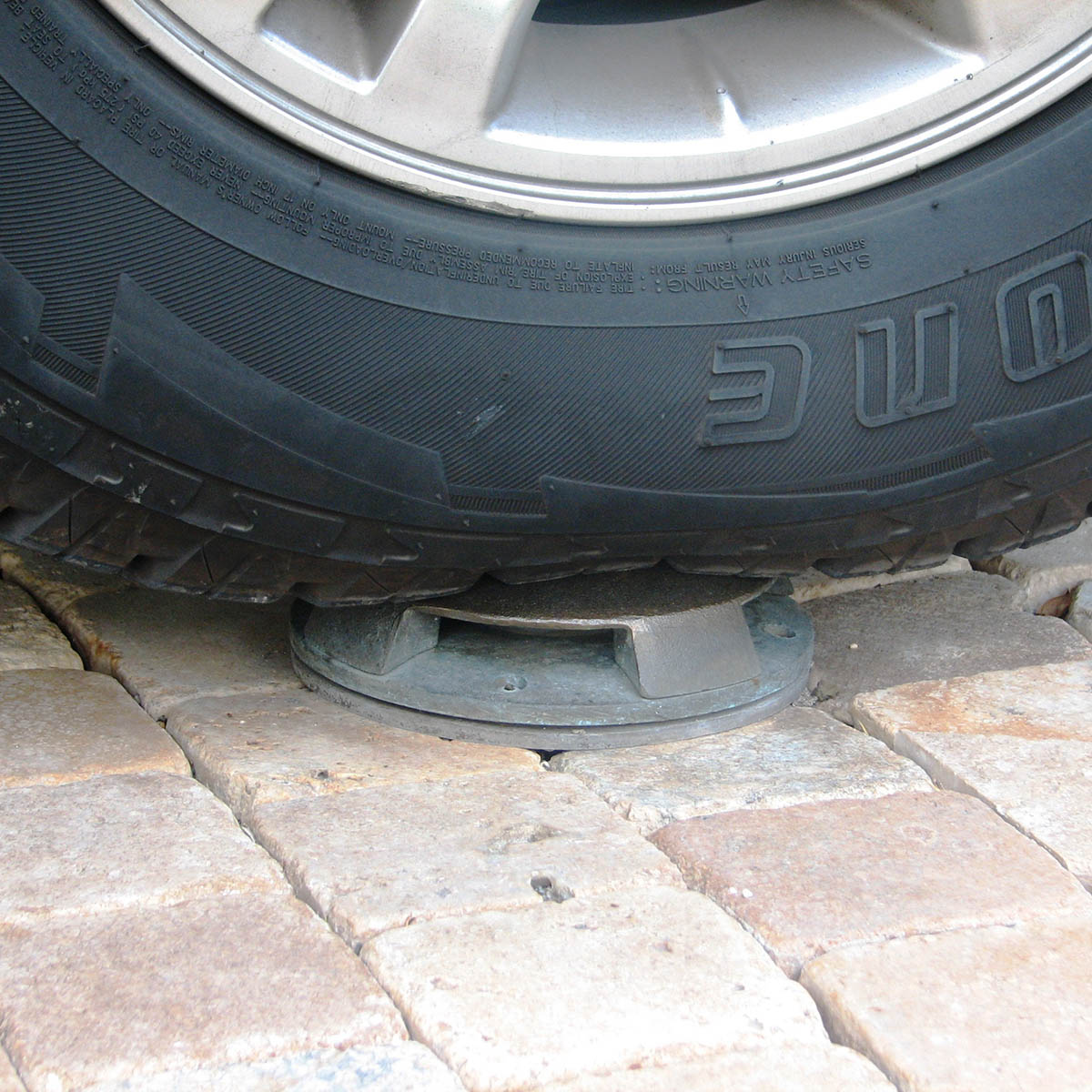

The L-017 series in-ground drive-over fixtures are brass & composite pathlights for high-traffic areas. This low-profile fixture is ideal for paths with low ground cover and along pathways used by golf carts, service trucks, or automobiles at country clubs & resorts.
- “CR” versions add a Concrete Ring for fully recessed concrete installation. Ring diameter is 6.7″ (17cm) and exposed height reduces to 1.7″ (4.2 cm). [L-017-CR, L-017-C-CR]
- Remote transformer required for 12V
| Voltage | 12V, 120v, 230V |
| Lamps | MR16 LED |
| CCT | 1500K |
| Dimensions | 6.5″ dia. x 1.9″ exposed height (16.5 x 4.9 cm) |
Specifications
L-017 Instructions (12 Volts)
L-017-C Instructions (120/230V)
FFWCC Certification Letter
| LM79 | IES | SPECTRAL POWER DISTRIBUTION / BLUE LIGHT CONTENT |
| L-017-C-5W-A | L-017-C-5W-A | L-017-C-5W-A-NFL |
L-017
12 Volt input, remote transformer required
GU5.3 MR16 LED
| 5W-A-NFL | 5 Watt AMBER (1500K) |
L-017-C
120 or 230 Volt input
GU10 MR16 LED
| 5W-A-NFL | 5 Watt AMBER (1500K) |
| CR | Concrete Ring for recessed installation |
| HS17-1 | Shield for single-sector illumination |
| HS17-2 | Shield for dual adjacent-sector illumination |
| HS17-OP | Shield for opposite-sector illumination |
