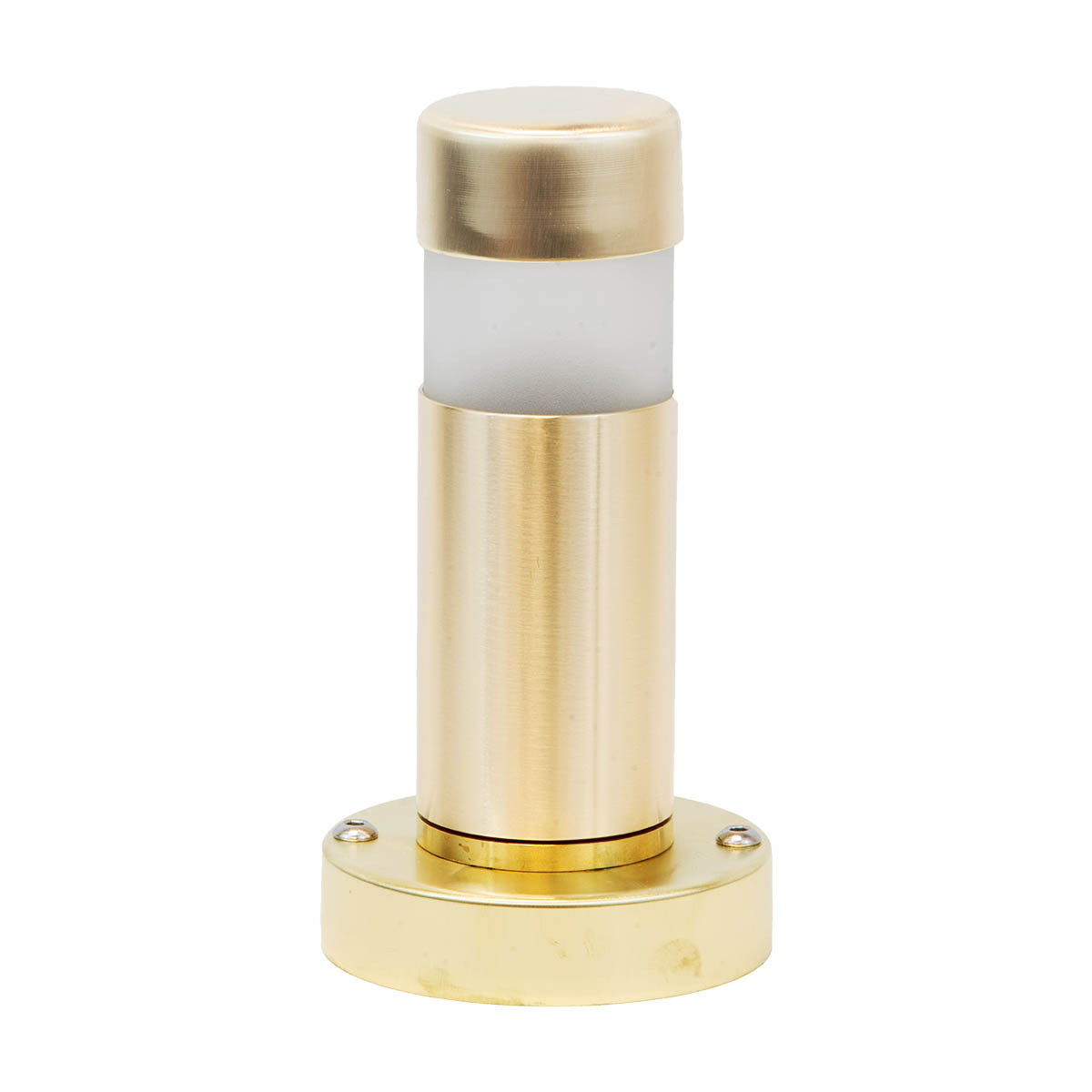

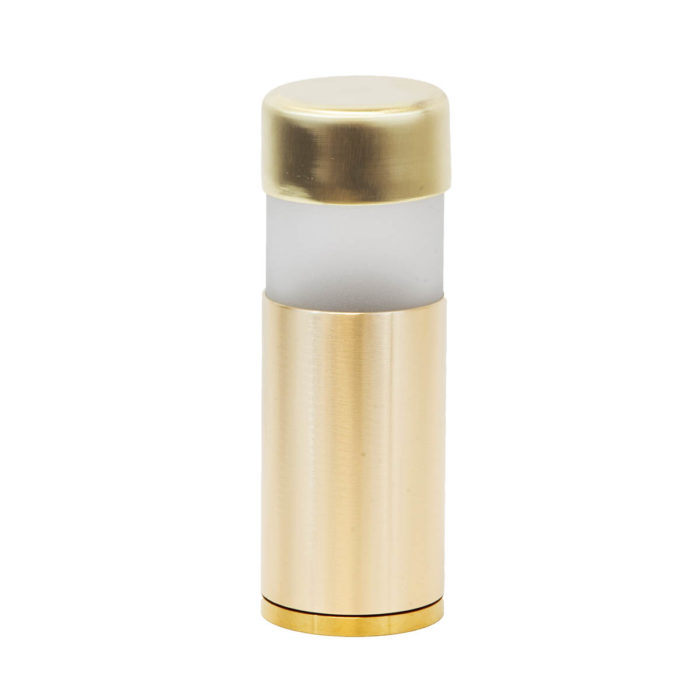

L-021
(12V/120V LED)

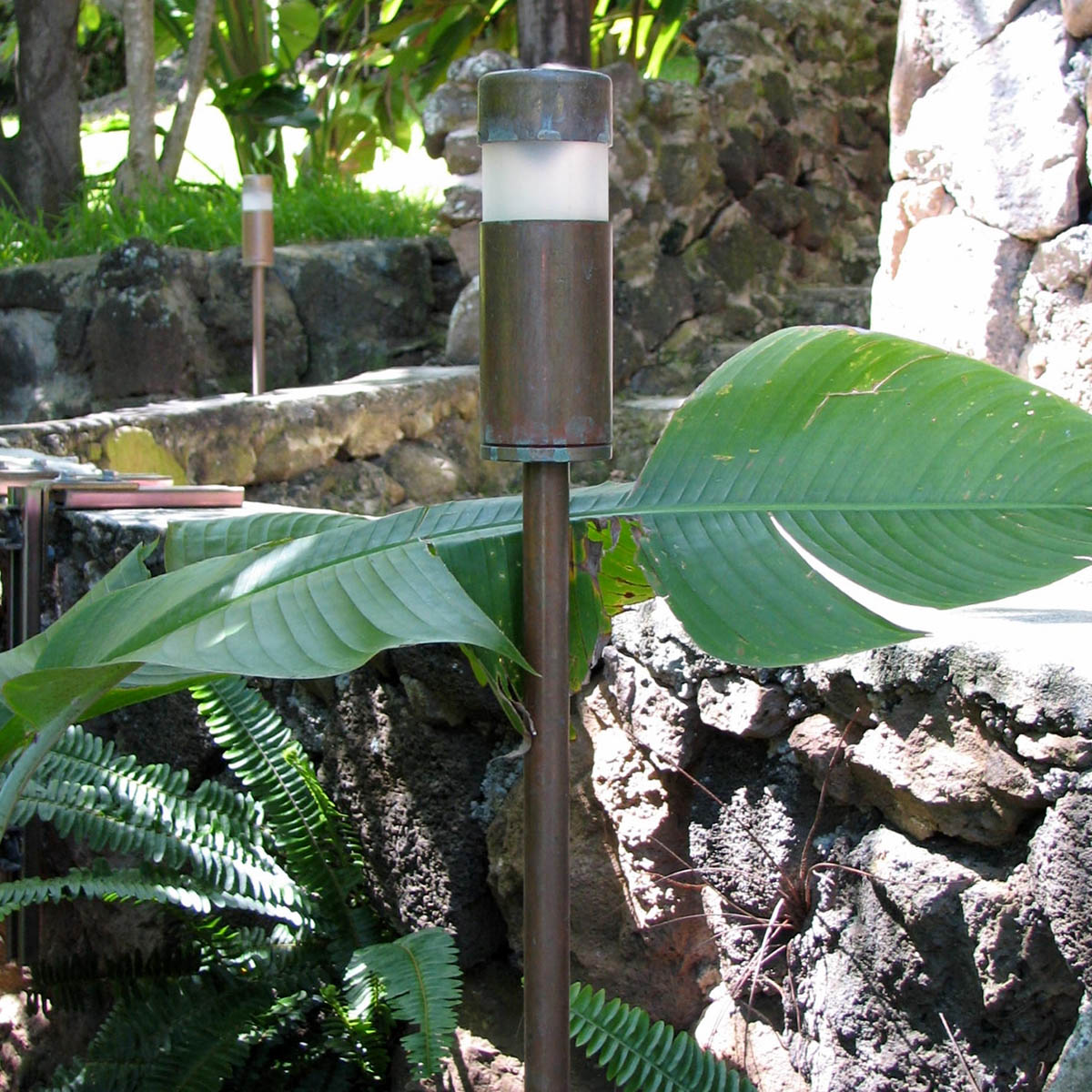

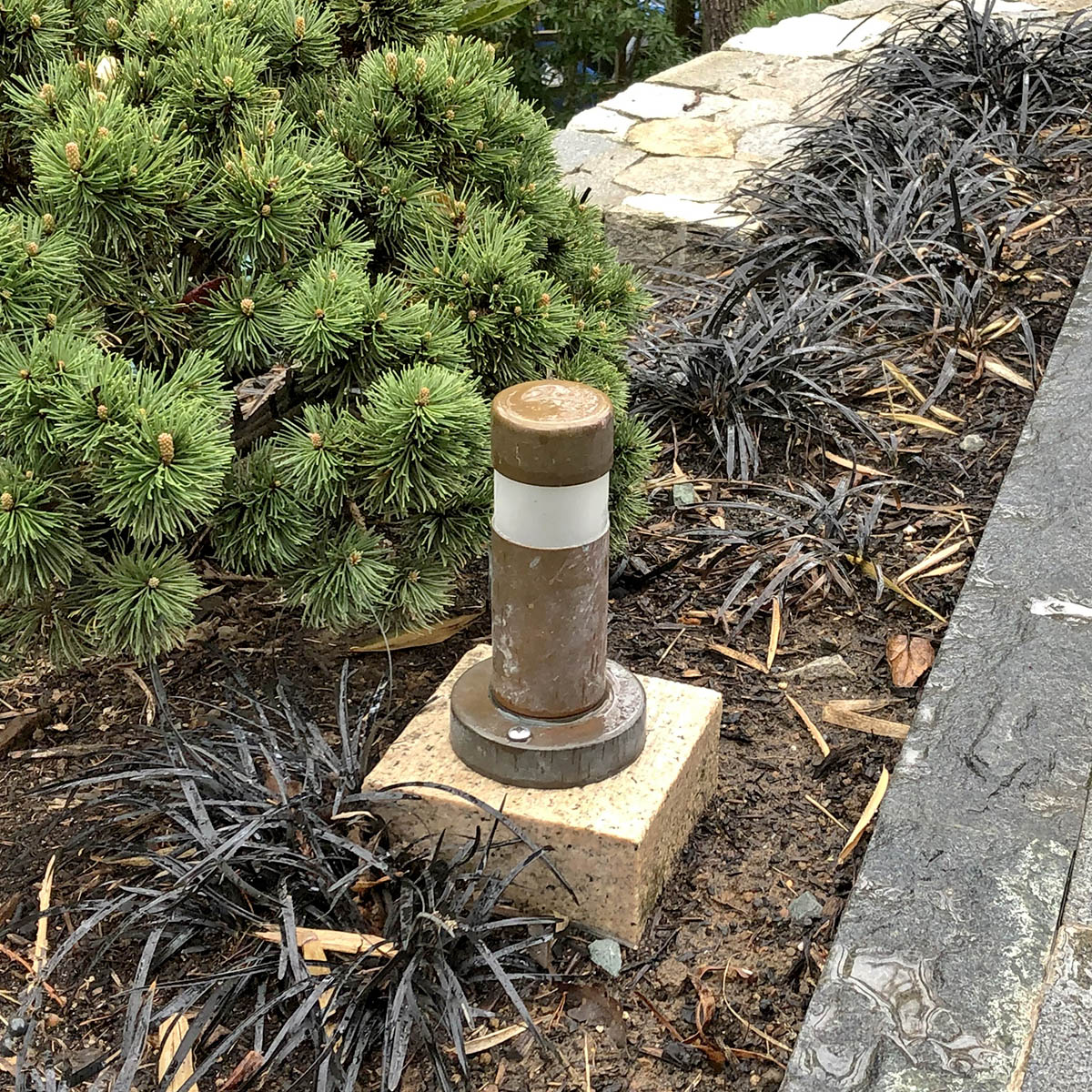

The L-021 is a brass mini bollard, ideal for high traffic applications as an alternative to path light fixtures with shades.
- Durable construction: all brass components
- Can be mounted on optional stems
- Remote transformer required for 12V
- CSA Listed to US and Canadian safety standards, file # 190030
| Voltage | 12V, 120V |
| Lamps | MR16 LED |
| CCT | 1500 |
| 3000 | |
| Dimensions | 2.4″ dia. x 7.8″ high (6 x 19.8 cm) |
GU5.3 MR16 LED
| 5W-A-NFL | 5 Watt AMBER (1500K) |
| 5W-NFL | 5 Watt Warm White (3000K) |
| 7W-NFL | 7 Watt Warm White (3000K) |
| 8W-NFL | 8 Watt Warm White (3000K) |
GU10 MR16 LED
| 5W-A-NFL | 5 Watt AMBER (1500K) |
| 8W-NFL | 8 Watt Warm White (3000K) |

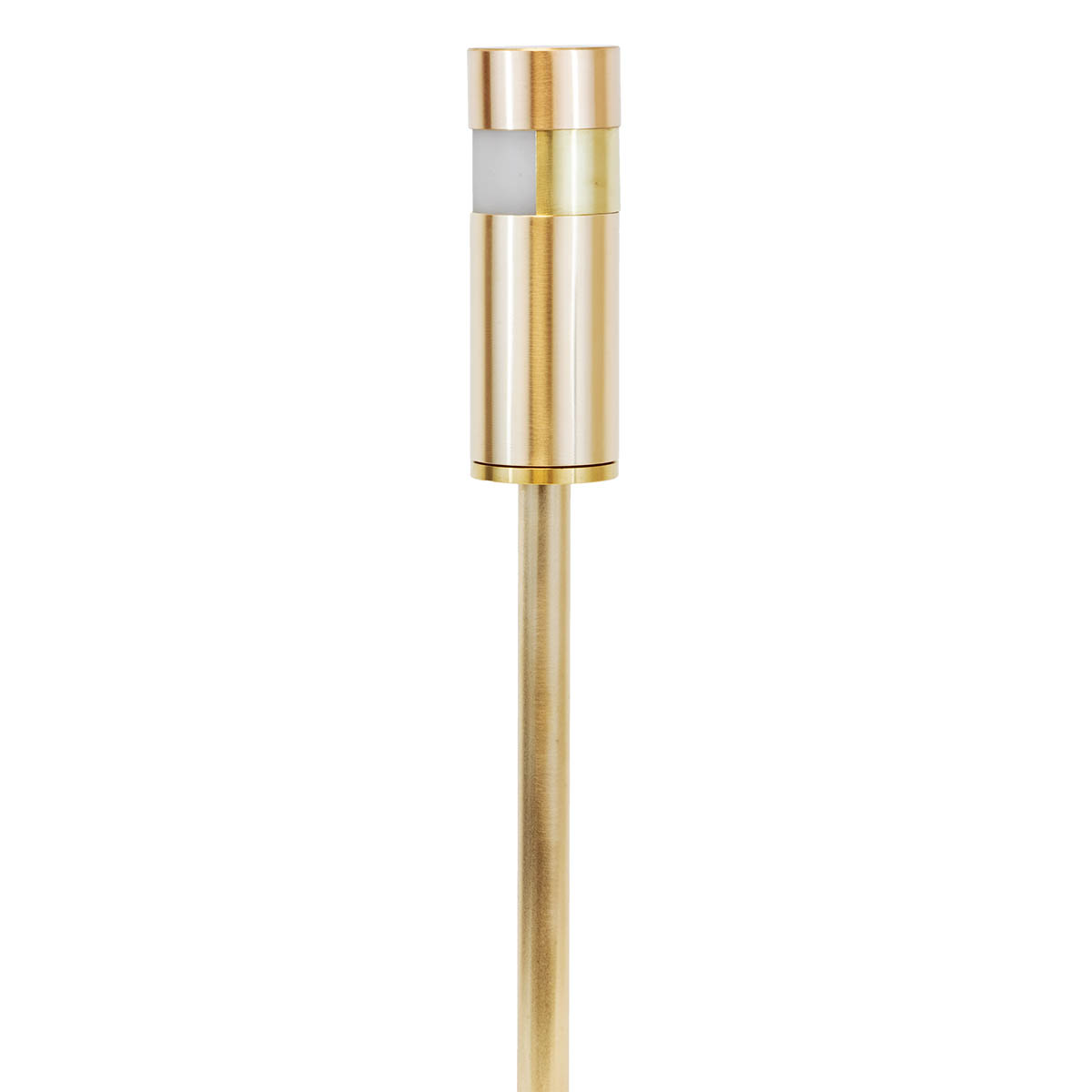

| HS1 | Half shield for 180° illumination |
(L-021-GS only)
| GS2 | Heavy-duty ground spike |
| GS2BC | Heavy-duty ground spike with cast brass cap |
| GS3R | Heavy-duty ground spike with brass cap for telescoping fixture stem |
| GS4 | Medium-duty ground spike with cast brass cap |
| JB | Cast brass junction box |
| STEMS: | 1/2″ brass pipe stem (required for GS3R) |
| STEM-8 | 8″ [20cm] |
| STEM-12 | 12″ [30cm] |
| STEM-16 | 16″ [40cm] |
| STEM-20 | 20″ [51cm] |
| STEM-24 | 24″ [61cm] |
