L-023
(12V G4 LED)

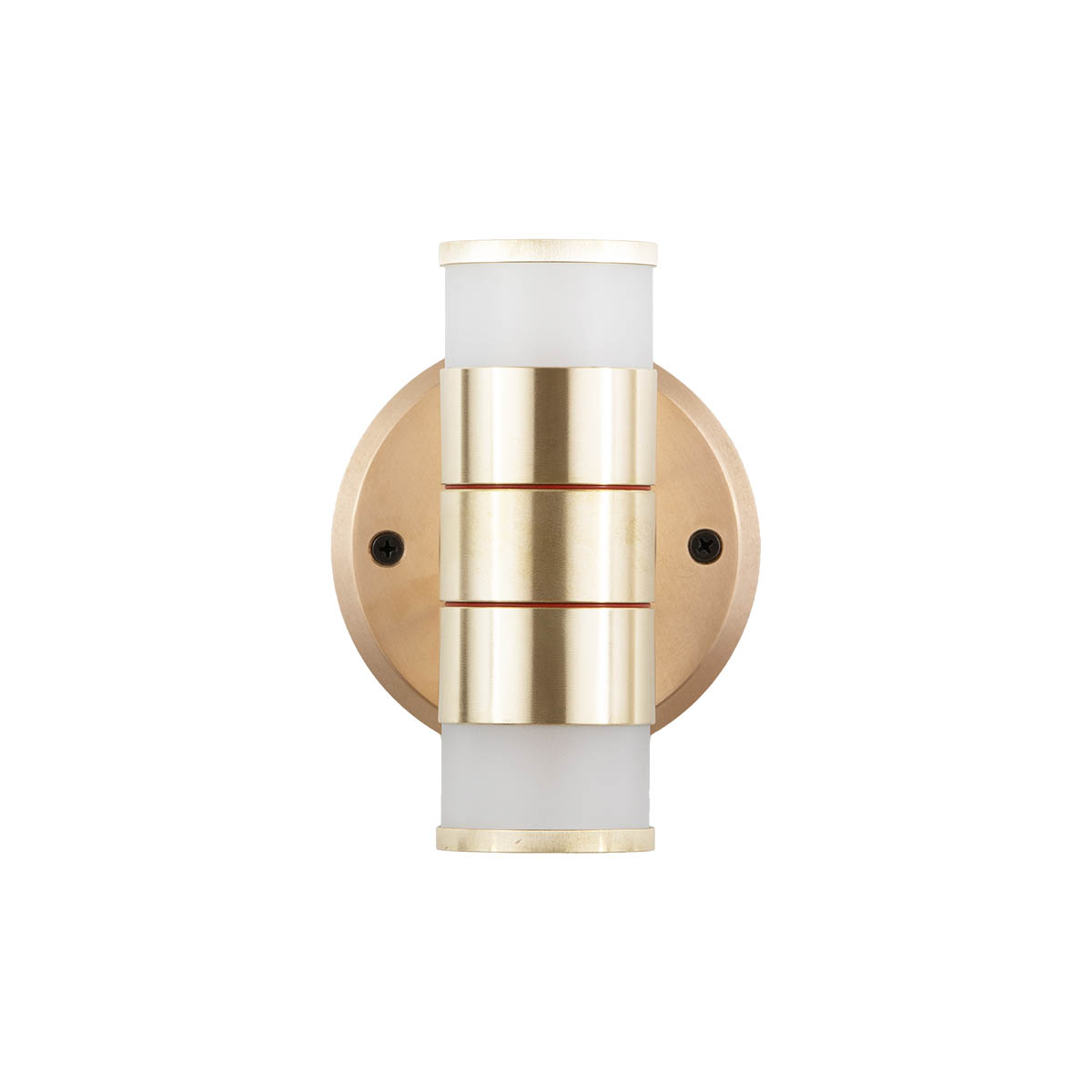

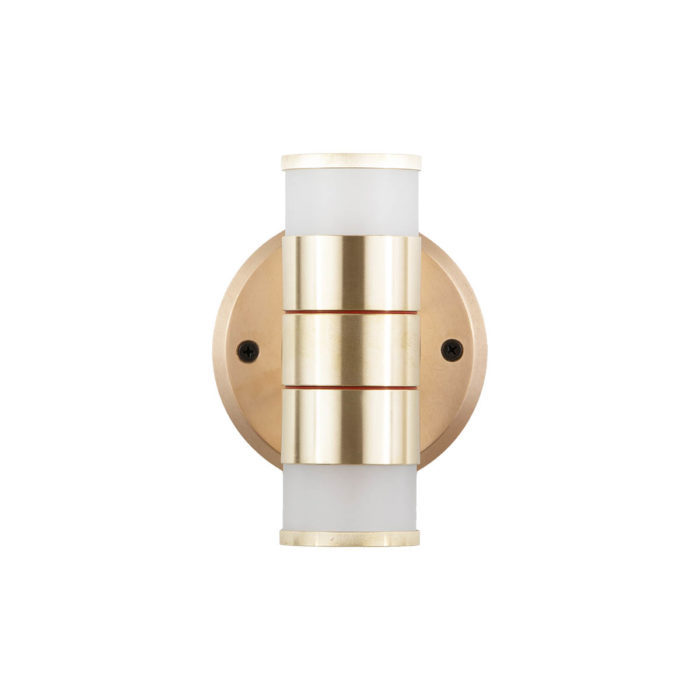

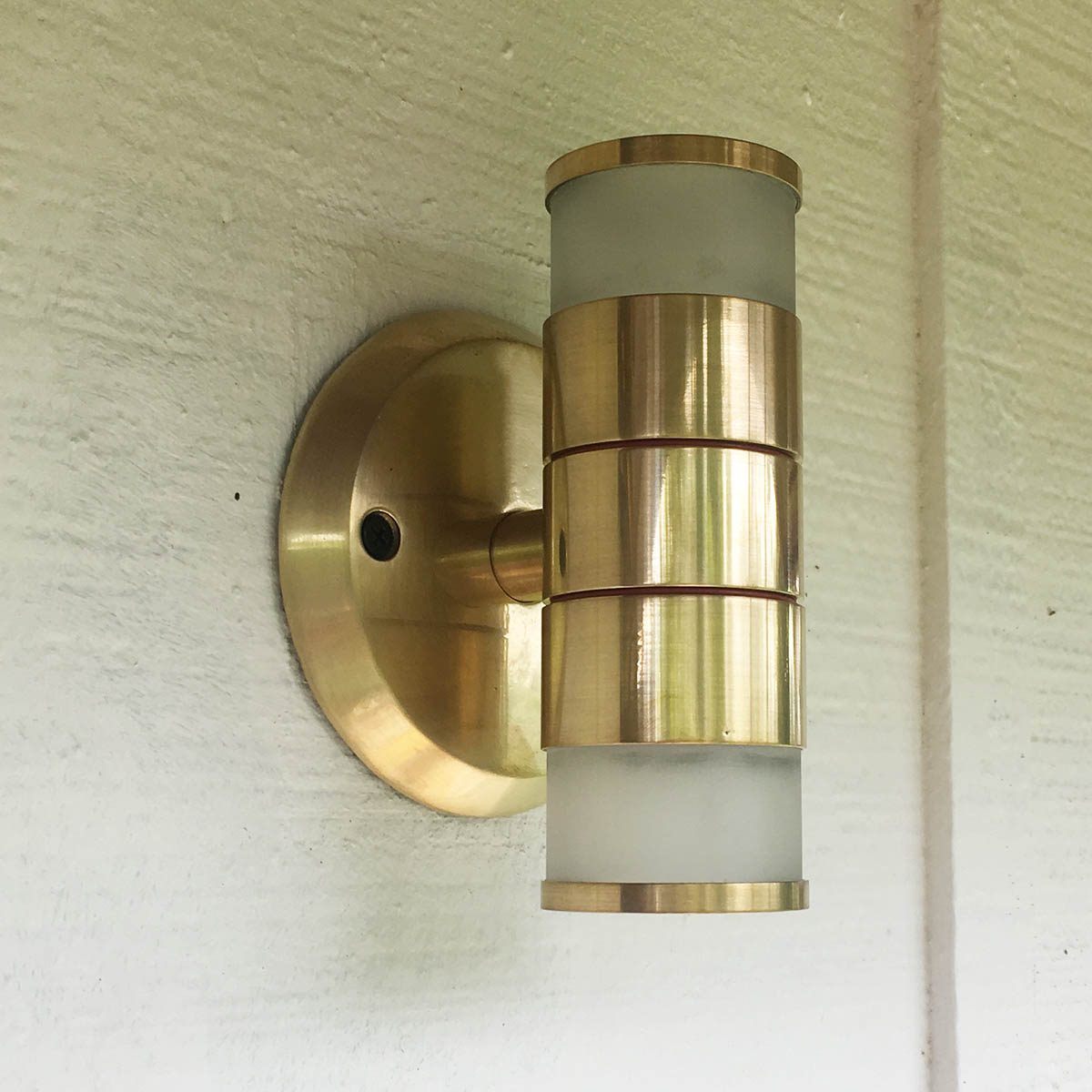

The L-023 is a sealed, wall-mounted brass fixture, ideal for backlighting of the decorative sconces or used independently.

  • Remote transformer required
  • Suitable for indoor and outdoor use
Voltage 12V
Lamps LED
CCT 1500K
2700K
3000K
Dimensions 2.4″ dia x 7.2″ height x 3.7″ extension from wall (6.0 x 18.2 x 9.4 cm)

G4 LED

3W-G4-27 3 Watt Warm White, 2700K (230 lm each)
3W-G4-30 3 Watt Warm White, 3000K (230 lm each)
4W-G4-27 4 Watt Warm White, 2700K (425 lm each)
4W-G4-30 4 Watt Warm White, 3000K (425 lm each)
4W-A-G4 4 Watt AMBER, 1500K (300 lm each)
SGCM Single-gang rectangular brass canopy (substitution)
SQ 4.75″ (12.1cm) Square canopy subsitution for standard round canopy

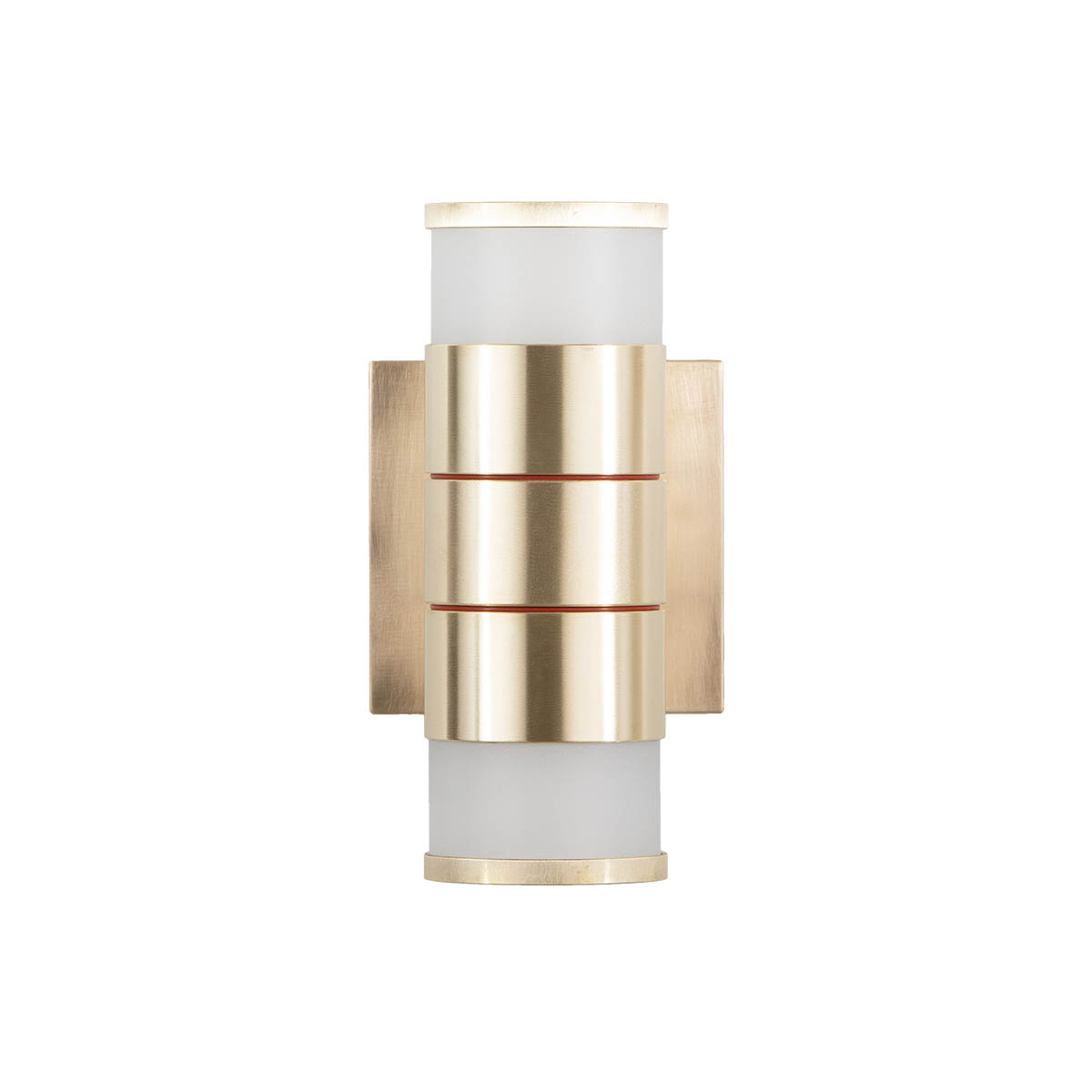

SQ-3.5 3.5″ (8.9cm) Small square canopy substitution for standard round canopy



RL-12-60M-LED 60-Watt capacity electronic transformer for LED (120V input)
TU60WA12LED 60-Watt capacity electronic transformer for LED (230V input)

Mounting Accessories – Wall
