M-Series LED Pathlights
(12V / 120V / 230V LED Single Louver)

M-Series LED Pathlights
(12V / 120V / 230V LED Single Louver)

Beachside Lighting’s M-Series LED Pathlights are the ultimate in heavy-duty landscape lighting.  Made of cast brass, these fixtures are larger than other Beachside pathlights.  The lamp is protected by a threaded glass lens.  Louvers are angled at 45° to eliminate glare.  Risers are schedule 80 brass pipe.  M-series fixtures with a single-louver design use a directional LED source and reflector.  A traditional multi-louver design also is available with omnidirectional LED and metal halide light sources.

M-series pathlights with amber and red-orange LED lamps are certified as “Wildlife Friendly” by the Florida Fish & Wildlife Conservation Commission.  To view these fixtures click HERE.

  • Durable construction: all brass components
  • Stems available in three sizes: 16″, 20″ (standard), & 24
  • CSA Listed to US and Canadian safety standards, file #190030
Voltage 12V, 120V, 230V
Lamps LED
CCT 1000
1500
2700
3000



Find A Sales Rep
GU5.3 MR16 LED  •  Remote transformer required

5W-A-NFL 5 Watt AMBER (1500K)*  TURTLE FRIENDLY
5W-NFL-27 5 Watt Narrow Flood (2700K)
5W-NFL-30 5 Watt Narrow Flood (3000K)
8W-NFL-27 8 Watt Narrow Flood (2700K)
8W-NFL-30 8 Watt Narrow Flood (3000K)

Cree LED light engine  •  Remote transformer required

7W-A 7 Watt AMBER (1500K)*  TURTLE FRIENDLY
8W-RO 8 Watt RED-ORANGE (1000K)*  TURTLE FRIENDLY
11W-827 11 Watt Warm White (2700K)
11W-830 11 Watt Warm White (3000K)

Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission

GU10 MR16 LED

5W-A-NFL-120V 5 Watt AMBER (1500K)*  TURTLE FRIENDLY
5W-NFL-27-120V 5 Watt Narrow Flood (2700K)
5W-NFL-30-120V 5 Watt Narrow Flood (3000K)
8W-NFL-27-120V 8 Watt Narrow Flood (2700K)
8W-NFL-30-120V 8 Watt Narrow Flood (3000K)

Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission

HSM-LED Half shield for 180° illumination
GS2BC Heavy-duty ground spike with cast brass cap
JB Cast brass junction box

M-Series Shade Styles

M3
M5

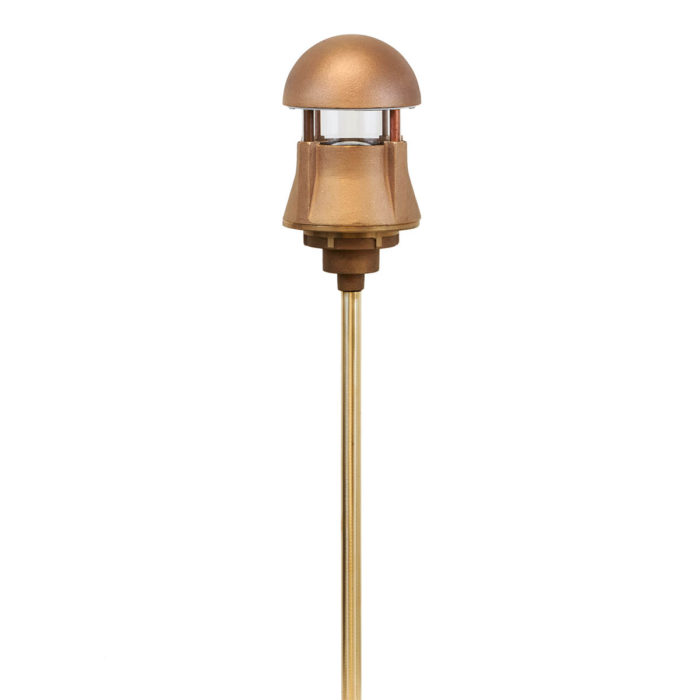

M6

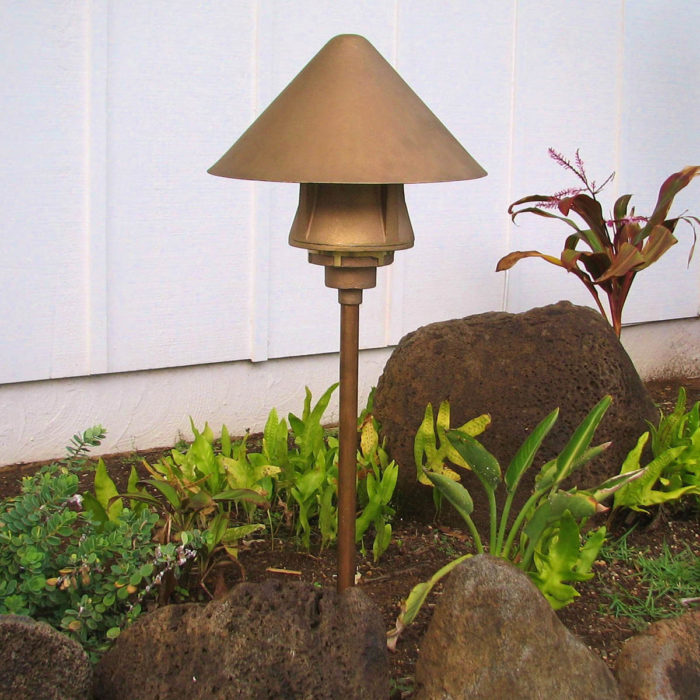

M7

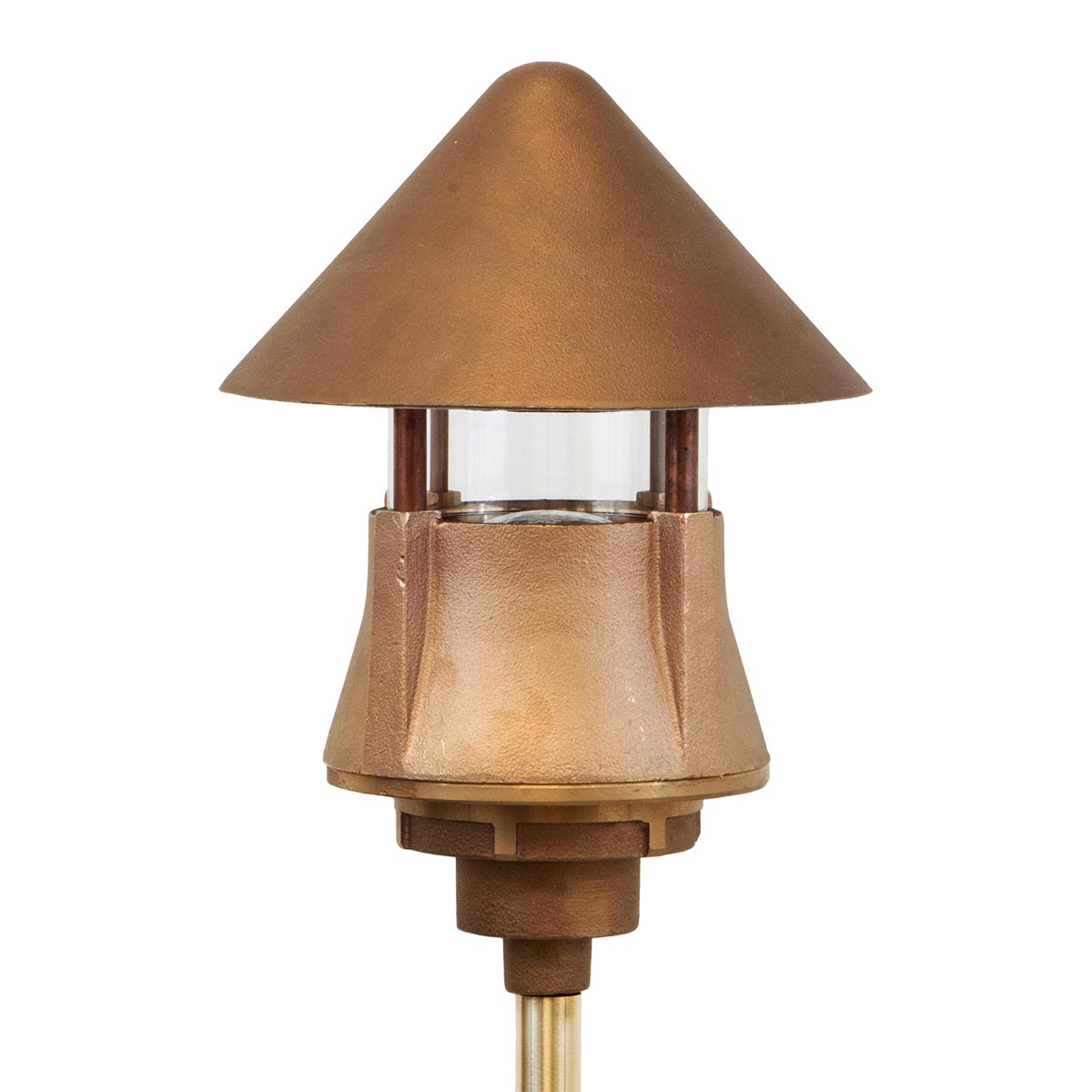

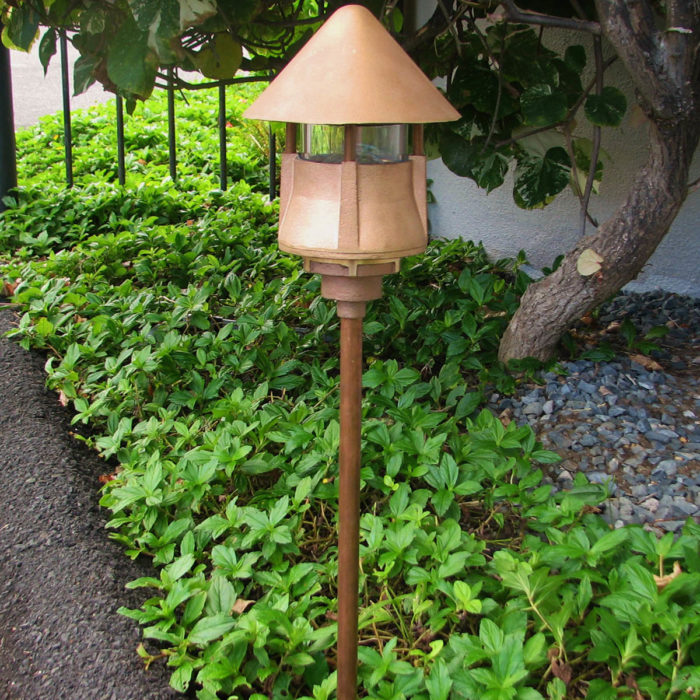

M8

Optical Accessories

Mounting Accessories – Landscape
