M-Series Pathlights
(12V / 120V LED & Metal Halide Multi-Louver)

M-Series Pathlights
(12V / 120V LED & Metal Halide Multi-Louver)

Beachside Lighting’s M-Series Pathlights are the ultimate in heavy-duty landscape lighting.  Made of cast brass, these fixtures are larger than other Beachside pathlights.  The lamp is protected by a threaded glass lens.  Louvers are angled at 45° to eliminate glare.  Risers are schedule 80 brass pipe.  Lamp sources include omnidirectional LED and metal halide.  MR16 LED versions with a single-louver design also are available.

M-series pathlights with amber and red-orange LED lamps are certified as “Wildlife Friendly” by the Florida Fish & Wildlife Conservation Commission.  To view these fixtures click HERE.

  • Durable construction: all brass components
  • Stems available in three sizes: 16″, 20″ (standard), & 24
  • CSA Listed to US and Canadian safety standards, file #190030
Voltage 12V, 120V
Lamps LED, Metal Halide
CCT 2700
3000



G4 / G6.35 / GY6.35 omnidirectional LED

3W-G4-27 3 Watt Warm White (2700K)
3W-G4-30 3 Watt Warm White (3000K)
4W-G4-27 4 Watt Warm White (2700K)
4W-G4-30 4 Watt Warm White (3000K)

E26 / E27 medium base

13W-A19-2700K 13 Watt LED (2700K), A19 type
13W-A19-3000K 13 Watt LED (3000K), A19 type
50MH 50 Watt Metal Halide, ED17 type (remote ballast required)
HSM Half shield for 180° illumination
RB In-grade remote metal halide ballast (MH applications only)
GS2BC Heavy-duty ground spike with cast brass cap
JB Cast brass junction box

M-Series Shade Styles

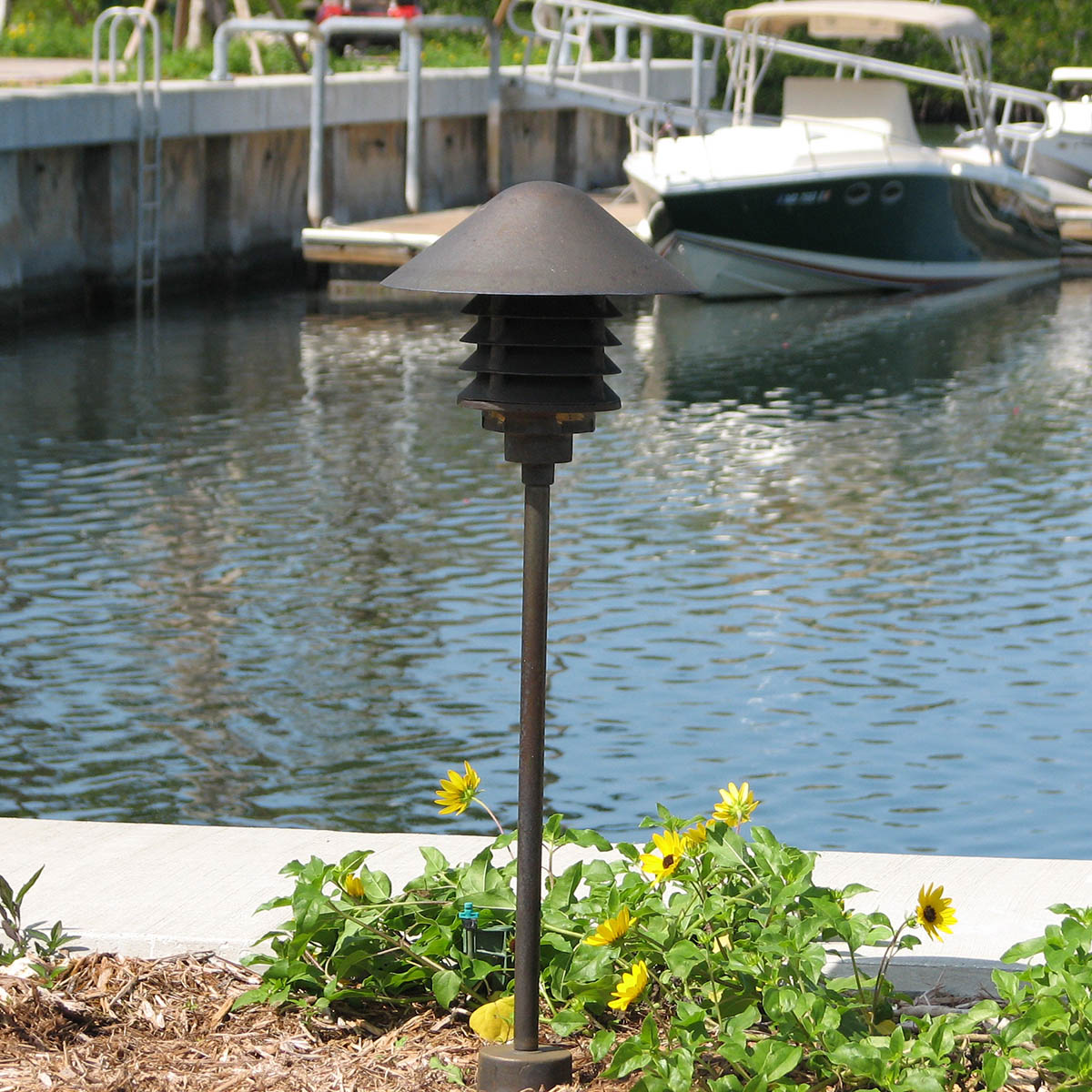

M-series Shade 3 Pathlights
M3

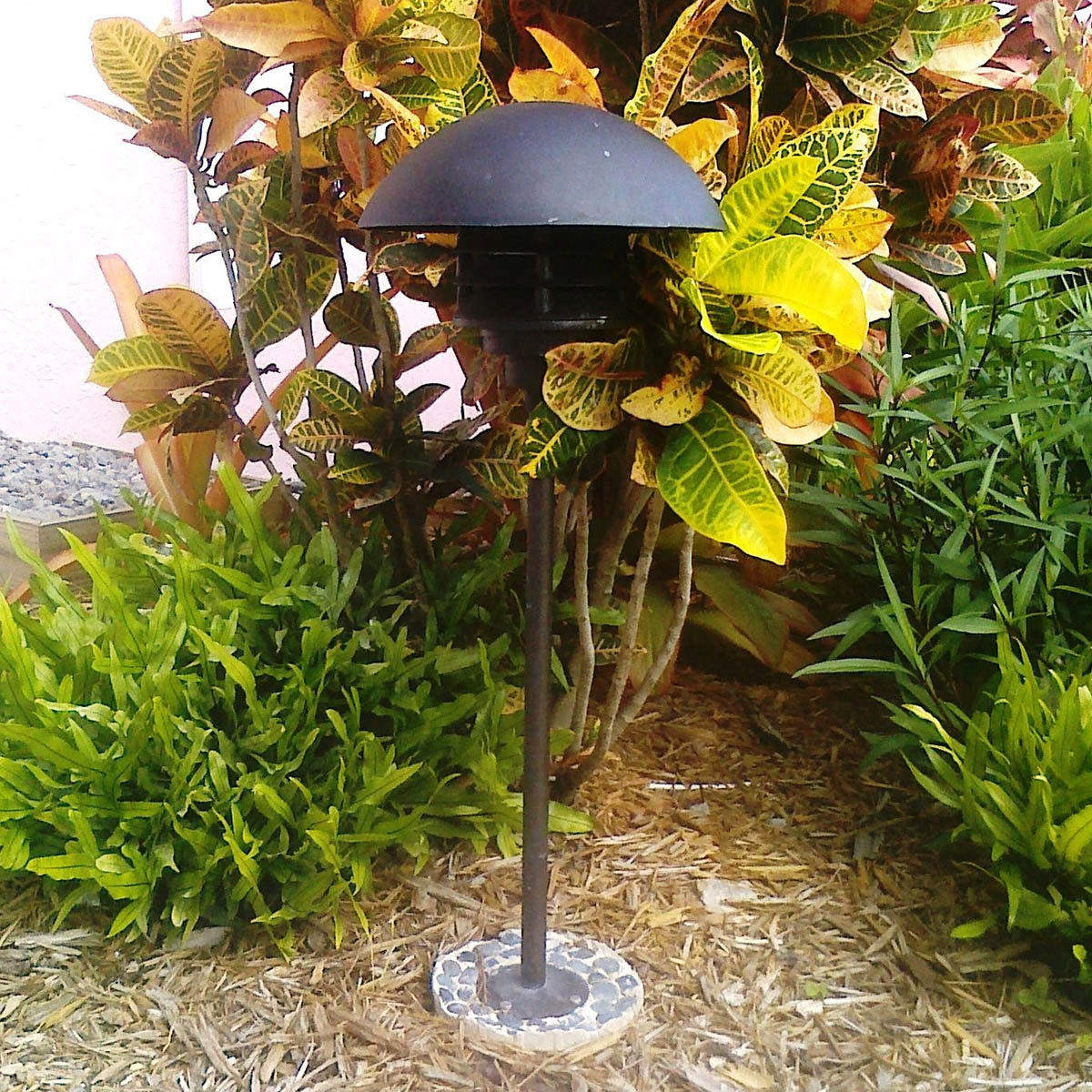

M-series Shade 5 Pathlights
M5

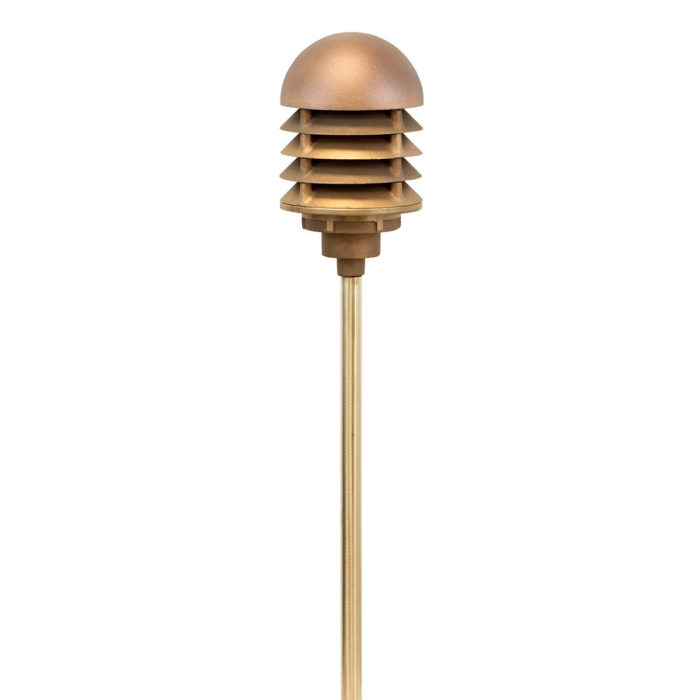

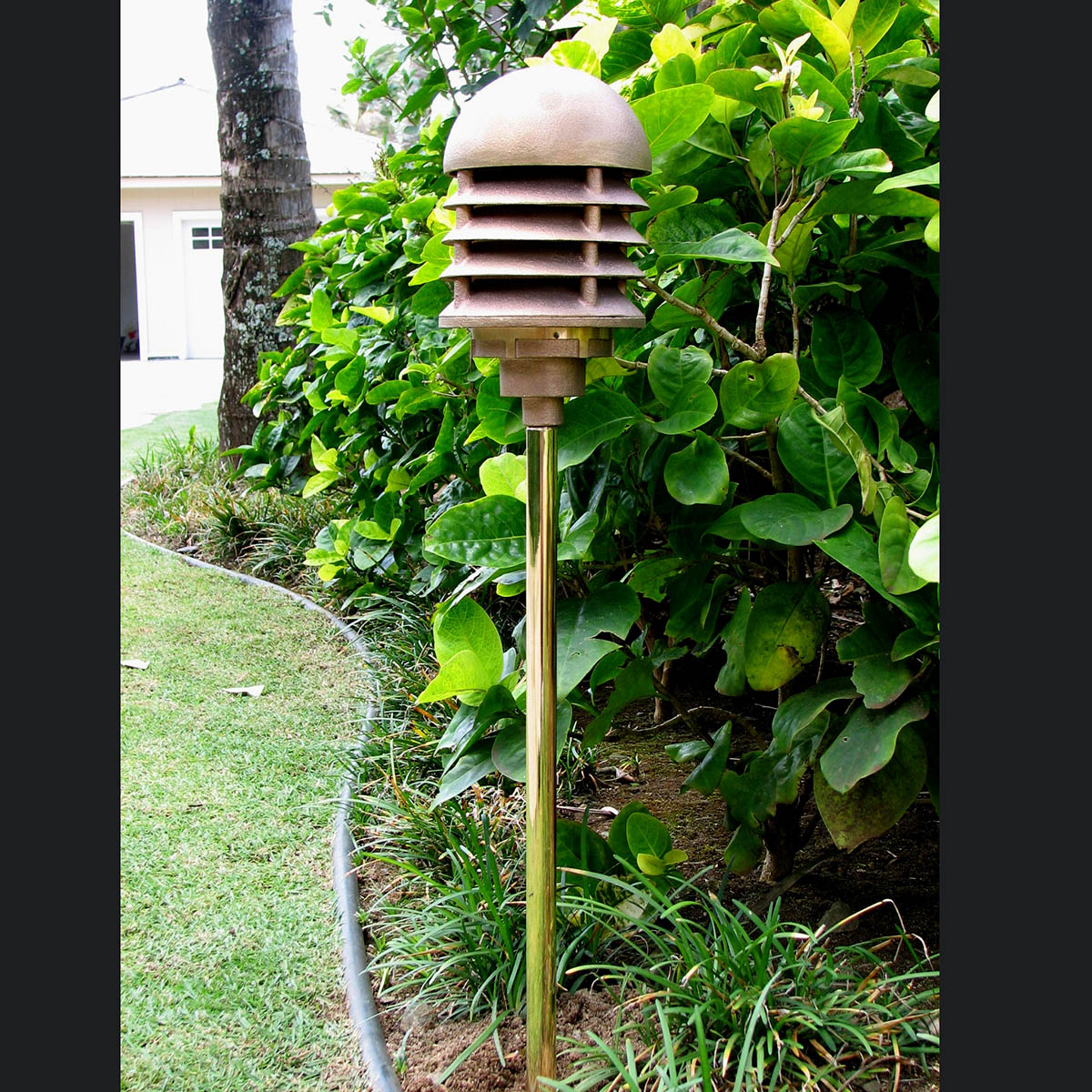

M-series Shade 6 Pathlights
M6
M-series Shade 7 Pathlights
M7

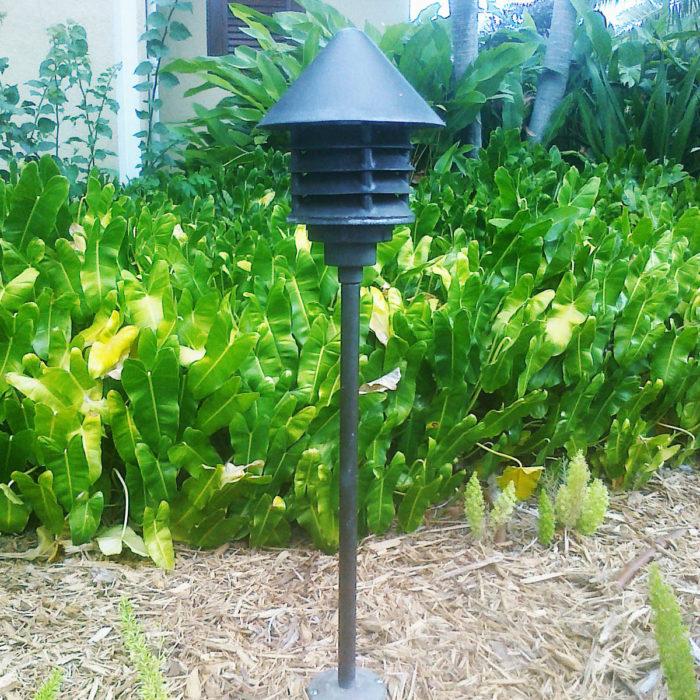

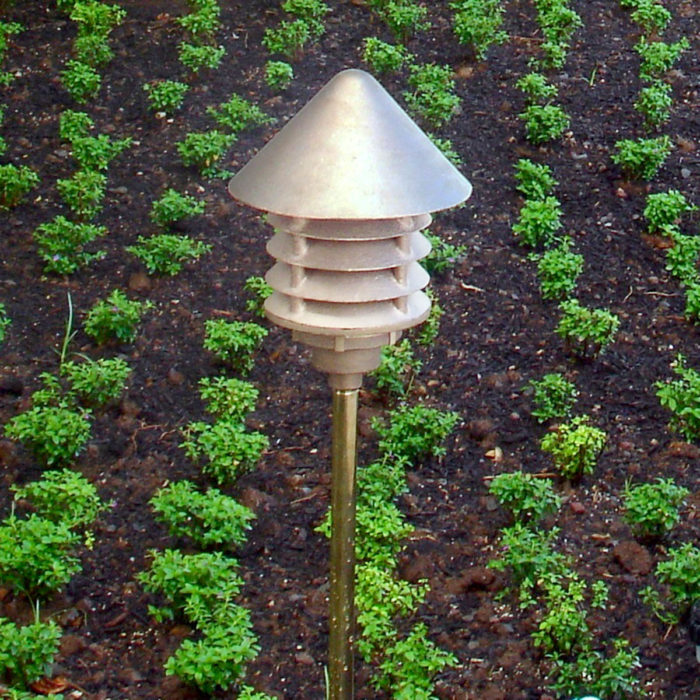

M-series Shade 8 Pathlights
M8
